Brand:GE Fanuc PLC Item No.:151X1225EK01PC03 Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

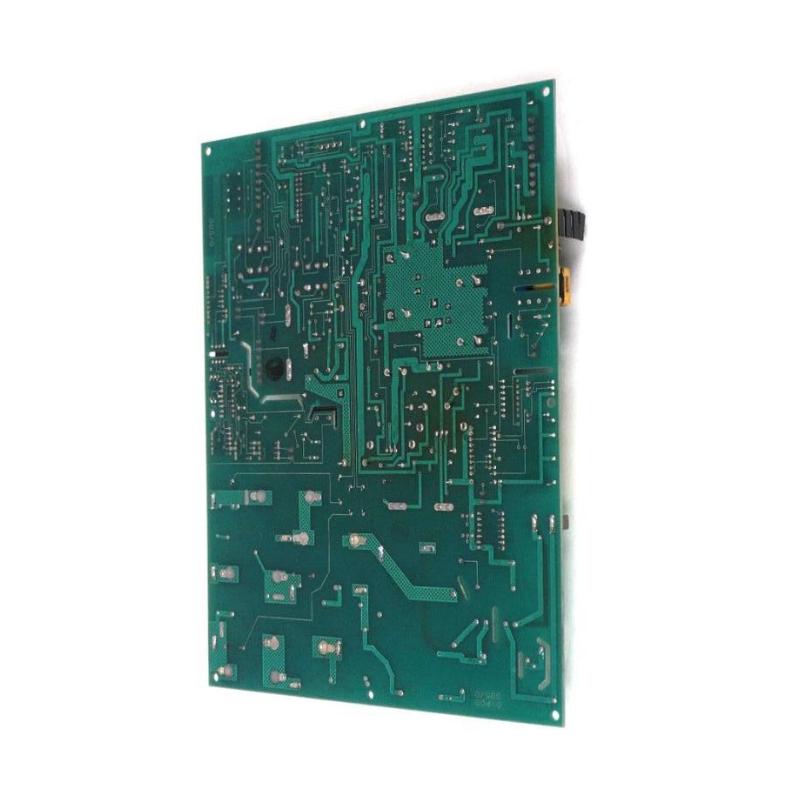

The GE 151X1225EK01PC03 Charger Output Board is a specialized GE Energy component designed to provide regulated charging output for industrial power systems. It is part of the GE 151X board and module family and is identified as a charger output board assembly used in GE applications.
Engineered for dependable power conversion performance, this board supports auxiliary power requirements by delivering stable DC output for connected control and electrical systems. Its compact industrial design makes it a practical solution for maintaining reliable operation in GE equipment where efficient charging and power regulation are critical.
Technical Specifications
Parameter
Specification
Product Type
Charger Output Board
Model Number
GE 151X1225EK01PC03
Manufacturer
General Electric (GE Energy)
Series
GE 151X Boards and Modules
Function
Battery Charger Output Control
Input Voltage
230 VAC, 50/60 Hz
Output Voltage
12 VDC
Output Current
2 A
Application
Industrial Power Systems and Renewable Energy Equipment
Board Design
PCB-Based Charger Assembly
Installation Type
Industrial Control Cabinet Mounting
Dimensions
Approx. 216 × 152 × 152 mm
Weight
Approx. 2.3 kg
Recommended Companion Models
Model
Product Name
GE 151X1225EK01PC04
Battery Charger Assembly
GE 151X1233DD01SA01R
Battery Charger Sub Assembly
GE 151X1233DD01SA02
Pitch Battery Charger Board
GE 151X1225DF01PC01
Power Converter Assembly
Frequently Selected Alternatives
Model
Product Name
GE 151X1225EK01PC03R
Charger Card Assembly
GE 151X1225DF01PC03RA
Power Converter Assembly
GE 151X1233DD01SA01R3
Charger Board
GE IS200AEPBH1B
GE Battery Charger Board
Where It Excels in Industrial Use
• Designed for GE industrial power systems and renewable energy applications requiring stable DC power conversion and reliable charging control.
• Suitable for wind turbine systems, industrial equipment, and GE power platforms where dependable auxiliary power management is essential.
• Provides consistent charging output performance for applications requiring efficient AC-to-DC conversion and reliable control system support.
Key Strengths at a Glance
• Provides regulated DC output capability to support reliable power supply requirements within GE industrial systems.
• Designed with dedicated charger board architecture for improved system stability and efficient power management.
• Supports long-term industrial operation through robust electrical design and dependable integration with GE equipment.
Technical FAQs
Q1: What is the primary function of the GE 151X1225EK01PC03 module?
The GE 151X1225EK01PC03 is a Charger Output Board designed to provide regulated DC power output within compatible GE industrial systems.
Q2: What type of power conversion does this board perform?
This board performs AC-to-DC conversion functions, providing a controlled DC output for connected system components.
Q3: What is the typical output capability of the GE 151X1225EK01PC03?
The board is designed for a 12 VDC output at 2 A under specified operating conditions.
Q4: Which GE applications commonly use this charger board?
The module is commonly associated with GE industrial equipment, including renewable energy and power control applications.
Q5: How does this board improve system power reliability?
It provides regulated charging output to maintain stable DC power availability for compatible control and auxiliary systems.
Q6: Can the GE 151X1225EK01PC03 be used as a replacement component?
Yes, it can be used as a replacement board when the existing system requires the same GE charger output assembly specification.
Q7: What should be verified before installing this charger board?
Engineers should confirm model compatibility, electrical ratings, connector configuration, and system requirements before installation.
Q8: How does the charger output board support industrial operation?
The board provides stable power conversion and reliable electrical regulation to support continuous equipment operation.
Q9: What diagnostic checks are recommended for this module?
Engineers should inspect input voltage, output voltage, connection integrity, and system alarm conditions during troubleshooting.
Q10: Is the GE 151X1225EK01PC03 suitable for demanding industrial environments?
Yes, it is designed for industrial applications where reliable power support and stable electrical performance are required.
