Brand:Schneider PLC Item No.:STBXTS6610 Product Origin:France Product Dimensions:128 × 58 × 12 mm Product Weight:0.454 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

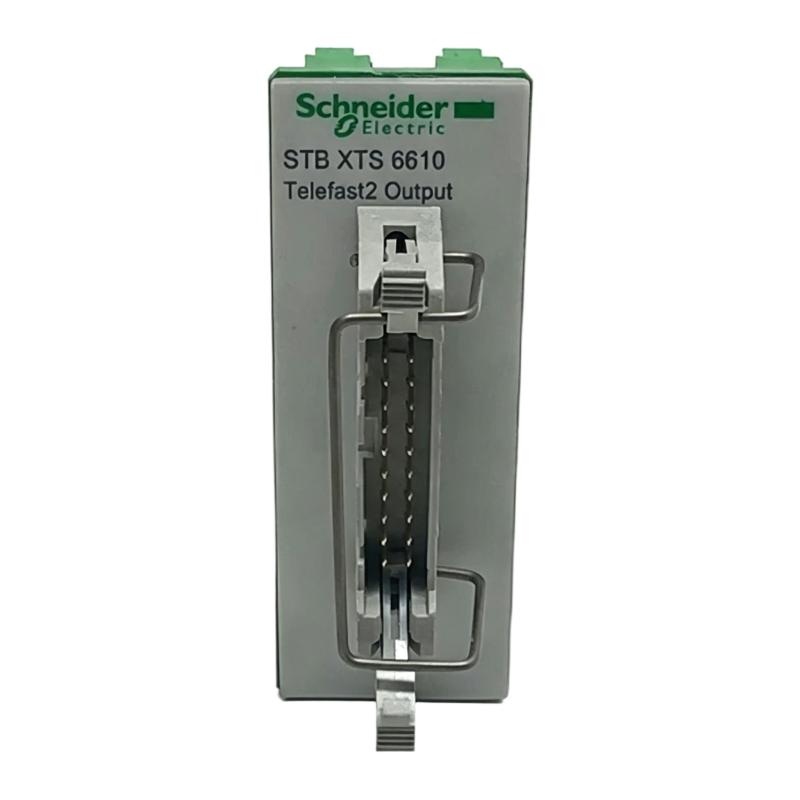

Schneider STBXTS6610 Modicon STB HE10 Connector is an important connection component used in industrial automation systems based on Modicon STB distributed I/O technology. It provides a structured interface between automation modules and external field wiring, helping engineers create reliable and efficient control solutions.
In modern manufacturing environments, wiring efficiency and system maintainability have become critical factors in automation design. A well-organized connection system can reduce installation time, simplify troubleshooting, and improve overall equipment reliability. The STBXTS6610 helps achieve these goals by providing a standardized HE10 connection method.
This connector is suitable for machine builders, automation engineers, and system integrators who require reliable digital output connections and flexible control cabinet layouts. It supports modular automation designs and improves the efficiency of system installation and maintenance.
Schneider STBXTS6610 features dimensions of 128 × 58 × 12 mm and a weight of 0.454 kg (1.00 lb). Its compact structure allows easy integration into industrial control panels while maintaining dependable connection performance.
With stable electrical connection capability, convenient installation features, and compatibility with Modicon STB automation architectures, Schneider STBXTS6610 Modicon STB HE10 Connector is an excellent choice for distributed I/O applications, industrial wiring solutions, and machine automation projects.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
STBXTS6610
Product Type
Modicon STB HE10 Connector
Product Series
Modicon STB
Accessory Type
I/O Connection Accessory
Connector Type
HE10 Interface
Application
Digital Output Connection
Compatible System
Modicon STB Distributed I/O System
Connection Method
Plug-In Connection
Installation Type
Direct Module Connection
Protection Rating
IP20
Dimensions
128 × 58 × 12 mm
Weight
0.454 kg (1.00 lb)
Recommended Related Models
Model
Product Type
Description
Schneider STBDDO3705
Digital Output Module
Modicon STB 16-channel digital output module
Schneider STBXTS6510
Connector
Modicon STB HE10 connection accessory
Schneider STBXBE1300K
Internal Bus Expansion Kit
STB internal bus expansion component
Schneider STBNIP2311
Network Interface Module
Ethernet Modbus TCP/IP communication module
Schneider STBNFP2212
Network Interface Module
FIPIO communication interface module
Popular Related Models
Model
Module Type
Application
Schneider Modicon STB Series
Distributed I/O System
Modular remote I/O automation
Schneider Modicon M340
PLC Controller
Medium-scale industrial control
Schneider Modicon M580
PLC Controller
Advanced industrial automation
Schneider Premium Series
PLC Controller
Factory automation applications
Schneider Advantys STB Series
Distributed I/O Platform
Flexible machine control solutions
Applications
Schneider STBXTS6610 Modicon STB HE10 Connector is a specialized connection accessory designed for Modicon STB distributed I/O systems. It provides a reliable interface between compatible digital output modules and external wiring systems, helping automation engineers achieve efficient signal connection and simplified electrical cabinet design.
Typical application areas include:
Industrial automation systems
Factory production equipment
Packaging and assembly machinery
Machine control systems
Electrical control cabinets
Distributed I/O applications
Automated manufacturing lines
Industrial equipment integration projects
The Schneider STBXTS6610 Connector is mainly used to connect Modicon STB output modules with external wiring solutions through an HE10 interface. It helps reduce complex point-to-point wiring, improves installation efficiency, and provides a more organized connection structure for industrial automation projects.
For OEM manufacturers and system integrators, this connector provides a practical solution for building reliable, modular, and easy-to-maintain automation systems.
Advantages
Schneider STBXTS6610 Modicon STB HE10 Connector combines reliable connection performance, efficient wiring integration, and industrial durability to support modern automation applications.
Reliable Digital Output Connection
The STBXTS6610 provides a stable electrical connection between output modules and external devices, helping ensure accurate signal transmission.
Optimized Wiring Management
The HE10 connector design simplifies field wiring and reduces the complexity of traditional terminal-based connections.
Designed for Modicon STB Systems
The connector is developed specifically for compatible Modicon STB distributed I/O applications, ensuring reliable system integration.
Fast Installation and Replacement
The plug-in connection structure allows engineers to install, inspect, and replace components more efficiently during system maintenance.
Improved Cabinet Organization
The connector helps create cleaner control cabinet layouts by providing a standardized connection method.
Stable Industrial Operation
The robust design supports long-term operation in industrial environments requiring dependable signal connections.
Technical FAQs
Q1: What is the main function of Schneider STBXTS6610?
A: STBXTS6610 provides an HE10 connection interface for connecting compatible Modicon STB digital output modules with external wiring systems.
Q2: Which type of module is STBXTS6610 used with?
A: It is designed for compatible Modicon STB digital output module connection applications.
Q3: Why does the output device not respond after installing STBXTS6610?
A: Possible causes include incorrect wiring, poor connector contact, wrong module configuration, or external device connection problems.
Q4: How can an STBXTS6610 connection fault be diagnosed?
A: Check connector installation, wiring continuity, output module status, and the connected field device conditions.
Q5: Does STBXTS6610 require parameter configuration?
A: The connector itself does not require configuration, but the connected automation system must be correctly configured.
Q6: What causes unstable output signals through STBXTS6610?
A: Common causes include loose connections, damaged cables, poor contact quality, incorrect wiring, or environmental interference.
Q7: Can STBXTS6610 be used with any Modicon STB module?
A: It should only be used with compatible modules to ensure correct electrical connection and reliable operation.
Q8: How can the service life of STBXTS6610 be improved?
A: Proper installation, avoiding excessive mechanical stress, and regular inspection of connections can improve reliability.
Q9: Can STBXTS6610 replace another HE10 connector directly?
A: Replacement depends on connector specifications, module compatibility, and existing system wiring design.
Q10: What should be confirmed before installing STBXTS6610?
A: Confirm module compatibility, wiring requirements, connector type, installation environment, and system design.
