Brand:Schneider PLC Item No.:TCSEGPA23F14F Product Origin:France Product Dimensions:110 x 145 x 95 mm Product Weight:0.62 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

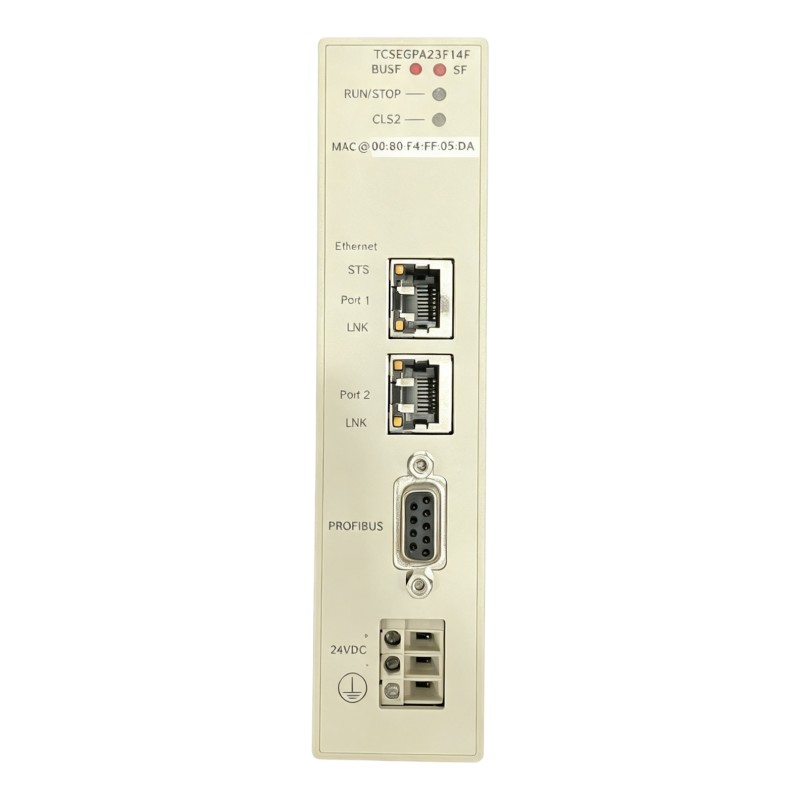

Schneider TCSEGPA23F14F Profibus DP V1 Remote Master is a professional industrial communication module designed to improve connectivity between Schneider PLC platforms and Profibus DP field devices. It provides an effective solution for integrating different generations of industrial automation equipment while maintaining reliable data communication.
In many manufacturing environments, Profibus networks remain widely used for connecting drives, remote I/O stations, and intelligent field devices. As industrial systems continue moving toward Ethernet-based architectures, communication modules such as TCSEGPA23F14F provide a practical approach for system modernization.
The module enables engineers to maintain existing Profibus infrastructure while connecting it with advanced Schneider PLC platforms. This reduces migration costs, simplifies system upgrades, and improves the flexibility of industrial communication networks.

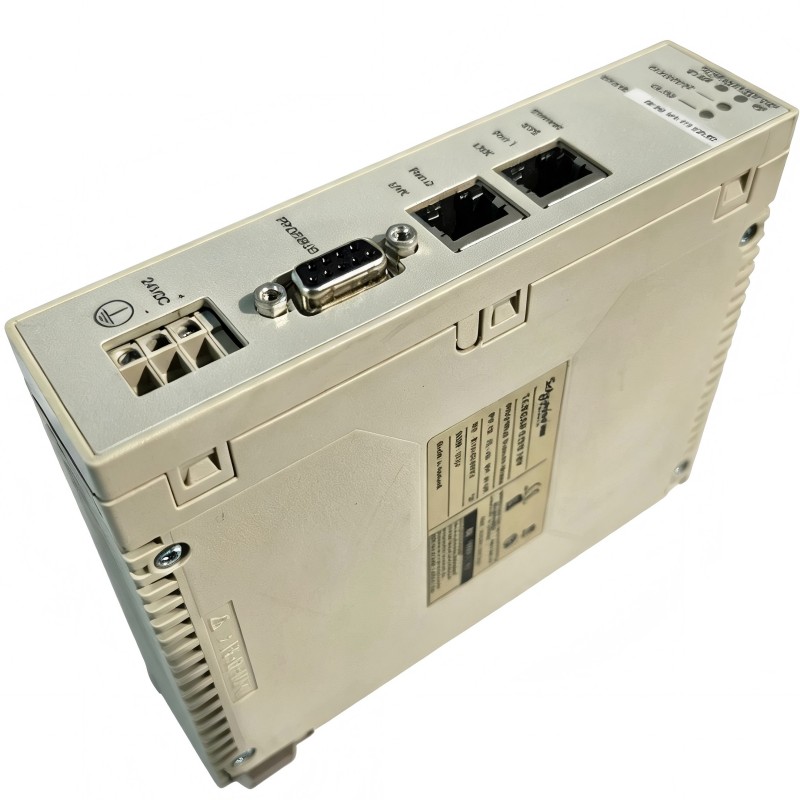

Schneider TCSEGPA23F14F features dimensions of 110 × 145 × 95 mm and a weight of 0.62 kg (1.37 lb). Its compact industrial design allows convenient installation in automation cabinets while providing reliable communication performance.
With strong Profibus integration capability, flexible PLC compatibility, and dependable industrial operation, Schneider TCSEGPA23F14F Profibus DP V1 Remote Master is an excellent choice for factory automation, process control systems, and industrial network modernization projects.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model Number
TCSEGPA23F14F
Product Type
Profibus DP V1 Remote Master
Communication Function
Ethernet to Profibus DP Gateway
Network Interface
Profibus DP V1
Physical Interface
RS-485
Compatible PLC Platforms
Premium / Quantum / Modicon M340 / Modicon M580
Communication Mode
Profibus Master
Maximum Transmission Speed
Up to 12 Mbit/s
Maximum Connected Devices
126 Profibus Slaves
Ethernet Interface
RJ45 Ethernet Communication
Power Supply
24 V DC
Installation Type
Industrial Module Mounting
Protection Rating
IP20
Dimensions
110 × 145 × 95 mm
Weight
0.62 kg (1.37 lb)
Recommended Related Models
Model
Product Type
Description
Schneider TCSEGPA23F14FK
Profibus DP V1 Remote Master
Enhanced communication module version
Schneider STBNDP2212
Network Interface Module
Profibus DP interface module for STB systems
Schneider BMXP342000
PLC Processor Module
Modicon M340 CPU module
Schneider BMEP582040
PLC Processor Module
Modicon M580 processor module
Schneider 140NOC78000
Communication Module
Quantum Ethernet communication module
Popular Related Models
Model
Module Type
Application
Schneider Modicon M580
PLC Controller
Advanced industrial automation systems
Schneider Modicon M340
PLC Controller
Medium-scale automation projects
Schneider Modicon Quantum
PLC Platform
Large industrial control systems
Schneider Premium Series
PLC Controller
Factory automation applications
Schneider Profibus Communication Series
Communication Module
Industrial fieldbus integration
Applications
Schneider TCSEGPA23F14F Profibus DP V1 Remote Master is an industrial communication module designed to connect Profibus DP field devices with Schneider automation control systems. It provides a reliable communication bridge between Ethernet-based PLC platforms and Profibus DP networks, allowing existing field devices to be integrated into modern automation architectures.
Typical application areas include:
Industrial automation systems
Process control applications
Factory production lines
Distributed I/O networks
Motor and drive control systems
Machine automation projects
Energy and infrastructure systems
Industrial communication upgrades
The Schneider TCSEGPA23F14F Remote Master is ideal for applications where Profibus DP devices need to communicate with Schneider PLC platforms through Ethernet-based control networks. It helps users expand automation systems, modernize existing installations, and maintain compatibility with installed Profibus equipment.
By providing efficient communication management between different industrial network technologies, this module helps engineers create flexible and scalable automation solutions.
Advantages
Schneider TCSEGPA23F14F Profibus DP V1 Remote Master combines advanced communication capability, reliable industrial performance, and flexible network integration for demanding automation applications.
Profibus Network Integration
The module enables Schneider PLC systems to communicate with Profibus DP field devices, providing an efficient solution for distributed automation architectures.
Ethernet Communication Capability
By supporting Ethernet-based communication, the module helps connect traditional Profibus equipment with modern industrial control platforms.
Wide System Compatibility
TCSEGPA23F14F is suitable for Schneider automation platforms including Premium, Quantum, Modicon M340, and Modicon M580 systems.
High-Speed Data Exchange
The module supports efficient Profibus DP communication, ensuring fast and stable data transmission between controllers and field devices.
Flexible Automation Upgrades
It allows users to integrate existing Profibus devices into upgraded control systems without replacing complete field networks.
Advanced Diagnostic Functions
Built-in diagnostic features help engineers monitor communication status, identify faults, and improve maintenance efficiency.
Technical FAQs
Q1: What is the main function of Schneider TCSEGPA23F14F?
A: TCSEGPA23F14F is a Profibus DP V1 Remote Master module used to connect Schneider PLC systems with Profibus DP field devices.
Q2: Which PLC systems can work with TCSEGPA23F14F?
A: It is designed for Schneider automation platforms such as Premium, Quantum, Modicon M340, and Modicon M580.
Q3: Why does TCSEGPA23F14F fail to communicate with Profibus devices?
A: Possible causes include incorrect slave addresses, communication parameter errors, cable faults, or improper PLC configuration.
Q4: How can Profibus communication problems be diagnosed?
A: Check device addresses, bus termination, communication speed settings, wiring quality, and module diagnostic information.
Q5: What causes unstable communication on a Profibus network?
A: Common causes include electromagnetic interference, incorrect termination, damaged cables, duplicate addresses, or incorrect configuration.
Q6: Can TCSEGPA23F14F integrate existing Profibus devices into Ethernet systems?
A: Yes, it provides a communication interface between Ethernet-based PLC systems and Profibus DP field equipment.
Q7: Does TCSEGPA23F14F support Profibus DP V1 functions?
A: Yes, it supports Profibus DP V1 communication features for industrial automation applications.
Q8: Why are Profibus slaves not detected by TCSEGPA23F14F?
A: Check slave configuration, network wiring, device addresses, power status, and communication parameters.
Q9: Can TCSEGPA23F14F be used for automation modernization projects?
A: Yes, it is suitable for upgrading existing Profibus-based systems while maintaining current field devices.
Q10: What maintenance is recommended for TCSEGPA23F14F?
A: Regular inspection of communication cables, configuration parameters, diagnostic status, and network conditions is recommended.
