Brand:Yokogawa Electric Item No.:ANB11D-225 Product Origin:Japan Product Dimensions:482.6 × 221.5 × 205 mm Product Weight:10 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Communication Overview

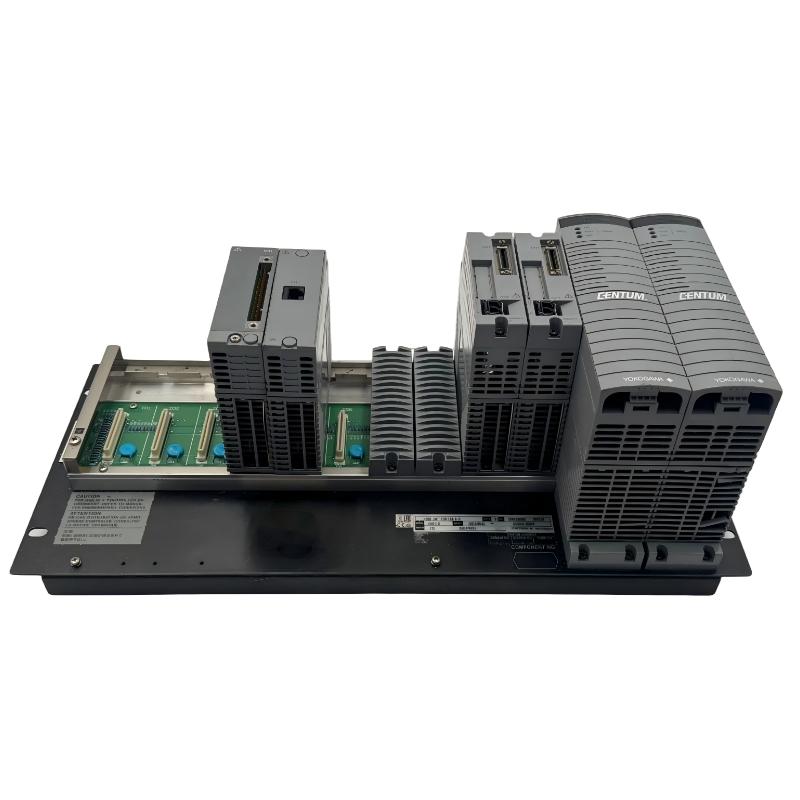

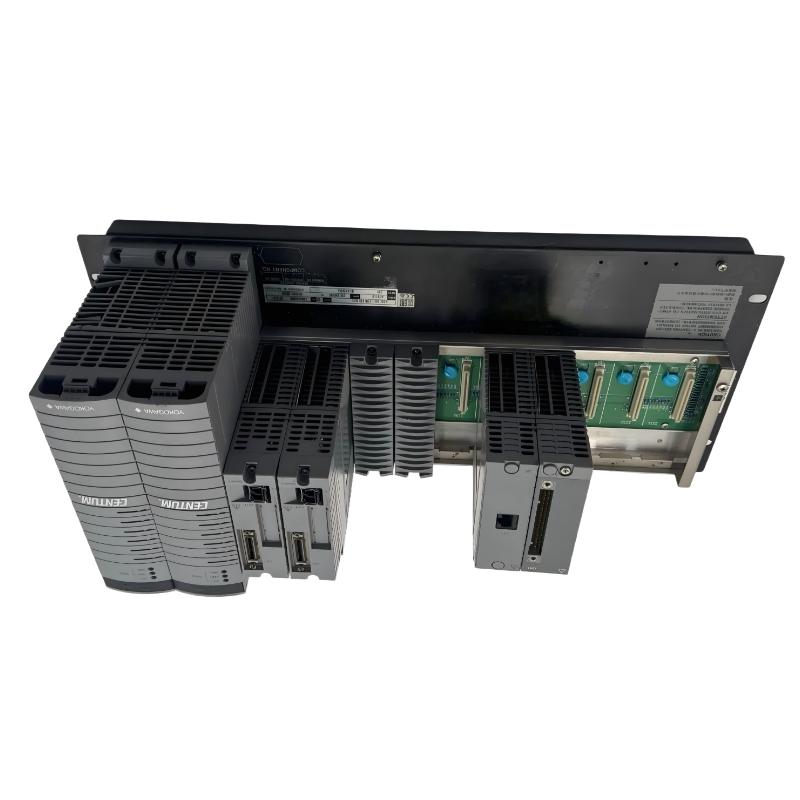

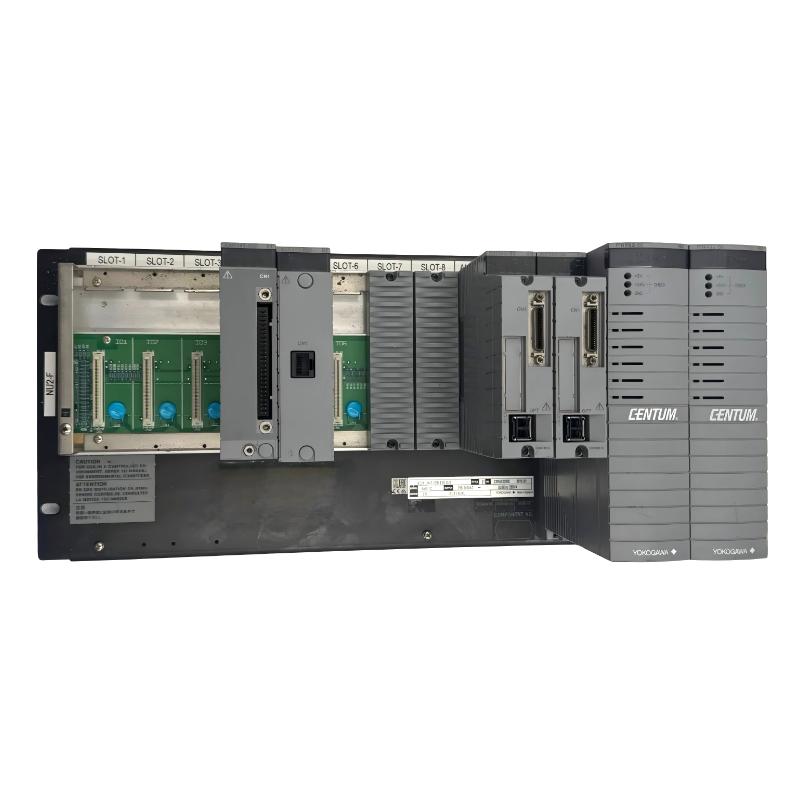

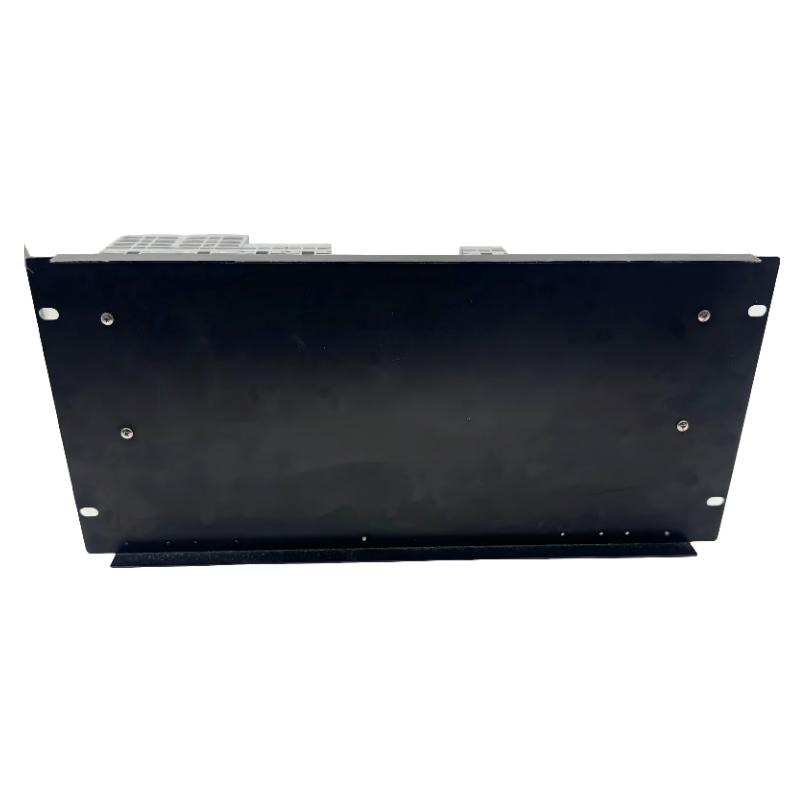

The Yokogawa ANB11D-225 Fiber ESB Bus Node Unit is a professional communication module designed for modern distributed control system applications. It provides a reliable connection point between control system components, supporting efficient data exchange across industrial automation networks.
In large-scale process industries, communication reliability is essential for maintaining safe and efficient plant operation. Control systems depend on stable network connections to collect field data, execute control strategies, and coordinate equipment operation.
The ANB11D-225 uses fiber-based communication technology to provide improved signal stability in industrial environments where electrical noise and long-distance transmission challenges may affect traditional communication methods.
With its robust design and compatibility with Yokogawa automation platforms, the ANB11D-225 helps improve system scalability, reduce communication risks, and maintain reliable operation of critical industrial processes.
For industries such as oil and gas, chemical processing, and power generation, this Fiber ESB Bus Node Unit provides an effective solution for DCS network expansion, system upgrades, and long-term automation infrastructure maintenance.
Technical Specifications
Parameter
Description
Manufacturer
Yokogawa
Model Number
ANB11D-225
Product Type
Fiber ESB Bus Node Unit
Communication Type
Fiber ESB Bus Communication
Application
Distributed Control System Network Communication
Function
Control Network Expansion and Data Communication
Installation Method
Rack Mount Installation
Communication Medium
Fiber Optic Connection
System Application
Yokogawa Industrial Automation Systems
Design Type
Industrial Communication Node
Dimensions
482.6 × 221.5 × 205 mm
Weight
10 kg (22.05 lb)
Application Environment
Industrial Process Control Systems
Recommended Related Models
Model
Product Type
Yokogawa ANB11D-225
Fiber ESB Bus Node Unit
Yokogawa ANB10D
Dual-Redundant Node Unit
Yokogawa ANB10S
ESB Bus Node Unit
Yokogawa AFV30D Series
Duplex Field Control Unit
Yokogawa AFV30S Series
Field Control Unit
Popular Related Models
Model
Product Type
Yokogawa CP451
Processor Module
Yokogawa CP471
Control Processor Module
Yokogawa ALR111
Communication Module
Yokogawa ALE111
Ethernet Communication Module
Yokogawa AAI141
Analog Input Module
Yokogawa AAI543
Analog Output Module
Yokogawa ADV151
Digital Input Module
Yokogawa ADV551
Digital Output Module
The Yokogawa ANB11D-225 Fiber ESB Bus Node Unit is a reliable industrial communication solution designed for high-performance distributed control systems. With fiber-based ESB communication, stable data transmission, and robust industrial construction, it supports efficient automation networking and long-term reliability in critical process industries.
Applications
The Yokogawa ANB11D-225 Fiber ESB Bus Node Unit is a high-performance network interface component designed for distributed control system (DCS) architectures. As an important communication node within Yokogawa automation systems, the ANB11D-225 provides reliable fiber-optic ESB bus connectivity between field control units, I/O modules, and system control components.
Designed for large-scale industrial automation environments, this bus node unit supports stable communication, extended transmission distances, and high system availability. It is particularly suitable for plants that require reliable data exchange between multiple control areas.
Typical application areas include:
Industry
Application
Oil & Gas
Refinery automation, remote field control, and process communication networks
Petrochemical
Distributed process control and plant-wide automation systems
Power Generation
Power plant monitoring, control network communication, and equipment integration
Chemical Industry
Large process automation systems and centralized control applications
Manufacturing
Industrial production control networks and automation infrastructure
The Yokogawa ANB11D-225 Fiber ESB Bus Node Unit provides a reliable communication foundation for industrial facilities requiring stable network performance, efficient data transmission, and long-term system availability.
Communication Performance Advantages and Industrial Benefits
High-Speed Fiber ESB Communication
The Yokogawa ANB11D-225 uses fiber-based ESB bus technology to provide stable and reliable communication between distributed control system components, reducing the influence of electrical interference in industrial environments.
Long-Distance Network Capability
Fiber communication allows flexible system layouts, making the unit suitable for large plants where control stations and field equipment are installed across different areas.
Enhanced System Reliability
The ANB11D-225 is designed for continuous industrial operation, supporting automation systems that require high availability and consistent communication performance.
Improved Data Transmission Stability
Fiber-optic communication provides strong resistance against electromagnetic interference, helping maintain accurate data exchange in complex industrial environments.
Flexible DCS System Expansion
The bus node unit supports expansion of Yokogawa control architectures, allowing engineers to build scalable automation networks according to plant requirements.
Industrial-Grade Design
The robust construction and rack installation design make the ANB11D-225 suitable for demanding process industries where reliability and durability are essential.
Technical FAQs
Q1: What is the main function of the Yokogawa ANB11D-225?
A: The ANB11D-225 provides fiber ESB bus communication between components in Yokogawa distributed control systems.
Q2: Why is fiber communication used in industrial control systems?
A: Fiber communication offers excellent resistance to electromagnetic interference and supports reliable data transmission over longer distances.
Q3: What systems use the ANB11D-225 Fiber ESB Bus Node Unit?
A: It is mainly used in Yokogawa DCS architectures for industrial process automation applications.
Q4: What problems can occur if a bus node unit fails?
A: Possible issues include communication interruptions, network alarms, loss of data exchange, or reduced system availability.
Q5: How can technicians troubleshoot communication faults?
A: Engineers should check fiber connections, communication status indicators, network configuration, power supply conditions, and system diagnostics.
Q6: What factors can affect fiber ESB communication performance?
A: Fiber damage, poor connections, incorrect configuration, environmental conditions, and hardware faults may affect communication reliability.
Q7: Why is stable bus communication important in DCS systems?
A: Reliable communication ensures accurate data exchange between controllers, I/O modules, and field devices.
Q8: Can the ANB11D-225 support system expansion?
A: Yes, it can be used in compatible Yokogawa control system architectures for automation network expansion.
Q9: What maintenance is recommended for fiber bus node units?
A: Regular inspection of fiber connectors, module status, network performance, and cabinet conditions is recommended.
Q10: Why should the correct bus node model be selected during replacement?
A: Proper model selection ensures communication compatibility and stable integration with the existing DCS system.
