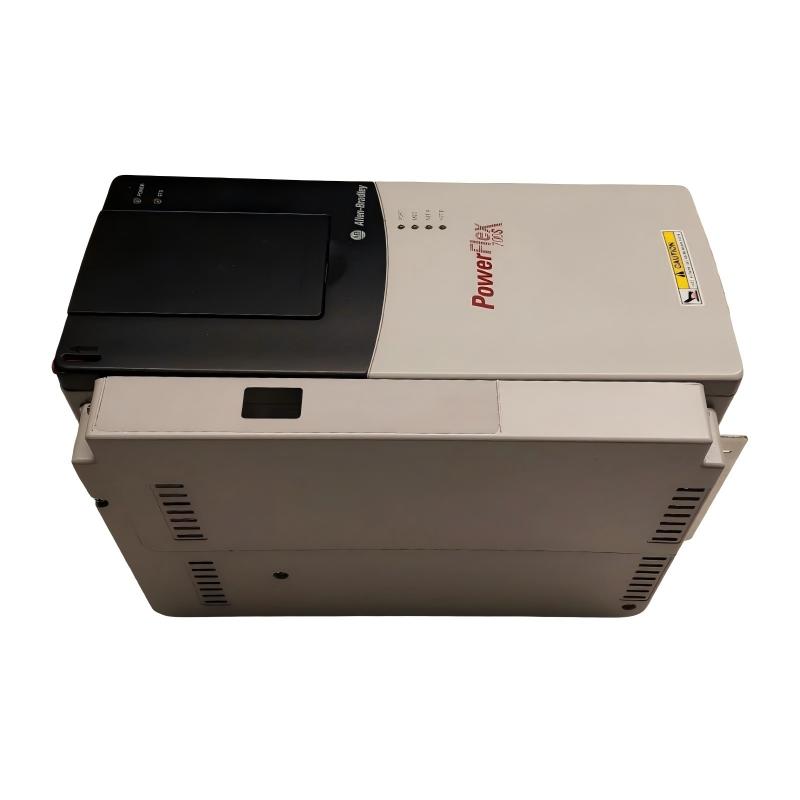

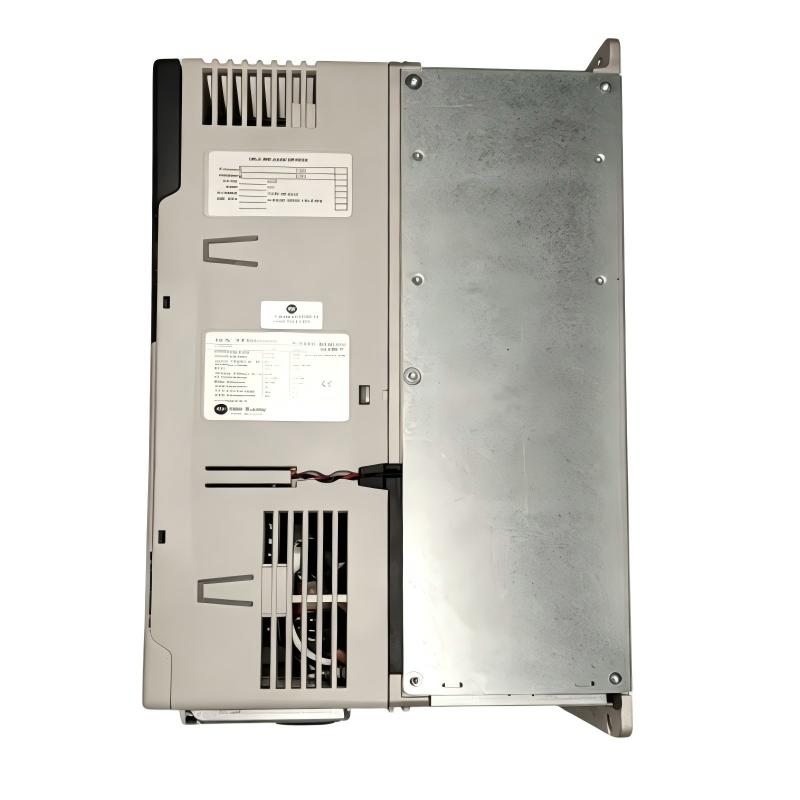

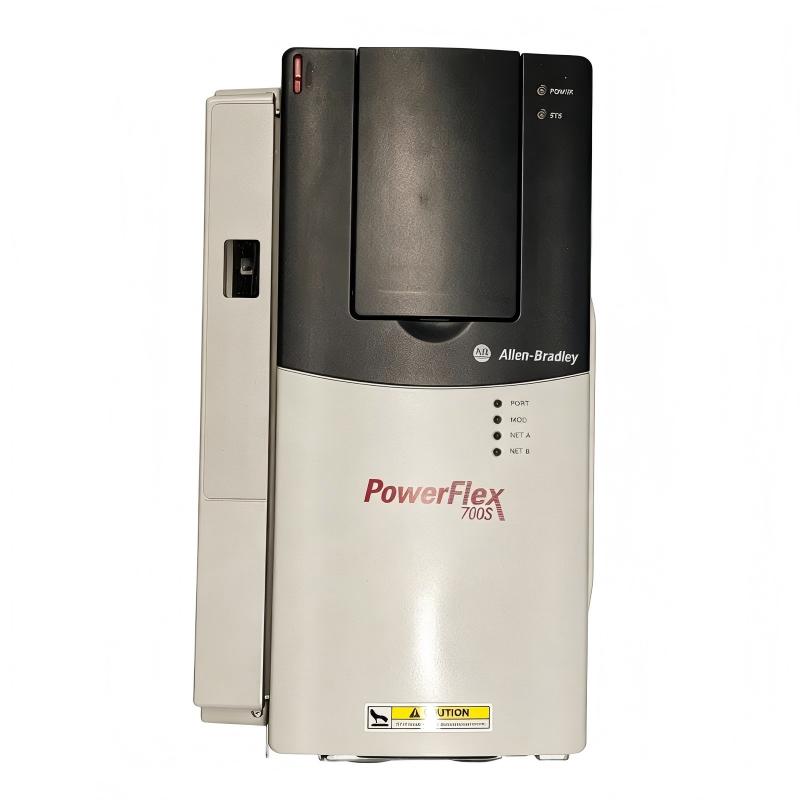

Allen Bradley 20DC022A0EYNANANE PowerFlex 700S AC drive
Allen Bradley 20DC022A0EYNANANE PowerFlex 700S AC drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20DC022A0EYNANANE Product Origin:USA Product Dimensions:336 x 166.9 x 200 mm Product Weight:7.03 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20DC022A0EYNANANE PowerFlex 700S AC Drive is an advanced industrial motor control solution designed for applications requiring high performance, precise control, and reliable automation operation.
The PowerFlex 700S family is developed for industrial systems where standard variable frequency drives cannot provide sufficient control performance. This series offers enhanced control architecture, improved motor response, and flexible configuration options for demanding automation environments.
The 20DC022A0EYNANANE model provides a 400 VAC three-phase configuration with a 22 A output rating, making it suitable for medium-power industrial motor applications. Its compact design and advanced functionality allow it to be integrated into a wide range of manufacturing equipment, process systems, and automated machinery.
With strong control capability, reliable construction, and flexible application support, this PowerFlex 700S AC Drive helps users improve production efficiency, maintain stable machine operation, and reduce maintenance challenges.
For industrial automation upgrades, machine development, and high-performance motor control projects, the Allen Bradley PowerFlex 700S provides a dependable solution for modern manufacturing requirements.
Technical Specifications
Parameter
Specification
Manufacturer
Allen Bradley
Product Series
PowerFlex 700S
Model Number
20DC022A0EYNANANE
Product Type
AC Drive
Drive Type
Variable Frequency Drive
Input Voltage
400 VAC
Input Phase
Three Phase
Output Current
22 A
Motor Power Rating
11 kW Normal Duty
Control Technology
Phase II Control
Control Method
Advanced Vector Control
Protection Rating
IP20 / Type 1
Brake Function
Brake IGBT Installed
Communication Capability
Industrial Network Integration
Installation Type
Panel Mount
Application
High-Performance Industrial Motor Control
Dimensions
336 mm × 166.9 mm × 200 mm
Weight
7.03 kg (15.50 lb)
Recommended Related Models
Model
Product Type
Allen Bradley 20DC022A0EYNANANE
PowerFlex 700S AC Drive
Allen Bradley 20DC015A0EYNANANE
PowerFlex 700S AC Drive
Allen Bradley 20DC027A0EYNANANE
PowerFlex 700S AC Drive
Allen Bradley 20DC034A0EYNANANE
PowerFlex 700S AC Drive
Allen Bradley 20-HIM-A6
PowerFlex Human Interface Module
Popular Related Models
Model
Product Type
Allen Bradley PowerFlex 70
Industrial AC Drive
Allen Bradley PowerFlex 700
Industrial AC Drive
Allen Bradley PowerFlex 700S
High Performance AC Drive
Allen Bradley PowerFlex 755
Advanced AC Drive
Allen Bradley Kinetix Servo Drive Series
Motion Control Drive
Industrial Applications and Advanced Motion Control Systems
The Allen Bradley 20DC022A0EYNANANE PowerFlex 700S AC Drive is a high-performance industrial variable frequency drive designed for applications requiring advanced motor control, accurate speed regulation, and reliable automation integration. As part of the PowerFlex 700S series, this AC drive provides enhanced control capability for demanding industrial environments where precision, dynamic response, and system reliability are essential.
The PowerFlex 700S platform is developed for applications that require more than basic motor speed control. It delivers advanced performance for complex machinery, production equipment, and automation systems where consistent motor operation directly affects productivity and process quality.
Typical application areas include:
Advanced manufacturing equipment
Motion control machinery
Automated production lines
Packaging and converting systems
Material handling equipment
Industrial processing machines
OEM automation solutions
High-performance motor control applications
The Allen Bradley 20DC022A0EYNANANE helps engineers achieve improved machine performance through precise motor management, flexible configuration, and dependable operation in industrial environments.
Engineering Advantages and Performance Benefits
The Allen Bradley PowerFlex 700S AC Drive combines advanced control technology with industrial durability, providing a reliable solution for automation engineers, machine builders, and system integrators.
High-Precision Motor Control
The PowerFlex 700S provides accurate speed and torque control, allowing motors to respond quickly to changing operating conditions while maintaining stable performance.
Enhanced Dynamic Response
Designed for demanding applications, this AC drive supports improved motor response and smoother operation, helping machines achieve higher productivity and better process consistency.
Reliable Industrial Performance
The drive is built for continuous industrial operation and includes monitoring and protection functions that help maintain system stability and reduce unexpected downtime.
Flexible Automation Integration
The PowerFlex 700S series supports integration with industrial control systems, allowing efficient coordination between drives, controllers, and automation equipment.
Optimized Machine Efficiency
By providing accurate motor control and flexible operating parameters, the drive helps improve energy utilization, reduce mechanical stress, and extend equipment service life.
Technical FAQs
1. What is the main application of the Allen Bradley 20DC022A0EYNANANE PowerFlex 700S AC Drive?
The drive is designed for industrial applications requiring advanced variable speed control, accurate torque management, and reliable motor performance.
2. What makes the PowerFlex 700S different from standard AC drives?
The PowerFlex 700S provides advanced control features, improved response capability, and greater flexibility for complex automation applications.
3. What type of motors can be controlled by this AC drive?
The drive is designed for compatible industrial AC motors used in applications requiring precise speed and torque control.
4. How does the PowerFlex 700S improve machine operation?
The drive improves operation by providing accurate motor regulation, smoother acceleration, controlled deceleration, and better response to load changes.
5. How can engineers troubleshoot drive communication problems?
Engineers should check communication parameters, network connections, controller configuration, drive settings, and diagnostic information.
6. What factors can cause unstable motor performance?
Common causes include incorrect motor parameters, improper commissioning, power supply issues, communication errors, mechanical load changes, or incorrect configuration.
7. Can the 20DC022A0EYNANANE be integrated with PLC automation systems?
Yes. The drive is designed to operate within industrial automation architectures using compatible control and communication solutions.
8. Why is correct commissioning important for the PowerFlex 700S?
Proper commissioning ensures that motor characteristics, control parameters, and application requirements are correctly matched for optimal performance.
9. What maintenance procedures help maintain PowerFlex 700S reliability?
Regular inspection of electrical connections, cooling conditions, operating parameters, and fault records helps ensure stable long-term operation.
10. What should engineers evaluate before installing this AC drive?
Engineers should consider motor specifications, power requirements, application performance needs, communication requirements, and installation conditions.
