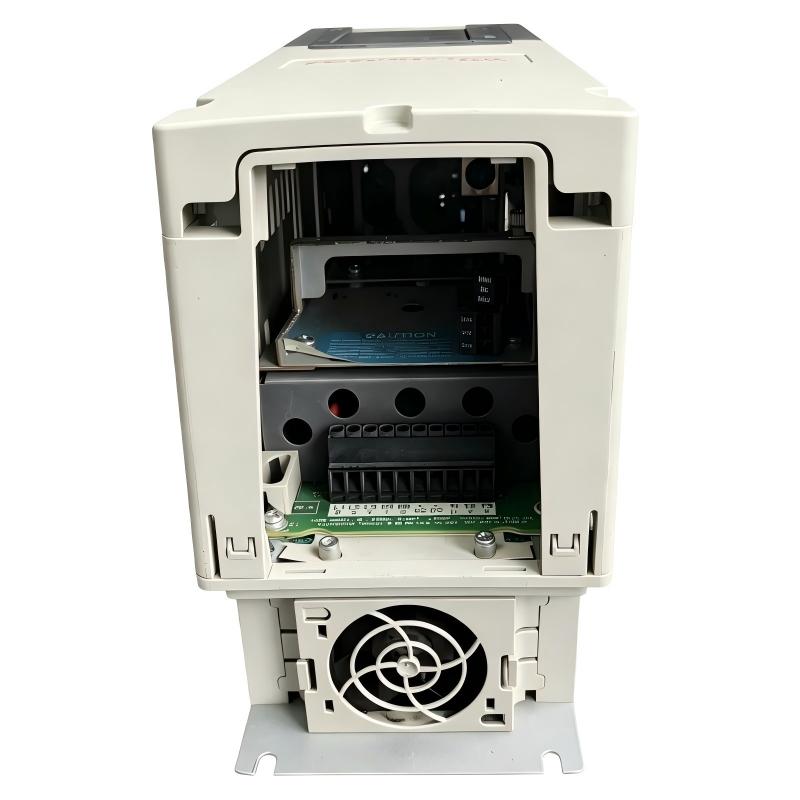

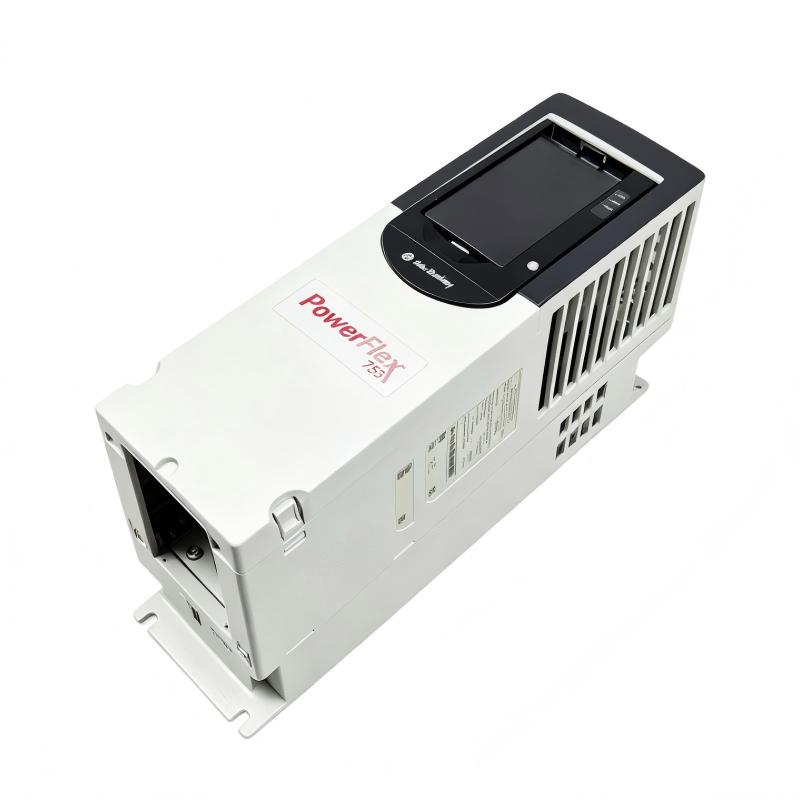

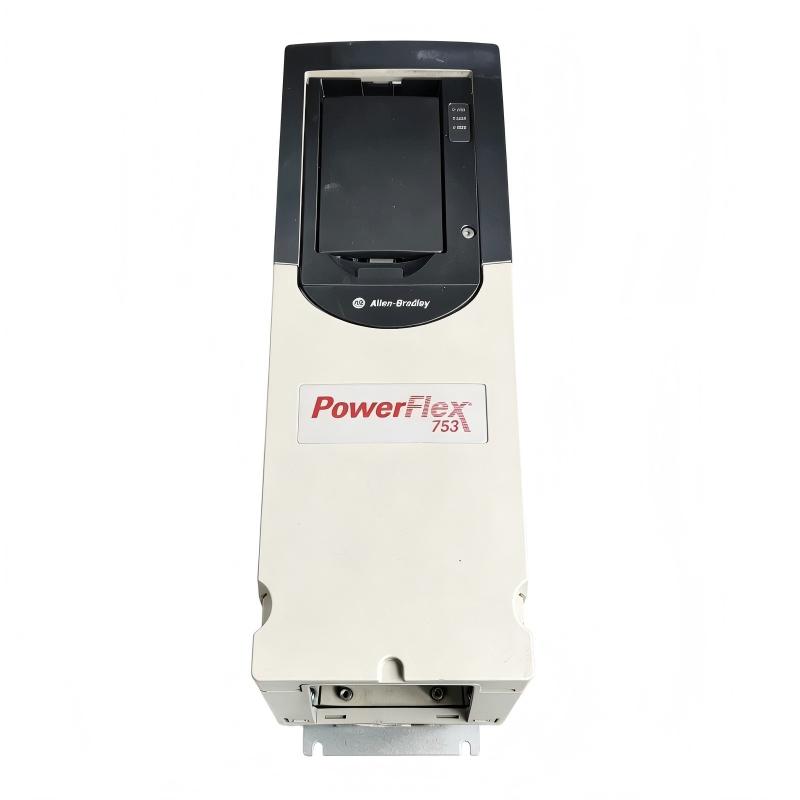

Allen Bradley 20F11NC022AA0NNNNN PowerFlex 753 AC drive
Allen Bradley 20F11NC022AA0NNNNN PowerFlex 753 AC drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F11NC022AA0NNNNN Product Origin:USA Product Dimensions:424.2 x 134.5 x 212 mm Product Weight:7.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20F11NC022AA0NNNNN PowerFlex 753 AC Drive is an industrial variable frequency drive designed to provide dependable motor control for a wide range of automation applications.
The PowerFlex 753 series focuses on providing efficient motor management, flexible installation options, and reliable operation for industrial equipment. This model features a 400 VAC three-phase input design with a 22 A output current rating, supporting medium-power motor applications.
The drive integrates practical control functions, dynamic braking capability, EMC filtering, and industrial protection features to support stable operation in manufacturing and automation environments.
The 20F11NC022AA0NNNNN is a suitable choice for machine builders, system integrators, and industrial users who require a reliable drive solution for production equipment upgrades and automation projects.
With its balance of performance, flexibility, and reliability, the PowerFlex 753 AC Drive helps improve machine efficiency, reduce operational challenges, and support modern industrial automation requirements.

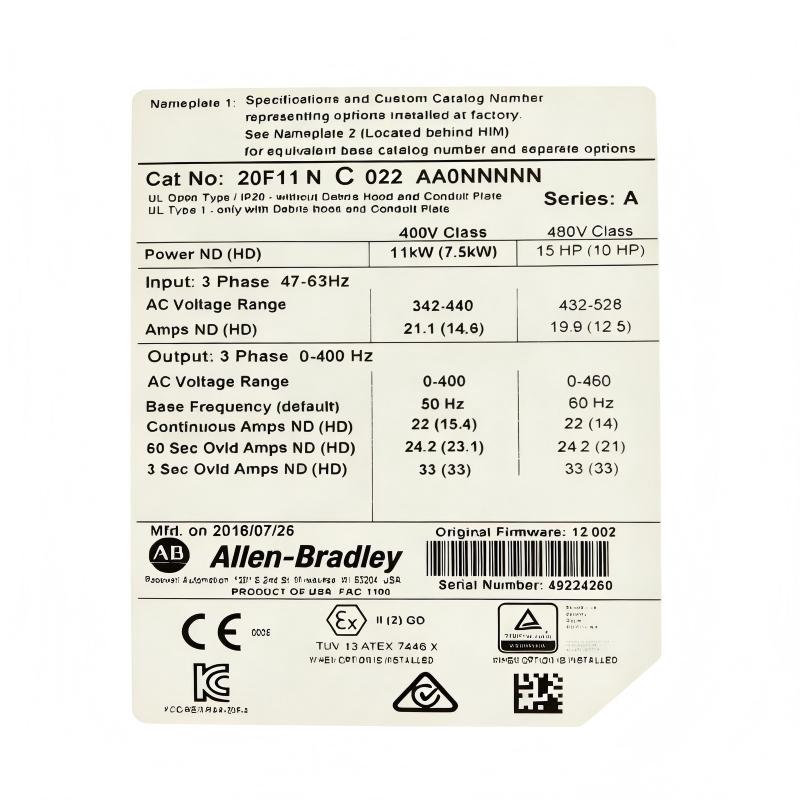

Technical Specifications
Parameter
Specification
Manufacturer
Allen Bradley
Product Series
PowerFlex 753
Model Number
20F11NC022AA0NNNNN
Product Type
AC Drive
Drive Type
Variable Frequency Drive
Input Voltage
400 VAC
Input Phase
Three Phase
Output Current
22 A
Motor Power Rating
11 kW Normal Duty / 7.5 kW Heavy Duty
Frame Size
Frame 2
Input Type
AC Input with Precharge
Dynamic Braking
DB Transistor
Filtering
EMC Filter
Enclosure Type
Open Type
Control Method
Vector Control
Installation Type
Panel Mount
Application
Industrial Motor Speed Control
Dimensions
424.2 mm × 134.5 mm × 212 mm
Weight
7.80 kg (17.20 lb)
Recommended Related Models
Model
Product Type
Allen Bradley 20F11NC022AA0NNNNN
PowerFlex 753 AC Drive
Allen Bradley 20F11NC022JA0NNNNN
PowerFlex 753 AC Drive
Allen Bradley 20F11ND022AA0NNNNN
PowerFlex 753 AC Drive
Allen Bradley 20F11NB022AA0NNNNN
PowerFlex 753 AC Drive
Allen Bradley 20-HIM-A6
PowerFlex Human Interface Module
Popular Related Models
Model
Product Type
Allen Bradley PowerFlex 525
Compact AC Drive
Allen Bradley PowerFlex 70
Industrial AC Drive
Allen Bradley PowerFlex 700
Industrial AC Drive
Allen Bradley PowerFlex 753
Industrial AC Drive
Allen Bradley PowerFlex 755
Advanced AC Drive
Industrial Applications and Automation Control Solutions
The Allen Bradley 20F11NC022AA0NNNNN PowerFlex 753 AC Drive is a flexible and reliable industrial variable frequency drive designed for modern automation systems requiring efficient motor control, stable performance, and convenient integration.
As part of the PowerFlex 753 AC Drive family, this model provides an effective solution for controlling industrial AC motors in manufacturing environments. It combines practical drive functionality with advanced monitoring, protection, and configuration capabilities, making it suitable for a wide range of automation applications.
The PowerFlex 753 AC Drive is designed to support industries that require dependable motor operation, improved production efficiency, and simplified system maintenance.
Typical applications include:
Automated production equipment
Conveyor and material handling systems
Industrial pumps and fans
Packaging machinery
Processing equipment
Factory automation systems
OEM machine applications
General industrial motor control systems
With its compact structure, reliable operation, and flexible integration capability, the Allen Bradley 20F11NC022AA0NNNNN helps users improve equipment performance and maintain stable industrial processes.
Key Advantages and Industrial Performance Features
The Allen Bradley 20F11NC022AA0NNNNN PowerFlex 753 AC Drive provides a combination of reliable motor control, flexible configuration, and industrial durability for demanding automation environments.
Efficient Motor Speed Control
The drive provides accurate speed regulation and smooth motor operation, helping machines achieve consistent performance under different operating conditions.
Flexible Automation Integration
The PowerFlex 753 platform supports integration with industrial control systems, allowing engineers to easily connect drives with automation equipment and production networks.
Reliable Protection Functions
Built-in monitoring and protection features help detect abnormal operating conditions, improve system safety, and reduce unexpected equipment downtime.
Compact Industrial Design
The optimized structure allows easier installation inside control cabinets while maintaining reliable performance in industrial environments.
Improved Energy Management
By adjusting motor operation according to actual process requirements, the drive helps reduce unnecessary energy consumption and improve overall system efficiency.
Technical FAQs
1. What is the Allen Bradley 20F11NC022AA0NNNNN PowerFlex 753 AC Drive mainly used for?
The drive is used for controlling AC motor speed, torque, and operation in industrial automation applications.
2. What advantages does the PowerFlex 753 series provide?
The PowerFlex 753 series provides flexible configuration, reliable motor control, integrated protection functions, and convenient automation connectivity.
3. What types of motors can be controlled by this AC drive?
The drive is designed for compatible industrial AC motors used in variable speed control applications.
4. How does the PowerFlex 753 improve machine operation?
The drive improves machine operation by providing smooth acceleration, controlled deceleration, and stable motor speed regulation.
5. What are common causes of PowerFlex 753 drive faults?
Common causes include incorrect parameters, wiring problems, motor issues, unstable power supply, communication failures, or excessive mechanical loads.
6. How can engineers troubleshoot a PowerFlex 753 communication issue?
Engineers should verify communication settings, network connections, controller configuration, and drive diagnostic information.
7. Can the 20F11NC022AA0NNNNN be used in PLC-based automation systems?
Yes. The drive can be integrated into PLC-controlled systems through compatible industrial communication methods.
8. Why is drive commissioning important before operation?
Proper commissioning ensures correct motor configuration, optimized parameters, and reliable system performance.
9. What maintenance practices are recommended for PowerFlex 753 drives?
Regular inspection of wiring, cooling conditions, operating parameters, and fault history helps maintain reliable operation.
10. What factors should be considered when selecting an AC drive for industrial equipment?
Engineers should consider motor specifications, application requirements, control performance, environmental conditions, and communication needs.
