Brand:Schneider PLC Item No.:TM200C24U Product Origin:France Product Dimensions:130 x 90 x 70 mm Product Weight:0.382 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Product Introduction and Industrial Automation Overview

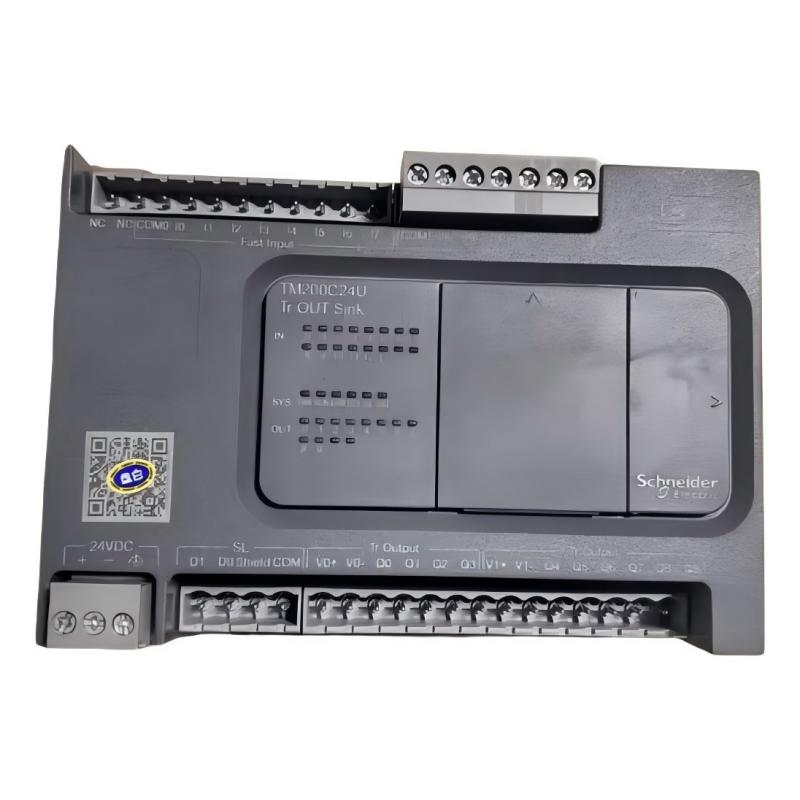

The Schneider TM200C24U Easy Modicon M200 Controller is a reliable compact PLC solution designed for efficient machine control and industrial automation applications.
The Easy Modicon M200 series provides a practical control platform for OEM manufacturers and industrial users who need a balance between performance, simplicity, and cost efficiency.
The TM200C24U model includes 24 digital I/O points with transistor sink outputs, making it suitable for applications requiring fast response, accurate signal handling, and reliable device control.
The controller operates with a 24 V DC power supply and supports high-speed input functions, fast output operations, and expansion capability for additional automation requirements.
With its compact design, flexible configuration, and dependable operation, the TM200C24U is an excellent choice for machine builders developing efficient and scalable automation systems.
For industrial users seeking a practical PLC platform, the Schneider Easy Modicon M200 Controller provides reliable performance for modern machine automation projects.
Technical Specifications
Parameter
Specification
Manufacturer
Schneider Electric
Product Series
Easy Modicon M200
Model Number
TM200C24U
Product Type
Logic Controller
Controller Type
PLC Controller
Rated Supply Voltage
24 V DC
Digital I/O Number
24
Digital Inputs
14 Inputs
Digital Outputs
10 Transistor Outputs
Output Type
Transistor Sink Output
Digital Input Voltage
24 V DC
Digital Output Voltage
24 V DC
Output Current
0.5 A
High-Speed Functions
PTO / PWM / PLS Supported
Expansion Capability
Supports Expansion Modules
Programming Interface
USB Mini-B
Installation Type
DIN Rail Mount
Protection Rating
IP20
Operating Temperature
0°C to 55°C
Dimensions
130 mm × 90 mm × 70 mm
Weight
0.382 kg (0.84 lb)
Recommended Related Models
Model
Product Type
Schneider TM200C24U
Easy Modicon M200 Controller
Schneider TM200C24T
Easy Modicon M200 Controller
Schneider TM200C24R
Easy Modicon M200 Controller
Schneider TM200C16U
Easy Modicon M200 Controller
Schneider TM3 Series
PLC Expansion Module
Popular Related Models
Model
Product Type
Schneider Modicon M221
Compact PLC Controller
Schneider Modicon M241
Machine Controller
Schneider Modicon M251
Advanced Machine Controller
Schneider Modicon M340
Modular PLC Controller
Schneider Modicon M580
Process Automation Controller
Industrial Applications and Compact PLC Automation Control
The Schneider TM200C24U Easy Modicon M200 Controller is a compact programmable logic controller designed for reliable machine automation, efficient sequence control, and flexible industrial applications.
As part of the Easy Modicon M200 controller family, the TM200C24U provides a practical PLC solution for OEM machine builders, automation engineers, and system integrators who require stable performance, fast processing capability, and easy integration within compact control systems.
Designed with 24 digital I/O points and transistor sink outputs, this controller provides accurate signal processing and fast switching performance for various industrial automation tasks. Its compact structure makes it suitable for control cabinets where installation space is limited while maintaining dependable PLC functionality.
Typical applications include:
Packaging and assembly machines
Automated manufacturing equipment
Conveyor and material handling systems
Small production lines
Industrial inspection equipment
Pump and fan control systems
Process monitoring applications
OEM machine automation projects
With reliable control performance and flexible expansion capability, the Schneider TM200C24U helps users simplify machine development, improve automation efficiency, and maintain stable production processes.
Key Advantages and Industrial Performance Features
The Schneider TM200C24U Easy Modicon M200 Controller combines compact design, flexible I/O management, and reliable PLC performance to meet the requirements of modern machine automation systems.
Fast Transistor Output Response
The TM200C24U uses transistor sink outputs, providing fast switching capability for applications requiring accurate actuator control, pulse operations, and responsive machine sequences.
Compact Structure for Space Efficiency
The controller features a compact design that helps reduce electrical cabinet space requirements while maintaining reliable automation performance.
Flexible Digital Signal Processing
Integrated digital inputs and outputs allow connection with different industrial sensors, switches, and devices for various automation applications.
Expandable Automation Capability
The Easy Modicon M200 platform supports additional expansion modules, allowing engineers to increase system functionality according to future project requirements.
Reliable Industrial Control Operation
Designed for industrial environments, the TM200C24U provides stable operation, simplified maintenance, and dependable performance for continuous automation applications.
Technical FAQs
1. What is the Schneider TM200C24U Easy Modicon M200 Controller mainly used for?
The TM200C24U is mainly used for controlling small and medium industrial machines, automated equipment, and compact production systems.
2. What type of output does the TM200C24U controller provide?
The controller provides transistor sink outputs suitable for fast switching and precise industrial control applications.
3. What programming functions can be performed with this PLC controller?
The controller supports logic operations, timers, counters, sequencing control, comparison functions, and automation programming tasks.
4. Why are transistor outputs suitable for machine automation?
Transistor outputs provide faster switching performance compared with traditional relay outputs, making them suitable for high-speed control applications.
5. What causes PLC input signals to become unstable?
Possible causes include sensor problems, incorrect wiring, electrical interference, incorrect configuration, or external equipment faults.
6. How can engineers troubleshoot PLC output problems?
Engineers should check the control program, output status, wiring connections, connected devices, and operating conditions.
7. Can the TM200C24U support additional expansion modules?
Yes. The Easy Modicon M200 platform supports expansion modules to increase system capability and adapt to larger automation requirements.
8. Why should PLC programs be backed up regularly?
Program backups allow engineers to restore machine operation quickly after controller replacement, maintenance, or system upgrades.
9. What factors affect PLC communication reliability?
Communication reliability can be affected by incorrect parameters, wiring issues, electromagnetic interference, and configuration errors.
10. What should engineers consider before selecting this PLC controller?
Engineers should evaluate I/O requirements, output type, processing needs, expansion capability, communication requirements, and application conditions.
