Brand:Schneider PLC Item No.: TM5SAI2H Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

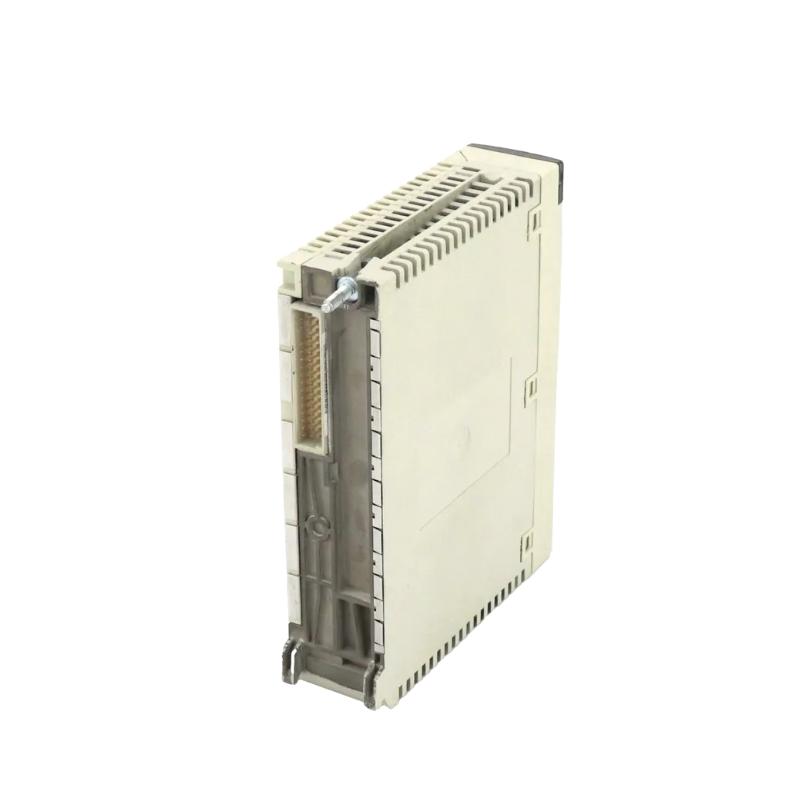

The Schneider TM5SAI2H Analog Input Module is a precision measurement module developed for the Modicon TM5 automation platform. With two high-resolution differential analog input channels, it provides reliable signal acquisition for industrial sensors and field devices requiring accurate voltage or current measurement.
Designed for modern machine automation environments, the TM5SAI2H combines compact modular construction with advanced analog processing capability. Its high resolution, fast sampling performance, and compatibility with Schneider Electric control platforms make it a valuable solution for applications requiring dependable process monitoring and precise feedback control.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
TM5SAI2H
Product Family
Modicon TM5
Module Type
Analog Input Module
Analog Input Channels
2 Channels
Input Type
Differential Analog Input
Voltage Input Range
-10...+10 V DC
Current Input Range
0...20 mA
Resolution
15 bits + sign (Voltage), 15 bits (Current)
Sampling Duration
50 μs
Input Impedance
≥20 MΩ (Voltage Input)
Load Impedance
≤400 Ω (Current Input)
Input Filter
Low-pass 3rd order / 10 kHz cutoff
Accuracy
<0.08% of full scale at 25°C
Temperature Drift
0.01% / °C
Common Mode Rejection
≥70 dB
Power Supply
24 V DC
24 V DC Current Consumption
50 mA
TM5 Bus Current Consumption
2 mA
Maximum Power Dissipation
1.21 W
Compatible Controllers
Modicon M258 / LMC058
Installation Method
DIN Rail Mount
Protection Rating
IP20
Dimensions
Approx. 99 × 12.5 × 75 mm
Weight
Approx. 25 g
Recommended Companion Models
Model
Product Name
TM5ACBN1
Schneider Modicon TM5 Bus Base Module
TM5SPS3
Schneider Modicon TM5 Interface Power Distribution Module
TM5ACTB12PS
Schneider Modicon TM5 Power Distribution Terminal Block Module
Schneider Modicon TM5 4-Channel High Resolution Analog Input Module
TM5SAI2L
Schneider Modicon TM5 2-Channel Standard Analog Input Module
TM5SAI2PH
Schneider Modicon TM5 PT100/PT1000 Temperature Input Module
TM5SAO2H
Schneider Modicon TM5 High Resolution Analog Output Module
Where It Excels in Industrial Use
• Designed for Schneider Electric Modicon TM5 automation systems, providing high-resolution analog signal acquisition for machine control, process monitoring, and precision measurement applications.
• Suitable for packaging machinery, material handling systems, production equipment, and industrial monitoring applications requiring accurate voltage and current feedback from field sensors.
• Ideal for Modicon M258 and LMC058 controller architectures where reliable analog measurement and flexible sensor integration are required within compact distributed I/O solutions.
Key Strengths at a Glance
• Provides two differential analog input channels with 15-bit plus sign resolution for precise acquisition of voltage and current signals.
• Supports ±10 V voltage input and 0–20 mA current input ranges, allowing connection to a wide variety of industrial sensors and transmitters.
• Delivers fast signal conversion with a 50 μs sampling duration, helping improve response performance in demanding automation applications.
• Compact Modicon TM5 modular design enables efficient cabinet installation while maintaining flexible system expansion and simplified maintenance.
Technical FAQs
1. What type of module is the Schneider TM5SAI2H?
The Schneider TM5SAI2H is a Modicon TM5 analog input module designed for high-resolution acquisition of industrial voltage and current signals.
2. How many analog input channels does the TM5SAI2H provide?
The TM5SAI2H provides two differential analog input channels.
3. What signal types are supported by the TM5SAI2H?
The module supports ±10 V DC voltage inputs and 0–20 mA current inputs for industrial measurement applications.
4. What is the resolution of the TM5SAI2H analog inputs?
The module provides 15-bit plus sign resolution for voltage measurement and 15-bit resolution for current measurement.
5. Is the TM5SAI2H suitable for sensor integration?
Yes. The module can be used with compatible analog sensors, transmitters, and measurement devices requiring voltage or current feedback signals.
6. Which Schneider Electric controllers are compatible with the TM5SAI2H?
The TM5SAI2H is designed for use with Modicon TM5 systems, including compatible Modicon M258 and LMC058 controller platforms.
7. Does the TM5SAI2H provide channel isolation?
The module does not provide isolation between individual analog input channels, but isolation exists between the electronics powered by the TM5 bus and the 24 V DC I/O power segment.
8. What software is used to configure the TM5SAI2H?
The TM5SAI2H is configured through Schneider Electric automation software, including EcoStruxure Machine Expert.
9. What type of cable is recommended for the TM5SAI2H?
Shielded cable is recommended to reduce electromagnetic interference and improve analog signal stability.
10. What applications commonly use the TM5SAI2H?
The module is commonly used for pressure monitoring, temperature transmitters, flow measurement, position feedback, and other industrial analog signal acquisition tasks.
