Brand:Schneider PLC Item No.:HMISCU8A5 Product Origin:France Product Dimensions:129.4 × 163 × 76.22 mm Product Weight:0.764 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

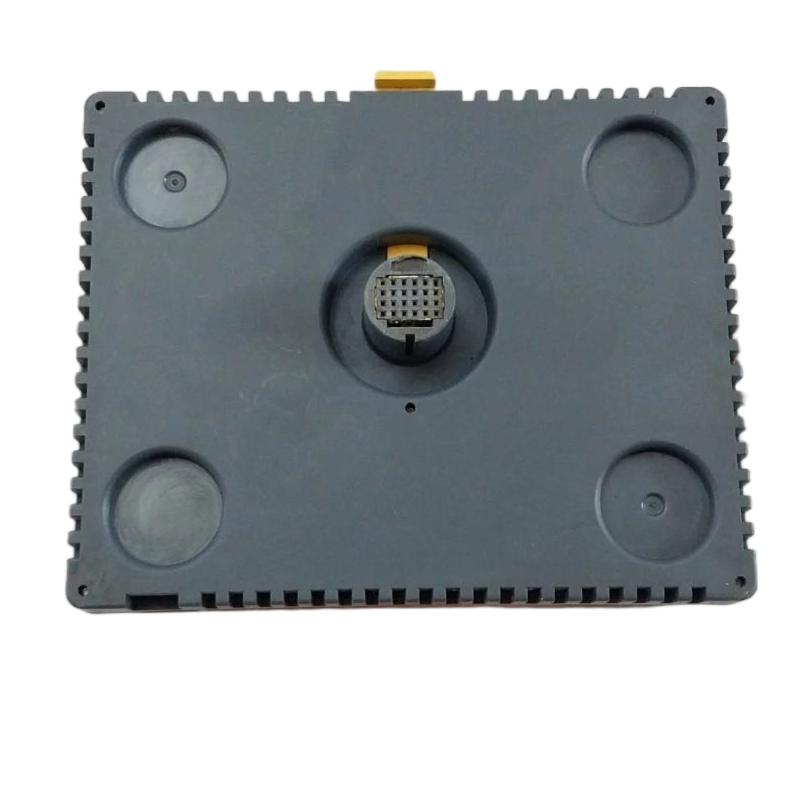

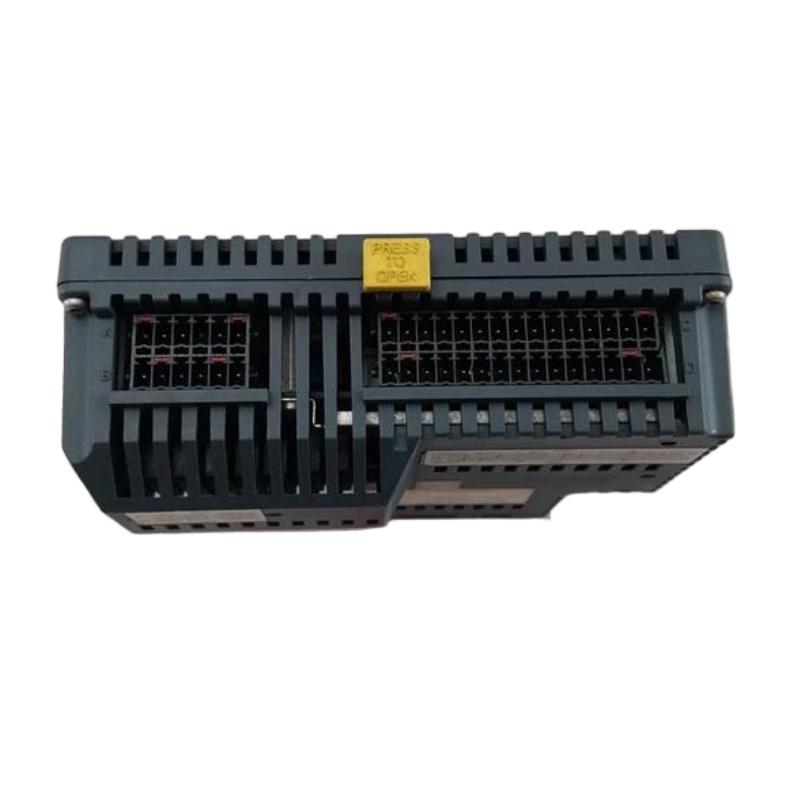

The Schneider HMISCU8A5 Touch Controller Panel belongs to the Harmony SCU series, providing an integrated solution for industrial machine control and operator interface applications.
Unlike traditional automation architectures requiring independent PLC controllers and HMI terminals, the HMISCU8A5 combines control processing, touchscreen operation, and communication functions into a single compact platform. This design helps manufacturers create more efficient and space-saving automation systems.
The device is designed for applications requiring reliable visualization, machine parameter adjustment, alarm management, and direct equipment control. Its flexible communication capability allows integration with various industrial components, making it suitable for different automation environments.
For machine builders and industrial users, the HMISCU8A5 offers a practical balance between functionality, reliability, and installation efficiency. It helps improve machine performance while reducing system complexity.
Technical Specifications and Product Data
Parameter
Description
Product Type
Touch Controller Panel
Model Number
HMISCU8A5
Manufacturer
Schneider Electric
Product Series
Harmony SCU
Display Size
5.7 inch Color TFT LCD
Display Resolution
320 × 240 pixels
Touch Technology
Analog Resistive Touchscreen
Supply Voltage
24 V DC

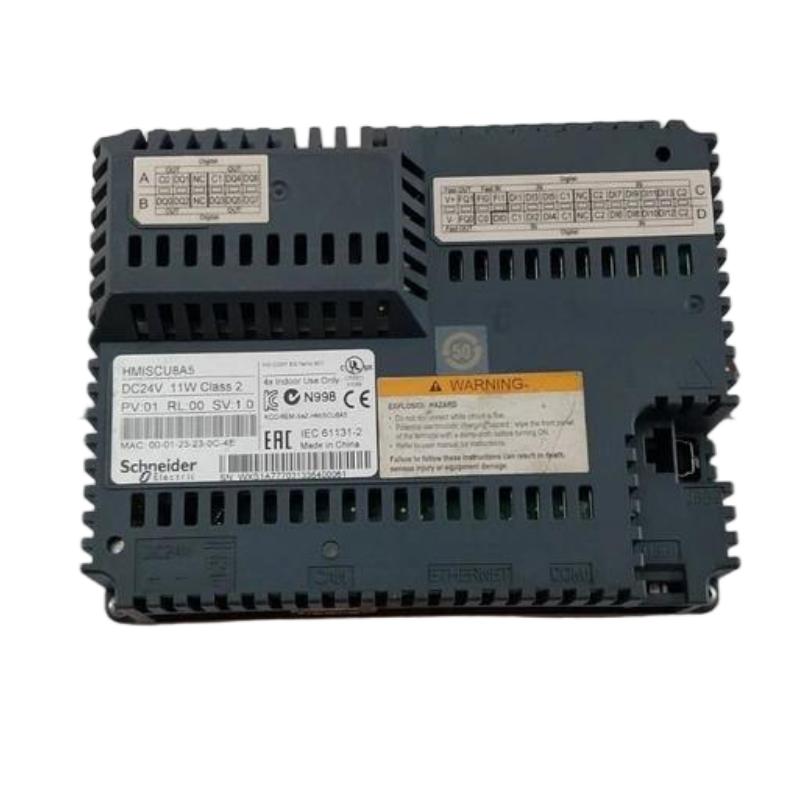

Digital Inputs
16 Inputs
Digital Outputs
10 Outputs

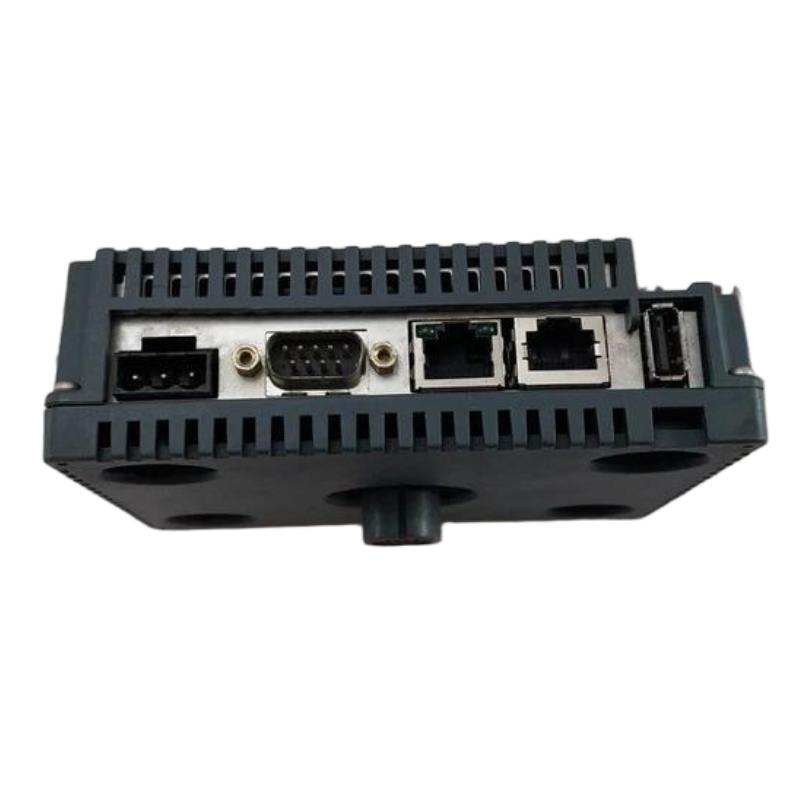

Communication Interfaces
Ethernet, RS232/RS485, CANopen, USB
Communication Protocols
Modbus TCP/IP, Modbus, CANopen
Operating Temperature
0°C to 50°C
Protection Rating
Front Panel IP65
Dimensions
129.4 × 163 × 76.22 mm
Weight
0.76 kg (1.68 lb)
Recommended Related Models for System Expansion
Model
Product Type
Schneider HMISCU6A5
Harmony SCU Touch Controller Panel
Schneider HMISCU8B5
Harmony SCU Touch Controller Panel
Schneider TM221CE16R
Modicon M221 Logic Controller
Schneider TM241CEC24T
Modicon M241 Logic Controller
Schneider TM251MESE
Modicon M251 Logic Controller
Popular Related Automation Models
Model
Product Type
Schneider HMIGTO1300
Magelis Touchscreen HMI
Schneider HMIGTO6310
Advanced Touchscreen HMI
Schneider HMISTU855
Harmony STU Touch Panel
Schneider TM262L01MESE8T
Modicon M262 Controller
Schneider ATV320U15N4C
Altivar Machine Drive
Industrial Applications and Deployment Areas
The Schneider HMISCU8A5 Touch Controller Panel is an integrated HMI and controller solution designed for compact industrial automation systems. Combining touchscreen visualization, embedded control functions, and multiple communication interfaces, this device provides an efficient platform for machine builders, OEM manufacturers, and system integrators.
The HMISCU8A5 is widely applied in automated machinery, packaging equipment, material handling systems, production lines, process monitoring systems, and standalone industrial machines where space-saving control solutions are required.
Typical application areas include:
Packaging and filling machines
Assembly and inspection equipment
Conveyor and material handling systems
Pump and motor control applications
Small production automation systems
Building and facility automation equipment
Machine monitoring and operator stations
With integrated HMI and PLC control capabilities, the HMISCU8A5 simplifies machine architecture by reducing the requirement for separate operator panels and controllers. This helps engineers achieve faster installation, easier maintenance, and improved system reliability.
Key Advantages and Technical Highlights
Integrated Control and Visualization Solution
The Schneider HMISCU8A5 combines operator interface functions and controller capabilities in one compact industrial device. This integrated structure helps reduce cabinet space requirements while simplifying system wiring and configuration.
Reliable Touchscreen Operation
Equipped with a 5.7-inch color touchscreen display, the HMISCU8A5 provides clear visualization of machine status, operating parameters, alarm information, and production data. The intuitive interface improves operator efficiency and supports easy machine interaction.
Flexible Industrial Communication
The touch controller supports multiple communication interfaces, including Ethernet, serial communication, CANopen, and USB connections. This flexibility allows convenient integration with PLC systems, drives, remote devices, and industrial networks.
Optimized for OEM Machine Design
The compact design and integrated functionality make HMISCU8A5 an ideal choice for OEM equipment manufacturers. Engineers can develop efficient control systems while reducing hardware complexity.
Stable Industrial Performance
Designed for continuous industrial operation, the HMISCU8A5 provides dependable performance in automation environments where stable control and visualization are essential.
Technical FAQs – Professional Questions and Answers
Q1: What programming software is used for Schneider HMISCU8A5?
A: The Schneider HMISCU8A5 can be configured and programmed through Schneider Electric engineering software designed for Harmony SCU controllers. Engineers can develop HMI screens, control logic, communication settings, and machine applications within the programming environment.
Q2: Can Schneider HMISCU8A5 communicate with external PLC systems?
A: Yes. The HMISCU8A5 supports industrial communication interfaces that allow connection with external PLCs, variable frequency drives, remote I/O devices, and other automation equipment.
Q3: Does the HMISCU8A5 support Modbus communication?
A: Yes. The controller supports Modbus communication functions, enabling data exchange with industrial instruments, controllers, and automation networks.
Q4: Can the HMISCU8A5 be used for standalone machine control?
A: Yes. Because the HMISCU8A5 integrates HMI and controller functions, it can operate as an independent control solution for compact machines and OEM automation equipment.
Q5: What communication interfaces are available on the HMISCU8A5?
A: The HMISCU8A5 provides multiple communication options, including Ethernet, serial communication, CANopen, and USB interfaces for flexible system integration.
Q6: Can users create customized HMI screens on HMISCU8A5?
A: Yes. Engineers can design customized operator interfaces including monitoring screens, alarm displays, parameter settings, and machine control functions.
Q7: Is CANopen supported by the Schneider HMISCU8A5?
A: Yes. CANopen communication allows the HMISCU8A5 to connect with compatible motion control devices and distributed automation components.
Q8: What type of industrial applications are suitable for HMISCU8A5?
A: The HMISCU8A5 is suitable for packaging machines, assembly equipment, process monitoring systems, material handling applications, and compact industrial automation projects.
Q9: How does HMISCU8A5 simplify automation system design?
A: By combining touchscreen visualization and controller functions into one unit, the HMISCU8A5 reduces hardware requirements, wiring complexity, and installation time.
Q10: Can HMISCU8A5 exchange data with industrial networks?
A: Yes. Its communication capabilities allow efficient data exchange between the controller, operator interface, and connected industrial devices.
