Brand:Schneider PLC Item No.:HMIST6400 Product Origin:France Product Dimensions:153 × 206 × 45 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

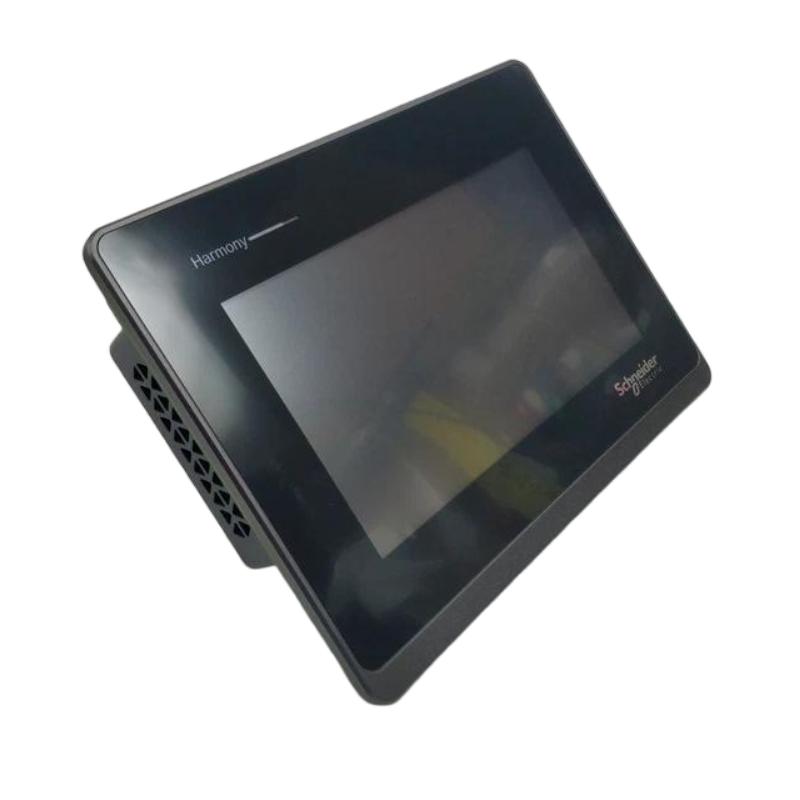

The Schneider HMIST6400 Touch Panel Screen is a high-performance industrial operator interface designed for modern automation applications. It provides an effective connection between operators and machines by combining touchscreen operation, advanced visualization capability, and industrial communication functions.
The HMIST6400 is suitable for applications where accurate monitoring, fast response, and user-friendly operation are required. It allows engineers to develop customized HMI interfaces for machine control, production monitoring, alarm handling, and process visualization.
Compared with traditional operator terminals, the HMIST6400 offers a more efficient solution with a compact structure and flexible integration capability. It helps manufacturers simplify machine design while improving operational reliability.
For industrial users, the HMIST6400 provides a dependable platform for creating intelligent automation systems with improved usability and long-term performance.
Technical Specifications
Parameter
Description
Product Type
Touch Panel Screen
Model Number
HMIST6400
Manufacturer
Schneider Electric
Product Series
Harmony ST6
Display Size
7 inch Wide Screen
Display Type
Color TFT LCD
Display Resolution
800 × 480 pixels
Touch Technology
Analog Resistive Touchscreen
Supply Voltage
24 V DC
Processor Type
ARM Cortex-A8
Communication Interfaces
Ethernet, Serial Communication, USB
Communication Capability
Industrial Network Connectivity
Software Platform
HMI Configuration Software
Protection Rating
IP65 Front Panel
Operating Temperature
0°C to 50°C
Dimensions
153 × 206 × 45 mm
Weight
0.80 kg (1.76 lb)
Recommended Related Models
Model
Product Type
Schneider HMIST6500
Harmony ST6 Touch Panel Screen
Schneider HMIST6600
Harmony ST6 Touch Panel Screen
Schneider HMIST6400W
Harmony ST6 Wide Touch Panel
Schneider HMISTU855
Harmony STU Touch Panel
Schneider HMIGTO1300
Magelis Touchscreen HMI
Popular Related Automation Models
Model
Product Type
Schneider HMIGTO6310
Advanced Touchscreen HMI
Schneider HMIG3U
Magelis GTU HMI Terminal
Schneider TM221CE16R
Modicon M221 Logic Controller
Schneider TM241CEC24T
Modicon M241 Logic Controller
Schneider TM251MESE
Modicon M251 Logic Controller
Industrial Applications and Automation Scenarios
The Schneider HMIST6400 Touch Panel Screen is a professional industrial HMI device designed for machine visualization, operator interaction, and automation system monitoring. As part of the Harmony ST6 series, it provides a reliable touchscreen interface solution for industrial equipment manufacturers, OEM machine builders, and system integrators.
The HMIST6400 is developed for applications that require clear data visualization, convenient operation, and stable communication with industrial controllers. With its compact design and industrial-grade performance, the touch panel helps improve machine usability while reducing system complexity.
Common application areas include:
Packaging and filling machines
Manufacturing production lines
Assembly and inspection equipment
Material handling systems
Industrial process monitoring
Water and wastewater automation
Energy management systems
OEM machine control panels
The HMIST6400 enables operators to monitor machine status, adjust operating parameters, view alarms, and manage production processes through an intuitive touchscreen interface. Its flexible communication capability makes it suitable for a wide range of industrial automation environments.
Core Advantages and Engineering Benefits
Professional Industrial Touch Interface
The Schneider HMIST6400 features a high-quality color touchscreen designed for industrial operation. The clear display allows operators to easily access machine information, control functions, alarms, and process data.
Reliable Harmony ST6 Platform
Based on the Harmony ST6 architecture, the HMIST6400 provides stable performance for continuous industrial applications. It is optimized for reliable visualization tasks and efficient machine operation.
Flexible Communication Capability
The touch panel supports multiple communication interfaces, allowing connection with PLC controllers, industrial networks, drives, and other automation devices. This flexibility helps engineers create efficient and scalable control systems.
Compact and Space-Efficient Design
The HMIST6400 offers a slim industrial panel design that helps reduce installation space requirements while maintaining excellent visualization performance.
Improved Operator Efficiency
Through customized graphical interfaces, real-time monitoring, and convenient control functions, the HMIST6400 helps operators improve productivity and reduce operational errors.
Technical FAQs – Professional Questions and Answers
Q1: What is the Schneider HMIST6400 Touch Panel Screen used for?
A: The HMIST6400 is used as an industrial human-machine interface for equipment monitoring, machine operation, parameter adjustment, and automation system visualization.
Q2: Which software is used to configure the HMIST6400?
A: The HMIST6400 can be configured with Schneider Electric HMI engineering software for creating user interfaces, communication settings, and machine visualization applications.
Q3: Can the HMIST6400 communicate with PLC controllers?
A: Yes. The HMIST6400 supports industrial communication functions that allow connection with PLC systems, controllers, drives, and other automation equipment.
Q4: Does HMIST6400 support Ethernet communication?
A: Yes. The HMIST6400 includes Ethernet communication capability for integration into industrial automation networks.
Q5: What type of display technology does HMIST6400 use?
A: The HMIST6400 uses a color TFT LCD display with touchscreen operation technology designed for industrial HMI applications.
Q6: Can HMIST6400 display alarms and production data?
A: Yes. The panel supports alarm management, production monitoring, status display, and customized visualization functions.
Q7: Is HMIST6400 suitable for OEM machine applications?
A: Yes. The compact design, flexible communication, and reliable operation make it suitable for OEM equipment and machine automation projects.
Q8: Can HMIST6400 connect with third-party automation devices?
A: Yes. Through supported communication protocols, the HMIST6400 can exchange data with various industrial automation devices.
Q9: What communication interfaces are available on HMIST6400?
A: The HMIST6400 provides Ethernet, serial communication, and USB interfaces for industrial device connection and application transfer.
Q10: How does HMIST6400 improve automation system performance?
A: The HMIST6400 improves system efficiency by providing clear visualization, simplified operation, and reliable communication between operators and machines.
