Brand:Schneider PLC Item No.:HMIST6500 Product Origin:France Product Dimensions:203 × 273 × 47 mm Product Weight:1.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

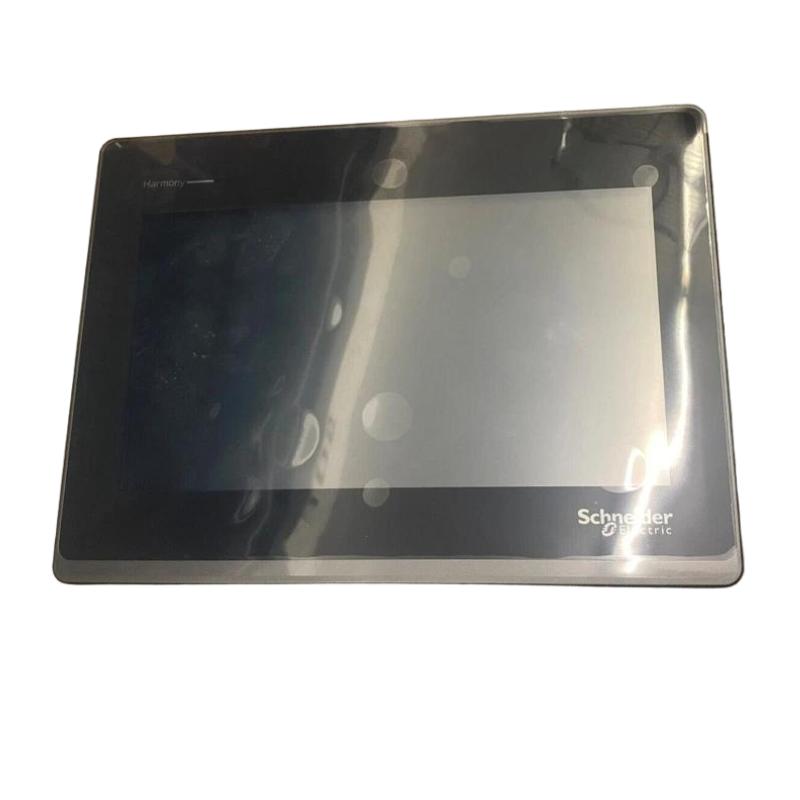

The Schneider HMIST6500 Touch Panel Screen is a professional industrial operator interface designed for modern automation applications that require advanced visualization and reliable machine interaction.
The device belongs to the Harmony ST6 product family and provides a powerful platform for monitoring production processes, controlling machine operations, and displaying important industrial data. Its large touchscreen interface allows engineers to develop user-friendly applications for complex automation systems.
Compared with traditional operator terminals, the HMIST6500 provides improved visibility and easier operation through its larger display area. Operators can view more information on a single screen, reducing the need for frequent page switching during machine operation.
For industrial equipment manufacturers, the HMIST6500 offers an effective solution for creating intelligent machines with improved usability, simplified operation, and dependable long-term performance.
Technical Specifications
Parameter
Description
Product Type
Touch Panel Screen
Model Number
HMIST6500
Manufacturer
Schneider Electric
Product Series
Harmony ST6
Display Size
10 inch Wide Display
Display Type
Color TFT LCD
Display Resolution
1024 × 600 pixels
Touch Technology
Resistive Touchscreen
Supply Voltage
24 V DC
Processor Type
ARM Cortex-A8
Communication Interfaces
Ethernet, Serial Communication, USB
Network Capability
Industrial Ethernet Connectivity
Software Platform
HMI Configuration Software
Protection Rating
IP65 Front Panel
Operating Temperature
0°C to 50°C
Dimensions
203 × 273 × 47 mm
Weight
1.30 kg (2.87 lb)
Recommended Related Models
Model
Product Type
Schneider HMIST6400
Harmony ST6 Touch Panel Screen
Schneider HMIST6600
Harmony ST6 Touch Panel Screen
Schneider HMIST6700
Harmony ST6 Touch Panel Screen
Schneider HMISTU855
Harmony STU Touch Panel
Schneider HMIGTO1300
Magelis Touchscreen HMI
Popular Related Automation Models
Model
Product Type
Schneider HMIGTO6310
Advanced Touchscreen HMI
Schneider HMIG3U
Magelis GTU HMI Terminal
Schneider TM221CE16R
Modicon M221 Logic Controller
Schneider TM241CEC24T
Modicon M241 Logic Controller
Schneider TM251MESE
Modicon M251 Logic Controller
Industrial Applications and Automation Scenarios
The Schneider HMIST6500 Touch Panel Screen is a high-performance industrial HMI device designed for advanced machine visualization, operator interaction, and automation system monitoring. As part of the Harmony ST6 series, the HMIST6500 provides an efficient interface solution for industrial manufacturers, OEM machine builders, and system integrators who require a large display area, reliable communication, and intuitive operation.
With its 10-inch wide touchscreen display, the HMIST6500 enables operators to easily monitor machine conditions, adjust operating parameters, manage alarms, and access production information through a clear graphical interface. Its industrial design and flexible connectivity make it suitable for demanding automation environments.
Typical application fields include:
Automated manufacturing equipment
Packaging and assembly machines
Production line monitoring systems
Process automation applications
Material handling equipment
Energy management systems
Water treatment control systems
Industrial testing equipment
The HMIST6500 is especially suitable for machines requiring multiple data displays, detailed process visualization, and convenient operator control. It helps improve machine usability while supporting efficient industrial automation development.
Engineering Advantages and Product Features
Large-Format Industrial Touchscreen Display
The Schneider HMIST6500 features a 10-inch wide color touchscreen that provides excellent visibility for complex automation applications. The larger display area allows engineers to design detailed HMI interfaces with multiple monitoring screens, parameter settings, alarm information, and production data.
Stable Harmony ST6 Platform
Built on the Harmony ST6 platform, the HMIST6500 provides reliable performance for continuous industrial operation. Its optimized hardware structure supports smooth visualization, fast response, and efficient machine interaction.
Flexible Industrial Communication
The HMIST6500 supports multiple communication interfaces, allowing connection with PLC controllers, variable frequency drives, remote devices, and industrial networks. This flexibility enables engineers to build scalable and efficient automation systems.
Space-Saving Panel Integration
Although equipped with a large display, the HMIST6500 maintains a compact industrial structure. It helps optimize control cabinet design while providing advanced operator interface functions.
Enhanced Operator Experience
The intuitive touchscreen interface improves machine operation efficiency by allowing operators to quickly access system information, adjust settings, and respond to production conditions.
