Brand:Schneider PLC Item No.:HMISTO715 Product Origin:France Product Dimensions:90.4 x 124.9 x 38.8 mm Product Weight:0.22 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

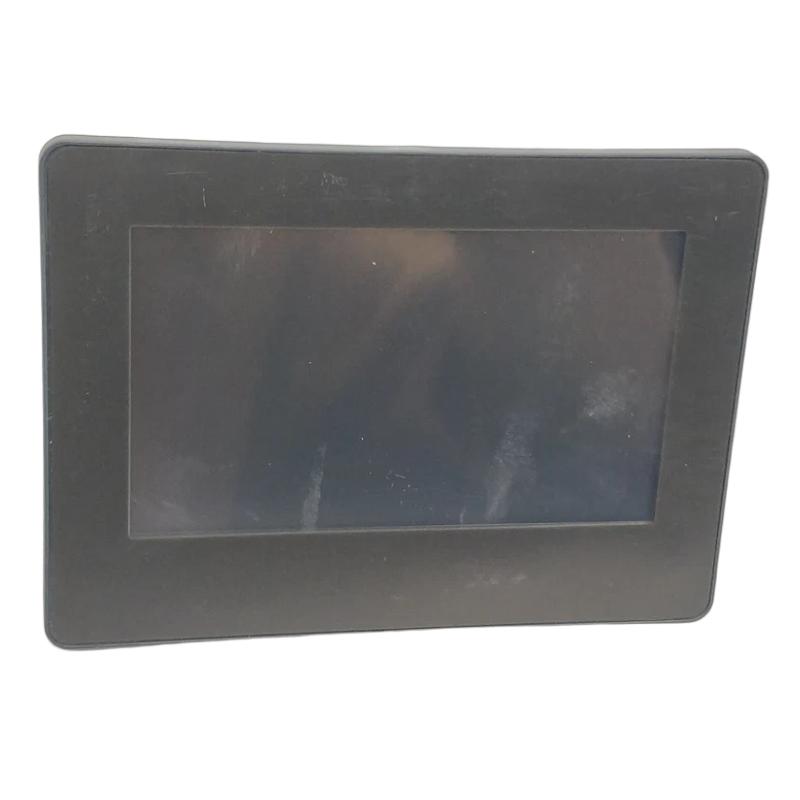

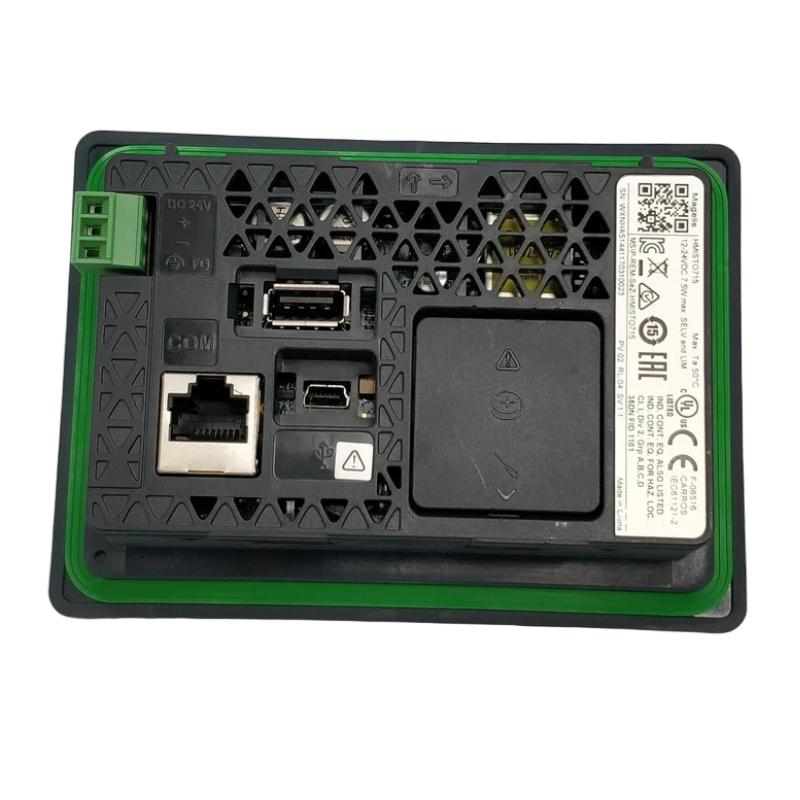

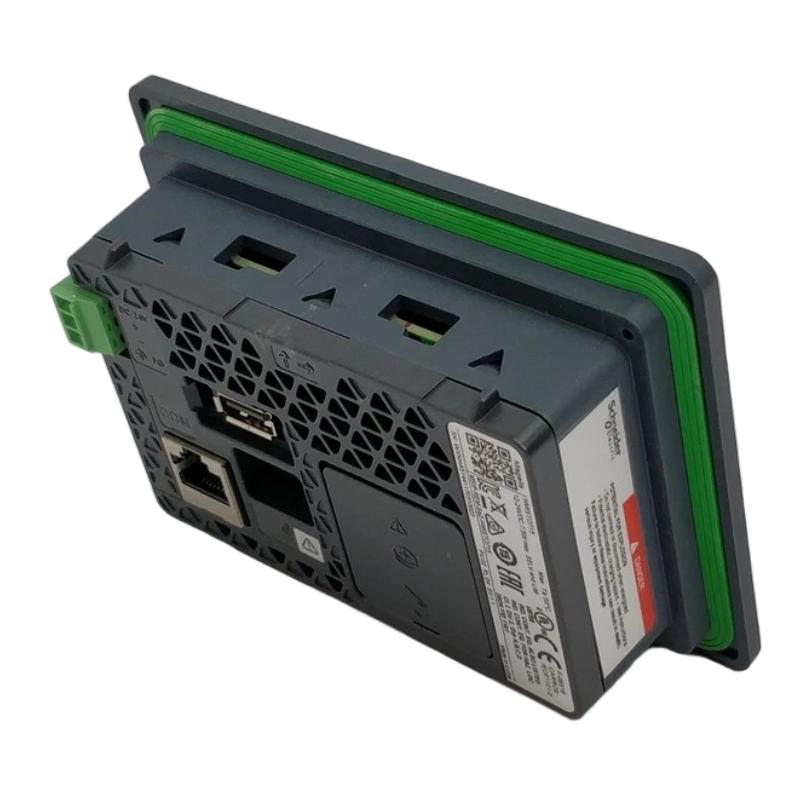

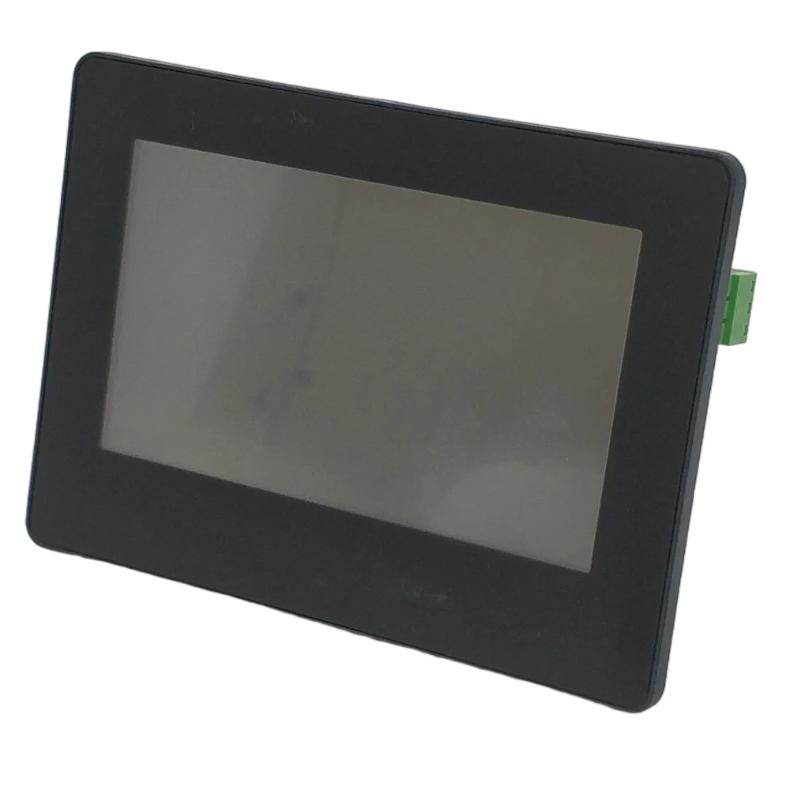

The Schneider HMISTO715 Touch Panel Screen is a practical industrial HMI solution developed for compact automation applications. It combines touchscreen operation, reliable communication capability, and space-saving design to provide an effective interface between operators and machines.
Designed for OEM equipment and small automation systems, the HMISTO715 helps manufacturers create user-friendly machines with improved operation efficiency. Its compact size allows flexible installation while maintaining professional industrial visualization functions.
The device provides operators with convenient access to machine information, control functions, and system status. By simplifying interaction between humans and equipment, the HMISTO715 helps improve productivity and supports efficient automation system development.
For machine builders and industrial users, the HMISTO715 offers a dependable HMI platform that balances performance, flexibility, and installation convenience.
Technical Specifications
Parameter
Description
Product Type
Touch Panel Screen
Model Number
HMISTO715
Manufacturer
Schneider Electric
Product Series
Harmony STO
Display Size
4.3 inch Wide Display
Display Type
Color TFT LCD
Display Resolution
480 × 272 pixels
Display Colors
65,536 Colors
Touch Technology
Resistive Touchscreen
Supply Voltage
12 to 24 V DC
Communication Interfaces
Serial Communication, USB
Communication Capability
Industrial Device Connectivity
Software Platform
HMI Configuration Software
Protection Rating
IP65 Front Panel
Operating Temperature
0°C to 50°C
Dimensions
90.4 × 124.9 × 38.8 mm
Weight
0.22 kg (0.49 lb)
Recommended Related Models
Model
Product Type
Schneider HMISTO705
Harmony STO Touch Panel Screen
Schneider HMISTO735
Harmony STO Touch Panel Screen
Schneider HMISTU655
Harmony STU Touch Panel Screen
Schneider HMISTU855
Harmony STU Touch Panel Screen
Schneider HMIST6400
Harmony ST6 Touch Panel Screen
Popular Related Automation Models
Model
Product Type
Schneider HMIGTO1300
Magelis Touchscreen HMI
Schneider HMIGTO6310
Advanced Touchscreen HMI
Schneider TM221CE16R
Modicon M221 Logic Controller
Schneider TM241CEC24T
Modicon M241 Logic Controller
Schneider TM251MESE
Modicon M251 Logic Controller
Compact Automation Applications and Industrial Scenarios
The Schneider HMISTO715 Touch Panel Screen is a compact industrial HMI device designed for machine visualization, operator control, and automation equipment monitoring. As part of the Harmony STO series, the HMISTO715 provides an efficient touchscreen interface solution for OEM machines and industrial applications where installation space, reliability, and easy operation are important factors.
With its compact structure and clear color touchscreen display, the HMISTO715 enables operators to monitor machine status, adjust operating parameters, view alarms, and manage basic automation functions through an intuitive interface.
The HMISTO715 is widely applied in:
Compact packaging machines
Small manufacturing equipment
Assembly and testing machines
Pump and motor control systems
Laboratory automation equipment
Material handling applications
Food processing machinery
Small production lines
Its small footprint makes the HMISTO715 especially suitable for equipment manufacturers who need a professional HMI solution while maintaining a compact control cabinet design.
Product Advantages and Engineering Features
Compact Design for Space Optimization
The Schneider HMISTO715 features a small and lightweight structure, making it ideal for applications with limited installation space. It allows machine builders to integrate operator control functions without increasing cabinet size.
Clear Touchscreen Visualization
The HMISTO715 provides a color TFT touchscreen display that allows operators to easily view machine information, production status, alarms, and operating parameters. The intuitive interface improves equipment usability and reduces operation complexity.
Reliable Industrial Communication
The HMISTO715 supports industrial communication functions for connection with PLC controllers and automation devices. Its communication capability allows efficient data exchange between operators and control systems.
Easy Integration for OEM Equipment
Designed for compact automation systems, the HMISTO715 simplifies machine development by providing a practical operator interface platform that can be integrated into various industrial applications.
Efficient Machine Operation
Through touchscreen control and customized visualization screens, the HMISTO715 helps operators quickly access important information and improve daily equipment management efficiency.
Technical FAQs – Professional Questions and Answers
Q1: What is the Schneider HMISTO715 Touch Panel Screen used for?
A: The HMISTO715 is used as a compact industrial human-machine interface for equipment monitoring, machine operation, and automation process visualization.
Q2: Which software is used to configure the HMISTO715?
A: The HMISTO715 can be configured with Schneider Electric HMI configuration software to create customized screens, alarms, communication settings, and operator interfaces.
Q3: Can the HMISTO715 communicate with PLC controllers?
A: Yes. The HMISTO715 supports communication with PLCs and automation controllers for industrial machine applications.
Q4: Does HMISTO715 support serial communication?
A: Yes. The HMISTO715 supports serial communication functions for connection with compatible industrial equipment.
Q5: Can HMISTO715 connect with third-party automation devices?
A: Yes. The HMISTO715 supports compatible industrial communication protocols for integration with various automation devices.
Q6: What type of display technology does HMISTO715 use?
A: The HMISTO715 uses a color TFT LCD touchscreen designed for industrial visualization and operator control applications.
Q7: Is HMISTO715 suitable for OEM machine builders?
A: Yes. Its compact dimensions, reliable operation, and flexible communication capability make it suitable for OEM equipment applications.
Q8: Can HMISTO715 display alarms and machine parameters?
A: Yes. The HMISTO715 can display alarm messages, equipment status, operating values, and customized machine information.
Q9: What industries commonly use HMISTO715?
A: The HMISTO715 is commonly used in manufacturing, packaging, assembly, testing, and small automation systems.
Q10: How does HMISTO715 improve automation efficiency?
A: The HMISTO715 improves efficiency by providing a simple operator interface that enables faster monitoring, adjustment, and control of industrial equipment.
