Brand:Schneider PLC Item No.:HMISTO735 Product Origin:France Product Dimensions:90.4 x 124.9 x 38.8 mm Product Weight:0.22 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

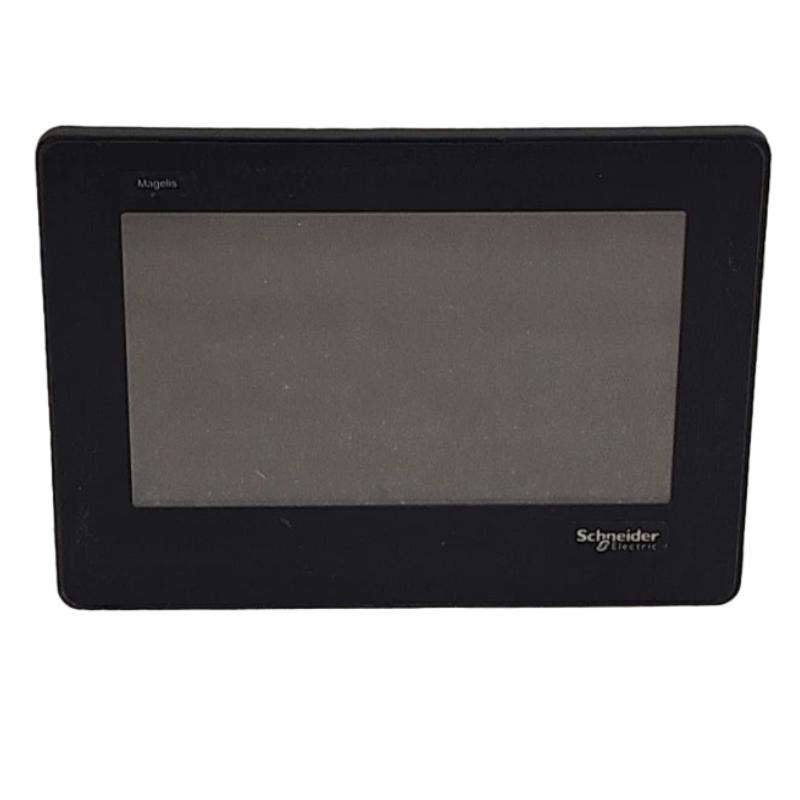

The Schneider HMISTO735 Touch Panel Screen is a reliable and compact HMI solution developed for modern industrial automation applications. It combines touchscreen operation, Ethernet connectivity, and space-saving design to create an effective interaction platform between operators and machines.
Designed for compact automation equipment, the HMISTO735 provides manufacturers with a practical way to add professional visualization and control functions without requiring large installation areas.
The device enables operators to access important machine information, including operating status, alarms, and process parameters. Its intuitive touchscreen interface simplifies machine operation and helps improve production efficiency.
For OEM builders and industrial users, the HMISTO735 offers a balanced solution that combines compact installation, reliable performance, and flexible automation integration.
Technical Specifications
Parameter
Description
Product Type
Touch Panel Screen
Model Number
HMISTO735
Manufacturer
Schneider Electric
Product Series
Harmony STO
Display Size
4.3 inch Wide Display
Display Type
Color TFT LCD
Display Resolution
480 × 272 pixels
Display Colors
65,536 Colors
Touch Technology
Resistive Touchscreen
Supply Voltage
12 to 24 V DC
Communication Interfaces
Ethernet, USB
Ethernet Communication
10BASE-T/100BASE-TX
Application Memory
26 MB
Backup Memory
512 KB
Supported Communication
Modbus TCP, Modbus, Third-Party Protocols
Protection Rating
IP65 Front Panel
Operating Temperature
0°C to 50°C
Dimensions
90.4 × 124.9 × 38.8 mm
Weight
0.22 kg (0.49 lb)
Recommended Related Models
Model
Product Type
Schneider HMISTO705
Harmony STO Touch Panel Screen
Schneider HMISTO715
Harmony STO Touch Panel Screen
Schneider HMISTU655
Harmony STU Touch Panel Screen
Schneider HMISTU855
Harmony STU Touch Panel Screen
Schneider HMIST6400
Harmony ST6 Touch Panel Screen
Popular Related Automation Models
Model
Product Type
Schneider HMIGTO1300
Magelis Touchscreen HMI
Schneider HMIGTO6310
Advanced Touchscreen HMI
Schneider TM221CE16R
Modicon M221 Logic Controller
Schneider TM241CEC24T
Modicon M241 Logic Controller
Schneider TM251MESE
Modicon M251 Logic Controller
Compact Automation Applications and Industrial Scenarios
The Schneider HMISTO735 Touch Panel Screen is a compact industrial HMI device designed for machine operation, equipment monitoring, and automation visualization. As part of the Harmony STO series, the HMISTO735 provides an efficient touchscreen interface solution for OEM manufacturers and industrial users who need reliable control functions within limited installation space.
With its compact 4.3-inch wide touchscreen display, the HMISTO735 allows operators to monitor machine status, view production information, adjust operating parameters, and manage automation processes through an intuitive graphical interface.
The HMISTO735 is widely used in:
Compact packaging equipment
Small assembly machines
Industrial testing systems
Pump and motor control applications
Material handling equipment
Food processing machinery
OEM automation machines
Small production lines
The compact design of the HMISTO735 makes it especially suitable for applications where cabinet space is limited but professional HMI functionality is required.
Product Highlights and Engineering Advantages
Ultra-Compact HMI Design
The Schneider HMISTO735 features a compact structure that helps machine builders save installation space. It provides essential visualization and control functions while maintaining a small panel footprint.
Clear Operator Visualization
The HMISTO735 is equipped with a color TFT touchscreen display that provides clear machine information, operating parameters, alarms, and status monitoring. The user-friendly interface improves equipment operation efficiency.
Reliable Ethernet Communication
The HMISTO735 supports Ethernet communication, enabling efficient data exchange between the HMI, PLC controllers, and industrial automation systems. This allows easier integration into modern machine networks.
Flexible Machine Integration
Designed for OEM applications, the HMISTO735 supports connection with various automation devices. Its flexible communication capability helps engineers develop customized machine control solutions.
Improved Equipment Usability
By providing direct touchscreen operation and real-time information display, the HMISTO735 helps operators quickly understand machine conditions and perform daily control tasks more efficiently.
Technical FAQs – Professional Questions and Answers
Q1: What is the Schneider HMISTO735 Touch Panel Screen used for?
A: The HMISTO735 is used as an industrial human-machine interface for machine monitoring, operator control, and automation process visualization.
Q2: Which software is used to configure the HMISTO735?
A: The HMISTO735 can be configured with Schneider Electric HMI configuration software to create customized screens, alarms, communication settings, and control functions.
Q3: Can the HMISTO735 communicate with PLC controllers?
A: Yes. The HMISTO735 supports communication with PLCs, controllers, and industrial automation equipment.
Q4: Does the HMISTO735 support Ethernet communication?
A: Yes. The HMISTO735 supports Ethernet communication for integration into industrial automation networks.
Q5: What type of display technology does HMISTO735 use?
A: The HMISTO735 uses a color TFT LCD display with touchscreen operation technology designed for industrial applications.
Q6: Can HMISTO735 display machine alarms and parameters?
A: Yes. The HMISTO735 can display alarm messages, equipment status, production values, and customized machine information.
Q7: Is HMISTO735 suitable for OEM equipment?
A: Yes. The compact size, flexible communication capability, and industrial design make it suitable for OEM machines and small automation systems.
Q8: Can HMISTO735 connect with third-party automation devices?
A: Yes. The HMISTO735 supports compatible industrial communication protocols for integration with different automation devices.

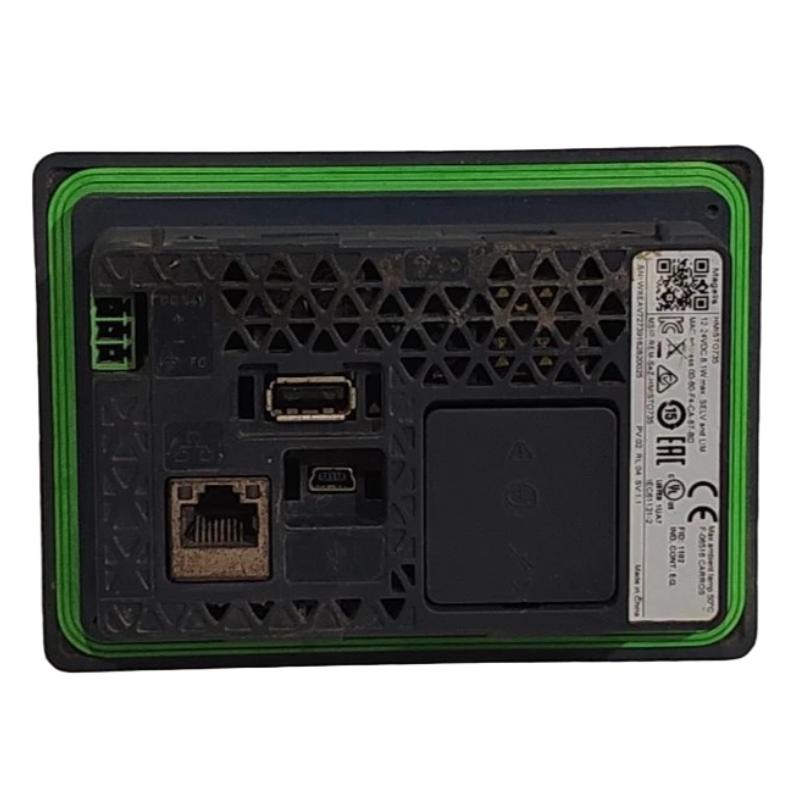

Q9: What communication interfaces are available on HMISTO735?
A: The HMISTO735 provides Ethernet and USB interfaces for industrial system communication and application management.
Q10: How does HMISTO735 improve automation efficiency?
A: The HMISTO735 improves efficiency by providing operators with a simple interface for monitoring equipment conditions and controlling machine functions.
