Brand:Schneider PLC Item No.:HMISTU655 Product Origin:France Product Dimensions:98.15 x 118 x 55.3 mm Product Weight:0.558 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

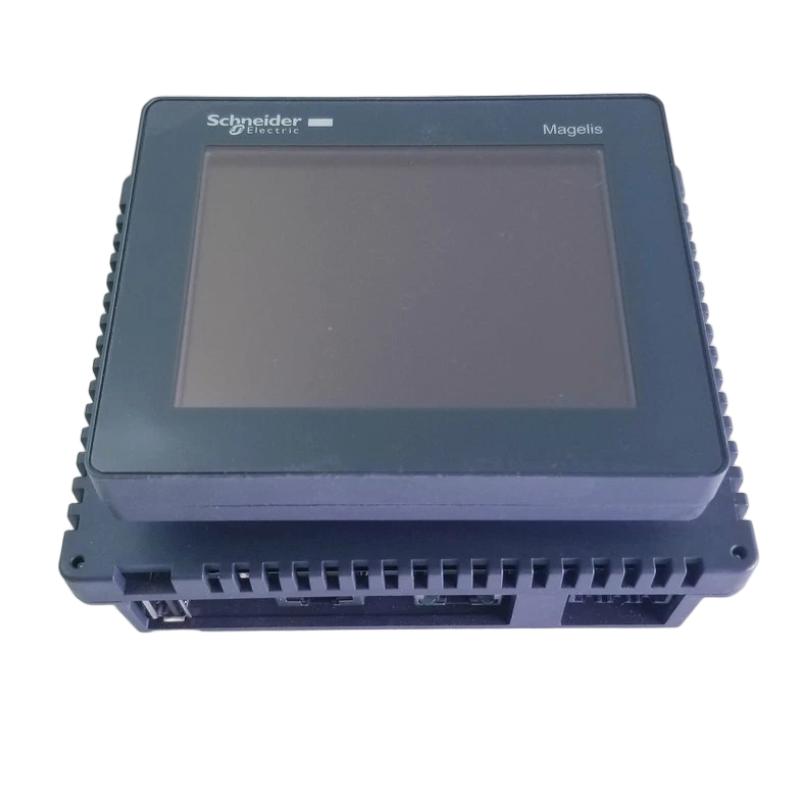

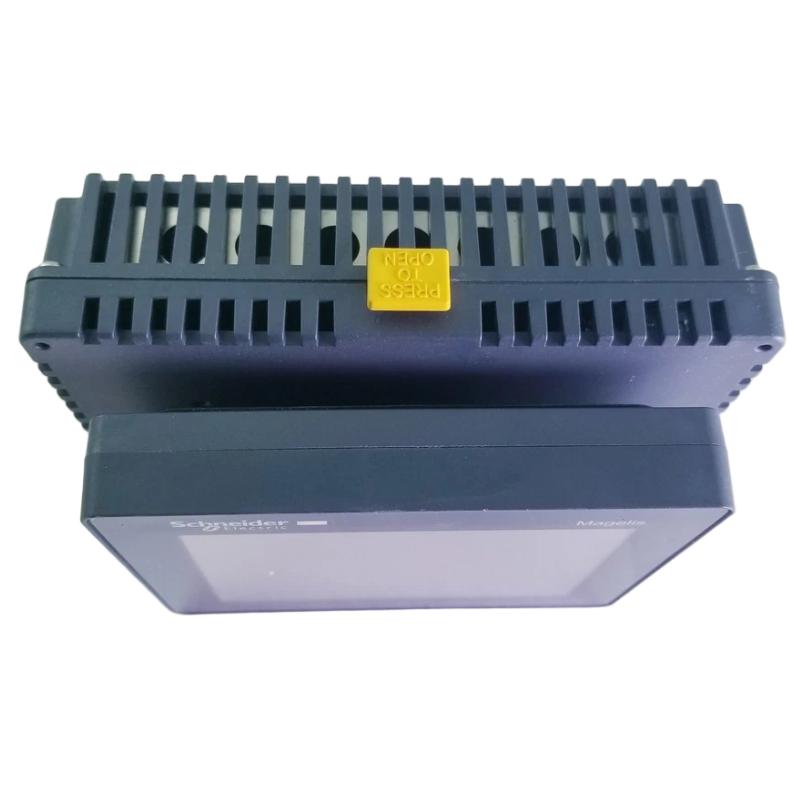

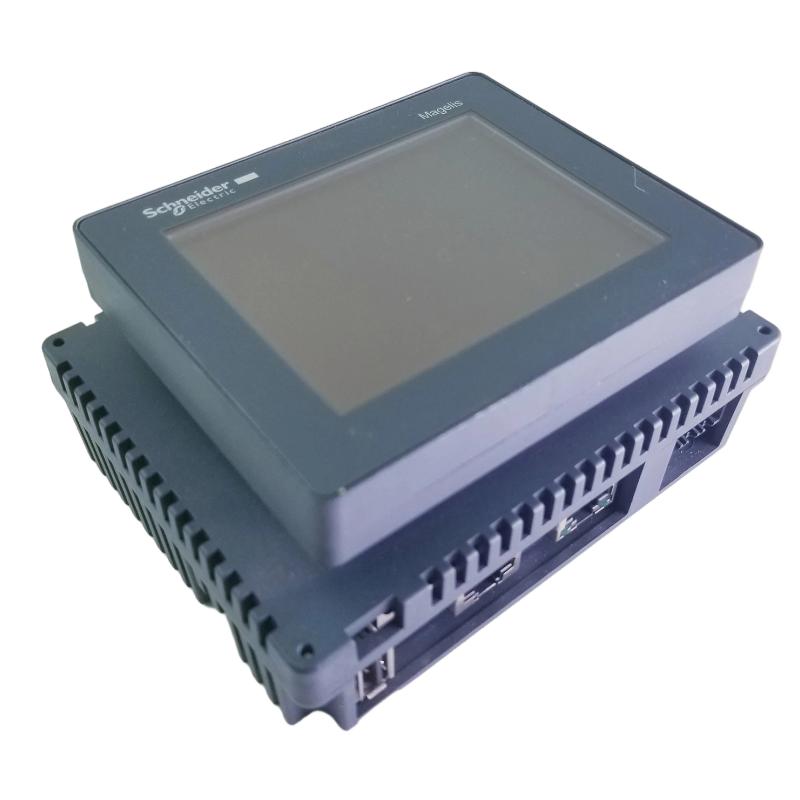

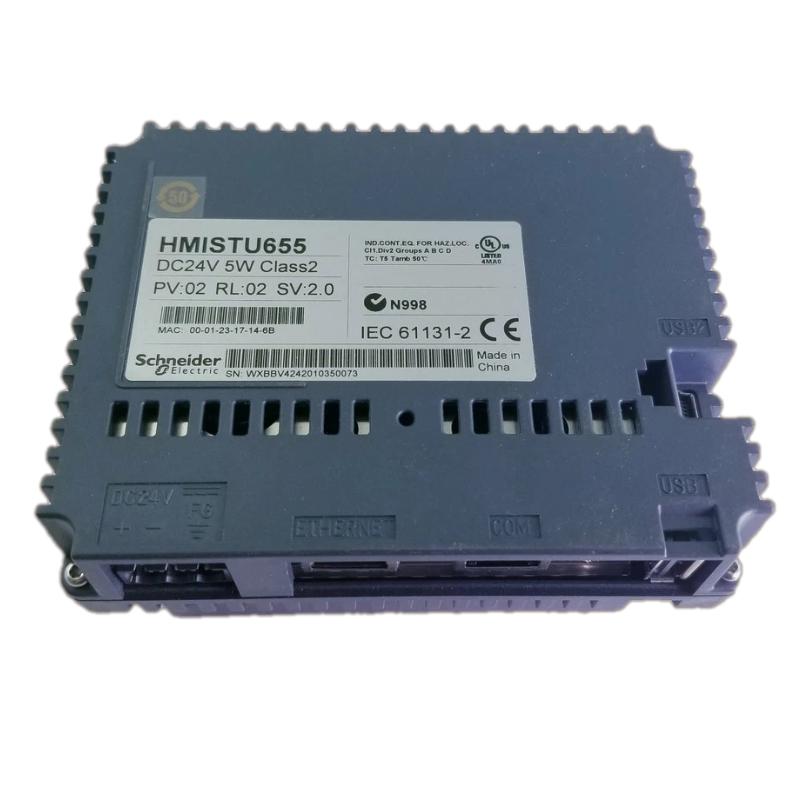

The Schneider HMISTU655 Touch Panel Screen is a reliable compact HMI solution designed for modern industrial automation applications. It combines touchscreen operation, industrial communication capability, and space-saving design to provide an effective connection between operators and machines.
As part of the Harmony STU product family, the HMISTU655 is designed for applications requiring a small but professional operator interface. Its compact display provides convenient access to machine status, control functions, alarms, and production information while maintaining easy installation.
Compared with traditional control interfaces, the HMISTU655 helps simplify machine operation by providing a direct and intuitive touchscreen experience. It allows equipment manufacturers to develop more user-friendly machines while reducing overall system complexity.
For OEM builders and industrial users, the HMISTU655 offers a practical balance of compact design, reliable performance, and flexible integration capability, making it suitable for a wide range of automation applications.
Technical Specifications
Parameter
Description
Product Type
Touch Panel Screen
Model Number
HMISTU655
Manufacturer
Schneider Electric
Product Series
Harmony STU
Display Size
3.5 inch Wide Display
Display Type
Color TFT LCD Touchscreen
Display Resolution
320 × 240 pixels
Display Colors
65,536 Colors
Touch Technology
Resistive Touchscreen
Processor Type
ARM9 CPU
Supply Voltage
24 V DC
Communication Interfaces
RS232/RS485, USB
Application Memory
16 MB
Backup Memory
64 KB
Supported Communication
Modbus and Industrial Protocols
Protection Rating
IP65 Front Panel
Operating Temperature
0°C to 50°C
Dimensions
98.15 × 118 × 55.3 mm
Weight
0.56 kg (1.23 lb)
Recommended Related Models
Model
Product Type
Schneider HMISTO715
Harmony STO Touch Panel Screen
Schneider HMISTO735
Harmony STO Touch Panel Screen
Schneider HMISTU855
Harmony STU Touch Panel Screen
Schneider HMIST6400
Harmony ST6 Touch Panel Screen
Schneider HMIST6500
Harmony ST6 Touch Panel Screen
Popular Related Automation Models
Model
Product Type
Schneider HMIGTO1300
Magelis Touchscreen HMI
Schneider HMIGTO6310
Advanced Touchscreen HMI
Schneider TM221CE16R
Modicon M221 Logic Controller
Schneider TM241CEC24T
Modicon M241 Logic Controller
Schneider TM251MESE
Modicon M251 Logic Controller
Compact Automation Applications and Industrial Scenarios
The Schneider HMISTU655 Touch Panel Screen is a compact industrial HMI device designed for efficient machine visualization, operator control, and automation system interaction. As part of the Harmony STU series, the HMISTU655 provides a practical touchscreen interface solution for OEM machine builders and industrial users who need reliable performance in a limited installation space.
With its compact design and 3.5-inch color touchscreen display, the HMISTU655 enables operators to monitor equipment status, view operating parameters, manage alarms, and control machine functions through an intuitive interface.
The HMISTU655 is commonly used in:
Small automation machines
Packaging and labeling equipment
Assembly and inspection systems
Pump and motor control applications
Laboratory automation devices
Compact production equipment
OEM customized machinery
Industrial monitoring units
The small footprint of the HMISTU655 makes it an ideal choice for machine applications where control cabinet space is limited while maintaining professional HMI functionality and reliable operator interaction.
Product Features and Engineering Advantages
Space-Efficient Industrial HMI Design
The Schneider HMISTU655 features a compact structure that allows easy installation in small machine panels and control cabinets. It helps equipment manufacturers achieve a smaller system footprint without sacrificing operator control capability.
Clear Touchscreen Operation
The HMISTU655 provides a color TFT touchscreen interface that allows operators to access machine information, adjust settings, monitor alarms, and control equipment functions efficiently.
Reliable Industrial Communication
The HMISTU655 supports industrial communication functions for connection with PLC controllers and automation devices. This enables stable data exchange between the operator interface and the control system.
Flexible Machine Integration
Designed for OEM and industrial applications, the HMISTU655 can be integrated into different automation architectures. Its practical design helps engineers create customized machine interfaces according to specific requirements.
Improved Operator Efficiency
Through direct touchscreen operation and customized visualization pages, the HMISTU655 simplifies machine management and helps operators respond quickly to equipment conditions.
Technical FAQs – Professional Questions and Answers
Q1: What is the Schneider HMISTU655 Touch Panel Screen used for?
A: The HMISTU655 is used as an industrial human-machine interface for machine monitoring, equipment control, and automation process visualization.
Q2: Which software is used to configure the HMISTU655?
A: The HMISTU655 can be configured with Schneider Electric HMI configuration software to develop customized screens, alarms, communication settings, and operator functions.
Q3: Can the HMISTU655 communicate with PLC controllers?
A: Yes. The HMISTU655 supports communication with PLCs, controllers, and industrial automation equipment.
Q4: Does HMISTU655 support RS485 communication?
A: Yes. The HMISTU655 supports serial communication functions for connection with compatible industrial devices.
Q5: What type of display technology does HMISTU655 use?
A: The HMISTU655 uses a color TFT LCD touchscreen designed for industrial visualization and machine operation applications.
Q6: Can HMISTU655 display alarms and operating parameters?
A: Yes. The HMISTU655 can display alarm messages, machine status information, operating values, and customized visualization screens.
Q7: Is HMISTU655 suitable for OEM machine applications?
A: Yes. The compact size and flexible communication capability make the HMISTU655 suitable for OEM equipment and small automation systems.
Q8: Can HMISTU655 connect with third-party automation devices?
A: Yes. The HMISTU655 supports compatible industrial communication protocols for integration with different automation devices.
Q9: What communication interfaces are available on HMISTU655?
A: The HMISTU655 provides serial communication and USB interfaces for industrial system connection and application management.
Q10: How does HMISTU655 improve automation efficiency?
A: The HMISTU655 improves efficiency by providing a simple operator interface that enables faster monitoring, adjustment, and control of industrial equipment.
