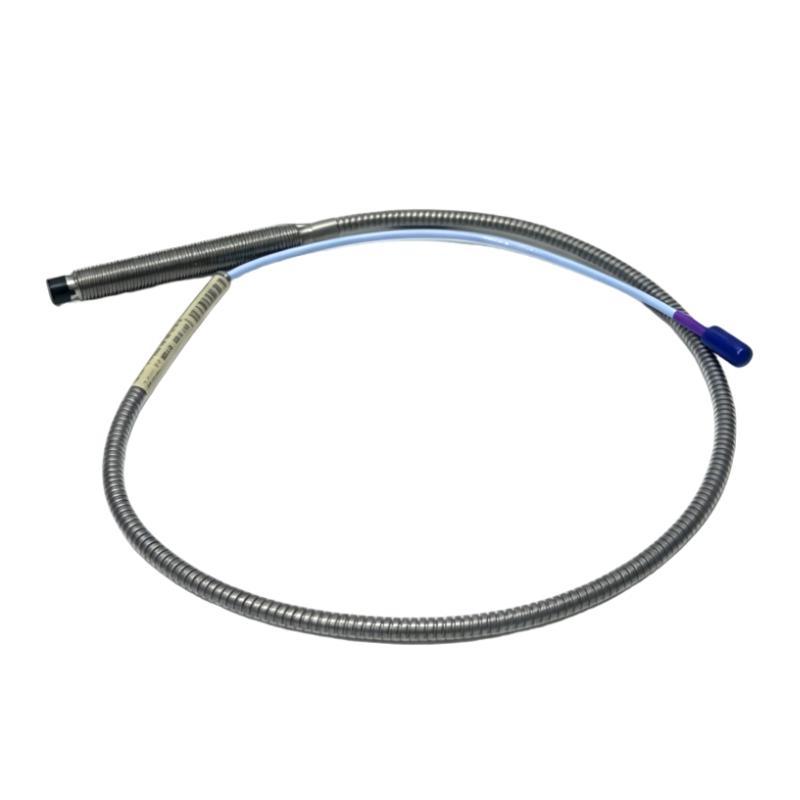

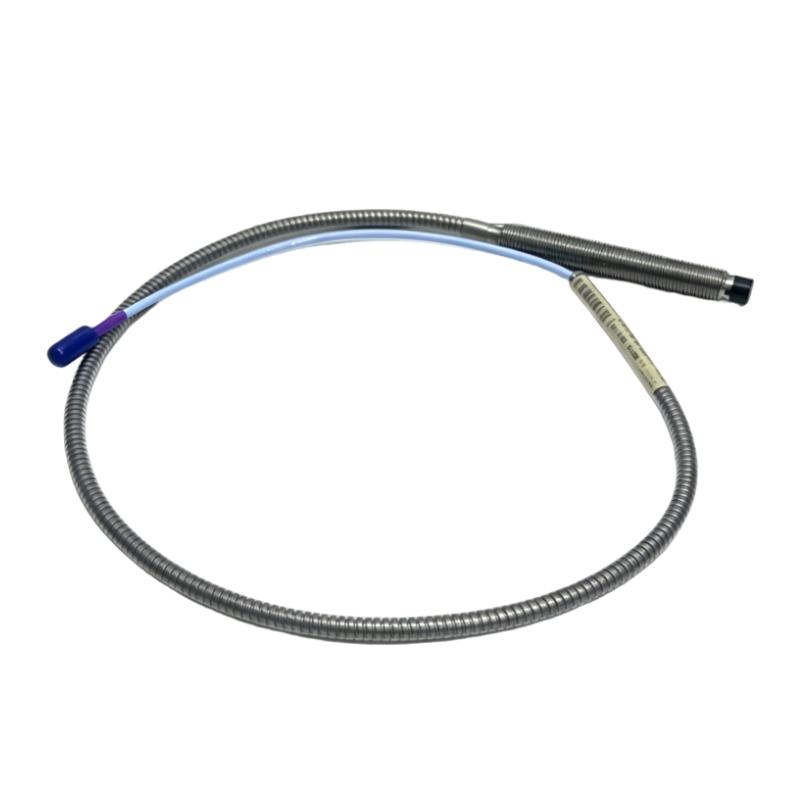

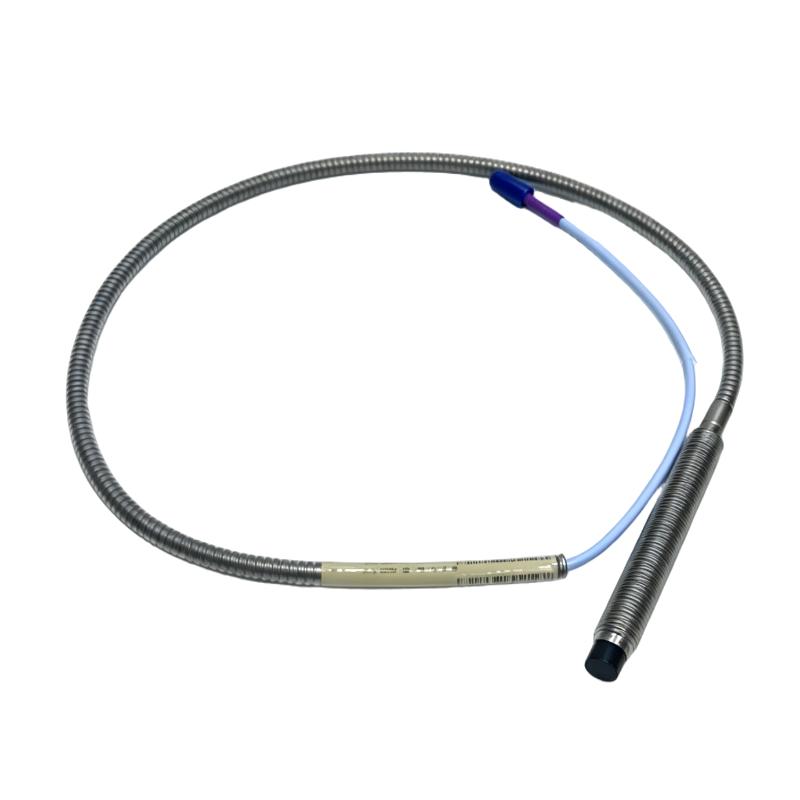

Bently Nevada 330707-00-10-10-02-00 3300 XL 11 mm Proximity Probe

Industrial Monitoring Applications

The Bently Nevada 330707-00-10-10-02-00 3300 XL 11 mm Proximity Probe is engineered for precise non-contact measurement of shaft vibration and displacement in critical rotating machinery. Designed as part of the trusted 3300 XL 11 mm proximity measurement system, this probe provides stable and accurate operating data for machinery protection, condition monitoring, and predictive maintenance applications.

With its larger 11 mm sensing tip design, the probe offers enhanced measurement capability for demanding industrial environments where reliable shaft position monitoring and vibration analysis are essential.

Typical applications include:

• Steam turbine vibration monitoring systems
• Gas turbine machinery protection
• Compressor condition monitoring
• Generator shaft displacement measurement
• Pump and rotating equipment monitoring
• Axial position and thrust monitoring systems
• Industrial predictive maintenance platforms
• Machinery protection control systems

The probe is widely applied in industries such as power generation, petrochemical, oil and gas, marine, and heavy manufacturing, where equipment reliability and continuous operation are critical.

Key Advantages and Performance Benefits

High-Precision Non-Contact Measurement
The 330707-00-10-10-02-00 utilizes eddy current sensing technology to measure shaft movement without physical contact. This design eliminates mechanical wear between the sensor and rotating components, improving measurement stability and long-term service reliability.

Designed for Critical Rotating Equipment
This proximity probe provides dependable vibration and displacement monitoring for high-value machinery. It helps operators identify abnormal shaft movement at an early stage, supporting preventive maintenance strategies and reducing unexpected downtime.

Extended Measurement Capability
The 3300 XL 11 mm probe design provides a larger sensing range compared with traditional smaller probe systems, making it suitable for applications requiring greater installation flexibility and measurement distance.

Stable Signal Transmission
The probe delivers consistent dynamic and static measurement signals when paired with compatible signal conditioning modules, supporting accurate machinery analysis and protection system operation.

Industrial-Grade Reliability
Built for demanding environments, the probe offers excellent resistance to vibration, temperature variation, and continuous industrial operation, making it a dependable solution for long-term machinery monitoring.

Flexible System Integration
The 330707-00-10-10-02-00 can be integrated into existing Bently Nevada monitoring architectures, providing engineers with a practical solution for upgrading or maintaining industrial protection systems.

Technical FAQs and Engineering Answers

Q1: What measurement principle does the Bently Nevada 330707-00-10-10-02-00 use?
A: The probe uses eddy current technology to detect changes in the distance between the probe tip and the rotating shaft surface, converting these changes into electrical signals.

Q2: What parameters can this proximity probe monitor?
A: It can monitor shaft vibration, radial displacement, axial position, and other dynamic movement parameters in rotating machinery.

Q3: Does this probe require direct contact with the rotating shaft?
A: No. The probe operates through non-contact measurement, which prevents mechanical wear and improves sensor lifespan.

Q4: Which components are required to create a complete proximity measurement system?
A: A complete system normally includes the proximity probe, extension cable, Proximitor Sensor, and compatible monitoring equipment.

Q5: What type of machinery is suitable for this probe?
A: It is commonly used for turbines, compressors, generators, pumps, and other critical rotating equipment requiring continuous condition monitoring.

Q6: How does incorrect probe installation affect measurement accuracy?
A: Incorrect installation may cause unstable output signals, incorrect gap settings, or inaccurate vibration and displacement readings.

Q7: Can the probe be used for machinery protection systems?
A: Yes. When connected with compatible monitoring modules, it can provide real-time data for machinery protection and alarm systems.

Q8: What is the advantage of the 11 mm probe design?
A: The 11 mm sensing diameter provides increased measurement capability and flexibility for applications requiring a larger sensing area.

Q9: How should the probe signal be processed in a monitoring system?
A: The probe signal should be connected to a compatible Proximitor Sensor or monitoring module for signal conversion and analysis.

Q10: Why is this type of proximity probe important for predictive maintenance?
A: Continuous shaft displacement monitoring allows engineers to identify developing mechanical problems before they lead to serious equipment failures.
