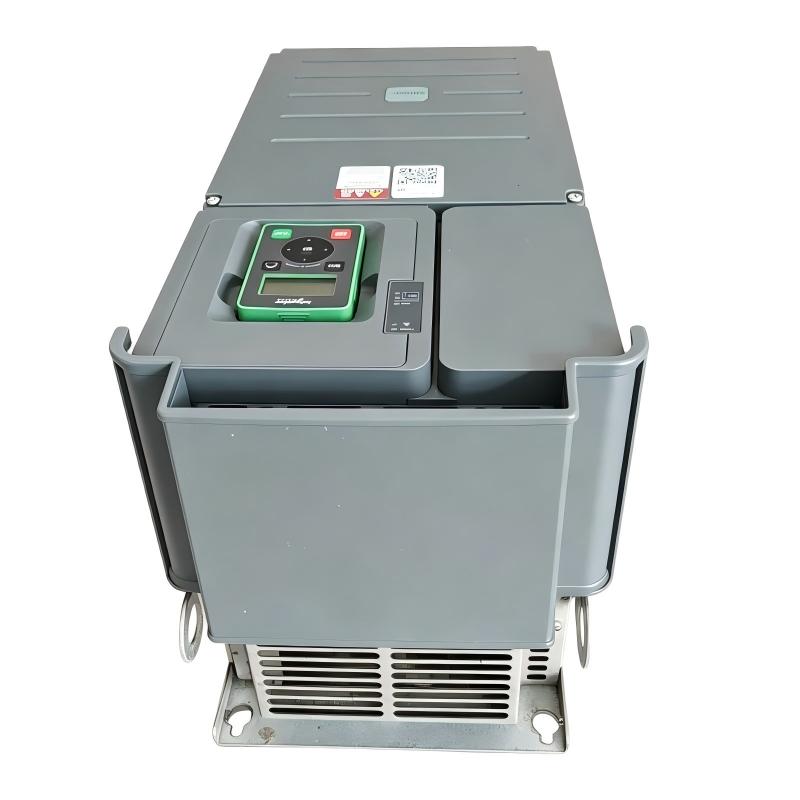

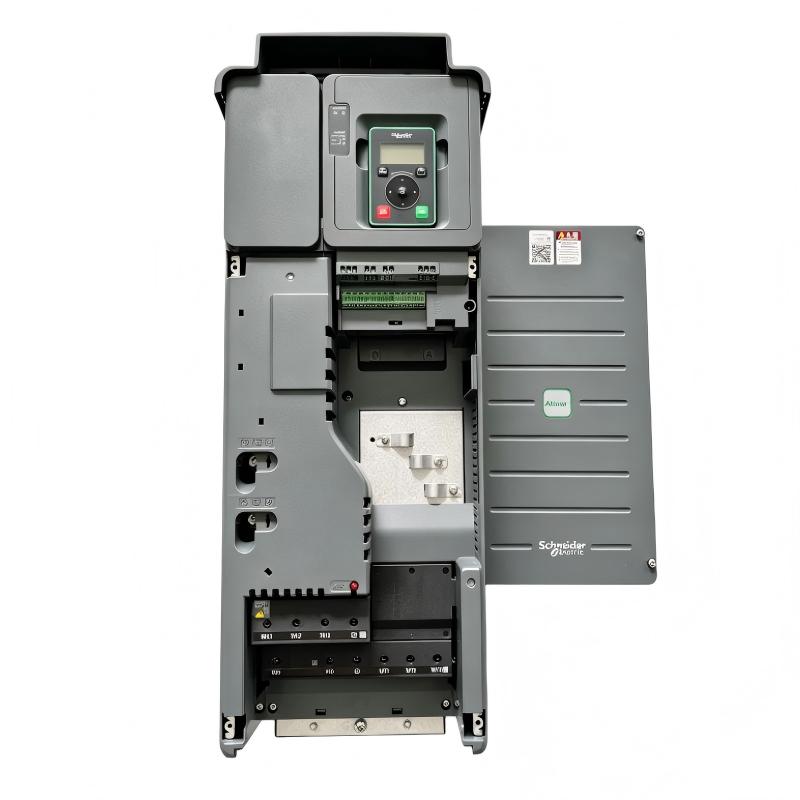

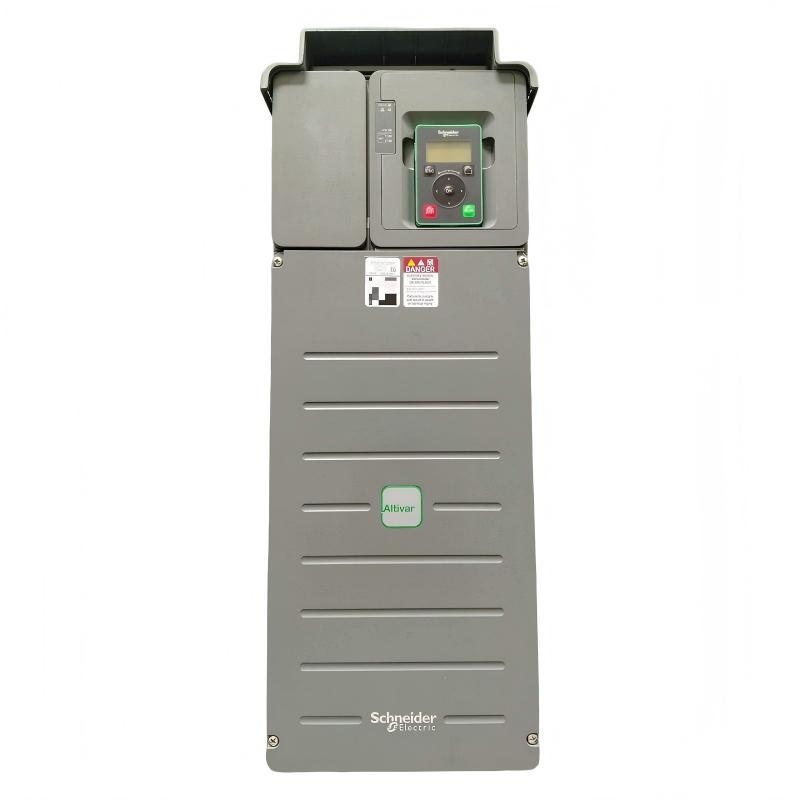

Schneider ATV610D30N4 Variable Speed Drive

Industrial Motor Control Applications

The Schneider ATV610D30N4 Variable Speed Drive is a powerful industrial motor control solution designed for applications requiring efficient speed regulation, stable process operation, and reliable energy management. As part of the Easy Altivar 610 series, this drive is engineered for controlling three-phase asynchronous motors in demanding industrial environments.

The ATV610D30N4 provides precise variable frequency control by adjusting motor speed and torque according to process requirements. This allows industrial equipment to operate more efficiently while reducing mechanical stress, improving energy utilization, and maintaining consistent production performance.

Designed for medium-power industrial applications, the drive combines advanced motor control technology with a compact installation structure, making it suitable for automation systems where reliability, efficiency, and easy integration are essential.

Typical applications include:

• Industrial water and wastewater treatment systems
• Pumping and fluid transfer equipment
• HVAC ventilation and air circulation systems
• Cooling system applications
• Compressor control systems
• Conveyor and material handling equipment
• Manufacturing production lines
• Process automation equipment

The Schneider ATV610D30N4 provides a dependable solution for industrial users seeking improved motor performance, reduced operating costs, and enhanced automation reliability.

Advanced Drive Control Advantages and Industrial Benefits

High-Efficiency Motor Speed Management
The ATV610D30N4 enables accurate speed and torque adjustment, allowing motors to operate according to actual process requirements and improving overall system efficiency.

Energy-Saving Operation for Variable Loads
By controlling motor speed instead of running equipment continuously at full capacity, the drive helps reduce energy consumption in applications such as pumps and fans.

Optimized for Industrial Process Equipment
The drive is designed for applications requiring stable operation, including pumps, fans, compressors, and conveyors commonly found in industrial facilities.

Reliable Protection and Monitoring Functions
Integrated protection features help monitor operating conditions and protect motors from overload, overcurrent, overheating, and abnormal operating situations.

Compact Design for Control Cabinet Installation
The optimized structure allows convenient installation in industrial electrical cabinets while maintaining reliable performance and efficient space utilization.

Flexible Automation System Integration
The ATV610D30N4 supports connection with industrial control platforms, enabling coordinated operation and centralized management within modern automation systems.

Technical FAQs and Engineering Answers

Q1: What is the primary function of the Schneider ATV610D30N4?
A: The ATV610D30N4 is a variable speed drive used to control motor speed and torque through adjustable frequency and voltage output.

Q2: What motor power rating does the ATV610D30N4 support?

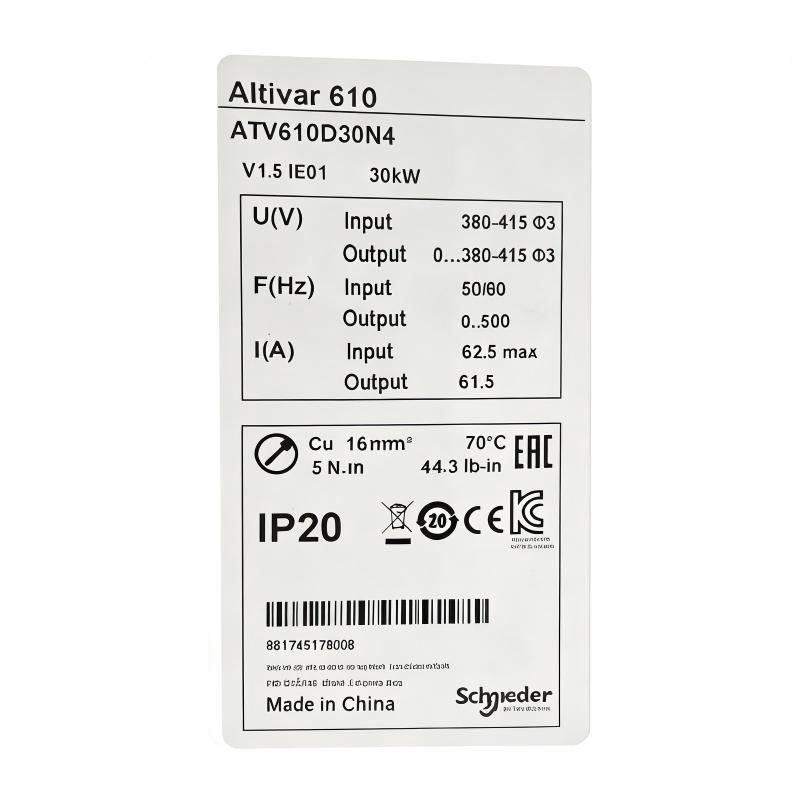

A: The drive supports 30 kW normal duty motor applications and is designed for industrial three-phase motor control.

Q3: Which industrial applications are suitable for this drive?
A: It is commonly used for pumps, fans, compressors, conveyors, and other industrial process equipment requiring variable speed control.

Q4: How does the ATV610D30N4 improve energy efficiency?
A: The drive adjusts motor speed according to process demand, reducing unnecessary energy consumption compared with fixed-speed motor operation.

Q5: What type of motors are compatible with this drive?
A: The ATV610D30N4 is mainly designed for three-phase asynchronous motors used in industrial applications.

Q6: Why are variable speed drives important in automation systems?
A: They provide precise motor control, improve process stability, reduce mechanical stress, and optimize operating efficiency.

Q7: What factors should engineers consider before selecting this drive?
A: Motor power, supply voltage, load characteristics, operating environment, and required control functions should be evaluated.

Q8: Can the ATV610D30N4 be used for continuous industrial operation?
A: Yes. It is designed for long-term industrial applications requiring stable and reliable motor control.

Q9: How does the drive help protect connected equipment?
A: The drive monitors operating conditions and provides protection functions to reduce risks caused by abnormal motor operation.

Q10: How does the ATV610D30N4 support industrial maintenance?
A: Monitoring and diagnostic functions help maintenance teams identify operating conditions and improve preventive maintenance planning.
