Brand:Schneider PLC Item No.:TSX3721101 Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

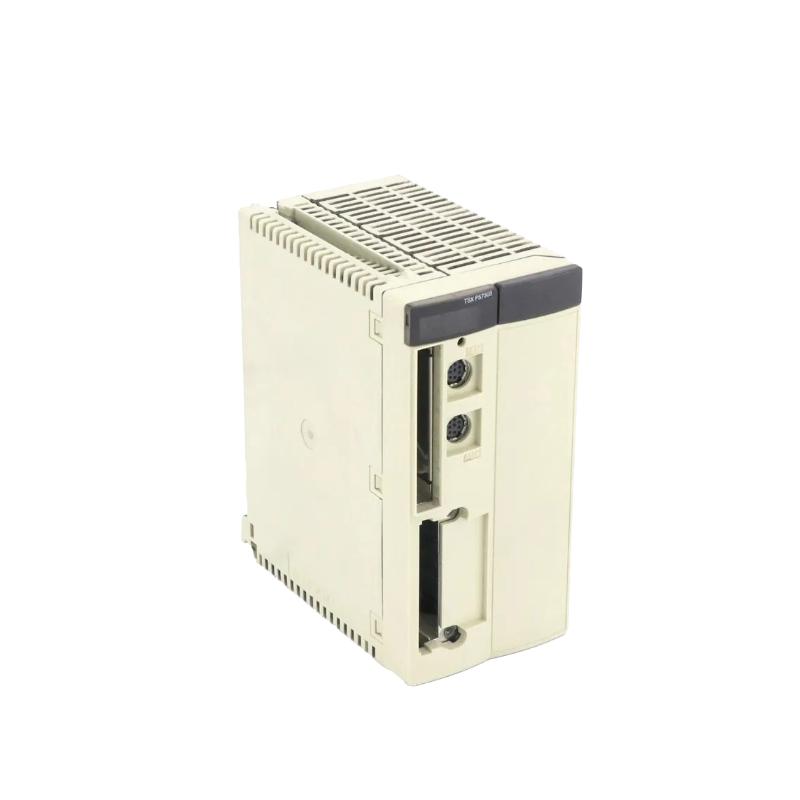

The Schneider TSX3721101 PLC Processor Module is a Modicon TSX Micro modular base controller engineered for dependable industrial automation control. It combines processing capability, communication interfaces, memory resources, and modular expansion support to provide a flexible solution for machine control applications.
Featuring integrated Uni-Telway and Modbus RTU communication functions, the TSX3721101 enables efficient connection with industrial devices and automation networks. Its proven TSX Micro architecture makes it especially valuable for maintaining existing control systems, extending equipment service life, and supporting industrial retrofit projects.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
TSX3721101
Product Family
Modicon TSX Micro
Module Type
PLC Processor Module
Product Type
Modular Base Controller
Power Supply
24 V DC
Supply Voltage Range
19.2…30 V DC
Number of Slots
3
Communication Interface
TER/AUX Serial Link
Communication Protocol
Uni-Telway / Modbus RTU
Communication Speed
19.2 kbit/s
Real-Time Clock
Integrated
Internal RAM
20 Kwords Data
PCMCIA Memory Support
128 Kwords Program and Data
Flash Memory
15 Kwords Data
Boolean Execution Time
0.13 μs
Fast Task Support
Yes
Event Tasks
Up to 16
Programming Software
PL7
Expansion Capability
TSX Micro I/O Modules
Mounting Type
Modular Base Installation
Protection Rating
IP20
Dimensions
Approx. 341 × 151 × 152 mm
Weight
Approx. 1.7 kg
Recommended Companion Models
Model
Product Name
Schneider TSX3721001
Modicon TSX Micro Modular Base Controller
Schneider TSX3721100
Modicon TSX Micro Modular Base Controller
Schneider TSXDMZ28DR
Modicon TSX Micro Digital I/O Module
Schneider TSXAEZ801
Modicon TSX Micro Analog Input Module
Frequently Selected Alternatives
Model
Product Name
Schneider TSX3710001
Modicon TSX Micro PLC Controller
Schneider TSX3708001
Modicon TSX Micro PLC Controller
Schneider TSX372001
Modicon TSX Micro Modular Base Controller
Schneider TM241CE24T
Modicon M241 Logic Controller
Where It Excels in Industrial Use
• Industrial Machine Automation Control
The Schneider TSX3721101 is a Modicon TSX Micro modular base controller designed for reliable PLC operation in industrial machinery, production systems, and automated equipment requiring stable processing and flexible expansion capability.
• Legacy System Upgrade and Maintenance
Designed for existing TSX Micro installations, the TSX3721101 provides a dependable replacement solution for maintaining established automation architectures while minimizing engineering changes and downtime.
• OEM Equipment Control Applications
Suitable for packaging systems, assembly machines, conveyors, and customized industrial equipment that require compact PLC control with integrated communication features.
• Distributed Automation Systems
Supports communication-based automation architectures through Uni-Telway and Modbus RTU interfaces, making it suitable for connecting operator panels, field devices, and industrial controllers.
Key Strengths at a Glance
• Modicon TSX Micro Modular Controller Platform
Provides PLC processing, memory management, communication functions, and expansion capability within a compact industrial controller design.
• Dual Serial Communication Capability
Includes TER/AUX Uni-Telway communication and Modbus RTU communication interfaces, supporting efficient integration with automation equipment.
• Flexible Memory Configuration
Offers internal RAM, Flash memory, and PCMCIA memory expansion support for application programs, data storage, and system management.
• Reliable TSX Micro System Compatibility
Maintains compatibility with existing Modicon TSX Micro platforms, making it a practical choice for repair, replacement, and retrofit projects.
