Brand:Schneider PLC Item No.:HMISTU855 Product Origin:France Product Dimensions:129.15 × 163 × 56.5 mm Product Weight:1.66 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

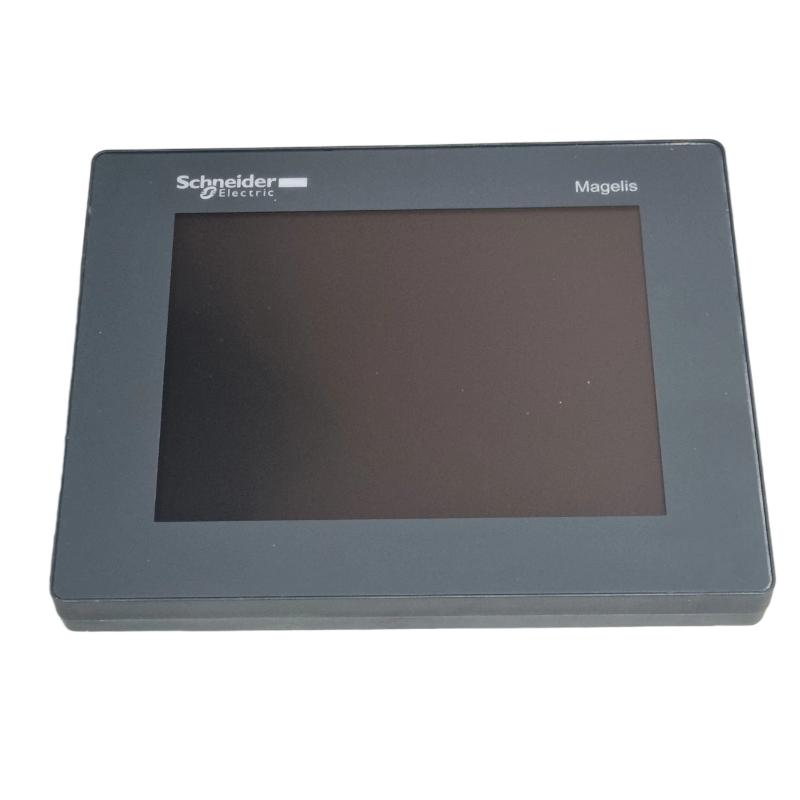

The Schneider HMISTU855 Touch Panel Screen is a practical industrial HMI solution designed to improve communication between operators and automation systems.
As part of the Harmony STO & STU product family, this touch panel focuses on providing reliable visualization, efficient operation, and flexible integration for industrial applications. It allows users to access important machine information through a graphical interface, improving equipment monitoring and operational control.
The HMISTU855 helps connect operators with industrial processes by presenting real-time data, alarm notifications, and control functions in an easy-to-use format. This enables faster decision-making, improved production management, and more efficient equipment operation.
With its compact installation design, industrial communication capability, and reliable touchscreen performance, the Schneider HMISTU855 is suitable for various automation environments including manufacturing equipment, process systems, and OEM machinery.
The Schneider HMISTU855 combines practical HMI functionality, dependable industrial performance, and flexible application capability, making it an ideal choice for modern automation visualization requirements.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
HMISTU855
Product Type
Touch Panel Screen
Product Series
Harmony STO & STU
Display Size
5.7 inch
Display Type
Color TFT Touchscreen
Display Resolution
320 × 240 pixels
Touch Panel Type
Analog Touchscreen
Display Colors
65536 Colors
Rated Supply Voltage
24 V DC
Power Consumption
6.8 W
Communication Interface
Ethernet, USB, Serial Communication
Mounting Type
Panel Mount Installation
Front Protection Rating
IP65
Rear Protection Rating
IP20
Application Area
Industrial Automation HMI Systems
Operating Temperature
0 to 50 °C
Dimensions
129.15 mm × 163 mm × 56.5 mm
Weight
1.66 kg (3.66 lb)
Recommended Related Models
Model
Product Type
Schneider HMISTU655
Harmony STU Touch Panel Screen
Schneider HMISTO855
Harmony STO Touch Panel Screen
Schneider HMIGTO1300
Magelis GTO Touch Panel
Schneider HMIGTO6310
Magelis GTO Advanced Touch Panel
Schneider HMIST6 Series
Harmony ST6 Touch Panel
Popular Related Models
Model
Product Type
Schneider HMIG3U
Industrial HMI Panel
Schneider HMIGTO2310
Magelis GTO Touch Panel
Schneider HMIGTO5310
Magelis GTO Touch Panel
Schneider HMISTO715
Harmony STO Touch Panel
Schneider HMISTU655W
Harmony STU Touch Panel
Industrial HMI Visualization Applications
The Schneider HMISTU855 Touch Panel Screen is a compact industrial human-machine interface designed for equipment monitoring, operator control, and efficient automation visualization. As part of the Harmony STO & STU series, this touch panel provides a reliable interface solution for industrial systems that require clear display performance, convenient operation, and flexible communication capability.
The HMISTU855 enables operators to interact directly with machines and automation systems through an intuitive touchscreen interface. It allows users to monitor real-time equipment conditions, adjust operating parameters, view alarms, and manage industrial processes more efficiently.
With its compact structure and industrial-grade design, the Schneider HMISTU855 is suitable for applications where installation space is limited while maintaining reliable HMI performance.
Typical applications include:
Industrial machine operation panels
Factory automation equipment
Packaging machinery
Production line monitoring systems
Pump and motor control applications
Process automation systems
Material handling equipment
OEM machine solutions
Equipment status monitoring systems
The Schneider HMISTU855 provides an effective visualization solution for customers seeking improved operator efficiency, reliable machine interaction, and simplified industrial control integration.
Efficient Visualization and Control Advantages
Clear Touchscreen Display Performance
The HMISTU855 provides a clear color display interface, allowing operators to easily monitor process information, equipment status, alarms, and operating parameters.
Intuitive Human-Machine Interaction
The touchscreen operation design improves user experience by allowing direct interaction with machine controls and reducing the complexity of traditional control systems.
Flexible Industrial Communication
The panel supports connection with automation controllers and PLC systems, enabling efficient data exchange between operators and industrial equipment.
Compact Installation Structure
The optimized dimensions make the HMISTU855 suitable for compact control panels, OEM machines, and applications where cabinet space is limited.
Reliable Industrial Operation
The industrial design provides stable performance in automation environments requiring continuous operation and dependable equipment interaction.
Simplified Engineering Integration
The HMI supports efficient configuration and system integration, helping reduce development time and improve automation project efficiency.
Technical FAQs and Engineering Answers
Q1: What is the main function of the Schneider HMISTU855?
A: The HMISTU855 is an industrial touch panel used for machine visualization, operator interaction, and automation system monitoring.
Q2: What type of applications use the HMISTU855?
A: It is commonly used in machine automation, production equipment, process monitoring, and industrial control systems.
Q3: What devices can communicate with the HMISTU855?
A: The panel can communicate with compatible PLCs, controllers, and industrial automation devices through supported communication interfaces.
Q4: How does the HMISTU855 improve operator efficiency?
A: It provides graphical visualization and touchscreen control, allowing operators to quickly understand equipment status and make adjustments.
Q5: What type of information can be displayed on this HMI?
A: It can display process data, alarm messages, machine status, operating parameters, and graphical control screens.
Q6: What power supply does the HMISTU855 require?
A: The HMISTU855 is designed for industrial 24 V DC power supply systems.
Q7: Can the HMISTU855 be used for OEM machine applications?
A: Yes. Its compact design and flexible communication capability make it suitable for OEM equipment integration.
Q8: How is the HMISTU855 configured for different applications?
A: The HMI is configured through dedicated HMI engineering software to create customized operating interfaces.
Q9: What advantages does a touchscreen HMI provide compared with traditional controls?
A: Touchscreen HMIs provide better visualization, easier parameter adjustment, and more flexible interface design.
Q10: How does the HMISTU855 support industrial maintenance?
A: It helps maintenance personnel monitor equipment conditions, identify alarms, and improve troubleshooting efficiency.
