Brand:Schneider PLC Item No.:LXM23DU02M3X Product Origin:France Product Dimensions:60 x 162 x 146 mm Product Weight:1.7 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

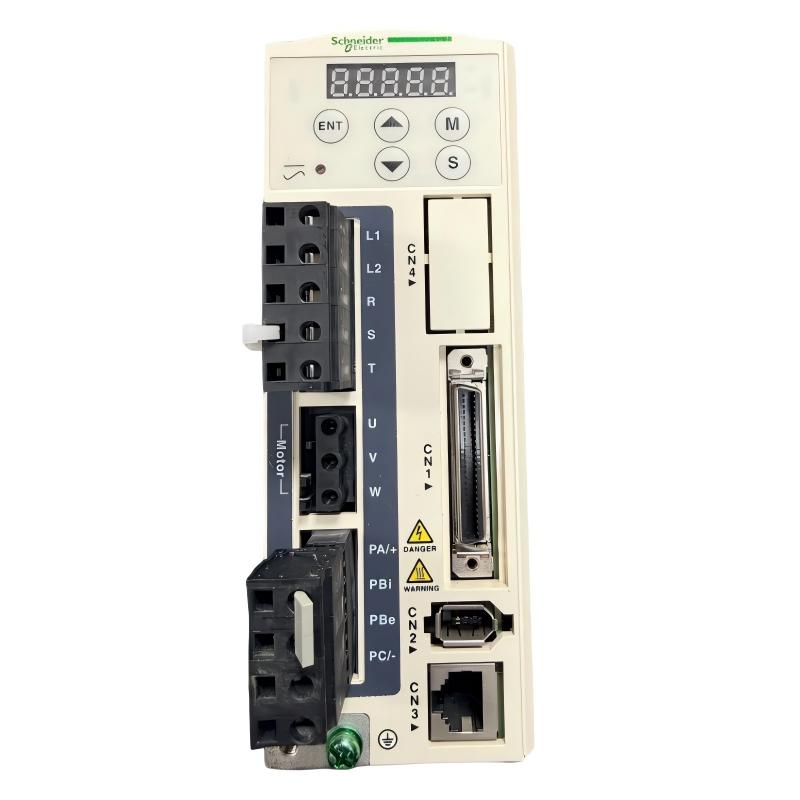

The Schneider LXM23DU02M3X Motion Servo Drive is an advanced compact servo control device designed for precision automation applications. It provides reliable motion management for machines requiring accurate positioning, smooth movement, and efficient operation.
In modern manufacturing environments, compact automation equipment requires both space-saving designs and high-performance control capability. Servo drives play an important role in improving machine accuracy, reducing operating errors, and increasing production consistency.
The LXM23DU02M3X combines servo control technology with accurate feedback processing to maintain stable motor performance. By continuously adjusting operating parameters, the drive helps machines achieve precise movement and improved repeatability.
The compact design of the LXM23DU02M3X makes it especially suitable for applications where cabinet space is limited but reliable motion control is required. It provides machine builders with a flexible solution for developing efficient and intelligent automation equipment.
With compact dimensions, dependable servo performance, and accurate motion management capability, the Schneider LXM23DU02M3X Motion Servo Drive is an ideal choice for precision industrial automation systems.
Technical Specifications
Parameter
Description
Manufacturer
Schneider Electric
Model Number
LXM23DU02M3X
Product Type
Motion Servo Drive
Product Series
Lexium 23 Plus
Rated Power
200 W
Rated Voltage
200 to 255 V AC
Power Supply Type
Single Phase
Control Mode
Position Control, Speed Control, Torque Control
Feedback Type
Encoder Feedback
Communication Interface
I/O Control
Drive Design
Book Style
Cooling Method
Natural Cooling
Mounting Type
Cabinet Mount Installation
Protection Rating
IP20
Operating Temperature
0 to 55 °C
Application Area
Industrial Motion Control Systems
Dimensions
60 mm × 162 mm × 146 mm
Weight
1.70 kg (3.75 lb)
Recommended Related Models
Model
Product Type
Schneider LXM23DU04M3X
Lexium 23 Plus Motion Servo Drive
Schneider LXM23DU08M3X
Lexium 23 Plus Motion Servo Drive
Schneider LXM23DU10M3X
Lexium 23 Plus Motion Servo Drive
Schneider LXM28AU02M3X
Lexium 28 Motion Servo Drive
Schneider LXM32MD10N4
Lexium 32 Motion Servo Drive
Popular Related Models
Model
Product Type
Schneider LXM23AU10M3X
Lexium 23 Motion Servo Drive
Schneider LXM23AU15M3X
Lexium 23 Motion Servo Drive
Schneider LXM32MD10N4
Lexium 32 Motion Servo Drive
Schneider LXM32AD12N4
Lexium 32 Servo Drive
Schneider LXM52DD12A11000
Lexium Motion Controller Drive
Compact Precision Motion Control Applications
The Schneider LXM23DU02M3X Motion Servo Drive is a compact and reliable servo control solution designed for industrial automation systems requiring precise positioning, smooth operation, and efficient motion performance. As part of the Lexium 23 Plus series, this servo drive provides accurate control of servo motors for applications where installation space, response speed, and motion stability are important factors.
With a 200 W rated power capability, the LXM23DU02M3X is optimized for small-scale automation equipment and precision motion applications. Its compact structure allows easy integration into control cabinets while providing dependable servo control functions for modern machine designs.
The Schneider LXM23DU02M3X helps engineers achieve accurate speed regulation, stable torque control, and reliable positioning performance. It is suitable for automation systems that require high repeatability, efficient operation, and long-term industrial reliability.
Typical applications include:
Precision assembly equipment
Small packaging machines
Electronic manufacturing systems
Inspection and testing equipment
Labeling machinery
Laboratory automation systems
Small robotic mechanisms
Semiconductor handling equipment
OEM compact automation solutions
The Schneider LXM23DU02M3X Motion Servo Drive provides an efficient solution for customers seeking compact design, accurate motion control, and reliable automation performance.
Compact Servo Technology Advantages and Industrial Benefits
High-Precision Motion Control
The LXM23DU02M3X provides accurate control of servo motor position, speed, and torque, helping machines achieve stable and repeatable movement performance.
Space-Efficient Installation Design
The compact structure reduces cabinet space requirements, making it suitable for machines with limited installation areas.
Optimized Low-Power Motion Performance
With a 200 W rated output, the servo drive delivers efficient control capability for small mechanical systems requiring precise movement.
Fast Dynamic Response
The drive provides quick adjustment during acceleration, deceleration, and load changes, improving machine operating efficiency.
Reliable System Protection
Integrated monitoring and protection functions help maintain stable operation and reduce potential risks caused by abnormal conditions.
Flexible Automation Integration
The LXM23DU02M3X can be integrated into different industrial motion systems, providing a practical solution for machine builders and automation engineers.
Technical FAQs and Engineering Answers
Q1: What is the main function of the Schneider LXM23DU02M3X?
A: The LXM23DU02M3X is a motion servo drive used to control servo motors with accurate position, speed, and torque management.
Q2: What rated power does the LXM23DU02M3X support?
A: The servo drive supports a rated power of 200 W for compact industrial motion applications.
Q3: Which Schneider product series does the LXM23DU02M3X belong to?
A: The LXM23DU02M3X belongs to the Lexium 23 Plus servo drive family.
Q4: What types of applications are suitable for this servo drive?
A: It is suitable for precision automation equipment, small machines, assembly systems, and positioning applications.
Q5: How does the LXM23DU02M3X achieve accurate motion control?
A: It uses closed-loop servo control technology with feedback signals to continuously adjust motor operation.
Q6: What is the advantage of using a servo drive compared with a standard motor controller?
A: A servo drive provides more accurate control of position, speed, and torque, making it suitable for precision motion applications.
Q7: Can the LXM23DU02M3X be installed in compact control cabinets?
A: Yes. Its compact design makes it suitable for equipment where installation space is limited.
Q8: What factors should be considered when selecting this servo drive?
A: Engineers should consider motor power, load characteristics, positioning accuracy, operating speed, and application requirements.
Q9: How does the LXM23DU02M3X improve machine performance?
A: It improves machine consistency by providing precise motor control and reducing positioning errors.
Q10: Is the LXM23DU02M3X suitable for industrial continuous operation?
A: Yes. It is designed for reliable operation in industrial automation environments requiring stable servo performance.
