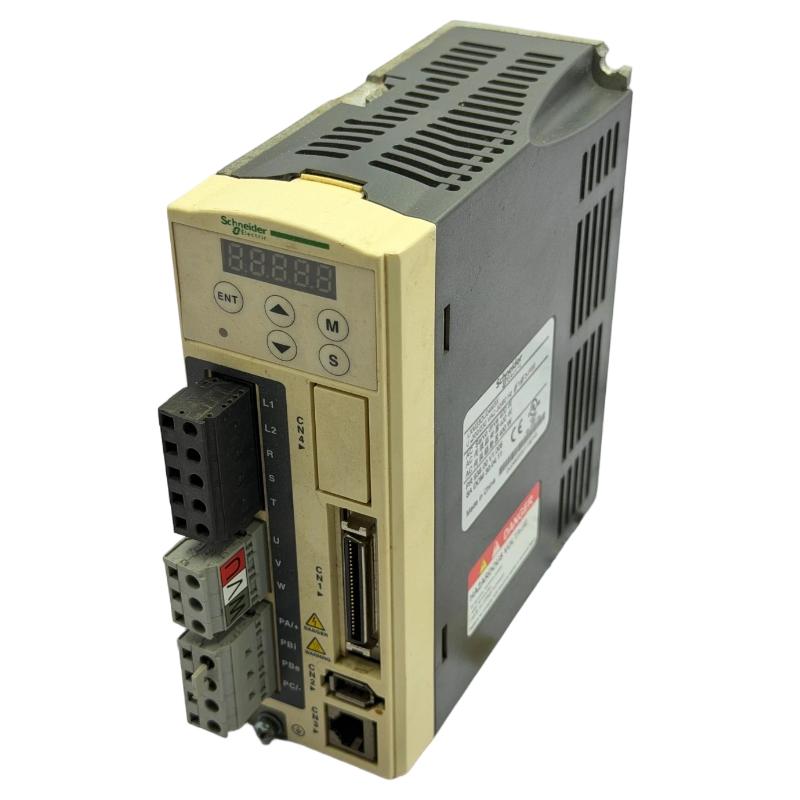

Schneider LXM23DU04M3X Motion Servo Drive

Compact Precision Motion Control Applications

The Schneider LXM23DU04M3X Motion Servo Drive is a compact and efficient servo control solution designed for industrial automation systems requiring accurate positioning, stable motion performance, and reliable operation. As part of the Lexium 23 Plus series, this servo drive provides precise control of servo motors for applications where space efficiency and motion accuracy are essential.

With a 400 W rated power capability, the LXM23DU04M3X is designed for small and medium precision motion applications. Its compact structure allows easy installation in automation cabinets while providing reliable control of motor speed, torque, and position.

The Schneider LXM23DU04M3X helps improve machine performance by delivering smooth movement, high repeatability, and efficient motion management. It is an ideal choice for equipment manufacturers and industrial users requiring compact servo solutions with dependable performance.

Typical applications include:

• Precision assembly equipment
• Small packaging machinery
• Electronic manufacturing systems
• Inspection and testing equipment
• Labeling machines
• Small robotic systems
• Automated positioning equipment
• Semiconductor handling machines
• OEM automation equipment

The Schneider LXM23DU04M3X Motion Servo Drive provides a practical solution for customers looking to enhance machine accuracy, optimize production efficiency, and achieve reliable industrial motion control.

Efficient Servo Control Advantages and Industrial Benefits

Precise Motion Regulation
The LXM23DU04M3X provides accurate control of servo motor position, speed, and torque, helping machines achieve consistent and repeatable movement.

Compact Installation Design
The space-saving structure allows efficient installation inside control cabinets, making it suitable for compact automation equipment.

Optimized 400 W Servo Performance
The servo drive provides efficient power output for applications requiring precise movement control and stable operation.

Fast Dynamic Response
The drive quickly responds to motion commands and load changes, improving machine cycle efficiency and operational stability.

Reliable Industrial Operation
Built-in monitoring and protection functions help maintain stable performance and reduce potential equipment downtime.

Flexible Automation Integration
The LXM23DU04M3X can work with industrial controllers and automation systems to provide a complete motion control solution.

Technical FAQs and Engineering Answers

Q1: What is the main function of the Schneider LXM23DU04M3X?
A: The LXM23DU04M3X is a motion servo drive designed to control servo motors with accurate position, speed, and torque management.

Q2: What rated power does the LXM23DU04M3X support?
A: The servo drive supports a rated power of 400 W for precision industrial motion applications.

Q3: Which Schneider product series does the LXM23DU04M3X belong to?
A: The LXM23DU04M3X belongs to the Lexium 23 Plus servo drive series.

Q4: What applications are suitable for this servo drive?
A: It is suitable for precision assembly, packaging equipment, inspection systems, robotics, and compact automation machines.

Q5: How does the LXM23DU04M3X achieve accurate positioning?
A: The servo drive uses closed-loop feedback control technology to continuously adjust motor operation according to feedback signals.

Q6: What is the difference between a servo drive and a conventional motor controller?
A: A servo drive provides higher accuracy control of position, speed, and torque, making it suitable for precision motion applications.

Q7: Can the LXM23DU04M3X be installed in small control cabinets?
A: Yes. Its compact design allows installation in systems where available cabinet space is limited.

Q8: What factors should be considered when selecting this servo drive?
A: Engineers should consider motor power, load requirements, positioning accuracy, operating speed, and control system compatibility.

Q9: How does this servo drive improve machine efficiency?
A: It improves efficiency by providing precise motor control, reducing positioning errors, and optimizing motion cycles.

Q10: Is the LXM23DU04M3X suitable for continuous industrial operation?
A: Yes. It is designed for stable operation in industrial automation environments requiring reliable servo performance.
