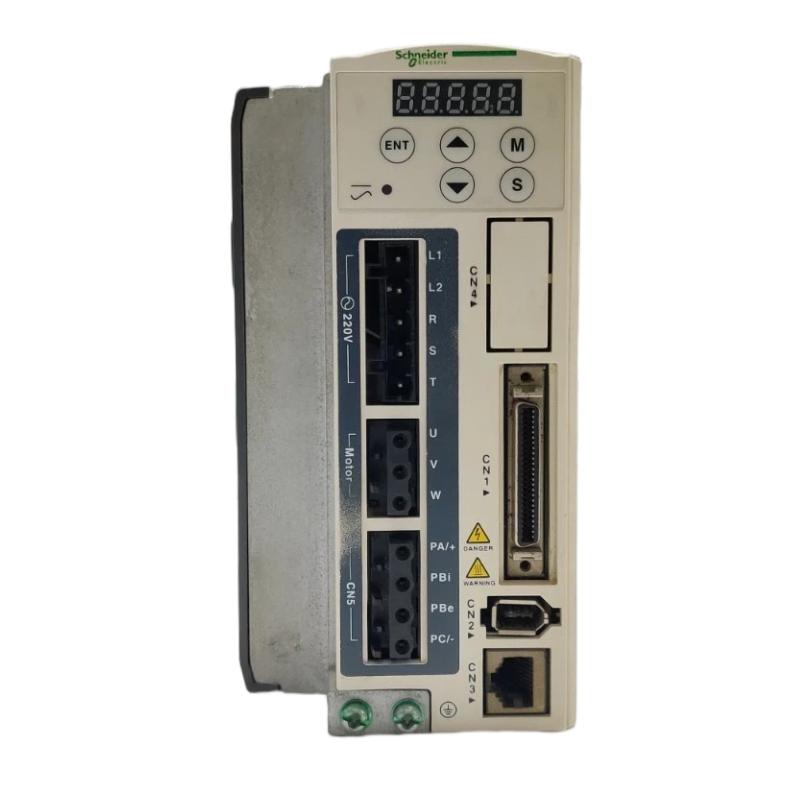

Schneider LXM23DU07M3X Motion Servo Drive

Reliable Motion Control Applications for Industrial Automation

The Schneider LXM23DU07M3X Motion Servo Drive is a compact and efficient servo control solution designed for industrial automation systems requiring accurate positioning, smooth operation, and reliable motion performance. As part of the Lexium 23 Plus series, this servo drive provides precise control of servo motors, supporting applications that require stable speed regulation, accurate torque management, and fast response capability.

With a 750 W rated power capacity, the LXM23DU07M3X is suitable for medium-power motion applications where higher output performance and compact installation are both required. It helps automation equipment achieve improved positioning accuracy, better movement consistency, and optimized production efficiency.

The Schneider LXM23DU07M3X features a compact structure that allows convenient installation inside control cabinets. Its efficient design makes it suitable for machine builders and industrial users who require dependable servo performance without sacrificing valuable installation space.

Typical applications include:

• Automated assembly equipment
• Packaging machinery
• Precision positioning systems
• Electronic manufacturing equipment
• Labeling and inspection machines
• Robotics and handling systems
• Small CNC auxiliary systems
• Automated production lines
• OEM industrial machines

The Schneider LXM23DU07M3X Motion Servo Drive provides an effective solution for customers seeking precise motion control, flexible system integration, and reliable industrial automation performance.

Advanced Servo Performance Advantages and Industrial Benefits

Accurate Motion Control Capability
The LXM23DU07M3X provides precise control of servo motor position, speed, and torque, helping machines achieve consistent and repeatable movement performance.

Balanced 750 W Power Performance
The servo drive delivers efficient power output for applications requiring stronger motion capability while maintaining compact dimensions.

Fast Dynamic Response
The drive responds quickly to motion commands and load changes, improving machine cycle efficiency and maintaining stable operation.

Space-Saving Installation Design

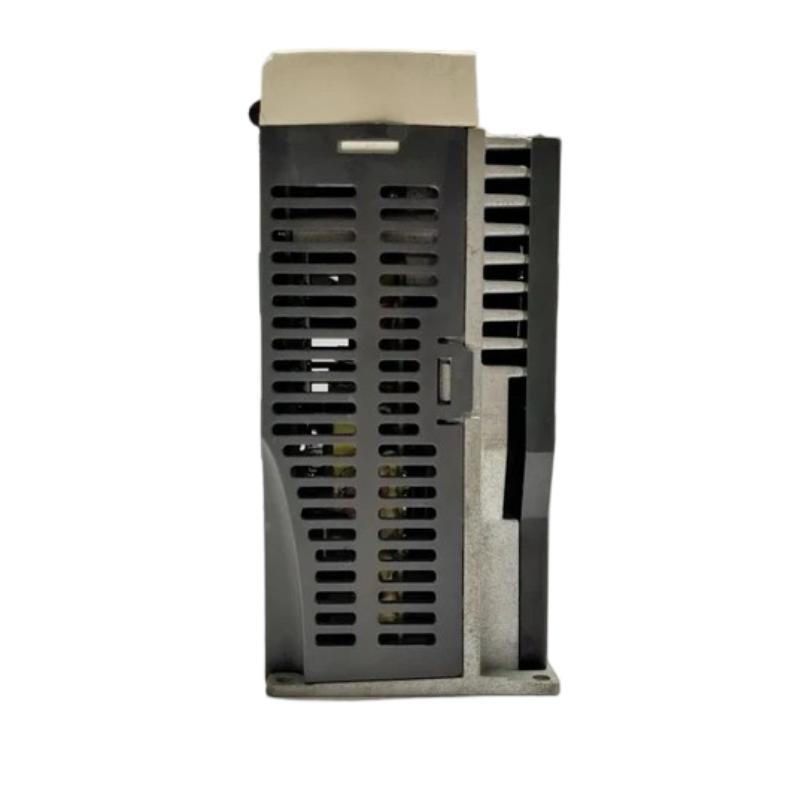

The compact book-style structure allows efficient cabinet installation and helps optimize control panel space.

Reliable Industrial Operation
Integrated monitoring and protection functions help maintain stable system performance and reduce unexpected operational interruptions.

Flexible Automation Integration
The LXM23DU07M3X can be integrated into different automation systems, providing machine builders with a practical and scalable motion control solution.

Technical FAQs and Engineering Answers

Q1: What is the main function of the Schneider LXM23DU07M3X?
A: The LXM23DU07M3X is a motion servo drive designed to control servo motors with accurate position, speed, and torque regulation.

Q2: What rated power does the LXM23DU07M3X support?
A: The servo drive supports a rated power of 750 W for industrial motion control applications.

Q3: Which Schneider product family does the LXM23DU07M3X belong to?
A: The LXM23DU07M3X belongs to the Lexium 23 Plus servo drive family.

Q4: What applications are suitable for this servo drive?
A: It is suitable for precision automation equipment, packaging systems, assembly machines, robotics applications, and positioning systems.

Q5: How does the LXM23DU07M3X achieve accurate motion control?
A: It uses closed-loop feedback control technology to monitor motor operation and adjust performance in real time.

Q6: What is the difference between a servo drive and a standard frequency inverter?
A: A servo drive provides higher precision control of position, speed, and torque, while a frequency inverter mainly focuses on general motor speed adjustment.

Q7: Can the LXM23DU07M3X be used for multi-axis automation systems?
A: Yes. It can be integrated into multi-axis motion applications requiring coordinated motor control.

Q8: What factors should engineers consider when selecting this servo drive?
A: Engineers should consider motor power, load requirements, required accuracy, operating speed, feedback system, and controller compatibility.

Q9: How does the LXM23DU07M3X improve machine efficiency?
A: It improves efficiency by providing accurate motion control, reducing positioning errors, and optimizing machine movement cycles.

Q10: Is the LXM23DU07M3X suitable for long-term industrial operation?
A: Yes. It is designed for reliable performance in industrial automation environments requiring continuous and stable operation.
