Brand:Schneider PLC Item No.:TSXAEZ802 Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

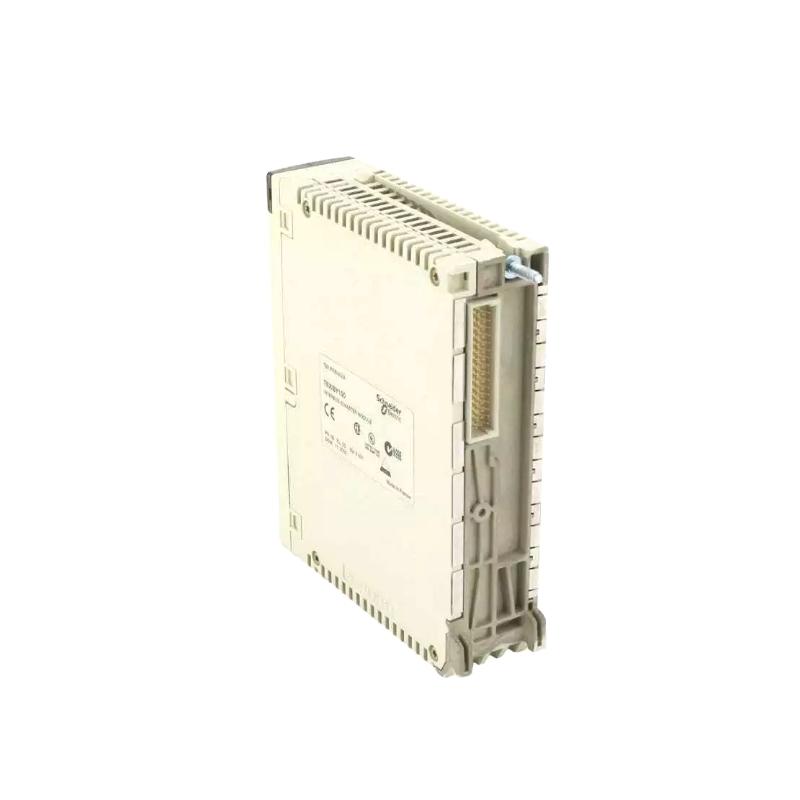

The Schneider TSXAEZ802 Analog Input Module is a Modicon TSX Micro expansion module designed for industrial automation systems requiring reliable current signal measurement. Supporting eight analog input channels with 0–20 mA and 4–20 mA signal ranges, it provides an effective solution for integrating industrial transmitters and measurement devices into PLC control architectures.
Built for stable operation within Schneider Electric’s TSX Micro platform, the TSXAEZ802 delivers dependable analog acquisition performance for process monitoring, machine automation, and retrofit applications. Its compact design and multi-channel capability make it a valuable option for engineers upgrading existing automation systems without replacing the complete PLC infrastructure.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
TSXAEZ802
Product Family
Modicon TSX Micro
Module Type
Analog Input Module
Number of Channels
8
Analog Input Type
Current Input
Input Range
0–20 mA / 4–20 mA
Analog/Digital Conversion
12 bits
Acquisition Period
32 ms
Input Impedance
250 Ω
Temperature Drift
0.054% / 10°C
Isolation Voltage
1000 V AC
Current Consumption
60 mA
Configuration Software
PL7 Micro / PL7 Junior / PL7 Pro
Mounting Type
TSX Micro Rack Installation
Protection Rating
IP20
Operating Temperature
0…60°C
Storage Temperature
-25…70°C
Dimensions
Approx. 103 × 80 × 25 mm
Weight
Approx. 0.2 kg
Recommended Companion Models
Model
Product Name
Schneider TSX3722001
Modicon TSX Micro Modular Base Controller
Schneider TSXAEZ801
Modicon TSX Micro Analog Input Module
Schneider TSXAEZ414
Modicon TSX Micro Analog Temperature Input Module
Schneider TSXDMZ28DR
Modicon TSX Micro Digital I/O Module
Frequently Selected Alternatives
Model
Product Name
Schneider TSXACZ03
Modicon TSX Micro Analog Input Module
Schneider TSXASZ200
Modicon TSX Micro Analog Output Module
Schneider TSXAEY414
Modicon Premium Analog Input Module
Schneider TM3AI8
Modicon TM3 Analog Input Module
Where It Excels in Industrial Use
• Industrial Current Signal Acquisition
The Schneider TSXAEZ802 is a Modicon TSX Micro analog input module designed for accurate current signal measurement in industrial automation systems. Supporting 0–20 mA and 4–20 mA input signals, it enables PLC platforms to collect data from transmitters, sensors, and process instruments.
• Process Monitoring and Control Applications
Ideal for monitoring industrial variables such as pressure, flow, level, and other process parameters where current-loop measurement is widely used.
• Automation System Expansion
The module extends Modicon TSX Micro PLC systems by adding multi-channel analog acquisition capability, allowing existing digital-focused control systems to handle advanced process data.
• Legacy PLC Maintenance Projects
A practical choice for engineers maintaining established TSX Micro installations, providing a reliable replacement option for existing analog input modules in industrial control cabinets.
Key Strengths at a Glance
• Eight-Channel Current Input Design
Provides 8 analog input channels supporting 0–20 mA and 4–20 mA current signals, allowing multiple industrial transmitters to be connected through one compact module.
• High-Accuracy Analog Conversion
Features 12-bit analog-to-digital conversion, helping PLC systems process analog field signals with improved measurement detail and stability.
• Fast Signal Acquisition Performance
With a 32 ms acquisition period, the TSXAEZ802 supports efficient scanning of multiple analog channels for automation applications requiring responsive data updates.
• Strong TSX Micro Platform Compatibility
Designed specifically for the Modicon TSX Micro automation platform, ensuring smooth integration with compatible TSX Micro PLC controllers and expansion systems.
Technical FAQs
1. What type of product is the Schneider TSXAEZ802?
The Schneider TSXAEZ802 is a Modicon TSX Micro analog input module designed for industrial current signal acquisition and PLC expansion applications.
2. How many analog input channels does the TSXAEZ802 provide?
The TSXAEZ802 provides eight analog input channels for industrial current measurement.
3. What input signal types are supported by the TSXAEZ802?
The module supports 0–20 mA and 4–20 mA analog current input signals.
4. What analog conversion resolution does the TSXAEZ802 use?
The TSXAEZ802 uses 12-bit analog-to-digital conversion for signal processing.
5. Which PLC platform is compatible with the TSXAEZ802?
The TSXAEZ802 is designed for the Schneider Electric Modicon TSX Micro automation platform.
6. Can the TSXAEZ802 connect to industrial transmitters?
Yes. The module can interface with compatible current-output transmitters and industrial sensors using 0–20 mA or 4–20 mA signals.
7. What programming software is used with the TSXAEZ802?
The TSXAEZ802 is configured through Schneider Electric PL7 programming software used with Modicon TSX Micro controllers.
8. What is the input impedance of the TSXAEZ802?
The TSXAEZ802 has an input impedance of 250 Ω.
9. What industries commonly use the TSXAEZ802?
Typical applications include manufacturing automation, process monitoring, machine control, and industrial measurement systems.
10. Is the TSXAEZ802 suitable for TSX Micro retrofit projects?
Yes. The module is commonly used for maintaining and expanding existing Modicon TSX Micro automation installations.
