Brand:Schneider PLC Item No.: TSXAMZ600 Product Origin:France Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

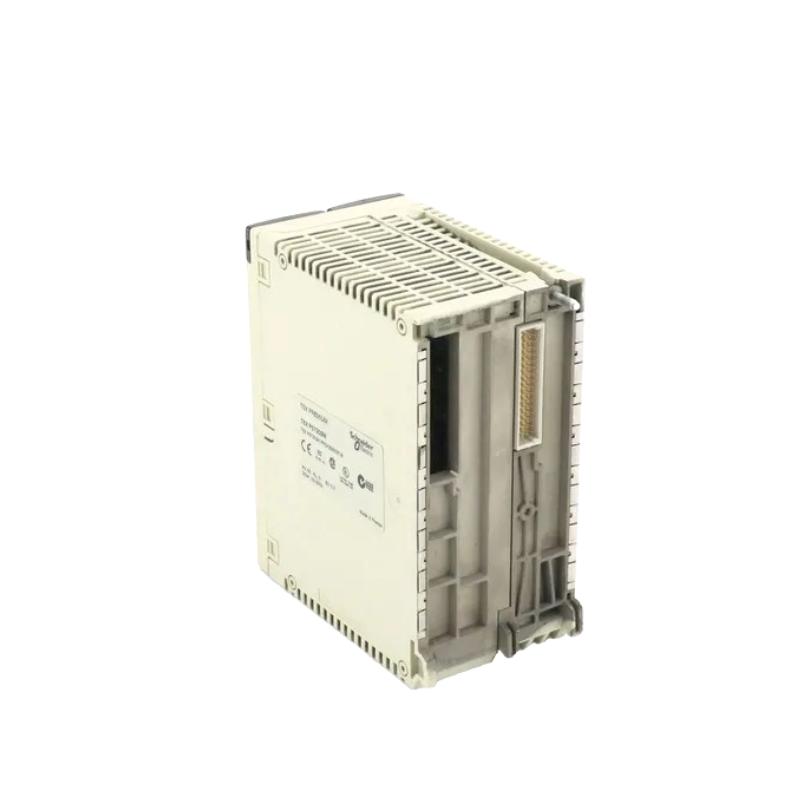

The Schneider TSXAMZ600 Analog I/O Module is a Modicon TSX Micro expansion module designed to provide integrated analog input and output functionality for industrial automation systems. Combining four analog inputs with two analog outputs, it enables PLC installations to monitor real-world signals and control analog devices within a single compact module.
Supporting multiple voltage and current signal ranges, the TSXAMZ600 offers excellent flexibility for machine builders, system integrators, and maintenance engineers working with Schneider Electric automation platforms. Its reliable signal conversion performance and compatibility with TSX Micro controllers make it a practical solution for industrial control upgrades and long-term system maintenance.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
TSXAMZ600
Product Family
Modicon TSX Micro
Module Type
Analog I/O Module
Analog Input Channels
4
Analog Output Channels
2
Analog Input Type
0…10 V, ±10 V, 0…20 mA, 4…20 mA
Analog Output Type
0…10 V, ±10 V, 0…20 mA, 4…20 mA
Analog Conversion
11 bits / 11 bits + sign
Acquisition Period
16 ms
Response Time
400 μs
Input Impedance
250 Ω (current input), 2.2 Ω (voltage input)
Output Protection
Short-circuit protection
Isolation Voltage
1000 V AC
Current Consumption
180 mA at 5 V DC
Configuration Software
PL7
Mounting Type
TSX Micro Rack Installation
Protection Rating
IP20
Operating Temperature
0…60 °C
Dimensions
Approx. 103 × 80 × 25 mm
Weight
Approx. 0.24 kg
Recommended Companion Models
Model
Product Name
Schneider TSX3722001
Modicon TSX Micro Modular Base Controller
Schneider TSXAEZ801
Modicon TSX Micro Analog Input Module
Schneider TSXAEZ802
Modicon TSX Micro Current Analog Input Module
Schneider TSXDMZ28DR
Modicon TSX Micro Digital I/O Module
Frequently Selected Alternatives
Model
Product Name
Schneider TSXACZ03
Modicon TSX Micro Analog Input Module
Schneider TSXAEZ414
Modicon TSX Micro Temperature Analog Input Module
Schneider TM3AM6
Modicon TM3 Analog Mixed I/O Module
Schneider TM3AI8
Modicon TM3 Analog Input Module
Where It Excels in Industrial Use
• Industrial Analog Signal Control Systems
The Schneider TSXAMZ600 is a Modicon TSX Micro analog I/O module designed for industrial automation applications requiring both analog signal acquisition and output control. With 4 analog inputs and 2 analog outputs, it provides a flexible solution for integrating sensors, transmitters, actuators, and process control devices into PLC systems.
• Process Monitoring and Regulation Applications
Ideal for applications involving pressure, temperature, flow, level, and speed monitoring where analog feedback signals must be collected and converted for PLC-based control operations.
• Machine Automation Expansion Projects
The TSXAMZ600 expands Modicon TSX Micro controllers with mixed analog functionality, allowing existing automation systems to handle more advanced measurement and control requirements.
• Legacy PLC Retrofit Solutions
A reliable choice for maintaining existing TSX Micro installations, providing a practical way to replace or extend analog control functions without redesigning the complete automation system.
Key Strengths at a Glance
• Combined Analog Input and Output Capability
Provides 4 analog input channels and 2 analog output channels in one compact module, supporting multi-range voltage and current signals for flexible industrial applications.
• Multi-Range Signal Compatibility
Supports 0…10 V, ±10 V, 0…20 mA, and 4…20 mA signal types for both input and output functions, allowing connection with a wide variety of industrial devices.
• Reliable Analog Conversion Performance
Features 11-bit analog-to-digital conversion with sign processing for bipolar signals, providing stable signal measurement and control performance.
• Fast Signal Processing Response
Offers a 16 ms acquisition period and approximately 400 μs response time, supporting efficient signal updates for automation applications.
Technical FAQs
1. What type of product is the Schneider TSXAMZ600?
The Schneider TSXAMZ600 is a Modicon TSX Micro analog I/O module designed for industrial PLC expansion and analog signal processing applications.
2. How many analog input and output channels does the TSXAMZ600 provide?
The TSXAMZ600 provides four analog input channels and two analog output channels.
3. What signal types are supported by the TSXAMZ600?
The module supports 0…10 V, ±10 V, 0…20 mA, and 4…20 mA analog signals for input and output applications.
4. Which PLC platform is compatible with the TSXAMZ600?
The TSXAMZ600 is designed for the Schneider Electric Modicon TSX Micro automation platform.
5. What is the analog conversion resolution of the TSXAMZ600?
The TSXAMZ600 uses 11-bit analog conversion, with additional sign processing for ±10 V bipolar measurement ranges.
6. Can the TSXAMZ600 connect to industrial transmitters and actuators?
Yes. The module can interface with compatible analog transmitters, sensors, and control devices using voltage or current signals.
7. What programming software is used with the TSXAMZ600?
The module is configured through Schneider Electric PL7 programming software used with Modicon TSX Micro controllers.
8. What is the acquisition period of the TSXAMZ600?
The TSXAMZ600 provides a 16 ms acquisition period for supported analog input ranges.
9. Does the TSXAMZ600 include output protection functions?
Yes. The module provides short-circuit protection for analog output channels.
10. What applications commonly use the TSXAMZ600?
Typical applications include industrial machinery, process control systems, production equipment, and TSX Micro retrofit projects.
