Where It Excels in Industrial Use

• Precision Analog Control Applications

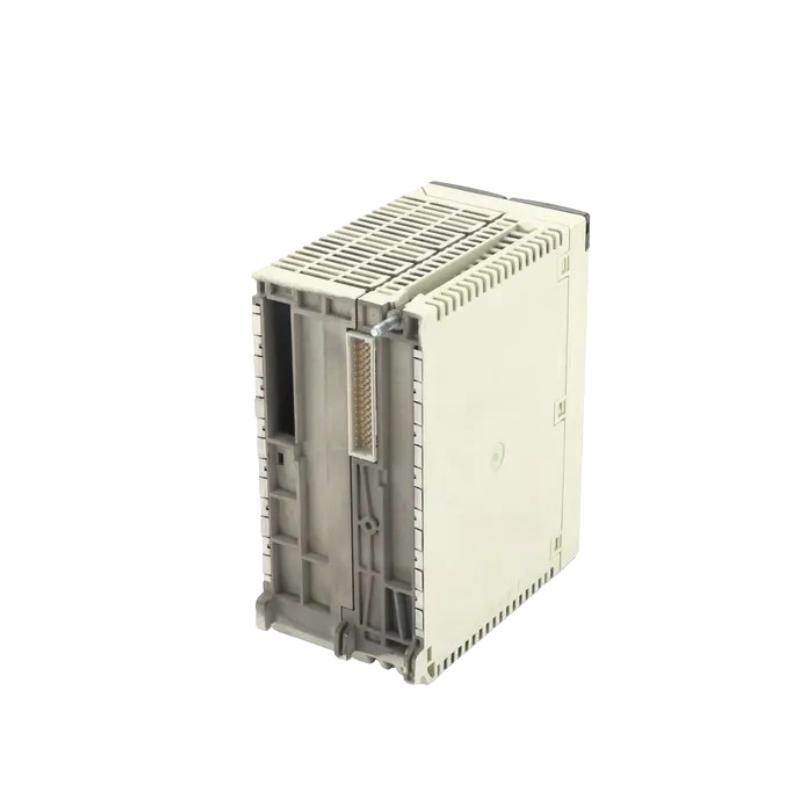

The Schneider TSXASY410 is a Modicon Premium analog output module designed for industrial automation systems requiring accurate voltage and current output control. It provides four configurable analog outputs for controlling drives, valves, actuators, and process devices.

• Process Automation and Regulation Systems
Ideal for applications involving speed regulation, flow control, pressure adjustment, temperature control, and other industrial processes where PLC-generated analog signals are required.

• Machine Automation and Motion Control Integration
The TSXASY410 enables Modicon Premium PLC systems to interface with analog-controlled equipment, supporting smooth adjustment and precise control of industrial devices.

• Legacy Modicon Premium System Maintenance
A practical solution for engineers maintaining existing Premium PLC installations, allowing continued operation of established automation architectures while replacing or expanding analog output capabilities.

Key Strengths at a Glance

• Four-Channel Analog Output Capability
Provides four analog output channels supporting 0…20 mA, 4…20 mA, and ±10 V signal ranges for flexible industrial control applications.

• Reliable Signal Conversion Performance
Uses 11-bit plus sign analog conversion technology, providing stable and accurate output resolution for demanding automation environments.

• Multi-Range Output Configuration
Supports both voltage and current output modes, allowing connection with various industrial actuators, controllers, and field devices.

• Integrated Protection Functions
Includes overload and short-circuit protection features to improve operational reliability in industrial control systems.

Technical FAQs

1. What type of product is the Schneider TSXASY410?

The Schneider TSXASY410 is a Modicon Premium analog output module designed for PLC-based industrial automation applications.

2. How many analog output channels does the TSXASY410 provide?

The TSXASY410 provides four independent analog output channels.

3. Which analog output signals are supported by the TSXASY410?

The module supports 0…20 mA, 4…20 mA, and ±10 V analog output signals.

4. Which PLC platform is compatible with the TSXASY410?

The TSXASY410 is designed for the Schneider Electric Modicon Premium automation platform.

5. What is the conversion resolution of the TSXASY410?

The module uses 11 bits plus sign analog-to-digital conversion technology for output processing.

6. What type of devices can be controlled using the TSXASY410?

The module can control compatible analog devices such as variable speed drives, proportional valves, actuators, and industrial regulators.

7. What connection method does the TSXASY410 use?

The module uses a screw terminal block connection method for field wiring.

8. Does the TSXASY410 provide channel isolation?

Yes. The module provides electrical isolation between channels and between channels and the bus to improve system reliability.

9. What programming software is used with the TSXASY410?

The TSXASY410 is configured through Schneider Electric programming software used with Modicon Premium PLC systems.

10. Is the TSXASY410 suitable for retrofit applications?

Yes. It is commonly selected for maintenance, replacement, and expansion projects involving existing Modicon Premium automation systems.
