Brand:Schneider PLC Item No.:TWDAVO2HT Product Origin:France Product Dimensions:108 × 7.2 × 7.2 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

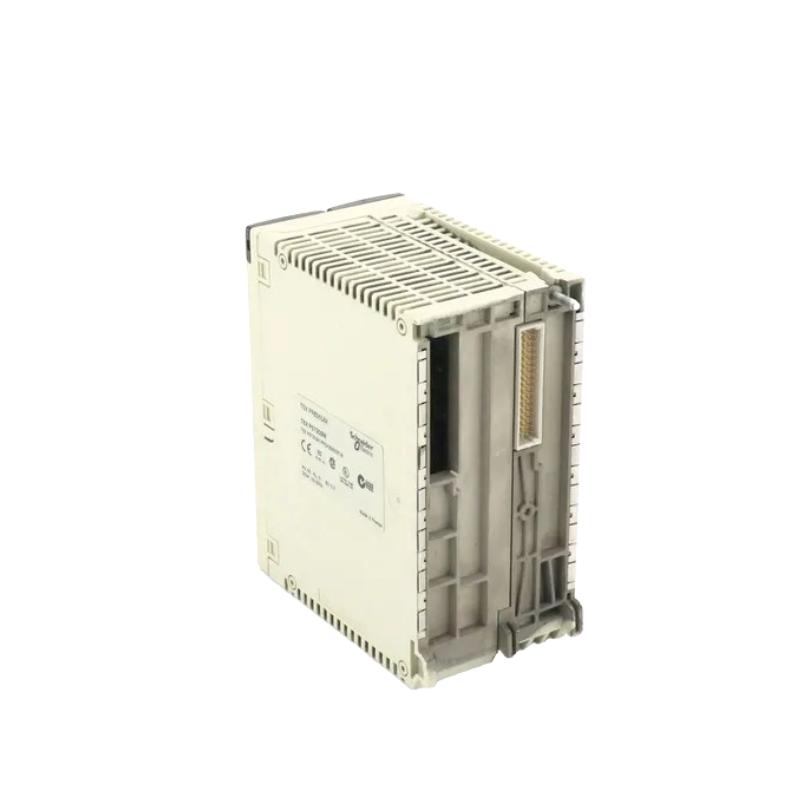

The Schneider TWDAVO2HT Analog Output Module is a Twido expansion module developed to add reliable analog voltage output capability to compact PLC automation systems. With two voltage output channels and precise digital-to-analog conversion performance, it enables Twido controllers to interface with variable-speed drives, control valves, regulators, and other analog-controlled industrial equipment.
Designed for engineers working with compact automation platforms, the TWDAVO2HT combines simple installation, stable signal performance, and flexible configuration. Its ±10 VDC output capability makes it suitable for a wide range of industrial applications where accurate analog control is required.
Technical Specifications
Specification
Details
Manufacturer
Schneider Electric
Model
TWDAVO2HT
Product Family
Twido
Module Type
Analog Output Module
Output Type
Voltage Output
Number of Outputs
2 Analog Outputs
Output Range
-10…+10 VDC
Resolution
11 bits + Sign
Load Type
Resistive Load
Minimum Load Impedance
3 kΩ
Settling Time
2 ms
Conversion Time
2 ms + 1 controller scan time
Output Accuracy
±0.5% full scale at 25°C
Temperature Drift
±0.01% full scale/°C
Repeat Accuracy
±0.1% full scale
Output Ripple
Maximum 1 LSB
External Supply Voltage
24 VDC
Supply Range
19.2…30 VDC
Connection Type
Removable Screw Terminal Block
Cable Requirement
Shielded Twisted Pair Cable
Operating Temperature
0…55°C
Protection Rating
IP20
Dimensions
Approx. 100 × 25 × 76 mm
Weight
Approx. 85 g
Recommended Companion Models
Model
Product Name
Schneider TWDLCAA24DRF
Twido Compact Controller Module
Schneider TWDLCAE40DRF
Twido Ethernet Compact Controller
Schneider TWDAMI4LT
Twido Analog Input Module
Schneider TWDLMDA20DTK
Twido Modular Controller Module
Frequently Selected Alternatives
Model
Product Name
Schneider TM2AVO2HT
Modicon Analog Output Module
Schneider TWDAMO1HT
Twido Analog Output Module
Schneider TWDAMM3HT
Twido Mixed Analog I/O Module
Schneider TM2AMM6HT
Modicon Mixed Analog I/O Module
Where It Excels in Industrial Use
• Analog Signal Control for Automation Systems
The Schneider TWDAVO2HT is a Twido analog output module designed to provide accurate voltage signal generation for industrial control applications. It expands Twido PLC capabilities by adding two analog voltage outputs for devices such as drives, valves, actuators, and process controllers.
• Machine Automation and Process Adjustment
Ideal for applications requiring variable control signals, the module supports precise adjustment of speed references, temperature controllers, pressure regulators, and other analog-controlled equipment within automated systems.
• Compact PLC Expansion Projects
Designed for Twido controller architectures, the TWDAVO2HT provides a compact method to add analog output functionality without replacing the main PLC system, making it suitable for small and medium automation installations.
• Retrofit and Legacy Control System Maintenance
The module remains a practical option for engineers maintaining existing Twido-based installations that require analog voltage outputs while preserving the original control platform.
Key Strengths at a Glance
• Two-Channel Voltage Output Capability
Provides two analog voltage outputs with a ±10 VDC output range, supporting flexible control of industrial devices requiring bipolar voltage signals.
• High-Resolution Analog Conversion
Uses 11-bit plus sign resolution, delivering accurate output adjustment for applications requiring stable analog regulation and repeatable control performance.
• Fast Signal Response
Offers approximately 2 ms settling time, allowing quick response for dynamic automation processes and equipment adjustments.
• Twido Platform Integration
Designed for direct integration with compatible Twido controllers, providing convenient expansion through removable terminal block connections.
Technical FAQs
1. What type of product is the Schneider TWDAVO2HT?
The Schneider TWDAVO2HT is a Twido analog output module designed to provide additional voltage output channels for PLC automation systems.
2. How many analog outputs does the TWDAVO2HT provide?
The module provides two analog voltage output channels for controlling external analog devices.
3. What output signal range does the TWDAVO2HT support?
The TWDAVO2HT supports a voltage output range of -10 VDC to +10 VDC.
4. What type of loads can be connected to the TWDAVO2HT?
The module is designed for resistive loads with a minimum load impedance of approximately 3 kΩ.
5. What is the resolution of the TWDAVO2HT analog output?
The module provides 11 bits plus sign resolution for analog voltage output processing.
6. Which controllers are compatible with the TWDAVO2HT?
The TWDAVO2HT is designed for use with Schneider Electric Twido controller platforms and compatible expansion architectures.
7. What programming environment is used for the TWDAVO2HT?
The module is configured through Schneider Electric Twido programming software as part of the controller hardware configuration.
8. Does the TWDAVO2HT require an external power supply?
Yes. The module uses a 24 VDC supply with an operating range of approximately 19.2 to 30 VDC.
9. What applications commonly use the TWDAVO2HT?
Typical applications include analog speed references, actuator control, process regulation, and industrial equipment adjustment systems.
10. Can the TWDAVO2HT be used in existing Twido replacement projects?
Yes. It is commonly selected for maintenance and expansion of existing Twido automation systems requiring additional analog output functions.
