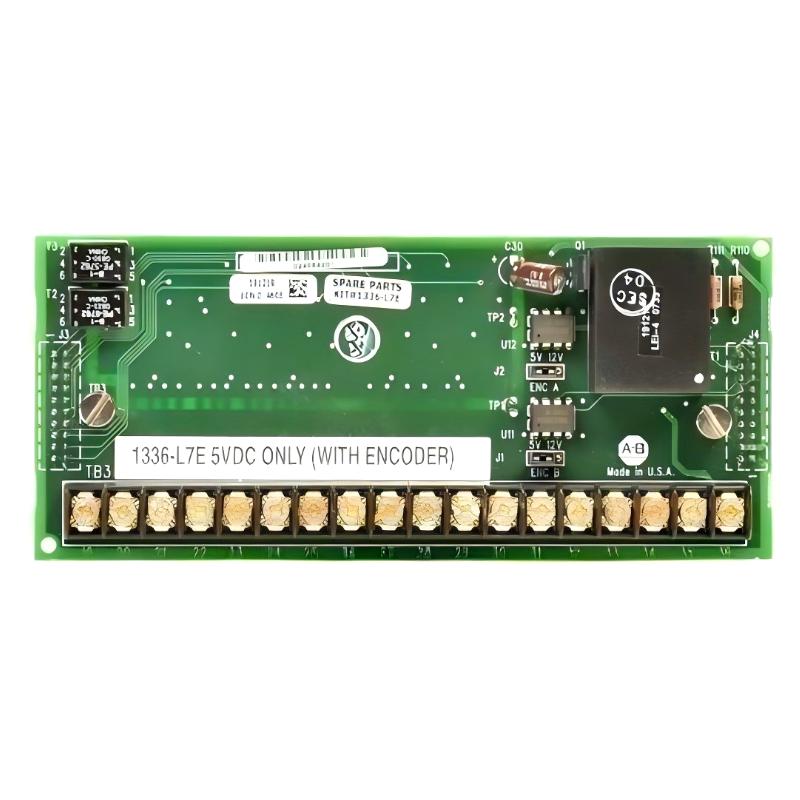

Allen Bradley 1336-L7E Control Interface Board

Industrial Applications and Control Interface Integration

The Allen Bradley 1336-L7E Control Interface Board is a dedicated interface component designed for Allen-Bradley 1336 adjustable frequency drive systems. It expands the drive’s control capability by providing additional signal connection functions and supporting feedback-related applications where accurate monitoring and improved motor control performance are required.

This interface board is widely used in industrial automation environments that depend on stable drive communication, reliable signal processing, and consistent motor operation, including:

• Automated production equipment
• Conveyor and material handling systems
• Industrial machinery requiring feedback monitoring
• Pump and fan control applications
• Legacy Allen-Bradley 1336 drive maintenance projects

For facilities operating existing 1336 drive systems, the 1336-L7E provides a practical solution for restoring interface functionality, improving system flexibility, and maintaining reliable automation performance without replacing the complete drive installation.

Engineering Advantages and Performance Benefits

The Allen Bradley 1336-L7E Control Interface Board is designed to improve the connection between drive control systems and external devices. Its application-focused design supports accurate signal transmission and dependable operation in industrial environments.

Enhanced Control Signal Management
The board provides additional interface capability, allowing external control devices and feedback systems to communicate effectively with the drive.

Improved Motor Monitoring Capability
By supporting feedback signal integration, the module helps improve drive response and monitoring accuracy in demanding applications.

Reliable Drive Upgrade Solution
The 1336-L7E allows users to expand or restore existing Allen-Bradley 1336 drive functionality while maintaining the current automation structure.

Efficient Maintenance and Replacement
The dedicated board design simplifies troubleshooting and replacement procedures, helping reduce equipment downtime.

Industrial-Grade Signal Performance
Built for automation applications, the interface board supports stable operation where reliable control signals are essential.
