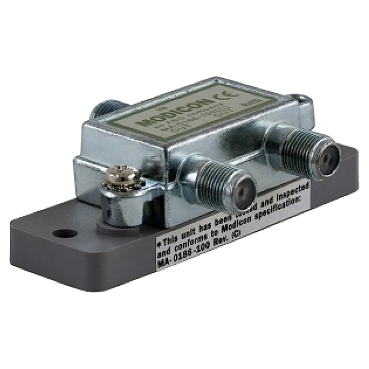

140CHS32000

The Schneider Electric 140CHS32000 is a specialized Hot Standby splitter kit engineered for Modicon Quantum systems, designed to ensure uninterrupted communication in redundant PLC architectures. Built for mission-critical environments, this module enables seamless signal continuity across coaxial networks, making it an essential component in high-availability control systems.

With its focus on redundancy and signal integrity, the 140CHS32000 allows dual-controller (hot standby) configurations to operate reliably without data loss or interruption. It is particularly valued in industries where downtime is not an option and system stability directly impacts production and safety.

Technical Specifications

Parameter	Specification
Product Type	Hot Standby Splitter Kit
Platform	Modicon Quantum
Function	Coaxial Cable Splitting & Termination
Redundancy Support	Yes (Hot Standby Systems)
Signal Type	High-Frequency Digital Signals
Input Voltage	24 V DC
I/O Capacity	8 Inputs / 8 Outputs
Cable Type	Coaxial
Installation	DIN Rail or Panel Mount
Operating Temperature	0 to 40°C
Storage Temperature	0 to 50°C
Humidity	Up to 80% RH (non-condensing)
Kit Contents	Splitter modules, coaxial cable, terminators, documentation
Dimensions (H×W×D)	Approx. 45 × 120 × 220 mm
Weight	Approx. 0.45 kg

Note: Typical kit includes fiber optic cable, splitter units, and termination accessories.

Recommended Related Models

140CPU67160 Quantum CPU Module
140CRP93200 Redundant Remote I/O Processor
140CRA93200 Ethernet RIO Adapter
140XBP01600 Backplane
140ACI03000 Analog Input Module

Popular Schneider Electric Models

BMXP342020 Processor Module
BMXAMI0810 Analog Input Module
BMXDDI1602 Digital Input Module
BMXDDO1602 Digital Output Module
BMXNOC0401 Ethernet Communication Module

Application Areas

The 140CHS32000 is widely deployed in redundancy-critical automation systems:

Oil & gas production and refining systems
Power generation and grid control
Chemical processing plants
Large-scale manufacturing lines
Infrastructure systems requiring continuous uptime

Key Advantages

One of the strongest advantages of the 140CHS32000 lies in its ability to maintain uninterrupted communication between primary and standby controllers. This ensures that in the event of a failure, the backup system takes over instantly without affecting operations.

Its coaxial termination and signal distribution design enhances transmission reliability, especially in high-frequency communication environments. Additionally, the modular kit simplifies installation while maintaining compatibility with existing Quantum architectures, reducing engineering complexity and deployment time.

Technical FAQs

What is the main function of the 140CHS32000?
It serves as a hot standby splitter kit for coaxial cable communication in redundant PLC systems.
Does it support system redundancy?
Yes, it is specifically designed for hot standby (redundant) configurations.
What type of signals does it handle?
It processes high-frequency digital signals over coaxial cables.
What voltage does it require?
The module operates on 24 V DC.
Is it compatible with Modicon Quantum systems?
Yes, it is fully designed for the Quantum platform.
What is included in the kit?
Typically includes splitter modules, cables, terminators, and installation materials.
Can it be panel mounted?
Yes, it supports both DIN rail and panel mounting.
What industries commonly use this module?
Industries requiring high availability such as energy, process control, and manufacturing.
Is this product still in production?
It has been discontinued but is still widely available through secondary markets.
What is the key benefit of using this module?
It ensures zero-interruption communication in redundant control systems, improving system reliability.
