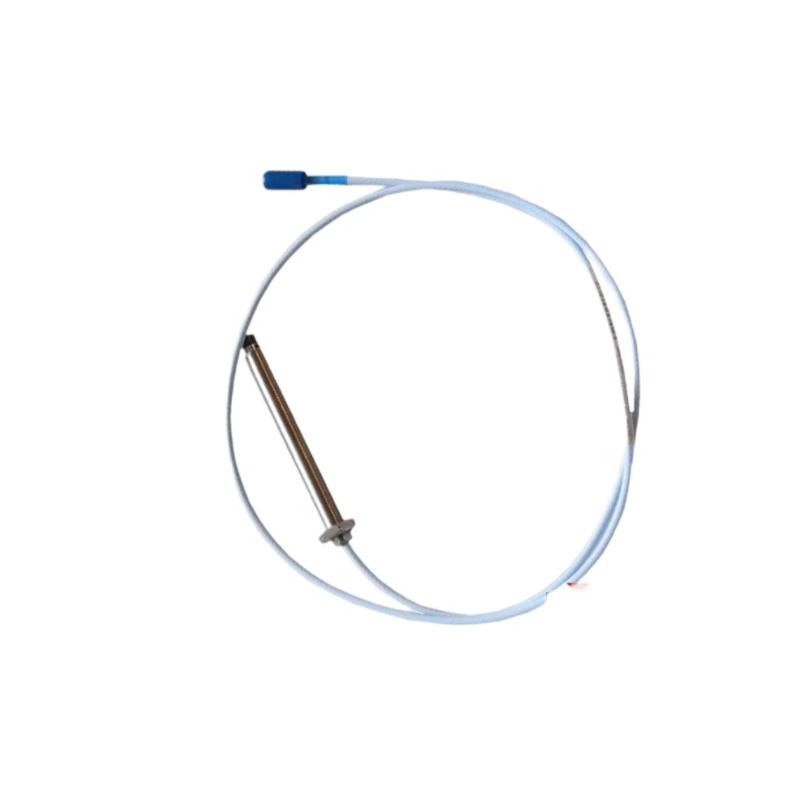

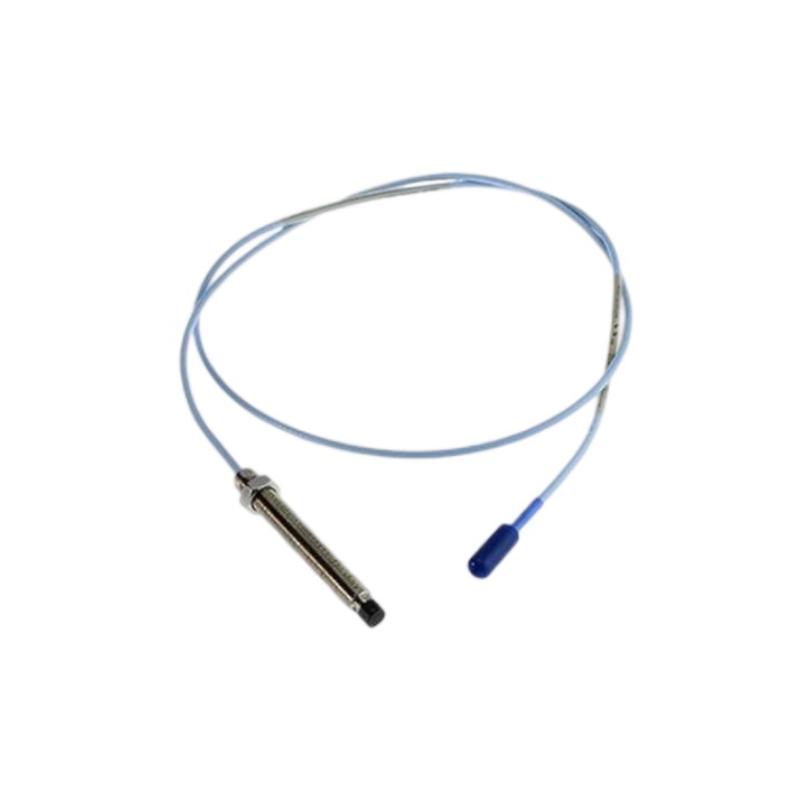

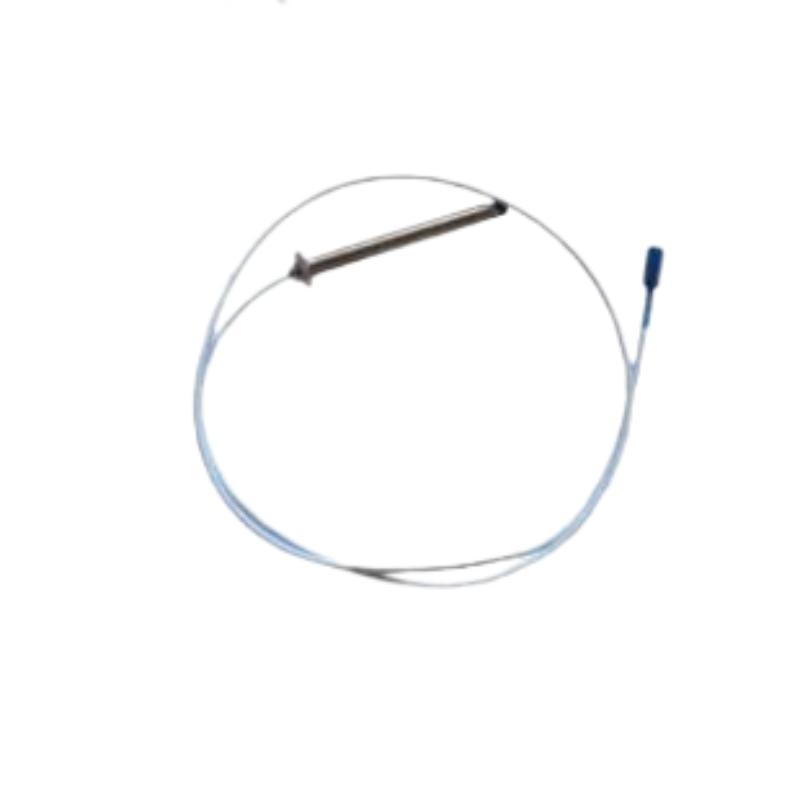

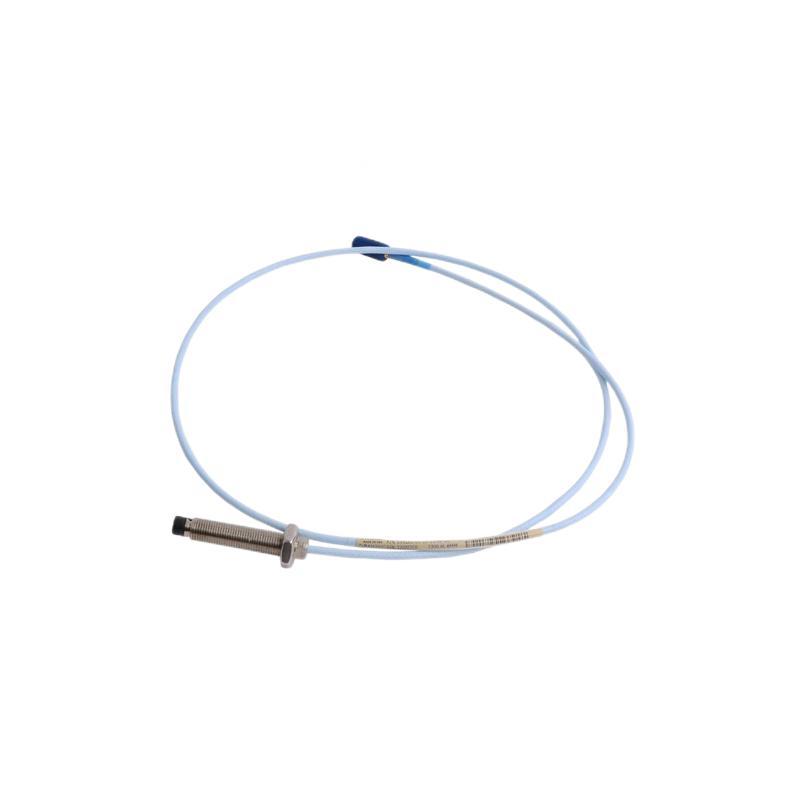

330103-03-12-05-02-00 4 330103-03-12-05-02-00 2 330103-03-12-05-02-00 1 330103-03-12-05-02-00 3 eThe Bntly Nevada 330103-00-14-10-12-05 is a 3300 XL 8 mm proximity probe used for precise, non-contact measurement of shaft vibration, radial displacement, and shaft position in critical rotating machinery systems.

This configuration features a 140 mm probe case length and a 1.0 m integrated cable assembly, making it suitable for installations requiring deeper probe insertion while maintaining stable signal transmission to a 3300 XL Proximitor® system.

Technical Specifications

Parameter	Specification
Product series	3300 XL 8 mm proximity probe
Model number	330103-00-14-10-12-05
Measurement principle	Eddy-current, non-contact
Probe diameter	8 mm
Probe case length	140 mm
Cable length	1.0 m
Thread type	M10 × 1
Connector type	Miniature ClickLoc™ connector
Cable type	FluidLoc® industrial coaxial cable
Housing material	Stainless steel
Probe tip material	PPS (Polyphenylene Sulfide)
Function	Shaft vibration, displacement, position
System compatibility	Bently Nevada 3300 XL Proximitor® systems

Verified Configuration Meaning (3300 XL Ordering Structure)

Based on manufacturer ordering documentation for the 3300 XL probe family:

00 → no unthreaded length (standard probe build)
14 → 140 mm probe case length
10 → 1.0 m system cable length
12 → ClickLoc connector + standard industrial cable configuration
05 → agency approval option (CSA / ATEX / IECEx certified variant)

Dimensions & Weight

Probe length: 140 mm
Cable length: 1.0 m
Thread: M10 × 1

Net weight: ~0.32–0.35 kg
Shipping weight: ~1.5–2.0 kg

Applications

This probe is commonly used in:

Steam turbine monitoring systems
Gas turbine vibration protection
Centrifugal compressors
Industrial pumps
Electric motors and generators
Gearboxes and drive trains
Petrochemical rotating equipment
Power generation machinery monitoring systems

Key Advantages

High-accuracy non-contact eddy-current measurement
Stable signal output for continuous monitoring systems
Extended 140 mm probe body for deeper mounting reach
Rugged stainless-steel industrial construction
Proven compatibility with Bently Nevada 3300 XL systems
Supports predictive maintenance and early fault detection
Long operational life in harsh environments

Technical FAQs

1. What does this probe measure?

It measures shaft vibration, radial displacement, and shaft position.

2. What does “14” indicate?

It indicates a 140 mm probe case length.

3. What does “10” indicate?

It indicates a 1.0 meter cable length.

4. What does “12” represent?

It refers to the ClickLoc connector and system cable configuration.

5. What does “05” mean?

It indicates an agency-approved variant (CSA / ATEX / IECEx options).

6. Is it compatible with 3300 XL systems?

Yes, it is designed for Bently Nevada 3300 XL Proximitor® systems.

7. What is the probe diameter?

8 mm.

8. What mounting thread is used?

M10 × 1.

9. What materials are used?

Stainless steel housing with PPS probe tip.

10. Why is this model used?

It is widely used for reliable, high-precision monitoring of rotating machinery where uptime, safety, and predictive maintenance are critical.
