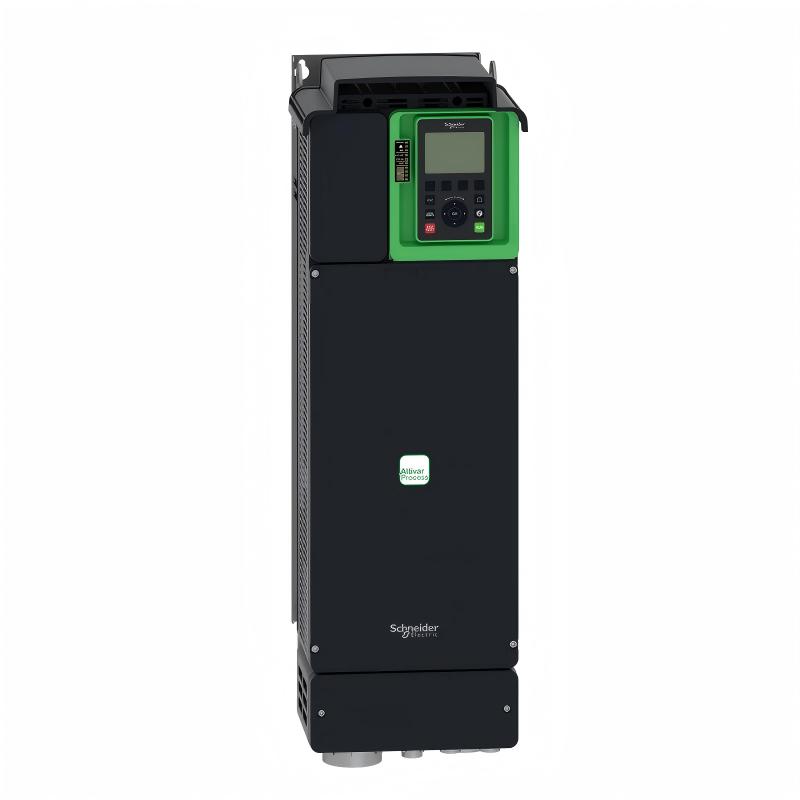

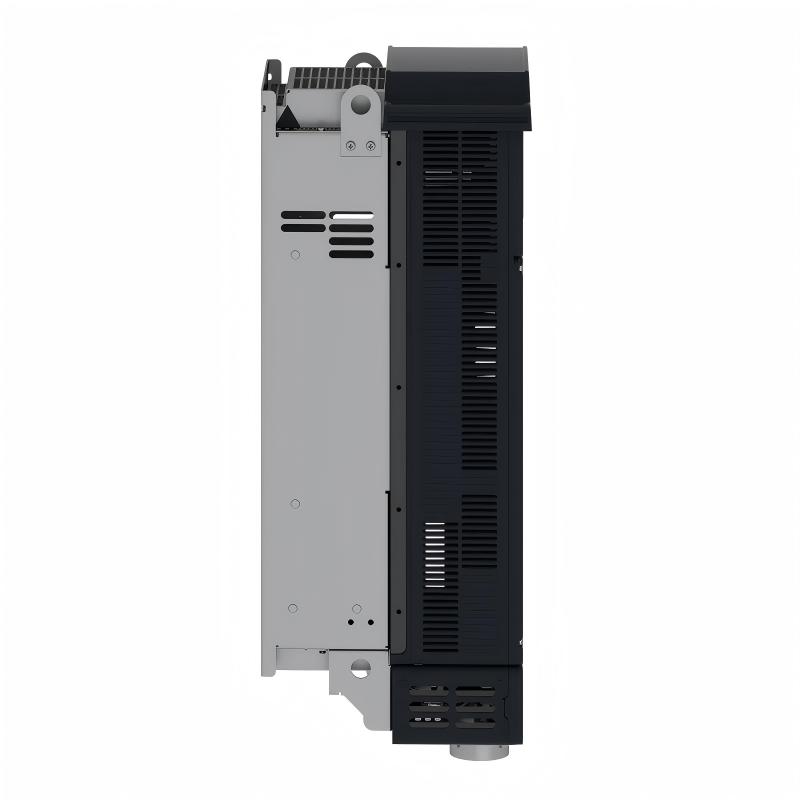

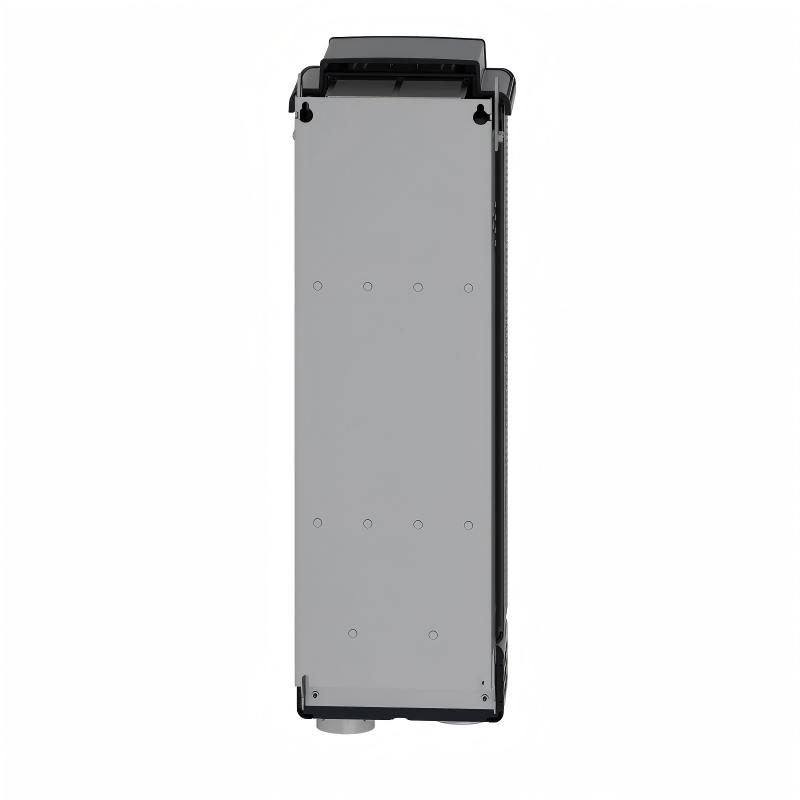

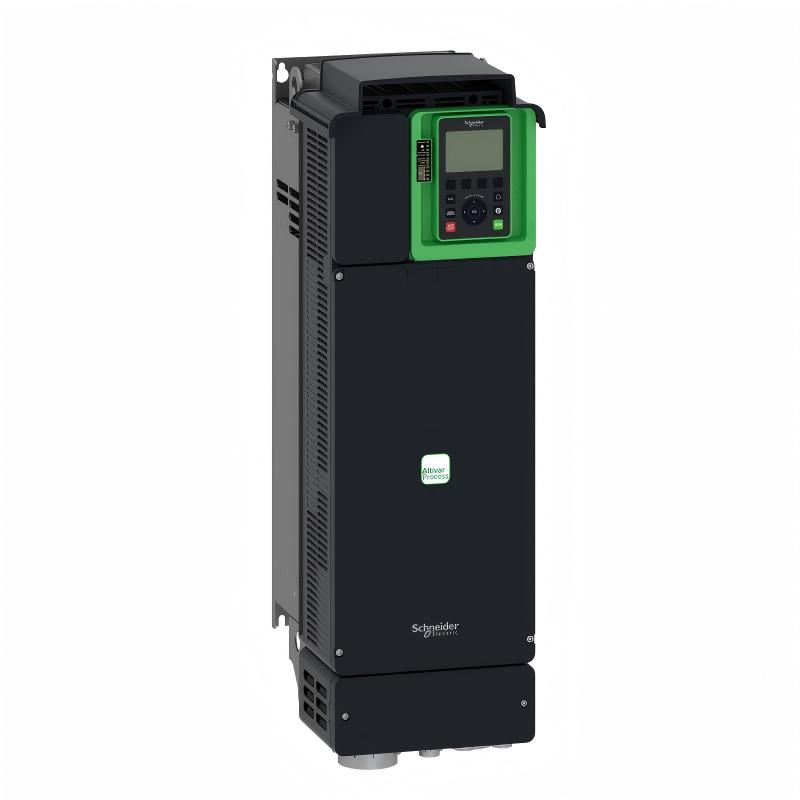

Schneider ATV650D37N4 Variable Speed Drive

Industrial Applications and System Integration

The Schneider ATV650D37N4 Variable Speed Drive is designed for industrial applications requiring efficient motor management, stable speed regulation, and reliable process control. As part of the Altivar Process ATV650 series, this drive is widely used in water treatment systems, HVAC equipment, pumping stations, ventilation units, compressors, conveyors, and other continuous-duty industrial machinery.

With a 37 kW power rating and advanced motor control functions, the ATV650D37N4 provides accurate speed and torque control for demanding production environments. It is suitable for both new automation installations and retrofit projects where improving energy efficiency and operational reliability is a priority.

The drive supports modern industrial automation architectures by providing flexible communication capability and intelligent monitoring functions. It helps engineers achieve better equipment performance while reducing unnecessary energy consumption and maintenance requirements.

Key Advantages and Performance Benefits

Optimized Motor Control Performance
The ATV650D37N4 delivers precise variable speed control for industrial motors, helping machines operate smoothly under changing load conditions. Its advanced control algorithms improve torque response and maintain stable operation throughout the production process.

Reliable Operation in Industrial Environments
Designed with IP55 protection, this variable speed drive provides enhanced resistance against dust and moisture, making it suitable for demanding industrial locations. The robust construction supports long-term operation with reduced environmental impact.

Energy Saving for Process Applications
By adjusting motor speed according to actual system demand, the ATV650D37N4 can reduce energy consumption in variable torque applications such as pumps and fans. This helps improve overall system efficiency and operating cost control.

Flexible Automation Communication
The drive supports industrial communication functions, allowing integration with PLC systems, industrial networks, and supervisory control platforms for centralized monitoring and parameter management.

Simplified Commissioning and Maintenance
The ATV650D37N4 provides convenient configuration functions that help technicians complete startup, parameter adjustment, and fault analysis more efficiently.

Technical FAQs About Schneider ATV650D37N4 Variable Speed Drive

Q1: What is the main application purpose of the Schneider ATV650D37N4?
A: The ATV650D37N4 is designed for controlling industrial motors in process applications such as pumps, fans, compressors, conveyors, and manufacturing equipment.

Q2: What motor power rating does the ATV650D37N4 support?
A: This variable speed drive supports 37 kW motor applications under normal duty operation and can also handle heavy-duty applications with adjusted capacity.

Q3: What motor types are compatible with the ATV650D37N4?
A: The drive supports asynchronous motors and synchronous motors when configured according to the motor parameters.

Q4: How should the drive parameters be configured before operation?
A: Engineers should configure motor data, acceleration and deceleration settings, control mode, protection parameters, and communication settings according to the application requirements.

Q5: Can the ATV650D37N4 communicate with PLC systems?
A: Yes. The drive supports industrial communication protocols, allowing integration with automation controllers and monitoring systems.

Q6: How can users improve the energy efficiency of this drive?
A: Energy efficiency can be improved by optimizing speed control according to process requirements, especially in applications where motor load changes frequently.

Q7: What should be checked when the drive reports a motor fault?
A: Technicians should check motor wiring, motor parameters, load conditions, operating current, and fault history to identify the root cause.

Q8: Does the ATV650D37N4 support safety functions?
A: Yes. The drive includes safety-related functions such as Safe Torque Off to improve system protection in industrial applications.

Q9: How can communication problems be diagnosed?
A: Communication troubleshooting should include checking network wiring, communication addresses, protocol settings, and PLC configuration.

Q10: What maintenance actions are recommended for long-term operation?
A: Regular inspection of ventilation conditions, electrical connections, operating parameters, and fault records helps maintain reliable drive performance.
