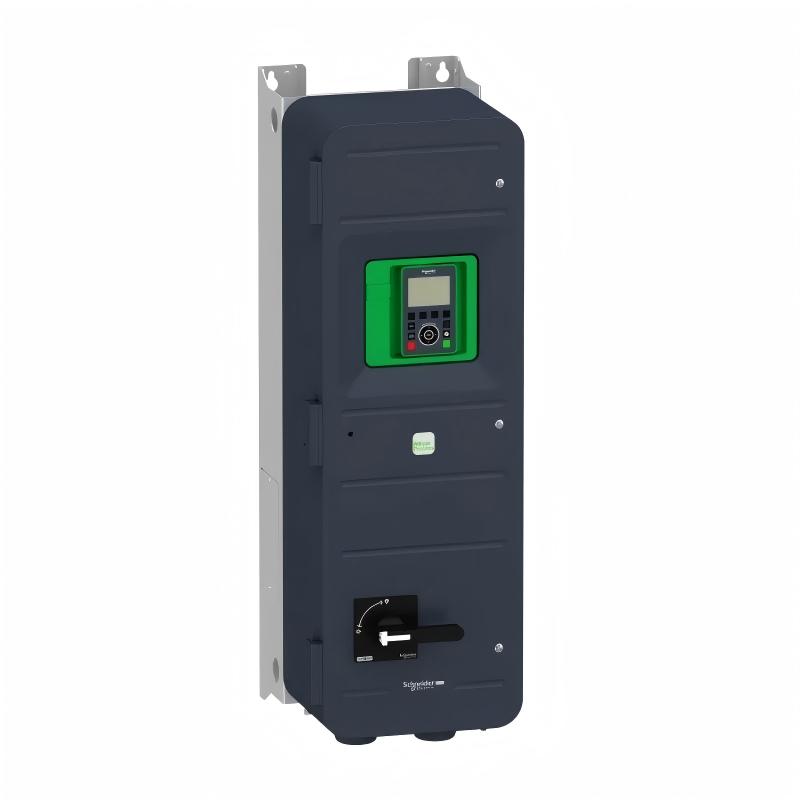

Schneider ATV650D45N4E Variable Speed Drive

Industrial Applications and Process Control Deployment

The Schneider ATV650D45N4E Variable Speed Drive is developed for industrial applications where efficient motor operation, accurate speed regulation, and reliable process management are essential. As part of the Altivar Process ATV650 family, this drive is designed for demanding environments including water treatment facilities, pumping stations, HVAC systems, ventilation equipment, compressors, conveyors, and industrial production machinery.

With a 45 kW normal duty power rating and advanced process control functions, the ATV650D45N4E provides stable performance for medium and high-power motor applications. It supports asynchronous and synchronous motor control, helping industries improve equipment efficiency, reduce energy consumption, and achieve more intelligent automation management.

The integrated industrial design of this variable speed drive makes it suitable for both new machine installations and modernization projects. It provides engineers with a flexible solution for improving motor-driven system reliability while maintaining precise control over production processes.

Advanced Performance Benefits and Engineering Advantages

Efficient Motor Control for Industrial Loads
The ATV650D45N4E delivers precise variable frequency control, allowing motors to operate smoothly under different load conditions. Its advanced control technology improves torque management, reduces mechanical stress, and enhances overall system stability.

Optimized for Process Industry Applications
This drive is specifically designed for process and utility applications where continuous operation is required. It provides reliable control for pumps, fans, compressors, and other equipment that depend on stable speed adjustment and energy-efficient operation.

Energy Management and Operational Optimization
By adjusting motor speed according to real-time process demand, the ATV650D45N4E helps reduce unnecessary power consumption. This capability is especially valuable in variable torque applications where motor speed directly affects energy usage.

Industrial Protection and Durable Construction
The drive features an IP55 protection design, providing resistance against dust and moisture in industrial environments. Its robust construction allows installation in challenging operating conditions while maintaining dependable performance.

Flexible Automation System Integration
The ATV650D45N4E supports industrial communication functions, including Ethernet-based and Modbus communication options, enabling integration with PLC systems, SCADA platforms, and automation networks.

Simplified Commissioning and Maintenance
Advanced monitoring functions and user-friendly configuration tools help engineers complete startup procedures faster and improve troubleshooting efficiency during long-term operation.

Technical FAQs About Schneider ATV650D45N4E Variable Speed Drive

Q1: What applications are suitable for the Schneider ATV650D45N4E?
A: The ATV650D45N4E is suitable for industrial process applications including pumps, fans, compressors, HVAC equipment, conveyors, and utility systems requiring reliable motor speed control.

Q2: What motor power rating does the ATV650D45N4E support?
A: The drive supports 45 kW normal duty operation and 37 kW heavy duty motor applications depending on load requirements and operating conditions.

Q3: Which motor types can be controlled by this variable speed drive?
A: The ATV650D45N4E supports asynchronous motors and synchronous motors when the correct motor parameters are configured.

Q4: What parameters should be configured before commissioning?
A: Engineers should configure motor voltage, rated current, frequency, speed, acceleration time, deceleration time, control mode, and protection settings before startup.

Q5: Can the ATV650D45N4E communicate with industrial PLC systems?
A: Yes. The drive supports industrial communication integration, allowing connection with PLC controllers and supervisory systems for monitoring and control.

Q6: How does this drive improve energy efficiency?
A: The ATV650D45N4E improves energy efficiency by adjusting motor speed according to actual process requirements, reducing unnecessary motor power consumption.

Q7: What should technicians check when an overcurrent fault occurs?
A: Technicians should inspect motor load conditions, acceleration settings, wiring connections, motor parameters, and mechanical resistance to identify the fault cause.

Q8: How can communication problems be diagnosed on the ATV650D45N4E?
A: Communication faults can be diagnosed by checking network wiring, communication protocol settings, addresses, and PLC configuration parameters.

Q9: What maintenance actions help extend drive service life?
A: Regular inspection of cooling airflow, electrical terminals, operating records, and fault history helps maintain stable operation.

Q10: Why is the ATV650D45N4E suitable for industrial automation upgrades?
A: Its combination of intelligent monitoring, energy optimization features, and flexible communication capability makes it an effective solution for modernizing motor control systems.
