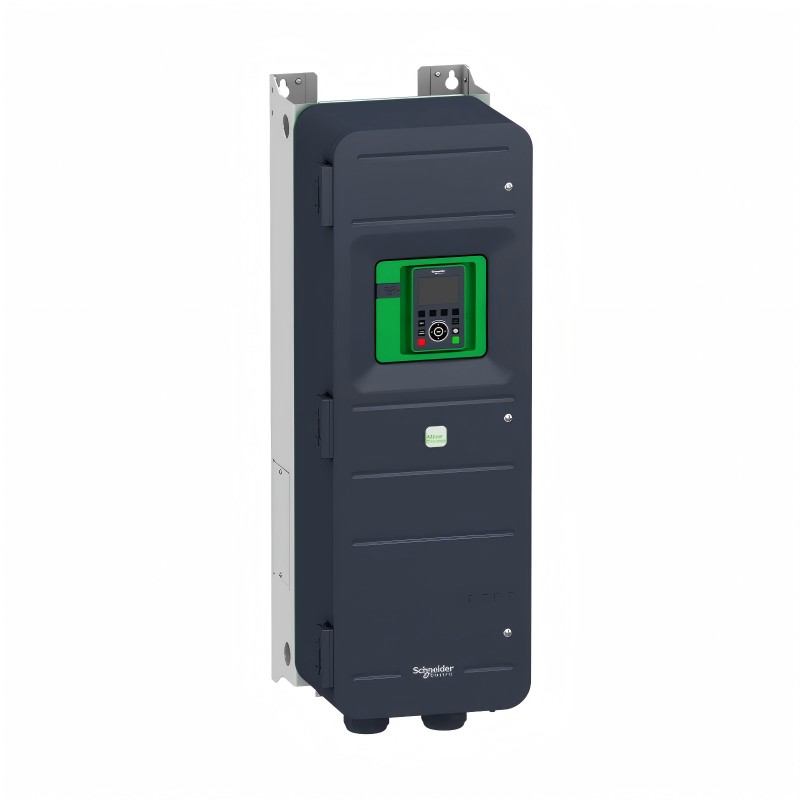

Schneider ATV650D55N4 Variable Speed Drive

Industrial Applications and System Integration

The Schneider ATV650D55N4 Variable Speed Drive is designed for advanced industrial motor control applications that require high efficiency, reliable operation, and precise process management. As part of the Altivar Process ATV650 series, this drive is engineered for demanding environments such as water treatment plants, pumping systems, HVAC installations, ventilation equipment, compressors, conveyors, and large industrial machinery.

With a 55 kW power rating and industrial IP55 protection design, the ATV650D55N4 provides stable performance for continuous-duty applications where operational reliability and energy optimization are critical. It integrates intelligent process monitoring functions and advanced motor control technology to help industries improve productivity while reducing unnecessary energy consumption.

The drive is suitable for engineers and system integrators who need a dependable variable speed solution for upgrading traditional motor systems. Its combination of flexible control, industrial durability, and automation compatibility makes it a strong choice for modern process applications.

Performance Advantages and Engineering Benefits

High-Capacity Motor Control Capability
The ATV650D55N4 provides accurate speed regulation and torque management for 55 kW motor applications. It allows motors to operate smoothly under changing loads while improving overall machine performance and reducing mechanical stress.

Optimized for Industrial Process Equipment
Designed specifically for process-driven industries, this variable speed drive delivers reliable control for pumps, fans, compressors, and other equipment requiring continuous operation. It helps maintain stable production performance even in demanding working conditions.

Energy Efficiency Improvement
By adjusting motor speed according to actual process requirements, the ATV650D55N4 helps reduce energy waste compared with traditional fixed-speed motor systems. This makes it an effective solution for facilities focused on improving operational efficiency.

Robust Industrial Protection Design
The IP55 enclosure provides enhanced protection against dust and moisture, allowing the drive to be installed in industrial environments where additional protection measures may not be practical.

Advanced Monitoring and Process Management
The drive includes intelligent monitoring features that support equipment condition tracking, process optimization, and preventive maintenance strategies. These capabilities help improve system availability and reduce unexpected downtime.

Flexible Automation Integration
The ATV650D55N4 supports integration into industrial automation architectures, enabling communication with PLC systems, supervisory platforms, and factory control networks for centralized operation and monitoring.

Technical FAQs About Schneider ATV650D55N4 Variable Speed Drive

Q1: What applications are suitable for the Schneider ATV650D55N4?
A: The ATV650D55N4 is suitable for industrial applications including pumps, fans, compressors, HVAC systems, conveyors, and process automation equipment requiring reliable motor speed control.

Q2: What motor power rating does the ATV650D55N4 support?
A: The drive is designed for 55 kW motor applications and provides stable control performance for medium and high-power industrial motor systems.

Q3: Which motor types can be controlled by this variable speed drive?
A: The ATV650D55N4 supports AC motor applications including asynchronous motors and synchronous motors when correctly configured.

Q4: What parameters should be configured before commissioning?
A: Engineers should configure motor voltage, rated current, frequency, speed, acceleration time, deceleration time, control mode, and protection parameters before startup.

Q5: Can the ATV650D55N4 communicate with PLC systems?
A: Yes. The drive supports industrial communication integration for connection with PLC controllers and automation management systems.

Q6: How does the drive improve motor energy efficiency?
A: It improves efficiency by adjusting motor speed based on actual process demand, reducing unnecessary power consumption during low-load operation.

Q7: What should be checked when an overcurrent fault occurs?
A: Technicians should check motor load conditions, acceleration settings, motor parameters, wiring connections, and mechanical system resistance.

Q8: How can communication faults be diagnosed?
A: Communication troubleshooting should include checking network wiring, communication addresses, protocol settings, and controller configuration.

Q9: What maintenance practices are recommended for this drive?
A: Regular inspection of cooling airflow, electrical connections, operating parameters, and fault history helps maintain reliable long-term performance.

Q10: Why is the ATV650D55N4 suitable for industrial upgrades?
A: Its combination of intelligent monitoring, efficient motor control, and flexible integration features makes it suitable for replacing traditional motor control solutions.
