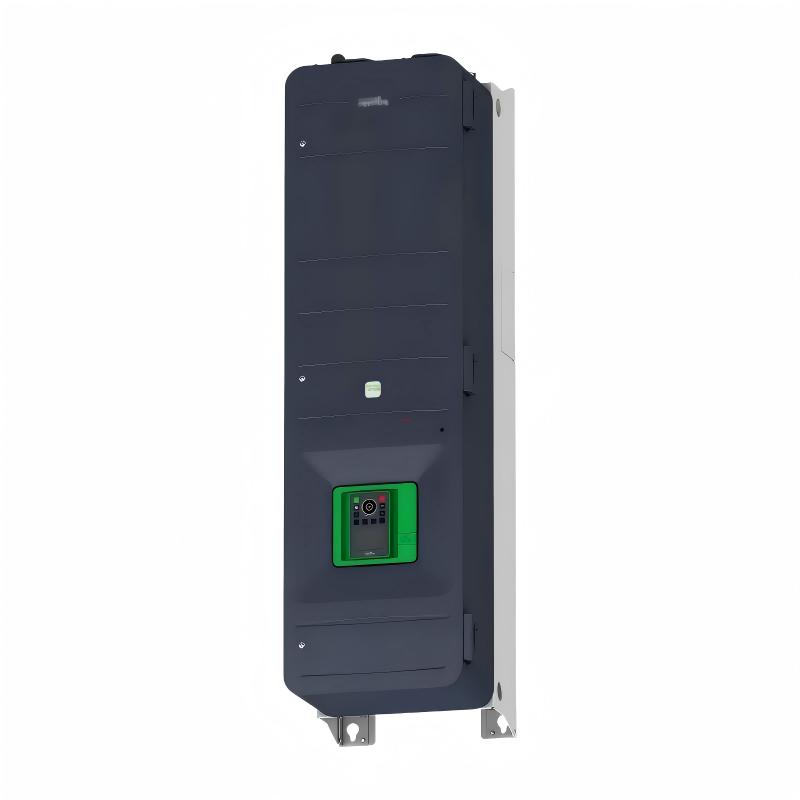

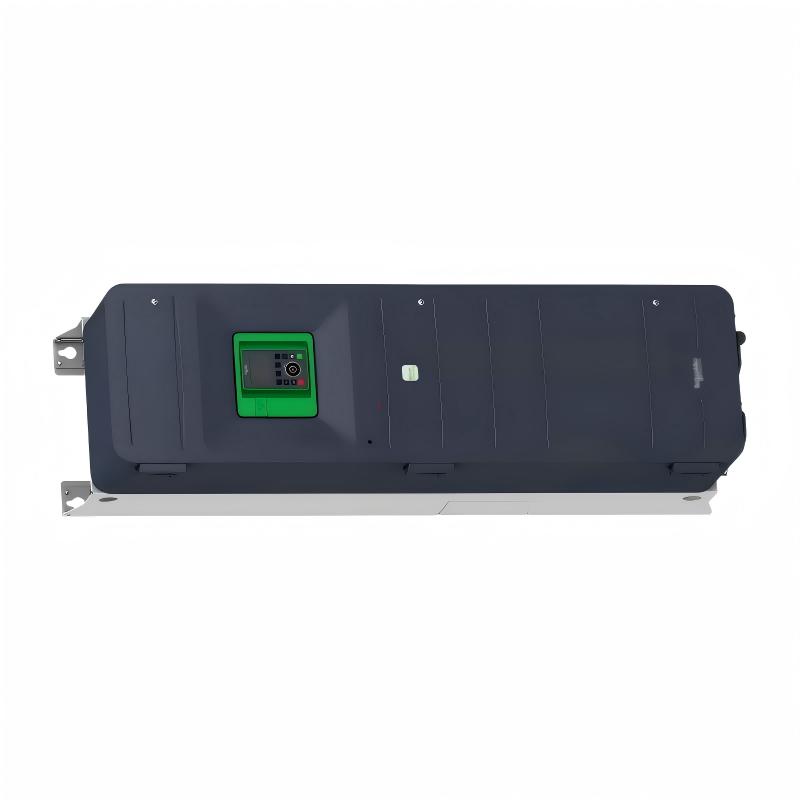

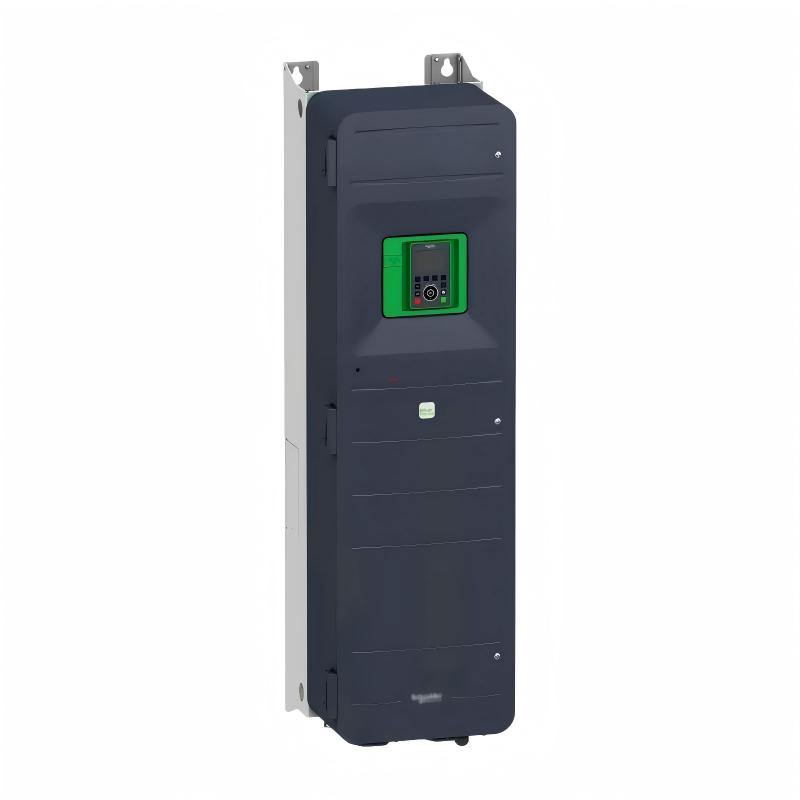

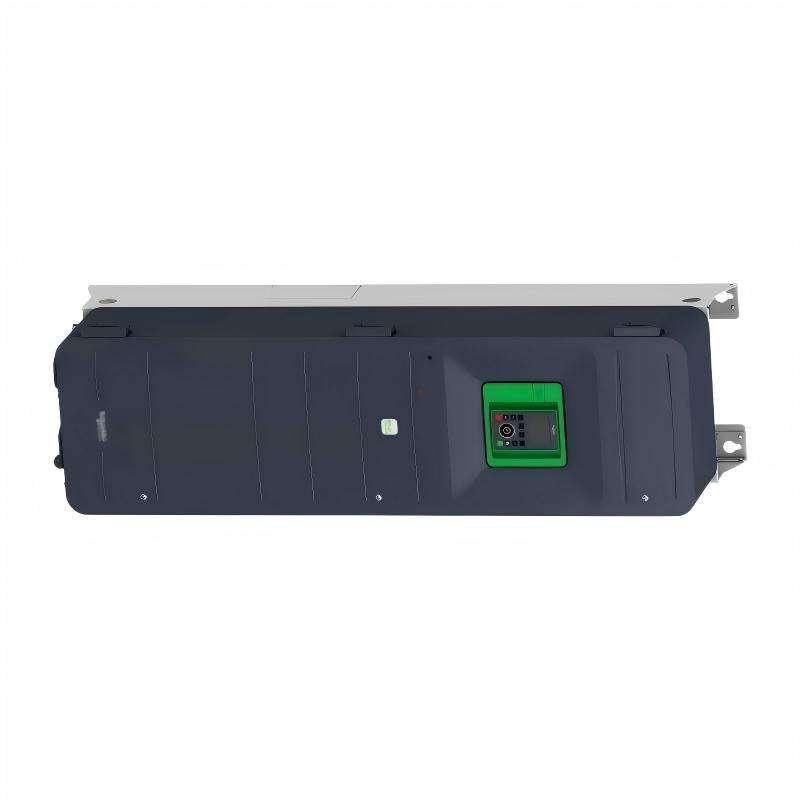

Schneider ATV650D75N4 Variable Speed Drive

Industrial Applications and Process Control Environments

The Schneider ATV650D75N4 Variable Speed Drive is designed for high-power industrial applications that require stable motor regulation, energy-efficient operation, and reliable process control. As part of the Altivar Process ATV650 series, this drive is suitable for demanding industries including water treatment, wastewater management, HVAC systems, pumping stations, ventilation equipment, compressors, conveyors, and large-scale production machinery.

With a 75 kW power rating and robust industrial protection design, the ATV650D75N4 provides dependable performance for continuous-duty motor applications. It combines advanced variable frequency control technology with intelligent monitoring capabilities, allowing users to improve process efficiency, reduce energy consumption, and increase equipment availability.

The drive is engineered for applications where precise motor control and long-term reliability are essential. Its flexible integration capability makes it an effective solution for industrial automation upgrades, machine modernization projects, and new process installations.

Key Performance Advantages and Industrial Benefits

High-Power Motor Control Capability
The Schneider ATV650D75N4 delivers precise speed and torque control for 75 kW motor systems. It enables smooth acceleration, stable operation, and improved load management, helping reduce mechanical stress and extend the service life of connected equipment.

Optimized for Process Automation Applications
This variable speed drive is designed for process-oriented industries where motor-driven equipment must operate efficiently under changing load conditions. It provides reliable control for pumps, fans, compressors, and other large industrial systems.

Improved Energy Efficiency Management
By adjusting motor speed according to actual process demand, the ATV650D75N4 helps reduce unnecessary energy usage. This makes it especially valuable for applications where flow, pressure, or ventilation requirements vary during operation.

Industrial-Grade Protection and Reliability
The IP55 enclosure design provides enhanced protection against dust and moisture, allowing the drive to operate effectively in challenging industrial environments. Its rugged construction supports stable performance during long production cycles.

Advanced Monitoring and System Visibility
Integrated process monitoring functions allow operators to track equipment performance, identify abnormal operating conditions, and support preventive maintenance strategies.

Flexible Automation Integration
The ATV650D75N4 supports industrial communication solutions, allowing connection with PLC controllers, SCADA systems, and factory automation networks. This enables centralized monitoring, parameter management, and improved system coordination.

Technical FAQs About Schneider ATV650D75N4 Variable Speed Drive

Q1: What applications are suitable for the Schneider ATV650D75N4?
A: The ATV650D75N4 is suitable for industrial applications including pumps, fans, compressors, HVAC systems, water treatment equipment, conveyors, and process automation machinery.

Q2: What motor power rating does the ATV650D75N4 support?
A: The drive is designed for 75 kW normal duty motor applications and provides reliable control for high-power industrial motor systems.

Q3: Which motor types can be controlled by the ATV650D75N4?
A: The drive supports industrial AC motor applications, including asynchronous motors and compatible synchronous motors when configured with appropriate parameters.

Q4: What parameters should be configured before commissioning?
A: Engineers should configure motor voltage, rated current, frequency, speed, acceleration time, deceleration time, control mode, and protection settings before startup.

Q5: Can the ATV650D75N4 communicate with PLC systems?
A: Yes. The drive supports industrial communication functions for integration with PLC controllers and automation management platforms.

Q6: How does the ATV650D75N4 improve motor efficiency?
A: It improves efficiency by controlling motor speed according to process requirements, reducing unnecessary power consumption during partial-load operation.

Q7: What should technicians check when an overcurrent fault occurs?
A: Technicians should inspect motor load conditions, acceleration settings, wiring connections, motor parameters, and mechanical resistance.

Q8: How can communication faults be diagnosed on this drive?
A: Communication troubleshooting should include checking network wiring, communication addresses, protocol configuration, and PLC settings.

Q9: What maintenance practices help ensure reliable operation?
A: Regular inspection of cooling conditions, electrical terminals, operating parameters, and fault records helps maintain long-term drive performance.

Q10: Why is the ATV650D75N4 suitable for industrial modernization projects?
A: Its combination of high-power motor control, energy optimization features, and automation integration capability makes it suitable for upgrading traditional motor systems.
