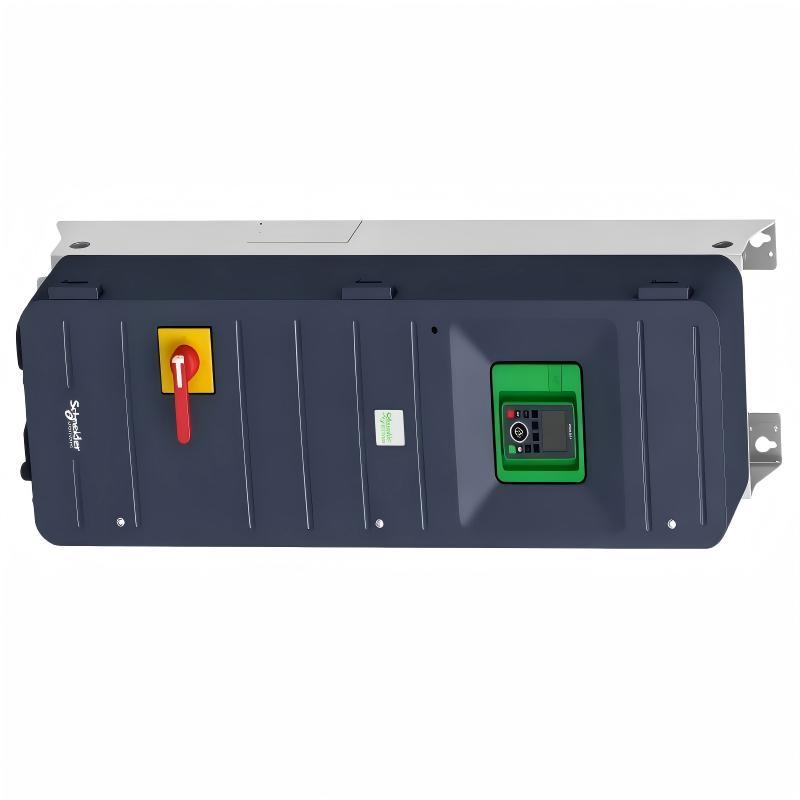

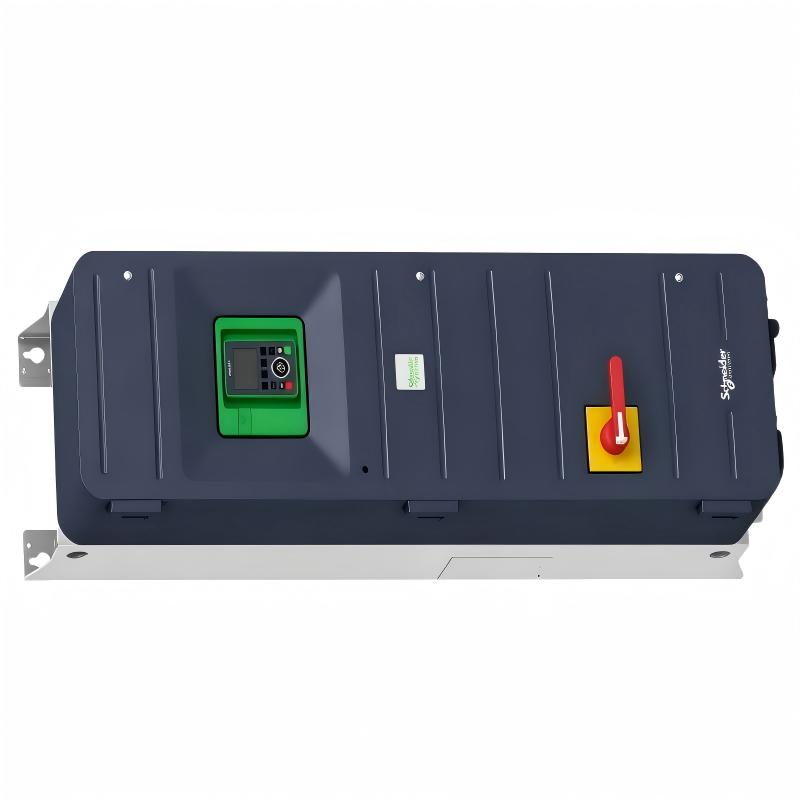

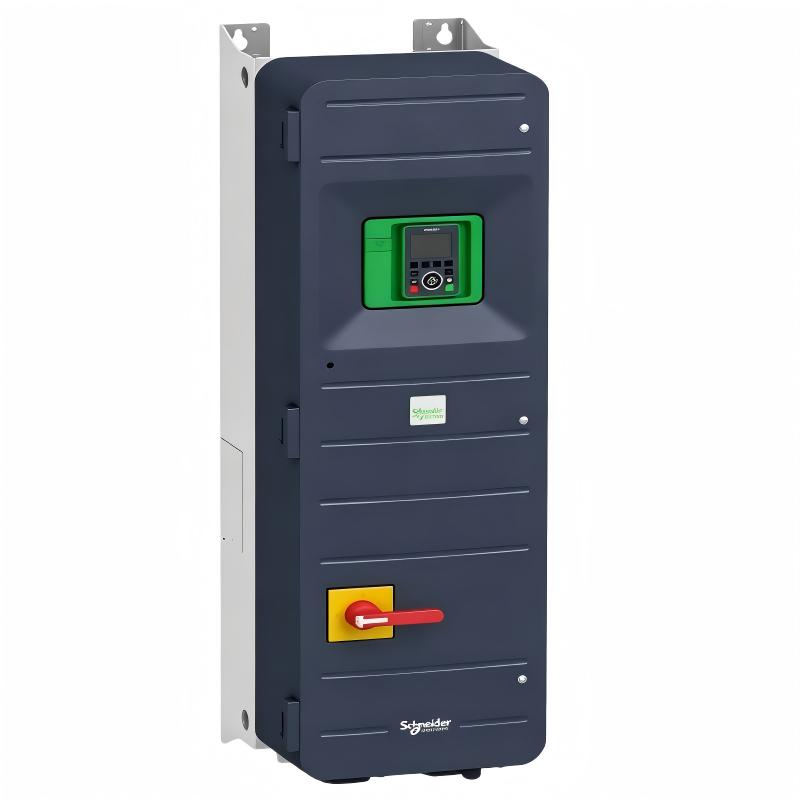

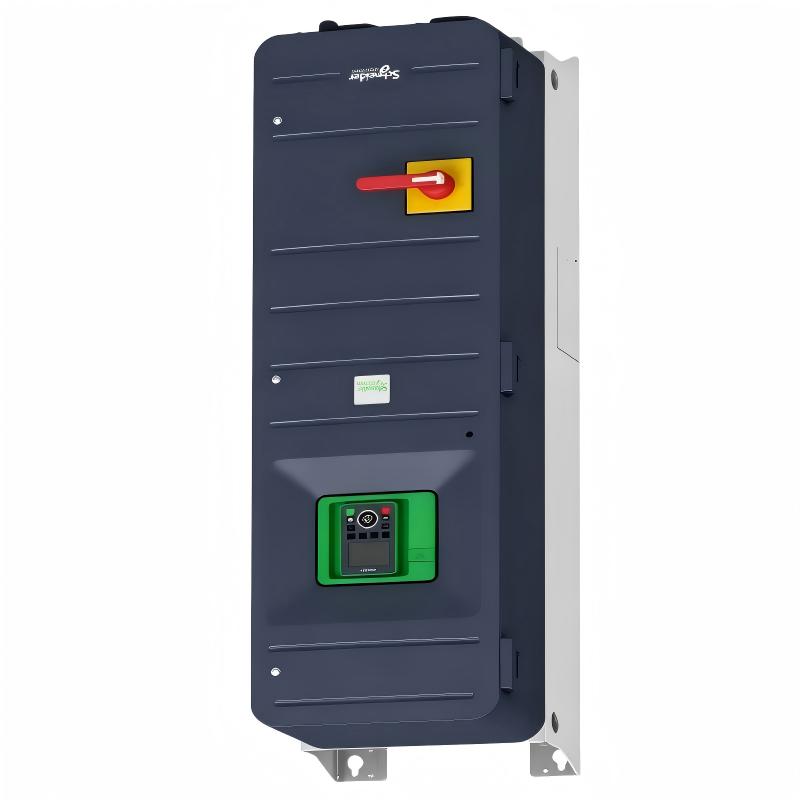

Schneider ATV650D75N4E Variable Speed Drive

Industrial Applications and Process Integration

The Schneider ATV650D75N4E Variable Speed Drive is designed for high-power industrial motor control applications where operational efficiency, precise speed management, and reliable process performance are critical. As part of the Altivar Process ATV650 series, this drive is optimized for demanding industrial environments including water and wastewater treatment, pumping systems, HVAC installations, ventilation equipment, compressors, conveyors, and large production machinery.

With a 75 kW motor capacity, IP55 protection design, and advanced process monitoring functions, the ATV650D75N4E provides a dependable solution for continuous-duty applications. It enables engineers to improve motor efficiency, reduce operating costs, and enhance automation system visibility through intelligent control features.

The drive is particularly suitable for industrial facilities that require stable operation, flexible communication capability, and long-term reliability. Its combination of powerful motor control technology and process-oriented functions makes it an effective choice for automation upgrades and new system installations.

Advanced Performance Advantages and Engineering Benefits

High-Power Motor Control Capability
The Schneider ATV650D75N4E provides accurate speed and torque regulation for 75 kW motor applications. Its advanced control technology helps maintain smooth motor operation during load changes, reducing mechanical stress and improving equipment performance.

Reliable Solution for Process Industries
Designed for process automation environments, the drive delivers consistent control for pumps, fans, compressors, and other motor-driven equipment. It supports applications where stable operation and reduced downtime are essential.

Energy Optimization for Industrial Equipment
The ATV650D75N4E improves energy efficiency by adjusting motor speed according to actual process requirements. This variable speed operation helps reduce unnecessary power consumption in applications with changing flow, pressure, or ventilation demands.

Robust Industrial Protection Design
The IP55 enclosure design provides enhanced protection against dust and moisture, allowing the drive to operate reliably in challenging industrial environments. Its durable construction supports long service life and dependable performance.

Intelligent Monitoring and Maintenance Support
Integrated process monitoring functions allow operators to track operating conditions, identify potential issues, and support preventive maintenance strategies. This helps improve system availability and reduce unexpected equipment downtime.

Flexible Automation Network Integration
The ATV650D75N4E supports integration with industrial automation systems, including PLC controllers and supervisory platforms. Its communication capability allows centralized monitoring, parameter management, and improved process coordination.

Technical FAQs About Schneider ATV650D75N4E Variable Speed Drive

Q1: What industrial applications are suitable for the ATV650D75N4E?
A: The ATV650D75N4E is suitable for pumps, fans, compressors, HVAC systems, water treatment equipment, conveyors, and other industrial process applications requiring variable speed control.

Q2: What motor power rating does the ATV650D75N4E support?
A: This variable speed drive is designed for 75 kW motor applications and provides reliable control for high-power industrial motor systems.

Q3: Which motor types can be controlled by this drive?
A: The ATV650D75N4E supports asynchronous motors and synchronous motors when correct motor parameters are configured.

Q4: What parameters should be configured before commissioning?
A: Engineers should configure motor voltage, rated current, frequency, speed, acceleration time, deceleration time, control mode, and protection parameters before startup.

Q5: Can the ATV650D75N4E communicate with PLC systems?
A: Yes. The drive supports industrial communication integration for connection with PLC controllers, SCADA systems, and automation networks.

Q6: How does the ATV650D75N4E improve energy efficiency?
A: It improves energy efficiency by adjusting motor speed based on actual process demand instead of operating motors continuously at full speed.

Q7: What should be checked when an overcurrent fault occurs?
A: Technicians should inspect motor load conditions, acceleration settings, motor parameters, electrical connections, and mechanical resistance.

Q8: How can communication faults be diagnosed on this drive?
A: Communication troubleshooting should include checking network wiring, communication addresses, protocol settings, and controller configuration.

Q9: What maintenance procedures are recommended for reliable operation?
A: Regular inspection of cooling airflow, electrical terminals, operating parameters, and fault records helps maintain stable drive performance.

Q10: Why is the ATV650D75N4E suitable for industrial automation upgrades?
A: Its combination of high-power motor control, intelligent monitoring, and flexible integration features makes it suitable for modernizing industrial motor systems.
