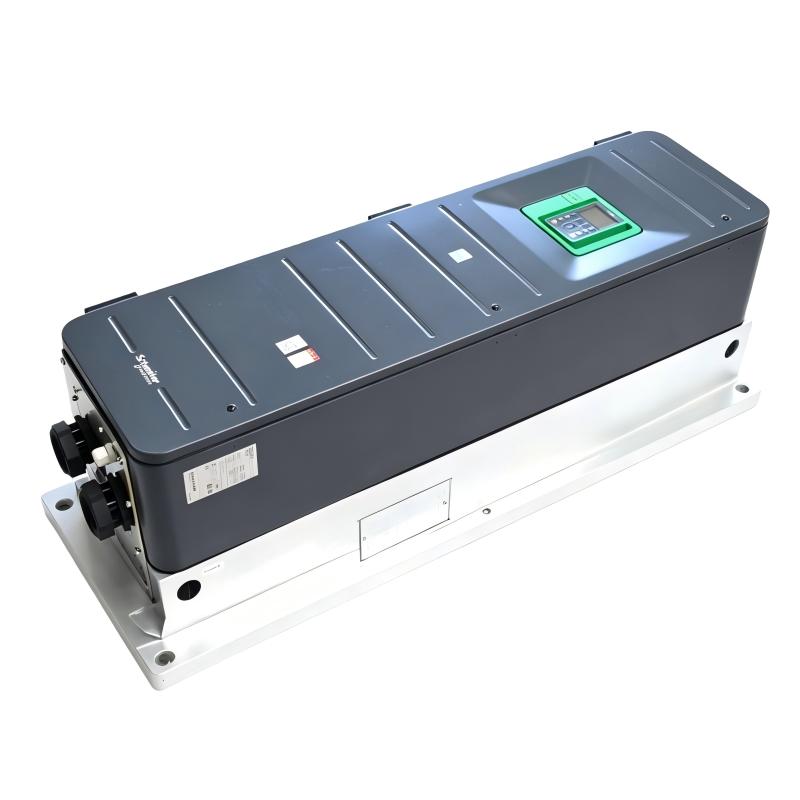

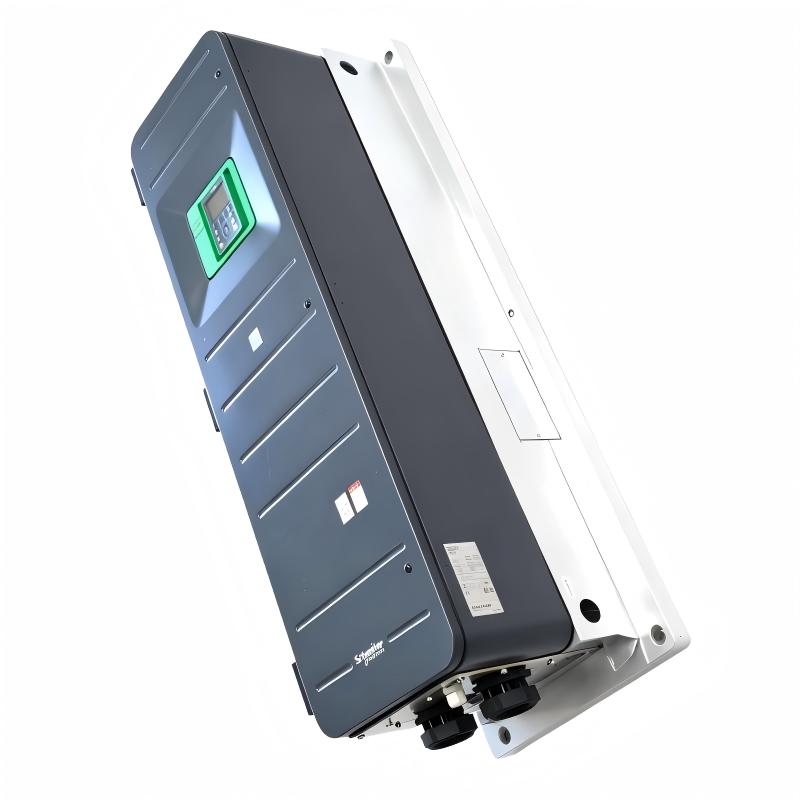

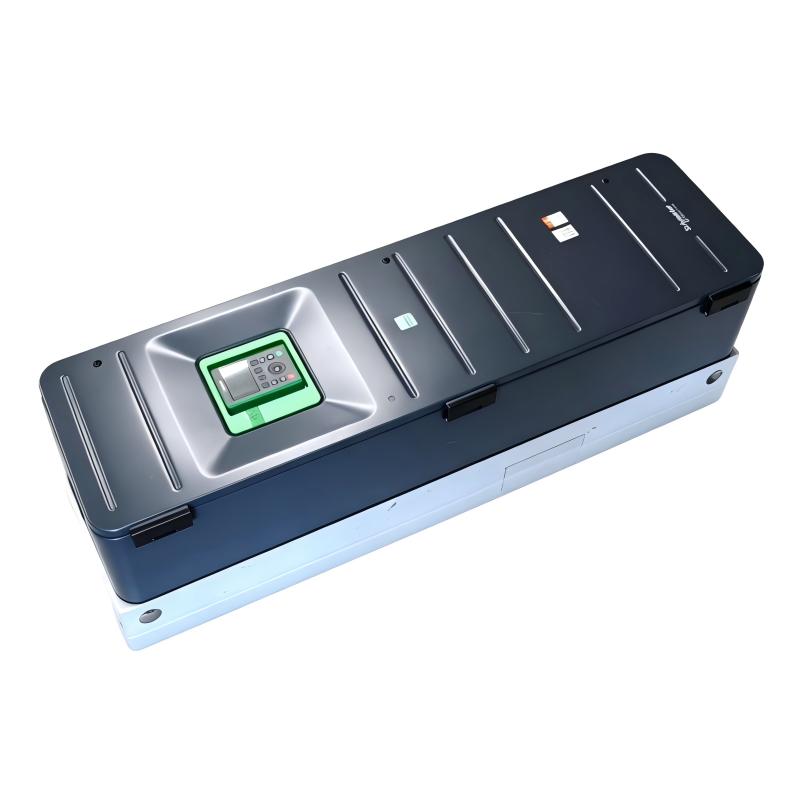

Schneider ATV650D90N4 Variable Speed Drive

Industrial Applications and Process Automation Solutions

The Schneider ATV650D90N4 Variable Speed Drive is engineered for high-power industrial applications that demand reliable motor regulation, efficient energy management, and intelligent process control. As a member of the Altivar Process ATV650 series, this drive is designed for large motor-driven systems used in industries such as water treatment, wastewater management, HVAC, mining, manufacturing, oil and gas, and utility applications.

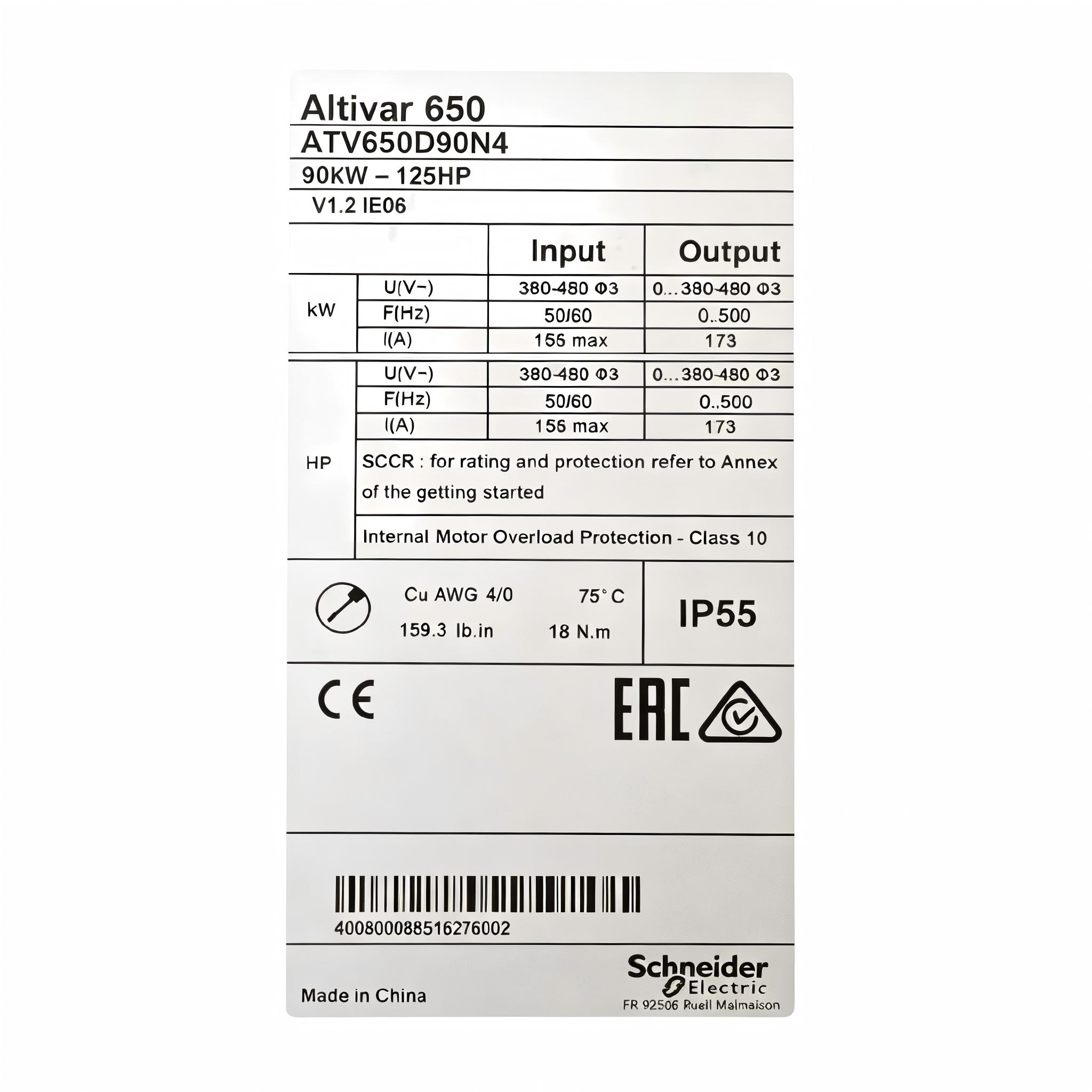

With a 90 kW power rating and IP55 industrial protection, the ATV650D90N4 provides stable performance for continuous operation environments. It supports advanced motor control functions for asynchronous and synchronous motors, helping engineers optimize equipment performance, improve energy efficiency, and maintain reliable production processes.

This variable speed drive is an ideal solution for industrial facilities upgrading traditional motor systems or building new automation platforms. Its combination of intelligent monitoring, flexible communication, and robust construction allows users to achieve better control over critical motor-driven equipment.

Core Advantages and Industrial Performance Features

High-Power Motor Management Capability
The ATV650D90N4 provides precise variable frequency control for 90 kW motor applications. It delivers smooth acceleration, stable torque output, and accurate speed adjustment, helping reduce mechanical stress and improve equipment operating efficiency.

Designed for Heavy-Duty Process Applications
This drive is optimized for industrial processes where motors operate continuously under changing loads. It provides reliable control for pumps, fans, compressors, conveyors, and other large-scale equipment requiring stable performance.

Enhanced Energy Efficiency Control
By adjusting motor speed according to real-time process requirements, the ATV650D90N4 helps reduce unnecessary energy consumption. This is especially beneficial in variable torque applications where flow, pressure, or ventilation demand changes frequently.

Industrial Protection and Long-Term Reliability
The IP55 enclosure design allows the drive to operate effectively in demanding industrial environments while providing protection against dust and moisture. The durable structure supports long service life and reliable operation.

Advanced Monitoring and Maintenance Support
Integrated process monitoring functions help operators analyze operating conditions, identify abnormal performance, and support predictive maintenance strategies. This improves equipment availability and reduces unexpected downtime.

Flexible Automation System Integration
The ATV650D90N4 supports industrial communication functions, allowing integration with PLC systems, SCADA platforms, and factory automation networks. This enables centralized control, parameter management, and improved production visibility.

Technical FAQs About Schneider ATV650D90N4 Variable Speed Drive

Q1: What type of applications is the Schneider ATV650D90N4 designed for?
A: The ATV650D90N4 is designed for industrial process applications including pumps, fans, compressors, HVAC systems, water treatment equipment, and large motor-driven machinery.

Q2: What motor power rating does the ATV650D90N4 support?
A: The drive supports 90 kW normal duty motor applications and can support 75 kW heavy-duty operation depending on application requirements.

Q3: Which motor types are compatible with this variable speed drive?
A: The ATV650D90N4 supports asynchronous motors and synchronous motors when the correct motor parameters are configured.

Q4: What settings should be configured before commissioning?
A: Engineers should configure motor voltage, current, frequency, speed, acceleration and deceleration times, control mode, and protection parameters before startup.

Q5: Can the ATV650D90N4 be connected to PLC systems?
A: Yes. The drive supports industrial communication functions including Ethernet-based communication and Modbus protocols for automation integration.

Q6: How does the ATV650D90N4 improve energy efficiency?
A: It reduces energy consumption by adjusting motor speed according to actual process demand instead of operating motors continuously at maximum speed.

Q7: What should technicians check when an overcurrent fault occurs?
A: Technicians should inspect motor load conditions, acceleration parameters, motor wiring, mechanical resistance, and current feedback values.

Q8: How can communication problems be diagnosed?
A: Communication troubleshooting should include checking network cables, communication addresses, protocol settings, and PLC configuration parameters.

Q9: What maintenance methods are recommended for long-term operation?
A: Regular inspection of cooling airflow, electrical terminals, operating parameters, and fault records helps maintain reliable performance.

Q10: Why is the ATV650D90N4 suitable for industrial modernization projects?
A: Its combination of high-power motor control, intelligent monitoring, energy optimization, and automation compatibility makes it suitable for upgrading industrial drive systems.
