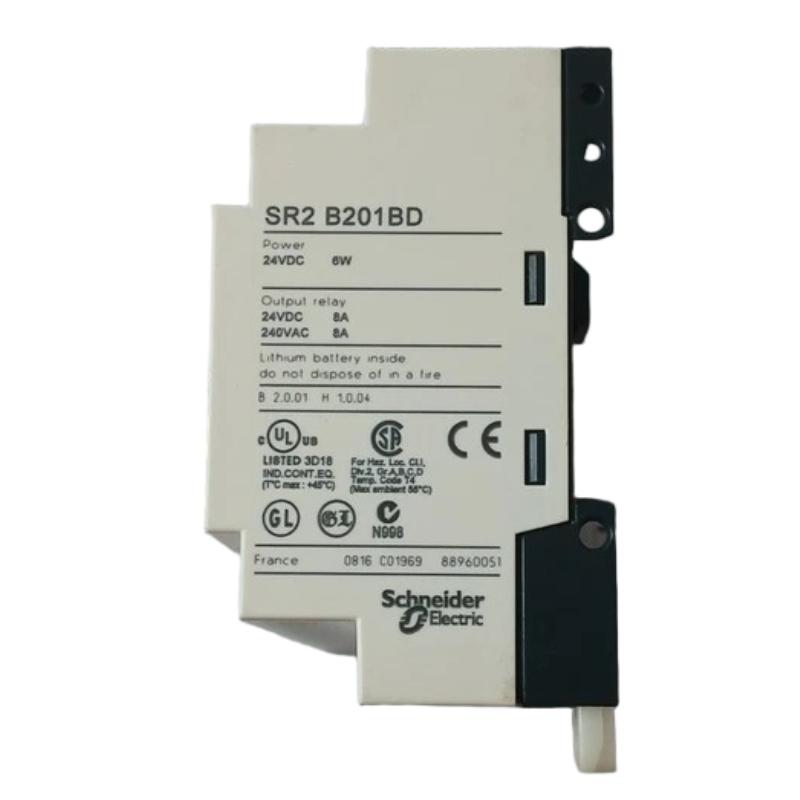

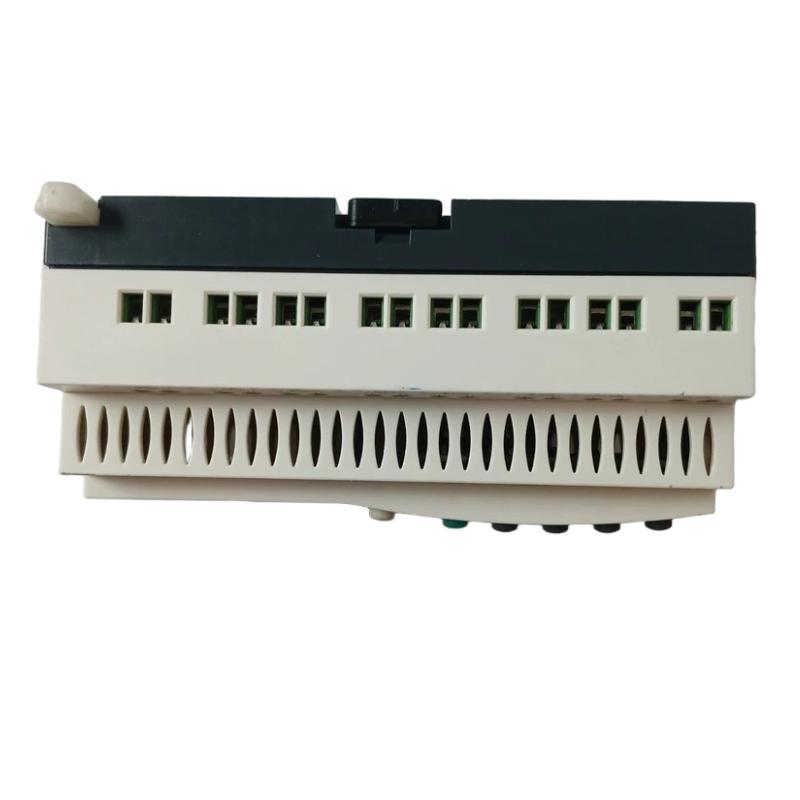

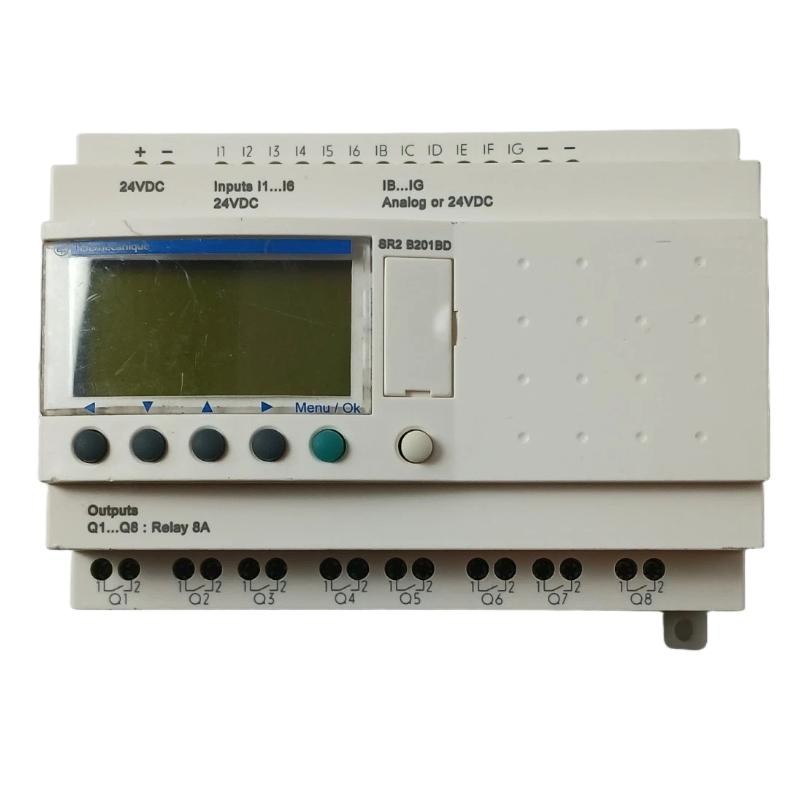

Schneider SR2B201BD Compact Intelligent Relay

Compact Automation Applications and Intelligent Control Integration

The Schneider SR2B201BD Compact Intelligent Relay is a programmable smart relay designed for industrial applications requiring flexible logic control, reliable operation, and simplified automation architecture. As part of the Zelio Logic product family, the SR2B201BD provides an efficient control solution for small machines, building automation systems, pump control, lighting management, HVAC applications, and equipment monitoring systems.

Featuring 20 integrated I/O points, a built-in display, clock function, and relay outputs, the SR2B201BD enables engineers to create customized automation sequences without the complexity of a traditional PLC system. Its compact structure reduces wiring requirements and provides a practical option for OEM equipment manufacturers, machine builders, and maintenance engineers who need dependable control performance in limited cabinet space.

The SR2B201BD is designed for applications where easy programming, fast commissioning, and reliable long-term operation are essential. With integrated logic functions and memory protection, it helps improve automation efficiency while reducing system complexity.

Main Advantages and Industrial Control Benefits

Compact Smart Control Architecture
The SR2B201BD integrates programmable logic processing, digital input monitoring, relay output control, clock management, and display functions into one compact unit. This integrated design allows engineers to build efficient automation systems with fewer external components.

Flexible Programming for Fast System Development
Supporting ladder logic and function block diagram programming, the SR2B201BD allows users to create customized control sequences for different industrial applications. The simple programming environment reduces commissioning time and makes future program modifications easier.

Expanded 20 I/O Capability
Compared with smaller smart relays, the SR2B201BD provides 20 I/O points, including 12 digital inputs and 8 relay outputs. This expanded configuration makes it suitable for applications requiring multiple sensors, actuators, and control signals.

Reliable Relay Output Switching
The integrated relay outputs provide dependable switching capability for industrial devices such as contactors, solenoid valves, indicator lamps, and small motors. This makes the SR2B201BD suitable for repetitive automation operations.

Built-In Display and Monitoring Functions
The integrated LCD display allows operators to view operating information, monitor system conditions, and perform basic diagnostics directly from the relay. This improves troubleshooting efficiency during installation and maintenance.

Secure Program Memory Protection
The SR2B201BD uses EEPROM memory technology to retain user programs and configuration data. The stored program can be recovered after power interruptions, improving system reliability and reducing maintenance workload.

Efficient DIN Rail Installation

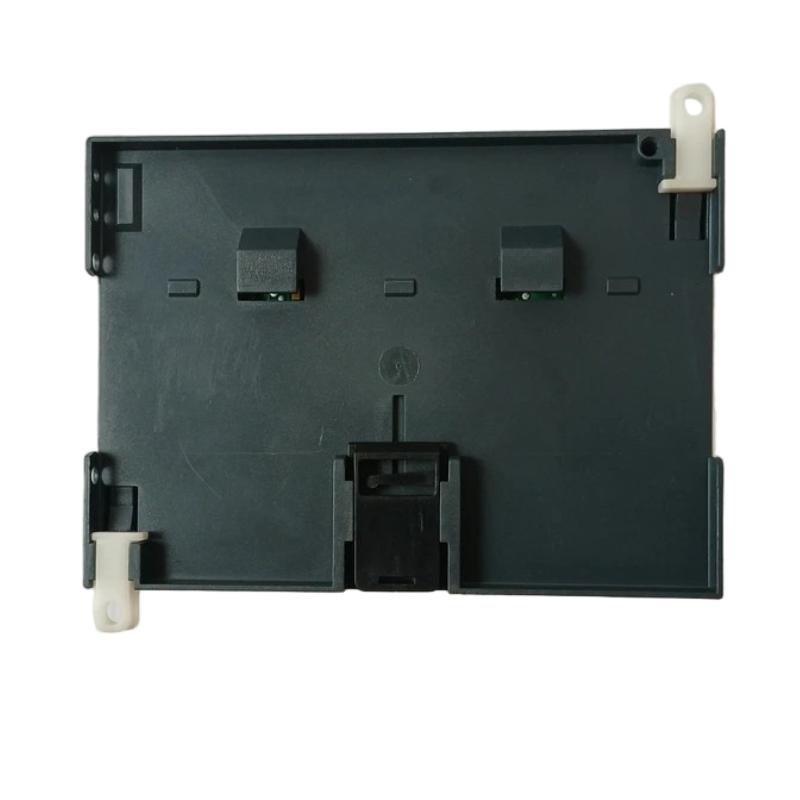

The compact housing design supports DIN rail mounting, allowing easy installation inside control cabinets while helping engineers optimize panel space.

Technical FAQs About Schneider SR2B201BD Compact Intelligent Relay

Q1: What applications are suitable for the Schneider SR2B201BD?
A: The SR2B201BD is suitable for compact automation applications including machine control, HVAC systems, pump control, lighting automation, and industrial sequence control.

Q2: What power supply does the SR2B201BD require?
A: The SR2B201BD operates with a 24 V DC power supply and is designed for low-voltage industrial automation systems.

Q3: How many inputs and outputs are available on the SR2B201BD?
A: The relay provides 20 I/O points, including 12 discrete inputs and 8 relay outputs for automation applications.

Q4: Which programming methods are supported by the SR2B201BD?
A: The device supports ladder programming and function block diagram programming, allowing flexible control logic development.

Q5: Can the SR2B201BD replace traditional relay control circuits?
A: Yes. It can replace complex relay circuits by integrating timers, counters, logic operations, and sequence control functions into one programmable device.

Q6: How does the SR2B201BD protect user programs?
A: The relay uses EEPROM memory to retain user programs and settings, allowing reliable recovery after power failures.

Q7: What should be checked if relay outputs do not respond?
A: Technicians should inspect output wiring, load conditions, program logic, input signals, and relay status during troubleshooting.

Q8: Can the SR2B201BD process sensor signals?
A: Yes. The relay supports digital inputs and can be connected with compatible industrial sensors for automation control tasks.

Q9: How can incorrect control logic operation be diagnosed?
A: Engineers should check ladder programs, function blocks, timer settings, counter values, and real-time input/output states.

Q10: What maintenance practices improve SR2B201BD reliability?
A: Regular inspection of terminals, cabinet conditions, program backups, and operating parameters helps maintain stable performance.
