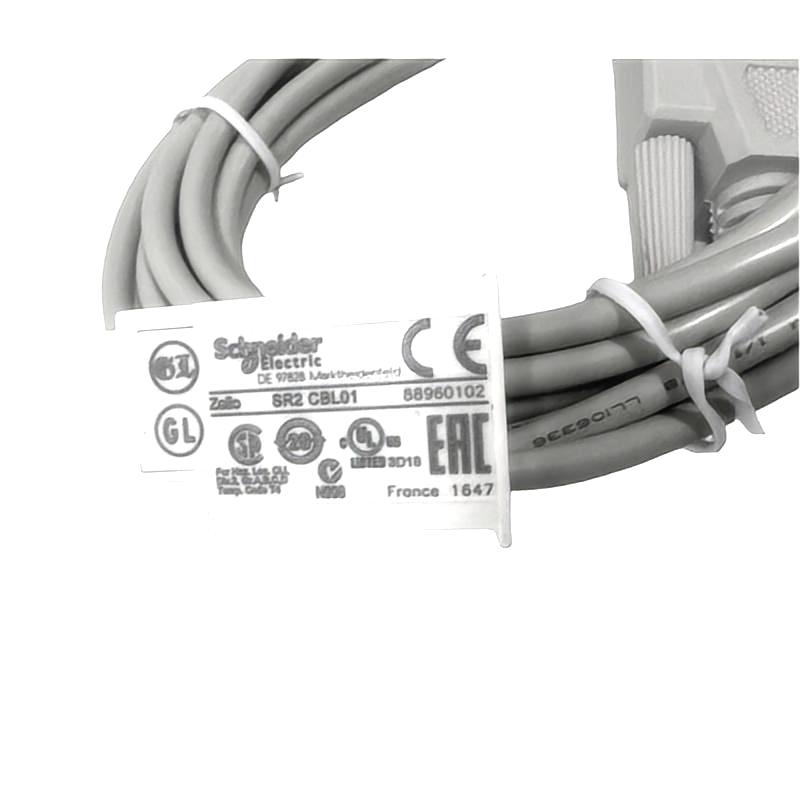

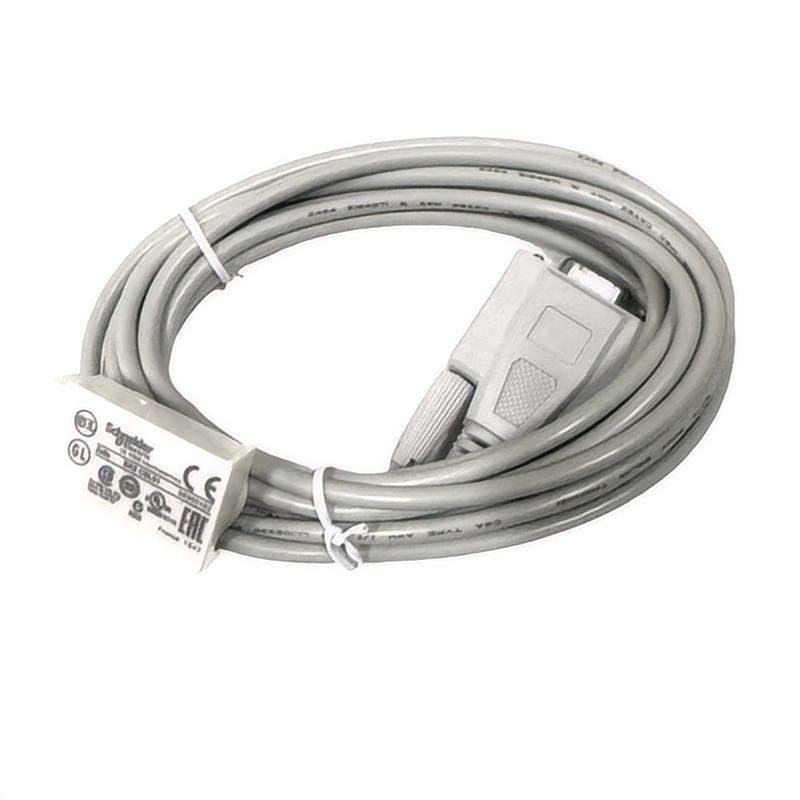

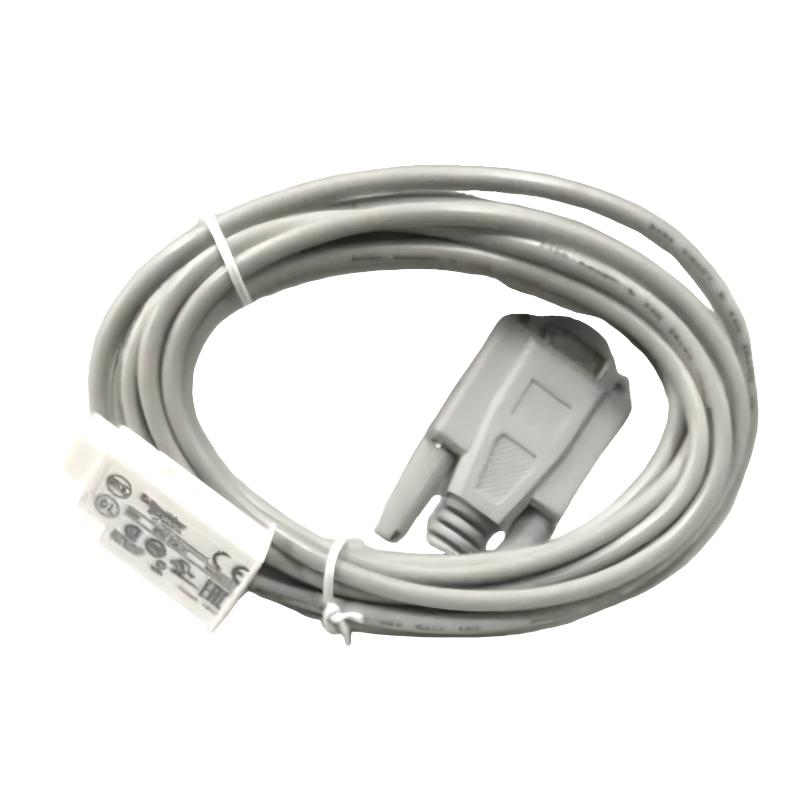

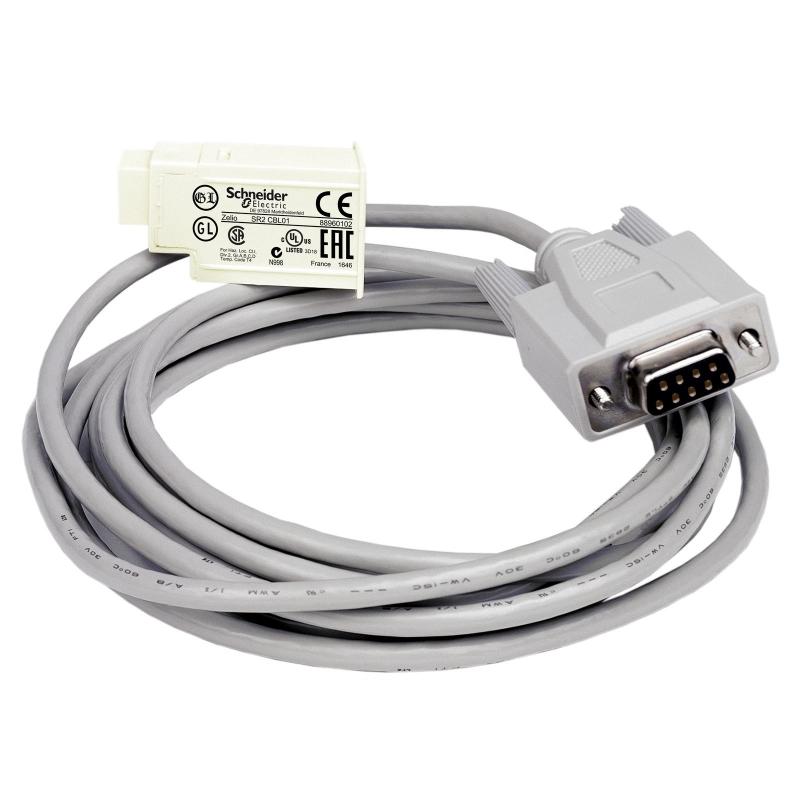

Schneider SR2CBL01 9-pin PC Cable

Automation Applications and Programming Connectivity Solutions

The Schneider SR2CBL01 PC Connecting Cable is a dedicated communication accessory designed for Zelio Logic smart relay programming, system configuration, and maintenance operations. This cable provides a stable connection between Zelio Logic smart relays and a personal computer through an RS232 serial interface, allowing engineers to upload, download, monitor, and modify automation programs efficiently.

Designed for use with Zelio Soft programming software, the SR2CBL01 helps simplify the commissioning process of smart relay applications. It is commonly used by automation engineers, OEM machine builders, electrical technicians, and maintenance personnel who require reliable communication between a control device and programming workstation.

With a 3-meter cable length, the SR2CBL01 provides sufficient installation flexibility for connecting a programming computer near an electrical cabinet without requiring additional extension solutions. Its practical design supports convenient troubleshooting, parameter adjustment, and program management during the entire lifecycle of automation equipment.

Product Advantages and Engineering Benefits

Dedicated Connection Solution for Zelio Logic Systems
The SR2CBL01 is specifically developed for Schneider Zelio Logic smart relays, providing a direct communication link between the relay controller and PC programming environment. This dedicated design ensures efficient configuration and reliable data transfer during automation projects.

Stable RS232 Serial Communication Performance
Using an RS232 physical interface with a SUB-D 9-pin connector, the cable provides dependable serial communication for programming and monitoring operations. It helps engineers maintain stable connectivity during software-based configuration tasks.

3-Meter Length for Flexible Installation
The 3-meter cable length allows technicians to connect a PC conveniently while working near control cabinets or automation panels. This reduces installation restrictions and improves accessibility during commissioning and maintenance.

Simplified Programming and Commissioning Process
The SR2CBL01 helps users quickly transfer programs between a PC and Zelio Logic smart relay. Engineers can update control logic, verify system operation, and perform maintenance adjustments more efficiently.

Reliable Accessory for Industrial Maintenance
For automation systems that require frequent program updates or troubleshooting, the SR2CBL01 provides a practical communication tool that improves maintenance efficiency and reduces downtime.

Compact and Lightweight Design
The lightweight cable construction makes storage, transportation, and daily maintenance operations easier for field engineers working with multiple automation devices.

Technical FAQs About Schneider SR2CBL01 PC Connecting Cable

Q1: What is the main function of the Schneider SR2CBL01?
A: The SR2CBL01 is used to connect Zelio Logic smart relays to a PC for programming, monitoring, and configuration operations.

Q2: Which software is used with the SR2CBL01 cable?
A: The SR2CBL01 is designed for use with Zelio Soft programming software to manage smart relay programs and settings.

Q3: What communication interface does the SR2CBL01 use?
A: The cable uses an RS232 serial communication interface with a SUB-D 9-pin connector.

Q4: Which Schneider products are compatible with the SR2CBL01?
A: The cable is mainly designed for Schneider Zelio Logic SR2 and SR3 smart relay series products.

Q5: Can the SR2CBL01 be used for program downloading and uploading?
A: Yes. The cable allows engineers to transfer automation programs between a PC and compatible Zelio Logic smart relays.

Q6: What should be checked if communication fails?
A: Technicians should verify cable connection, PC serial communication settings, software configuration, and smart relay communication parameters.

Q7: Does the SR2CBL01 require an external power supply?
A: No. The cable functions as a communication accessory and does not require an independent power supply.

Q8: Can the cable be used during troubleshooting operations?
A: Yes. The SR2CBL01 is useful for monitoring programs, checking logic operation, and modifying control parameters during troubleshooting.

Q9: What causes unstable communication with the smart relay?
A: Common causes include incorrect software settings, damaged connectors, poor cable connection, or communication configuration errors.

Q10: How can the service life of the SR2CBL01 be improved?
A: Avoiding excessive bending, protecting connectors from mechanical damage, and storing the cable properly can improve long-term reliability.
