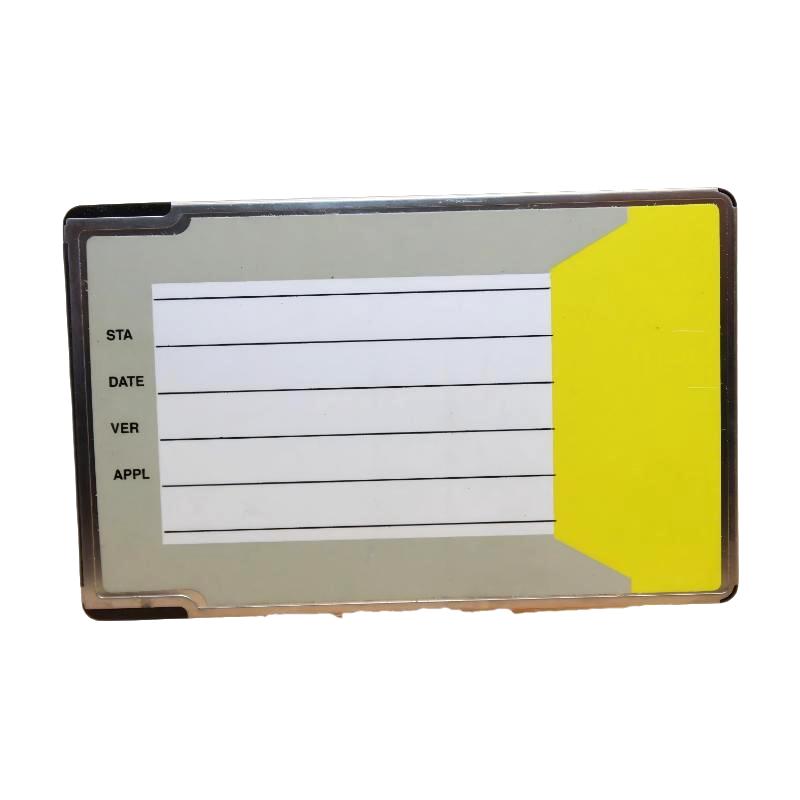

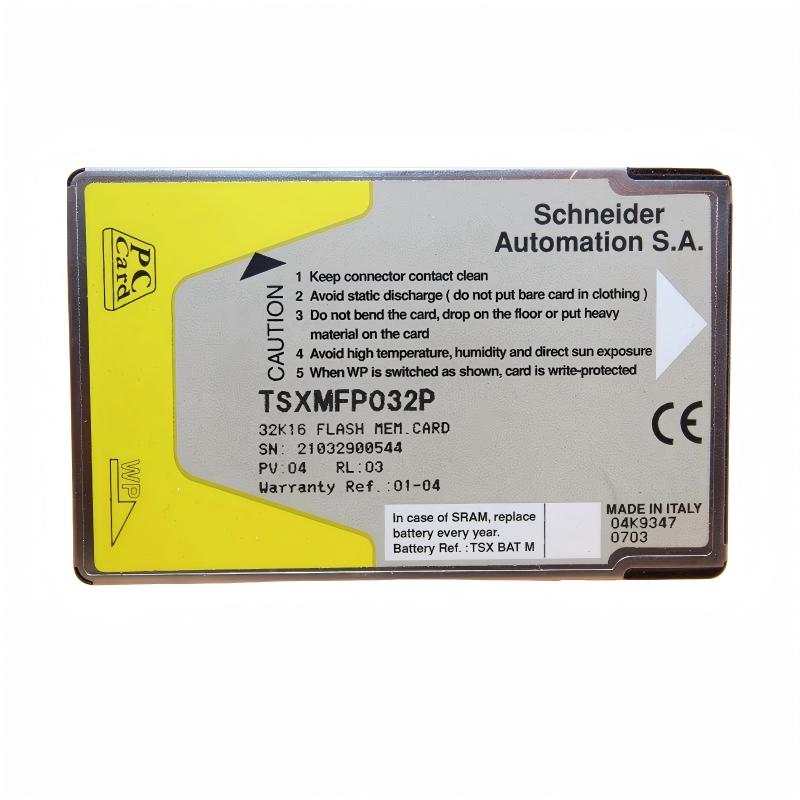

Schneider TSXMFP032P Flash Memory Card

PLC Memory Expansion Applications and Industrial Data Storage Solutions

The Schneider TSXMFP032P Flash Memory Card is a dedicated non-volatile memory expansion accessory designed for Schneider Modicon TSX Micro and Premium PLC systems. It provides reliable program storage, application backup, and memory expansion capabilities for industrial automation environments where stable data retention and secure application management are essential.

Designed for PLC applications using PL7 programming environments, the TSXMFP032P allows automation engineers to store control programs and application data outside the processor memory. This provides additional flexibility during machine commissioning, system maintenance, and controller replacement procedures.

The memory card is commonly used in industrial equipment, production machinery, process control systems, and automation cabinets where reliable program protection is required. Its flash memory technology ensures that stored application data remains available even after power interruptions, helping improve system availability and reduce downtime risks.

Product Advantages and Industrial Performance Benefits

Reliable Non-Volatile Memory Storage
The TSXMFP032P uses flash memory technology to provide dependable data retention without requiring continuous power. This makes it suitable for industrial applications where PLC programs and configuration data must remain protected during shutdowns or maintenance operations.

Dedicated Compatibility with Schneider PLC Platforms
Designed specifically for Schneider automation systems, the TSXMFP032P provides a reliable memory solution for compatible TSX Micro PLC applications. Its dedicated design ensures stable integration with supported controller architectures.

Efficient Program Backup and Recovery Capability
The memory card enables engineers to maintain backup copies of PLC applications, simplifying controller replacement and reducing commissioning time when restoring automation systems.

Improved Maintenance Efficiency
By providing external program storage, the TSXMFP032P helps maintenance teams quickly transfer or recover automation projects during troubleshooting, equipment upgrades, or system servicing.

Industrial-Grade Reliability
The flash memory card is designed for industrial environments with requirements for vibration resistance, temperature stability, and long-term operational reliability.

Simple Installation and Replacement
The plug-in memory card design allows technicians to install or replace the storage module efficiently without complex wiring modifications, helping reduce maintenance effort.

Long-Term Data Protection
The non-volatile memory structure ensures stored PLC programs remain preserved over extended periods, making it a practical choice for industrial automation systems requiring dependable application storage.

Technical FAQs About Schneider TSXMFP032P Flash Memory Card

Q1: What is the main function of the Schneider TSXMFP032P?
A: The TSXMFP032P is a flash memory expansion card used for storing PLC programs and application data in compatible Schneider automation systems.

Q2: Which PLC families are compatible with the TSXMFP032P?
A: The TSXMFP032P is designed for Schneider Modicon TSX Micro and related PLC platforms supporting compatible flash memory cards.

Q3: What type of memory technology does the TSXMFP032P use?
A: The TSXMFP032P uses flash memory technology, allowing stored data to remain available without continuous electrical power.

Q4: Can the TSXMFP032P be used for PLC program backup?
A: Yes. It can store PLC applications and provide backup capability for system recovery and maintenance operations.

Q5: What should be checked if the PLC cannot detect the memory card?
A: Technicians should check card installation, connector condition, PLC compatibility, memory card status, and controller configuration settings.

Q6: Can the TSXMFP032P improve PLC replacement efficiency?
A: Yes. Stored applications can simplify restoration procedures when replacing or servicing compatible PLC hardware.

Q7: What causes flash memory card communication errors?
A: Common causes include improper insertion, damaged connectors, incompatible firmware versions, or incorrect PLC configuration parameters.

Q8: Does the TSXMFP032P require an external power supply?
A: No. The memory card operates through the PLC memory interface and does not require an independent power source.

Q9: How should the TSXMFP032P be maintained?
A: Regular inspection of the card condition, connector cleanliness, and backup verification helps maintain reliable operation.

Q10: Can stored programs be modified through PLC software?
A: Yes. Compatible Schneider programming environments allow engineers to manage PLC applications stored within supported memory configurations.
