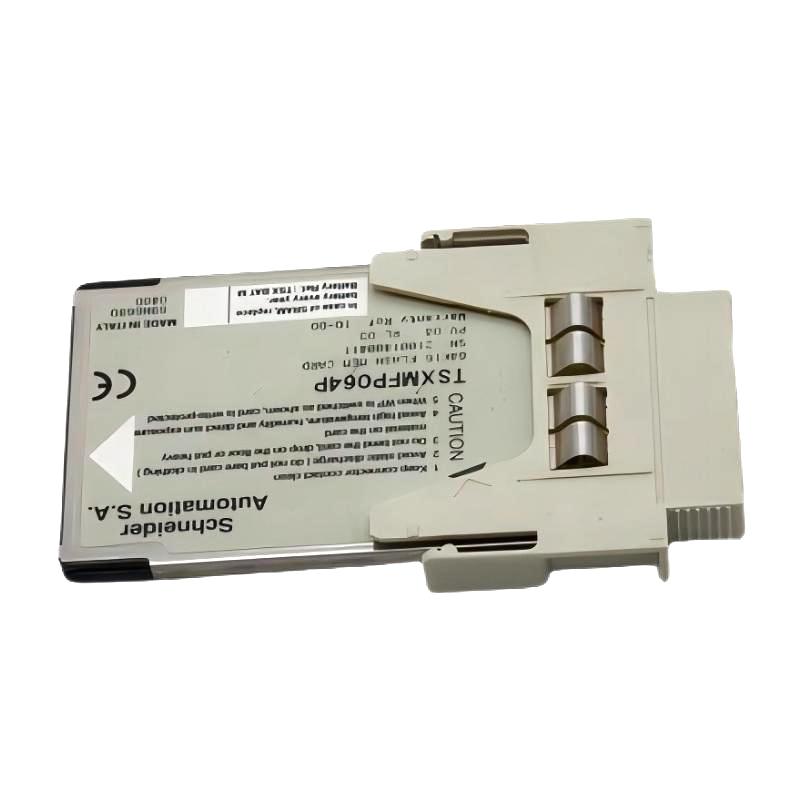

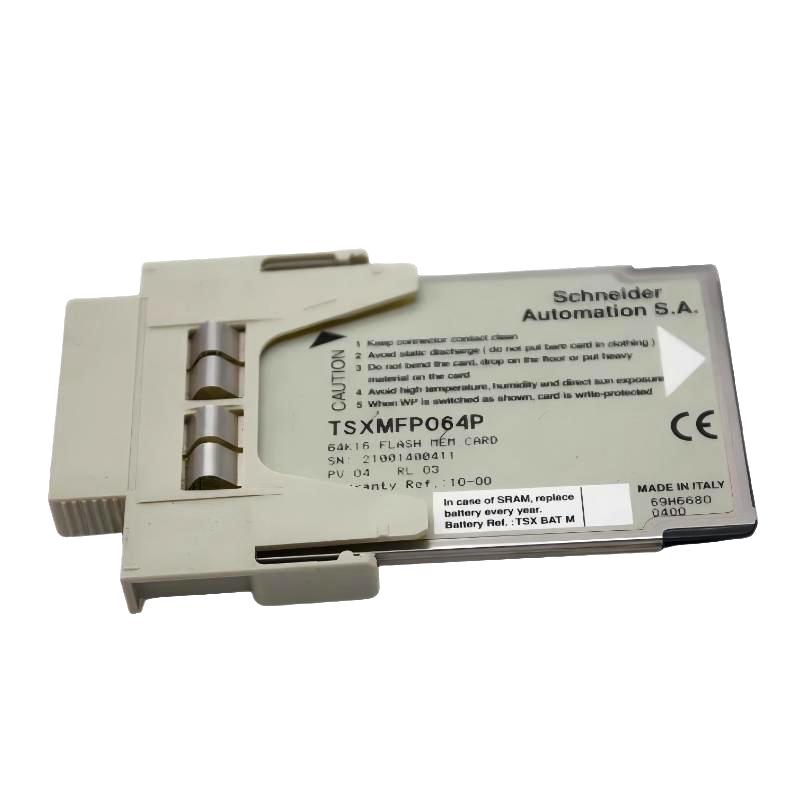

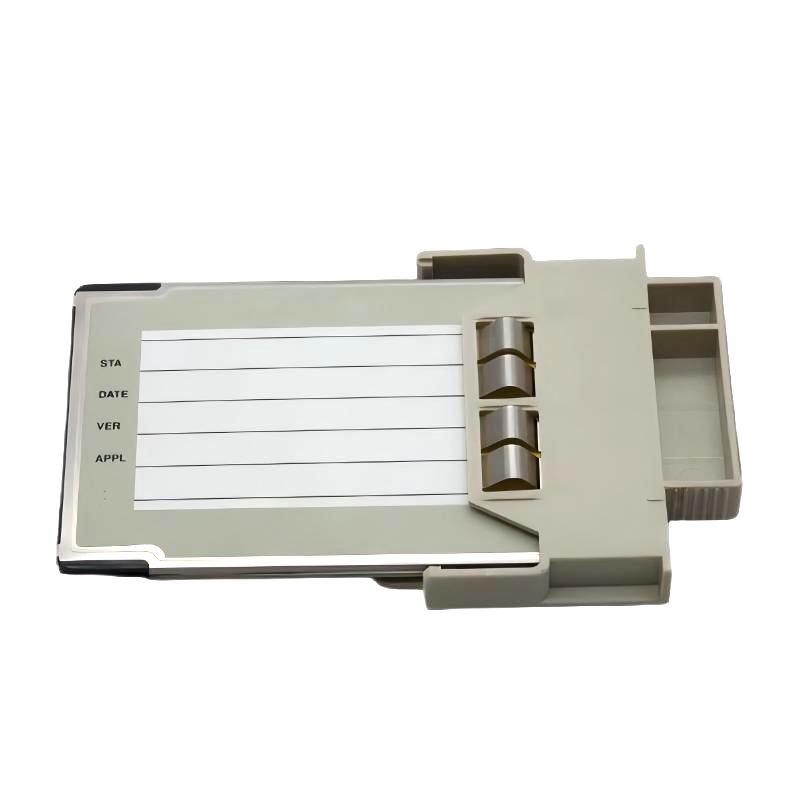

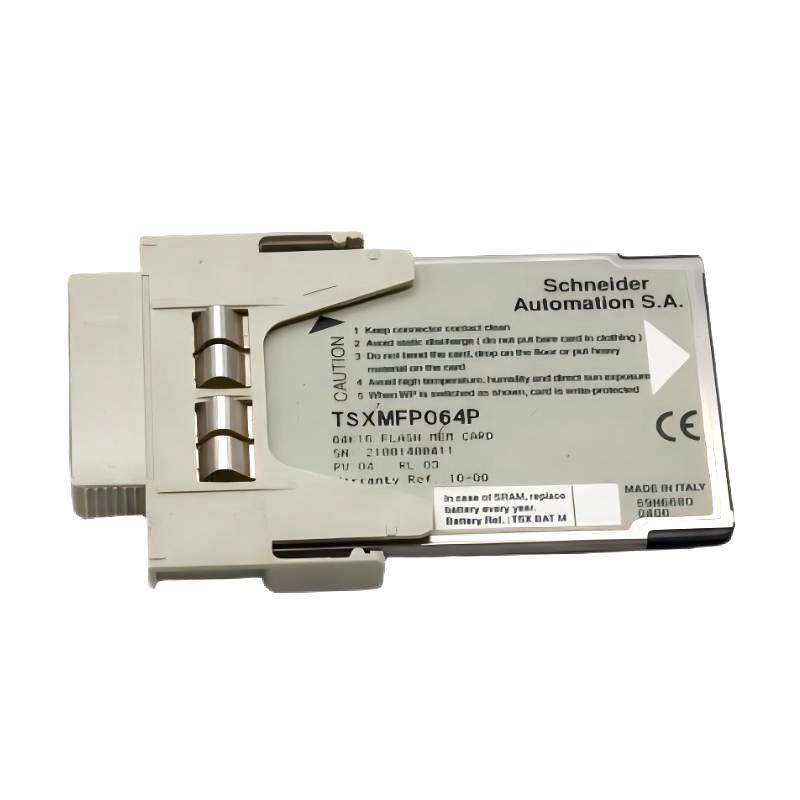

Schneider TSXMFP064P Flash Memory Card

PLC Memory Expansion Applications and Automation Data Protection

The Schneider TSXMFP064P Flash Memory Card is a dedicated non-volatile memory expansion accessory designed for Modicon Premium PLC systems. It provides reliable application storage, PLC program backup, and memory extension functions for industrial automation environments where secure data retention and efficient maintenance are essential. The TSXMFP064P is identified as a 64K16 Flash Memory Card designed for Schneider PLC platforms.

Designed for applications using Schneider PL7 programming environments, the TSXMFP064P allows automation engineers to store PLC applications independently from the processor’s internal memory. This improves system flexibility during commissioning, controller replacement, troubleshooting, and long-term equipment maintenance.

The memory card is widely used in industrial machinery, production lines, process automation systems, and control cabinets that require dependable program protection. With Flash EPROM technology, the stored application remains preserved without continuous power, helping reduce downtime and improve recovery efficiency.

Product Advantages and Industrial Performance Features

Reliable Flash Memory Storage Technology
The TSXMFP064P uses Flash EPROM technology to provide stable non-volatile storage for PLC programs and application data. This allows critical automation information to remain protected even during extended power interruptions.

Dedicated Modicon Premium PLC Compatibility
Developed for Schneider Modicon Premium automation platforms, the TSXMFP064P offers reliable integration with supported processor modules. Its dedicated architecture ensures stable communication between the memory card and PLC system.

Efficient PLC Program Backup Solution
The memory card provides engineers with a convenient method to store and restore PLC applications. During equipment upgrades or processor replacement, saved programs can significantly reduce commissioning time.

Improved Maintenance and Troubleshooting Efficiency
By maintaining an external copy of PLC application data, the TSXMFP064P helps maintenance teams quickly recover automation systems after hardware servicing or unexpected controller issues.

Industrial Reliability for Continuous Operation
Designed for industrial control environments, the memory card supports reliable operation in automation applications where data integrity and system availability are important factors.

Simple Installation and Replacement Process
The plug-in memory card design allows technicians to install or replace the storage module easily without modifying PLC wiring or system hardware.

Long-Term Application Data Protection
The non-volatile memory structure ensures that stored programs remain available over long periods, making the TSXMFP064P suitable for legacy automation systems requiring stable program retention.

Technical FAQs About Schneider TSXMFP064P Flash Memory Card

Q1: What is the main function of the Schneider TSXMFP064P?
A: The TSXMFP064P is a Flash EPROM memory card used for PLC application storage, program backup, and memory expansion in compatible Schneider automation systems.

Q2: Which PLC systems are compatible with the TSXMFP064P?
A: The TSXMFP064P is designed for Schneider Modicon Premium PLC processors that support Flash memory extension cards.

Q3: What type of memory technology does the TSXMFP064P use?
A: The TSXMFP064P uses Flash EPROM technology, providing non-volatile storage for automation programs.

Q4: Can the TSXMFP064P be used for PLC program backup?
A: Yes. It can store PLC applications and provide a reliable backup solution for system recovery and maintenance operations.

Q5: What should be checked if the PLC does not recognize the memory card?
A: Technicians should verify correct installation, processor compatibility, card condition, and PLC configuration settings.

Q6: Can the TSXMFP064P simplify PLC replacement procedures?
A: Yes. Stored application programs can help reduce recovery time when replacing or servicing compatible PLC processors.

Q7: What causes memory card access errors?
A: Common causes include improper insertion, damaged contacts, incompatible processor versions, or configuration problems.

Q8: Does the TSXMFP064P require an external power supply?
A: No. The memory card receives power through the PLC memory interface and does not require a separate power source.

Q9: How can engineers verify stored PLC application integrity?
A: Engineers should compare application data, verify PLC diagnostics, and perform program transfer checks using compatible programming software.

Q10: What maintenance practices are recommended for the TSXMFP064P?
A: Regular inspection of connectors, proper storage conditions, and maintaining application backups help ensure reliable operation.
