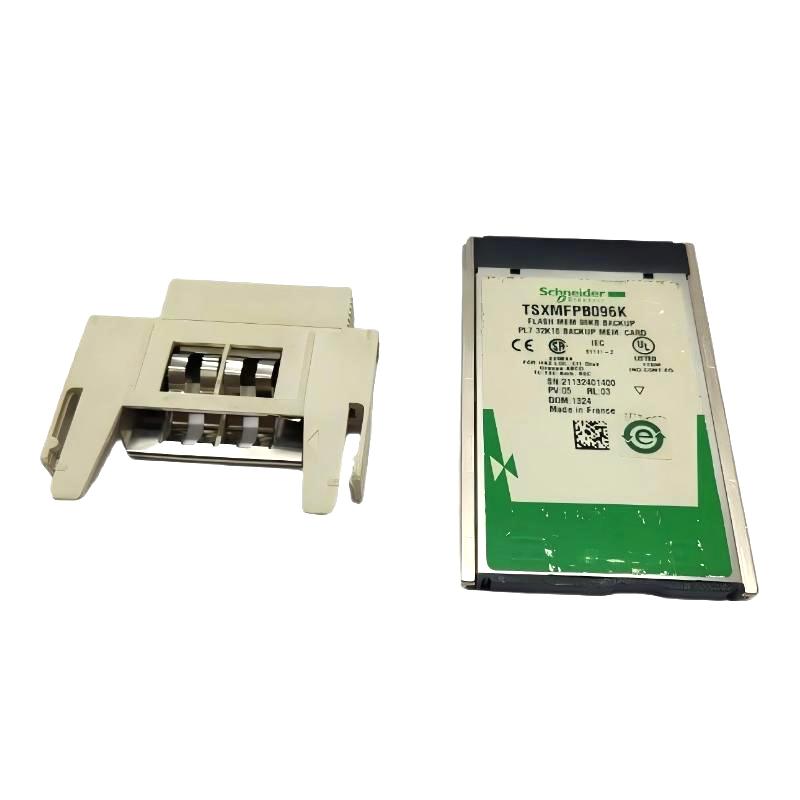

Schneider TSXMFPB096K Flash EPROM Backup Card

PLC Backup Applications and Industrial Memory Protection Solutions

The Schneider TSXMFPB096K Flash EPROM Backup Card is a dedicated memory accessory designed for Modicon Premium PLC processor systems. It provides reliable non-volatile storage for PLC application programs, allowing automation engineers to protect critical control data, simplify system recovery, and improve maintenance efficiency in industrial environments. The TSXMFPB096K is a 96 kB Flash EPROM backup card designed for processor memory backup applications within Schneider Modicon Premium automation platforms.

Designed for use with compatible TSX57 series processors, the TSXMFPB096K stores PLC application data independently from internal processor memory. This capability is especially valuable during controller replacement, machine upgrades, and troubleshooting operations where fast program restoration is required.

The memory card is widely applied in industrial machinery, production equipment, process control systems, and automation cabinets that depend on stable PLC program availability. With Flash EPROM technology, the stored application remains preserved without continuous power, helping reduce downtime and improving overall system reliability.

Key Advantages and Industrial Performance Features

Reliable Non-Volatile Program Storage
The TSXMFPB096K uses Flash EPROM memory technology to provide dependable PLC application storage. Unlike volatile memory solutions, stored programs remain available even after extended power interruptions, making it suitable for industrial systems requiring continuous data protection.

Dedicated Modicon Premium Platform Compatibility
Designed specifically for Schneider Modicon Premium automation systems, the TSXMFPB096K provides stable integration with compatible processor modules. Its dedicated architecture ensures reliable communication between the processor and backup memory card.

Fast PLC Program Recovery Capability
The backup card allows engineers to maintain a secure copy of application programs, making system recovery faster during processor replacement or unexpected hardware failures. This helps minimize production interruptions and improves maintenance efficiency.

Improved Equipment Lifecycle Management
For long-term automation projects, maintaining a reliable backup of PLC applications is essential. The TSXMFPB096K helps protect engineering investment by preserving control programs for future servicing and system modifications.

Compact Memory Expansion Design
The TSXMFPB096K provides additional memory capability without requiring external wiring or additional hardware installation. Its plug-in design allows convenient integration into compatible processor memory slots.

Industrial Reliability for Legacy PLC Systems
Many industrial facilities continue to operate Schneider Modicon Premium platforms due to their proven reliability. The TSXMFPB096K provides an effective solution for maintaining these existing automation systems and extending equipment service life.

Simplified Maintenance Operations
With a dedicated backup memory card available, technicians can perform troubleshooting, replacement, and commissioning tasks more efficiently by quickly restoring validated PLC applications.

Technical FAQs About Schneider TSXMFPB096K Flash EPROM Backup Card

Q1: What is the primary function of the Schneider TSXMFPB096K?
A: The TSXMFPB096K is a Flash EPROM backup card used to store PLC application programs for compatible Modicon Premium processor modules.

Q2: Which Schneider PLC systems support the TSXMFPB096K?
A: The TSXMFPB096K is designed for Modicon Premium automation platforms and compatible TSX57 series processors.

Q3: What type of memory technology does the TSXMFPB096K use?
A: The module uses Flash EPROM technology, providing non-volatile storage for PLC applications.

Q4: Can the TSXMFPB096K be used for PLC program backup?
A: Yes. It is specifically designed to store application programs and support backup and recovery operations.

Q5: What should be checked if the PLC cannot access the backup card?
A: Engineers should check correct card installation, processor compatibility, slot configuration, and memory card condition.

Q6: Can the TSXMFPB096K reduce PLC replacement downtime?
A: Yes. A stored application backup allows faster restoration of PLC programs after processor replacement or maintenance.

Q7: What causes Flash EPROM card recognition problems?
A: Common causes include incorrect installation, damaged contacts, incompatible processor versions, or memory card faults.

Q8: Does the TSXMFPB096K require an external power supply?
A: No. The card receives power through the PLC processor memory interface.

Q9: How can engineers verify the stored application program?
A: Engineers can compare PLC application data and perform program transfer verification through compatible Schneider programming tools.

Q10: What maintenance practices improve TSXMFPB096K reliability?
A: Proper storage, clean connectors, correct installation procedures, and maintaining additional application backups help ensure reliable operation.
