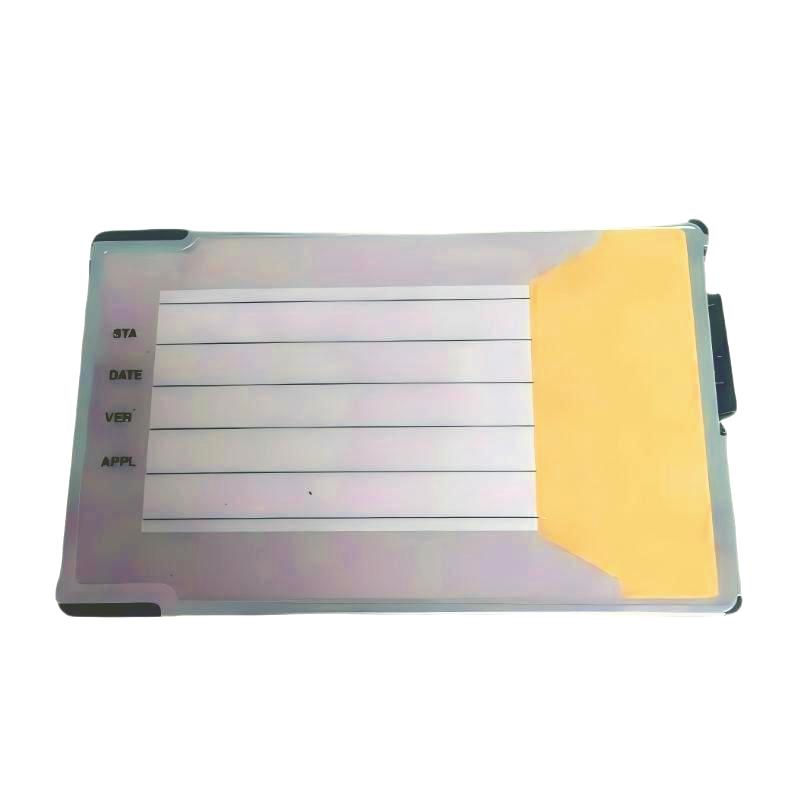

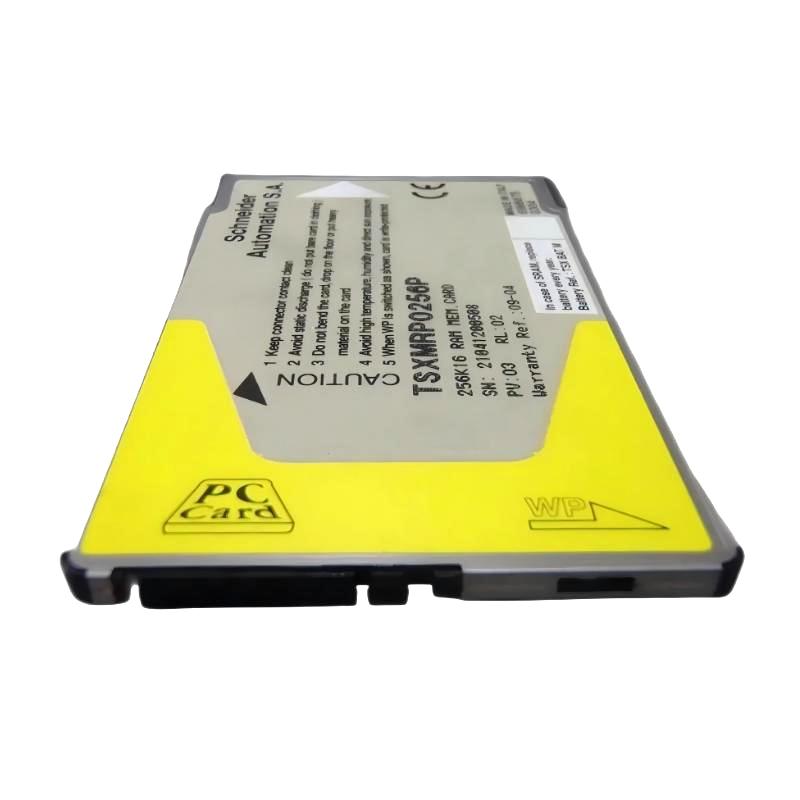

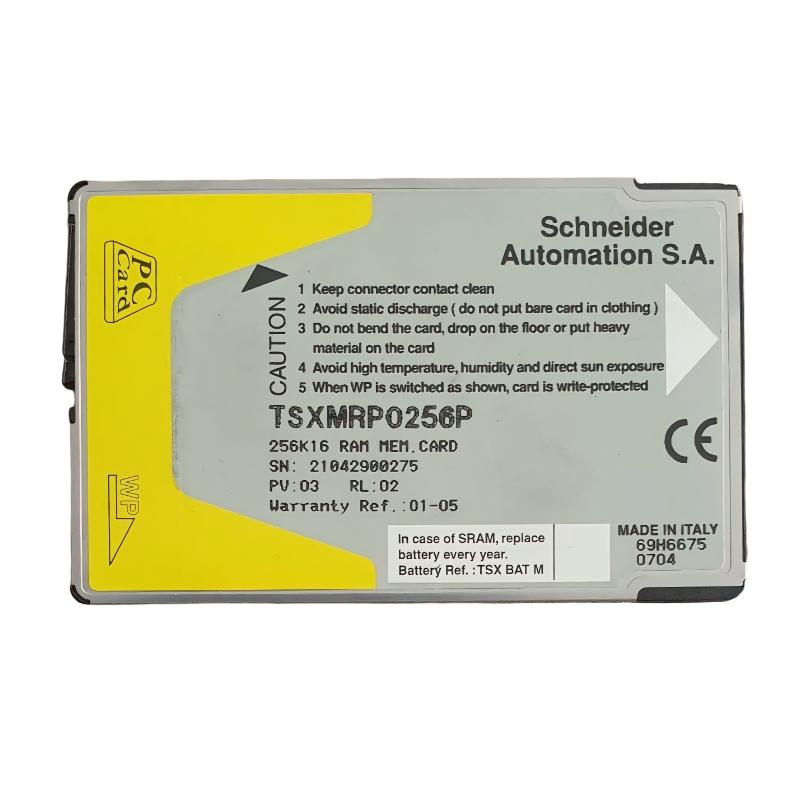

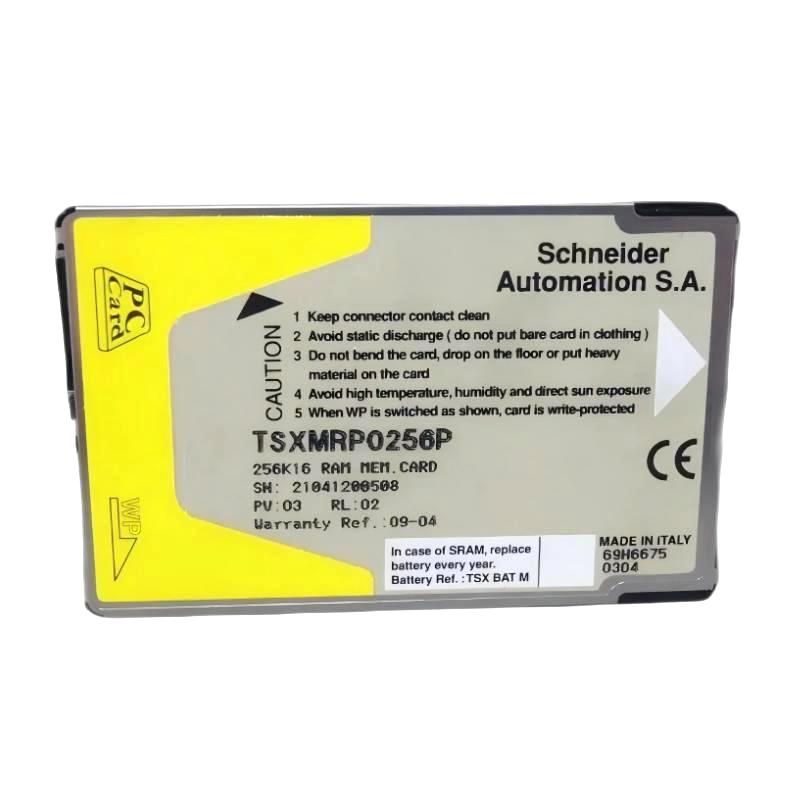

Schneider TSXMRP0256P Memory Card

PLC Memory Expansion Applications and High-Speed Industrial Data Management

The Schneider TSXMRP0256P Memory Card is a dedicated SRAM application memory expansion module designed for Modicon Premium PLC systems. It provides 256 kWords of additional RAM memory capacity, enabling automation engineers to expand PLC application storage, manage larger control programs, and improve performance in complex industrial automation projects.

Designed for demanding automation environments, the TSXMRP0256P supports applications that require fast data access, frequent program adjustments, and efficient PLC memory management. SRAM technology provides high-speed read and write performance, making this memory card suitable for engineering tasks involving commissioning, online modifications, and application optimization.

The memory card is widely used in manufacturing equipment, process control systems, machine automation platforms, and legacy Schneider PLC installations. By increasing available application memory, the TSXMRP0256P allows engineers to develop more advanced control logic while maintaining stable system operation.

Core Advantages and Industrial Performance Benefits

Expanded SRAM Application Memory Capacity
The TSXMRP0256P provides 256 kWords of SRAM memory expansion, giving automation engineers additional storage space for PLC applications, control data, and system parameters. This allows larger and more complex automation programs to run efficiently.

High-Speed Data Access Performance
SRAM technology offers fast memory access characteristics, making the TSXMRP0256P suitable for applications requiring frequent data processing and rapid program updates. This helps improve engineering efficiency during machine development and commissioning.

Designed for Modicon Premium PLC Architecture
The TSXMRP0256P is developed for Schneider Modicon Premium PLC systems and integrates with compatible processor platforms through the dedicated memory expansion interface. It provides a reliable solution for extending existing PLC capabilities.

Supports Complex Automation Programs
Modern industrial machines often require advanced sequencing, communication management, motion coordination, and diagnostic functions. The additional memory provided by the TSXMRP0256P helps engineers implement more comprehensive PLC applications.

Improved Commissioning and Maintenance Efficiency
With increased memory availability, technicians can manage larger PLC projects more effectively during system testing, troubleshooting, and future machine upgrades.

Practical Solution for Existing PLC Systems
The TSXMRP0256P allows users to upgrade memory capacity without replacing the complete PLC controller, helping extend the operational life of established Schneider automation systems.

Reliable Industrial Memory Expansion Design
The module is built for continuous industrial use, providing stable performance in automation environments where dependable PLC operation is essential.

Technical FAQs About Schneider TSXMRP0256P Memory Card

Q1: What is the main function of the Schneider TSXMRP0256P?
A: The TSXMRP0256P is an SRAM memory expansion card used to increase application memory capacity for compatible Schneider Modicon PLC systems.

Q2: What memory technology does the TSXMRP0256P use?
A: The TSXMRP0256P uses SRAM technology, providing fast read and write access for PLC applications.

Q3: How much memory capacity does the TSXMRP0256P provide?
A: The TSXMRP0256P provides 256 kWords of SRAM application memory expansion.

Q4: Which PLC platforms are compatible with the TSXMRP0256P?
A: The TSXMRP0256P is designed for Schneider Modicon Premium PLC systems supporting SRAM memory expansion cards.

Q5: Can the TSXMRP0256P support online program modification?
A: Yes. SRAM memory technology is suitable for applications requiring frequent program updates and engineering adjustments.

Q6: What should be checked if the PLC cannot recognize the memory card?
A: Engineers should verify processor compatibility, correct installation, memory slot configuration, and connector condition.

Q7: What causes SRAM memory access faults?
A: Common causes include improper installation, damaged contacts, processor compatibility issues, or configuration errors.

Q8: Does the TSXMRP0256P require an external power supply?
A: No. The memory card receives operating power through the PLC processor interface.

Q9: Can the TSXMRP0256P improve PLC application development efficiency?
A: Yes. Additional memory capacity allows engineers to manage larger projects and implement more complex control functions.

Q10: What maintenance practices are recommended for the TSXMRP0256P?
A: Regular application backups, proper storage conditions, and inspection of memory card connections help maintain reliable operation.
