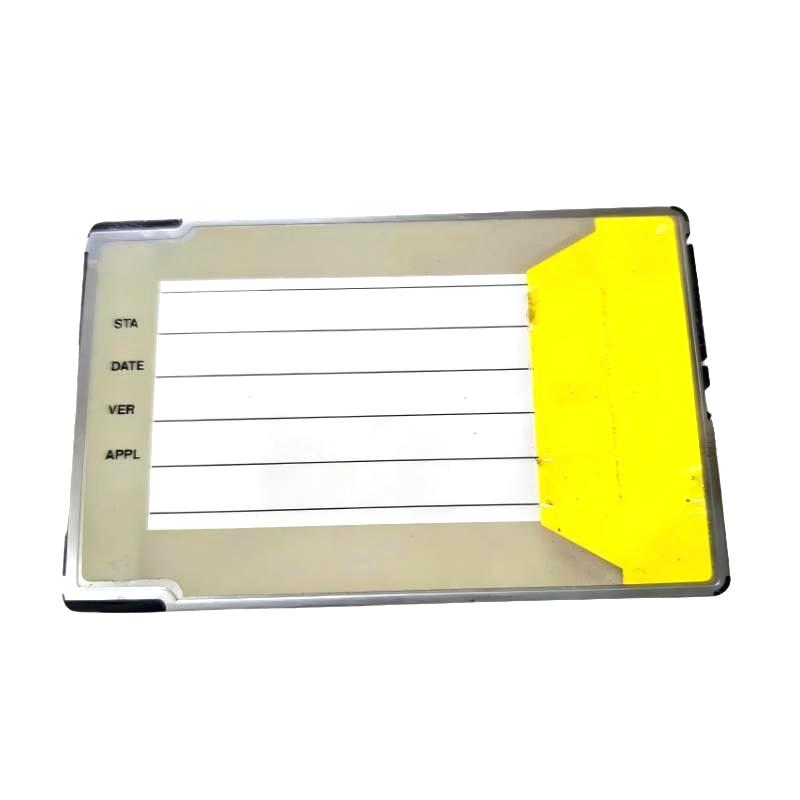

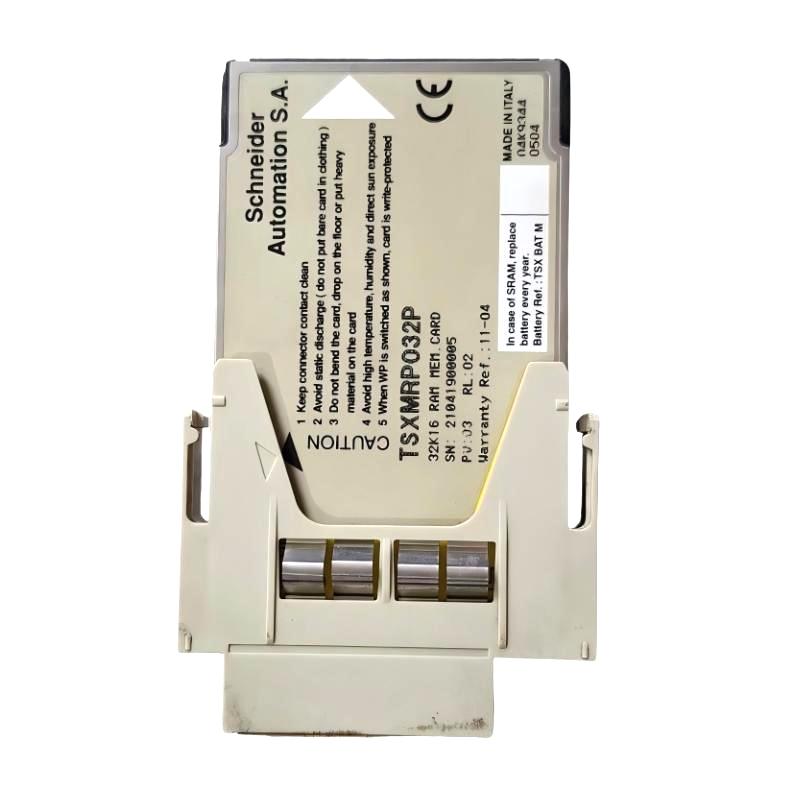

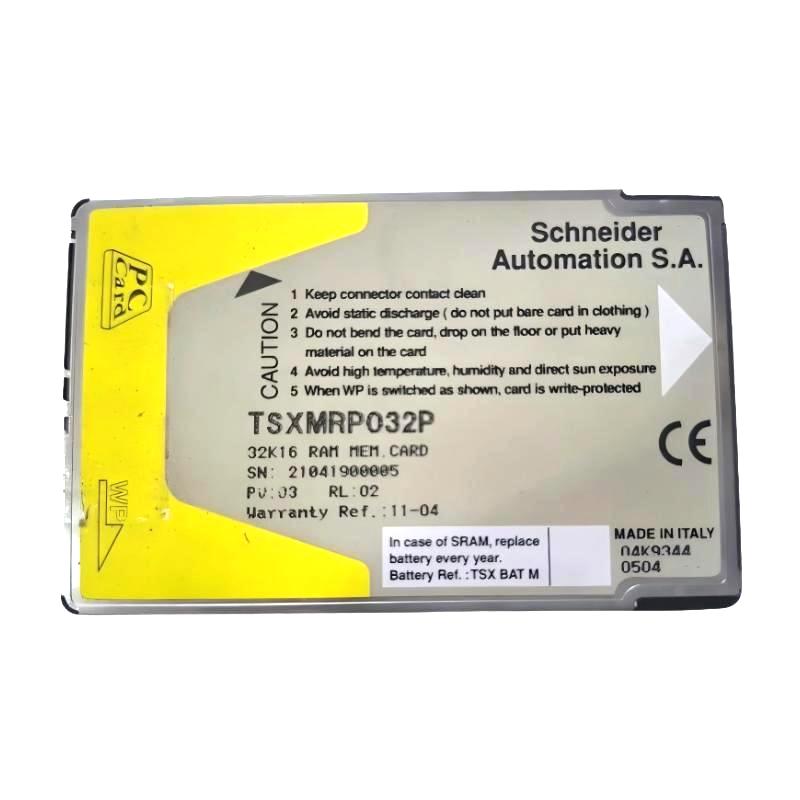

Schneider TSXMRP032P RAM Expansion Card

PLC Memory Expansion Applications and High-Speed Automation Data Processing

The Schneider TSXMRP032P RAM Expansion Card is a dedicated SRAM memory extension module designed for Modicon Premium PLC systems. It provides additional application memory capacity for PLC processors, allowing automation engineers to expand program storage, improve application flexibility, and support efficient control system development in industrial environments. The TSXMRP032P is a 32 KWords SRAM memory expansion card designed for compatible Schneider Modicon Premium PLC processors.

As industrial automation systems become more complex, PLC applications require additional memory resources for control logic, machine parameters, communication settings, and diagnostic functions. The TSXMRP032P provides a practical memory expansion solution that helps engineers manage application requirements without replacing existing processor hardware.

The RAM expansion card is widely used in manufacturing equipment, machine automation systems, process control applications, and legacy Schneider PLC installations. Its SRAM technology provides fast data access performance, making it suitable for applications requiring efficient program modification, commissioning adjustments, and application optimization.

Engineering Advantages and Industrial Performance Benefits

Expanded PLC Application Memory Capacity
The TSXMRP032P increases available PLC memory resources by providing additional SRAM application storage. This allows engineers to handle larger control programs, extended data structures, and more advanced automation functions within existing Modicon Premium systems.

Fast SRAM Read and Write Performance
Using SRAM memory technology, the TSXMRP032P delivers fast access speed for PLC application data. This makes it suitable for engineering environments where frequent adjustments, online modifications, and program optimization are required.

Designed for Modicon Premium Automation Platforms
The TSXMRP032P is specifically developed for Schneider Modicon Premium PLC architectures, providing reliable integration with compatible processors through the PCMCIA memory expansion interface.

Improved Commissioning Efficiency
During machine startup and system tuning, engineers often need to modify PLC applications repeatedly. The TSXMRP032P provides additional memory space that supports efficient development and commissioning processes.

Reliable Solution for Legacy PLC Systems
Many industrial facilities continue operating Modicon Premium PLC platforms because of their proven stability. The TSXMRP032P helps extend the service life of these systems by providing additional memory capability without requiring complete controller replacement.

Flexible Application Data Management
The memory expansion card supports PLC application storage requirements, helping engineers organize control programs and application-related information more effectively.

Compact Plug-In Memory Design

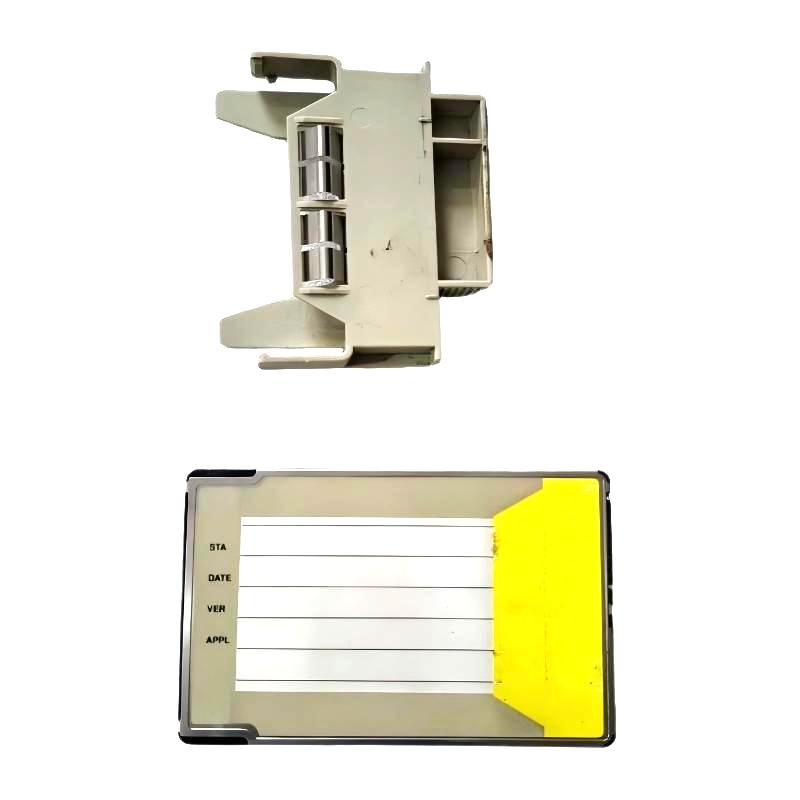

The TSXMRP032P uses a PCMCIA-style memory card design, allowing straightforward installation into compatible PLC processor memory slots without additional wiring modifications.

Technical FAQs About Schneider TSXMRP032P RAM Expansion Card

Q1: What is the main function of the Schneider TSXMRP032P?
A: The TSXMRP032P is an SRAM memory expansion card used to increase application memory capacity for compatible Modicon Premium PLC processors.

Q2: What type of memory technology does the TSXMRP032P use?
A: The TSXMRP032P uses SRAM technology, providing fast read and write access for PLC application data.

Q3: How much memory capacity does the TSXMRP032P provide?
A: The TSXMRP032P provides 32 KWords of SRAM application memory expansion.

Q4: Which PLC systems are compatible with the TSXMRP032P?
A: The TSXMRP032P is designed for Schneider Modicon Premium PLC processors that support SRAM PCMCIA memory expansion cards.

Q5: Can the TSXMRP032P support online program modification?
A: Yes. SRAM-based memory expansion cards are suitable for applications requiring program adjustments during commissioning and maintenance operations.

Q6: What should be checked if the PLC cannot recognize the TSXMRP032P?
A: Engineers should verify processor compatibility, correct card insertion, memory slot configuration, and connector condition.

Q7: What causes SRAM memory access errors?
A: Common causes include incorrect installation, damaged contacts, processor compatibility issues, or PLC configuration problems.

Q8: Does the TSXMRP032P require an external power supply?
A: No. The memory card receives operating power through the PLC processor interface.

Q9: Can the TSXMRP032P improve PLC system performance?
A: Yes. Additional memory capacity allows larger applications and improves flexibility when developing industrial control programs.

Q10: What maintenance practices are recommended for the TSXMRP032P?
A: Regular application backups, proper handling, and inspection of memory card contacts help maintain reliable operation.
