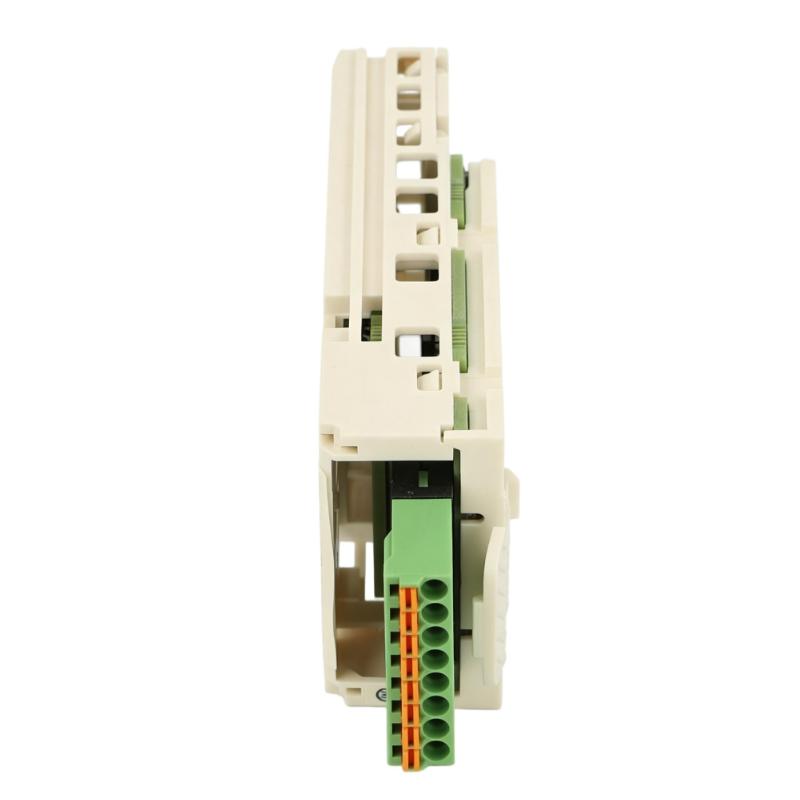

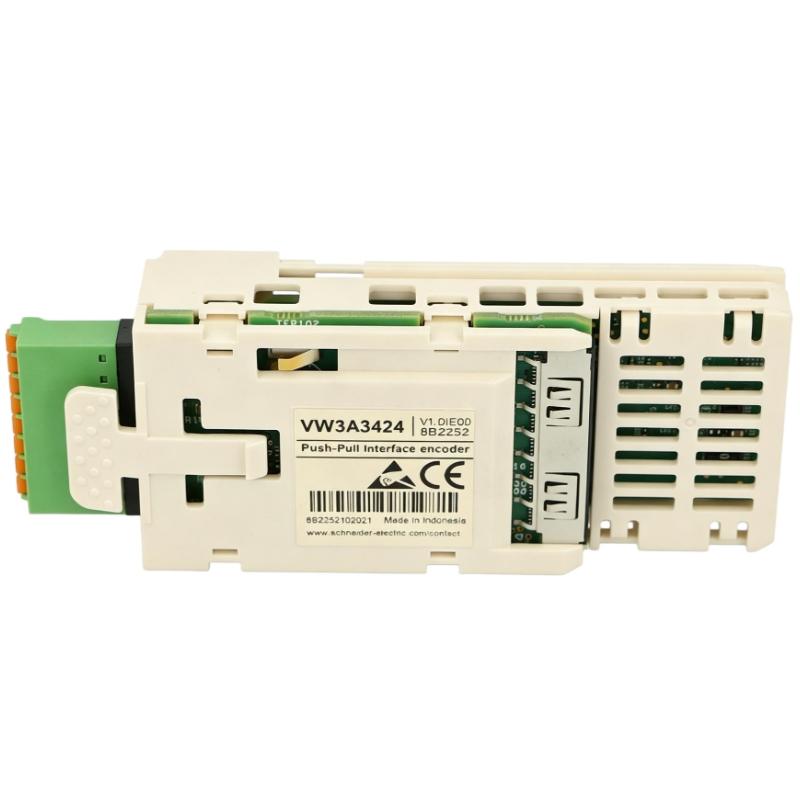

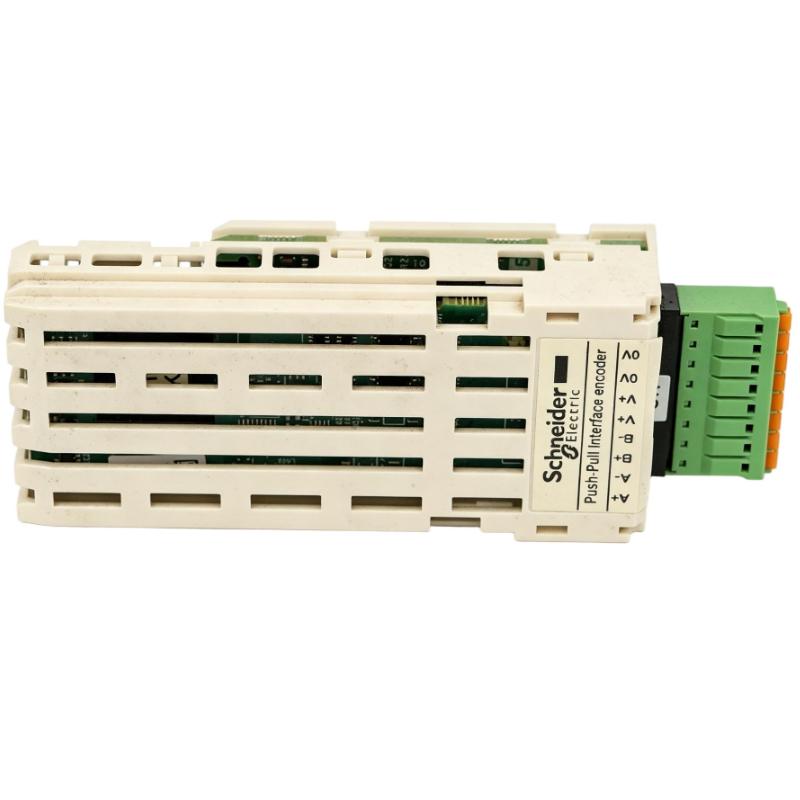

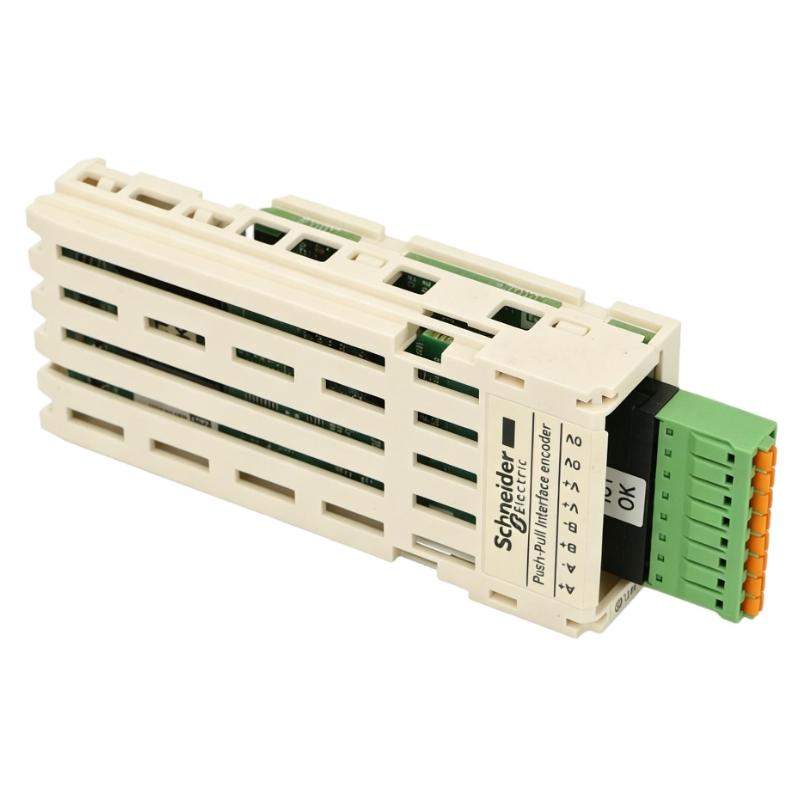

Schneider VW3A3424 Encoder Interface Module

Motion Control Applications and Encoder Feedback Integration Solutions

The Schneider VW3A3424 Encoder Interface Module is a dedicated HTL encoder interface accessory designed for Altivar variable speed drive systems. It enables precise motor speed feedback and position monitoring by connecting compatible HTL encoders with Schneider drive platforms, improving motor control accuracy, synchronization performance, and automation system stability.

In industrial motion applications, accurate feedback signals are essential for maintaining consistent speed regulation, torque control, and coordinated operation between multiple drives. The VW3A3424 provides a reliable interface between encoder devices and Altivar drives, helping engineers achieve improved performance in demanding automation environments.

This encoder module is commonly used in conveyor systems, packaging machinery, lifting equipment, material handling systems, and production machines requiring closed-loop speed control. With support for HTL encoder technology and flexible signal compatibility, the VW3A3424 provides an efficient solution for upgrading drive control performance without replacing the complete variable speed drive system.

Performance Advantages and Industrial Control Benefits

Accurate Closed-Loop Motor Feedback
The VW3A3424 enables encoder feedback integration for Altivar drives, allowing the drive controller to receive real-time motor speed information. This improves speed regulation accuracy and helps maintain stable operation under changing load conditions.

Compatible with HTL Encoder Technology
Designed for high threshold logic (HTL) encoders, the module supports common industrial encoder signal formats including push-pull and open collector signal types. This flexibility allows integration with various encoder devices used in automation systems.

Improved Drive Synchronization Performance
By providing accurate feedback signals, the VW3A3424 helps multiple motor systems achieve better synchronization. This is valuable for applications requiring coordinated movement, such as conveyors, printing equipment, and automated production lines.

Wide Altivar Drive Compatibility
The module is designed for Schneider Altivar Process ATV900, Altivar Process Modular, and Altivar Machine ATV340 variable speed drive platforms, providing a practical expansion option for advanced motor control applications.

Reliable Industrial Protection Functions
The VW3A3424 includes protection features against short circuits and overload conditions, helping improve system reliability and protecting connected encoder circuits during operation.

Long-Distance Encoder Connection Capability
The module supports encoder cable distances up to 500 meters, allowing flexible installation in larger industrial equipment layouts where drive and motor locations are separated.

Compact Plug-In Installation Design
The encoder interface module uses a removable spring connector design, simplifying wiring, maintenance, and replacement procedures in industrial control cabinets.

Technical FAQs About Schneider VW3A3424 Encoder Interface Module

Q1: What is the main function of the Schneider VW3A3424?
A: The VW3A3424 is an HTL encoder interface module used to connect encoder feedback signals to compatible Schneider Altivar variable speed drives.

Q2: Which encoder type is supported by the VW3A3424?
A: The module supports HTL (High Threshold Logic) encoder technology, including push-pull and open collector signal types.

Q3: Which Schneider drives are compatible with the VW3A3424?
A: The module is compatible with Altivar Process ATV900, Altivar Process Modular, and Altivar Machine ATV340 drive ranges.

Q4: What supply voltage does the VW3A3424 require?
A: The module supports encoder supply voltages of 12 VDC, 15 VDC, and 24 VDC.

Q5: What encoder signals can be connected to the VW3A3424?
A: The module supports A, AB, and B encoder signals through push-pull differential, push-pull single-ended, and open collector configurations.

Q6: What should be checked if encoder feedback is lost?
A: Engineers should check encoder wiring, signal compatibility, power supply stability, connector installation, and drive parameter configuration.

Q7: Can the VW3A3424 improve motor speed control accuracy?
A: Yes. Encoder feedback allows the drive system to monitor actual motor operation and improve closed-loop speed regulation.

Q8: What causes encoder signal interference problems?
A: Common causes include improper shielding, incorrect grounding, excessive cable routing near power lines, or damaged encoder wiring.

Q9: Does the VW3A3424 require special programming?
A: The module requires proper drive parameter configuration to match the connected encoder type and feedback settings.

Q10: How can the reliability of the VW3A3424 system be improved?
A: Proper wiring practices, correct parameter configuration, regular inspection, and maintaining clean electrical connections help ensure stable operation.
