Schneider VW3M5101R30 Power Cord

Industrial Motion Applications and Servo Power Connection Solutions

The Schneider VW3M5101R30 Power Cord Cable is a dedicated servo power connection accessory designed for Schneider Lexium motion control systems. It provides a reliable electrical connection between compatible servo motors and servo drives, ensuring stable power transmission and supporting high-performance motion applications in industrial automation environments.

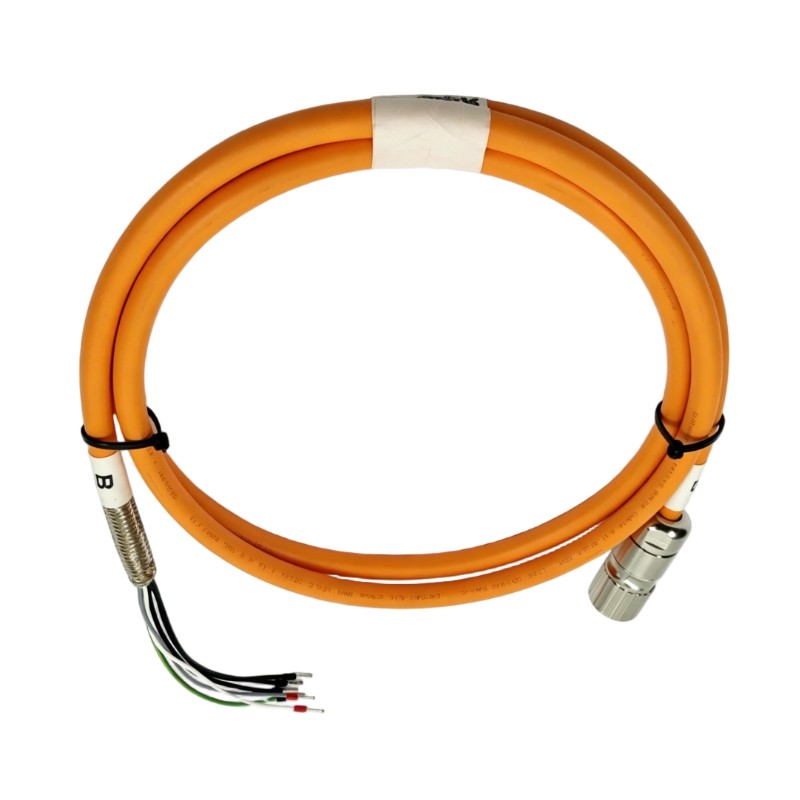

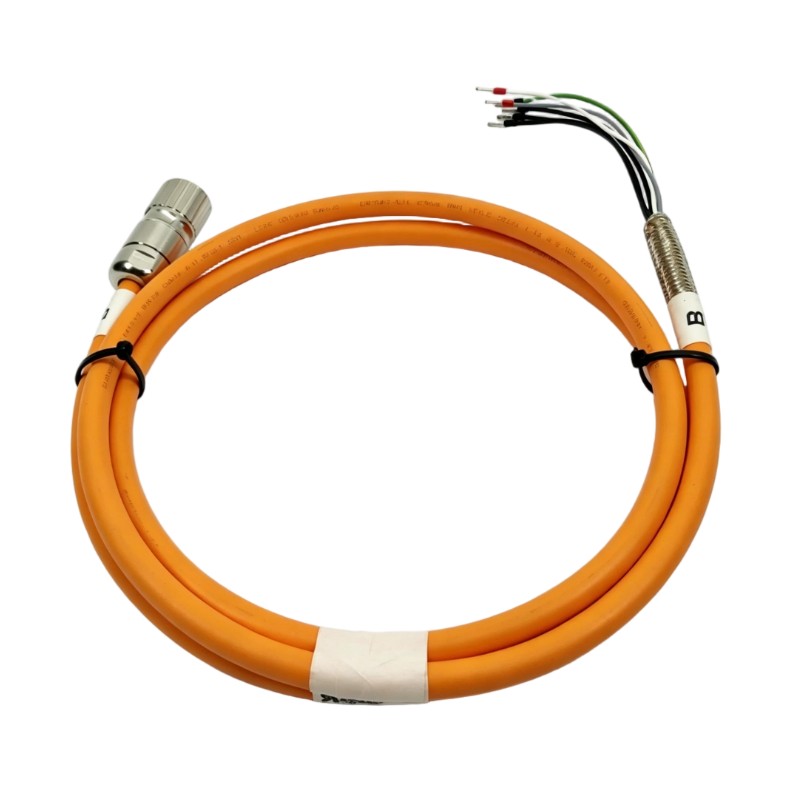

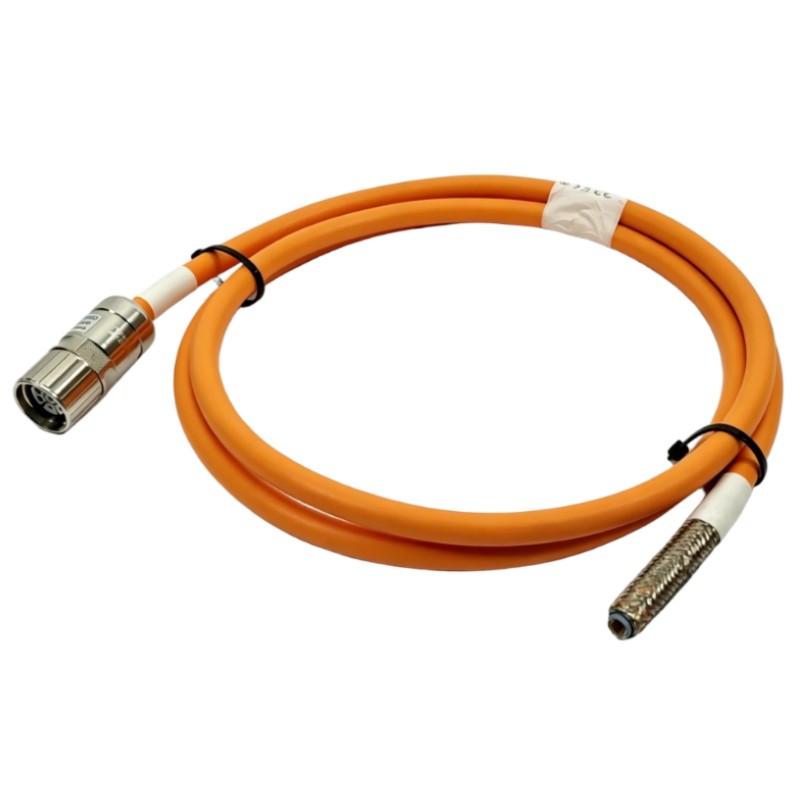

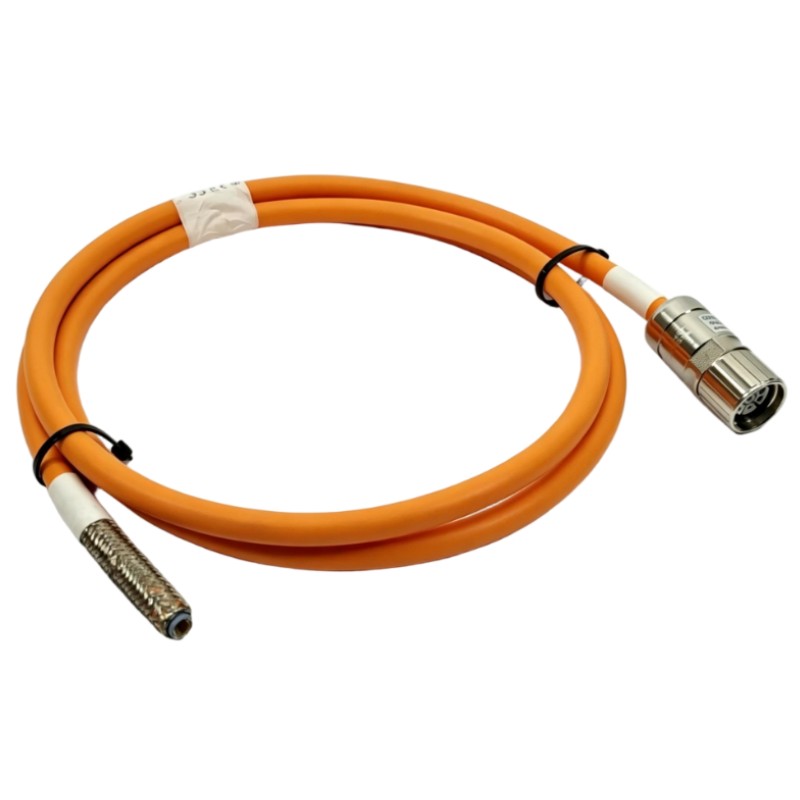

Designed for Lexium servo platforms, the VW3M5101R30 is a preassembled power cable with a 3-meter length. It features an industrial M23 connector on the servo motor side and a free-end connection on the servo drive side, simplifying installation and reducing wiring preparation time during machine assembly.

The cable is widely used in robotics, packaging equipment, CNC machinery, material handling systems, and automated production lines where accurate motor control and dependable power connections are essential. By providing a dedicated connection between servo motors and drives, the VW3M5101R30 helps improve system reliability and maintain consistent motion performance.

Engineering Advantages and Motion System Performance Benefits

Reliable Servo Power Transmission
The VW3M5101R30 provides a stable power connection between servo motors and servo drives, helping maintain continuous energy delivery for precise motion operations. Its dedicated design reduces connection errors commonly associated with manually assembled cables.

Preassembled Installation Design
The factory-prepared cable structure allows faster installation compared with traditional field wiring solutions. Engineers can reduce commissioning time and improve overall machine assembly efficiency.

Optimized for Lexium Servo Systems
The VW3M5101R30 is designed for Schneider Lexium servo drive and motor families, including Lexium 05, Lexium 15, and Lexium 32 systems. It provides a suitable connection solution for Schneider motion control architectures.

Industrial M23 Connector Reliability
The M23 industrial connector design provides secure mechanical connection and stable electrical performance, making it suitable for demanding industrial environments where vibration resistance and connection reliability are important.

Shielded Cable Construction for Motion Applications
The cable composition of 4 × 1.5 mm² + 2 × 1 mm² supports servo power transmission requirements while maintaining compatibility with industrial motion systems.

Reduced Maintenance Complexity
Using a dedicated Schneider servo cable simplifies troubleshooting and replacement procedures by providing a standardized connection between motion components.

Improved Machine Integration Efficiency
The VW3M5101R30 helps machine builders create cleaner control cabinet layouts and more organized wiring structures, supporting efficient installation in automated equipment.

Technical FAQs About Schneider VW3M5101R30 Power Cord Cable

Q1: What is the main function of the Schneider VW3M5101R30?
A: The VW3M5101R30 is a servo power cable used to connect compatible Schneider servo motors and servo drives.

Q2: Which servo systems are compatible with the VW3M5101R30?
A: The cable is compatible with Schneider Lexium 05, Lexium 15, and Lexium 32 servo systems.

Q3: What type of connector does the VW3M5101R30 use?
A: The cable uses an industrial M23 connector on the servo motor side and a free-end connection on the servo drive side.

Q4: What is the cable conductor specification of the VW3M5101R30?
A: The cable uses a 4 × 1.5 mm² + 2 × 1 mm² conductor configuration.

Q5: Can the VW3M5101R30 be used in multi-axis motion systems?
A: Yes. It can be used in industrial motion systems where Schneider servo motors and drives require dedicated power connections.

Q6: What should be checked if a servo motor does not receive power correctly?
A: Engineers should inspect cable connections, connector locking status, drive parameters, power supply conditions, and cable integrity.

Q7: What causes servo cable connection faults?
A: Common causes include loose connectors, damaged cable insulation, incorrect wiring, excessive mechanical stress, or improper installation.

Q8: Does the VW3M5101R30 require additional assembly before installation?
A: No. The cable is preassembled and designed for direct connection between compatible servo components.

Q9: How can servo cable reliability be improved?
A: Proper cable routing, avoiding sharp bending, protecting against mechanical damage, and maintaining clean connectors help improve service life.

Q10: What applications commonly use the VW3M5101R30?
A: It is commonly used in robotics, machine tools, packaging machinery, and industrial automation equipment requiring servo motion control.
