Schneider VW3M5102R100 Power Cord

Servo Motion Applications and Industrial Power Transmission Solutions

The Schneider VW3M5102R100 Power Cord Cable is a dedicated servo motor power connection accessory designed for Lexium motion control systems. It provides a stable and reliable electrical connection between Schneider servo motors and servo drives, helping automation engineers achieve consistent power transmission and maintain high-performance motion control in industrial applications.

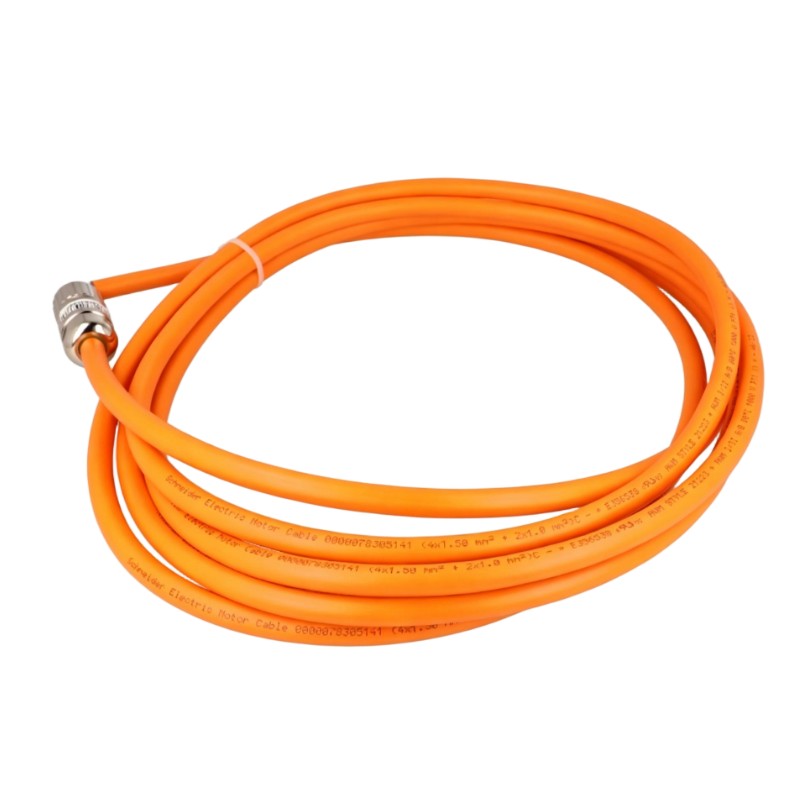

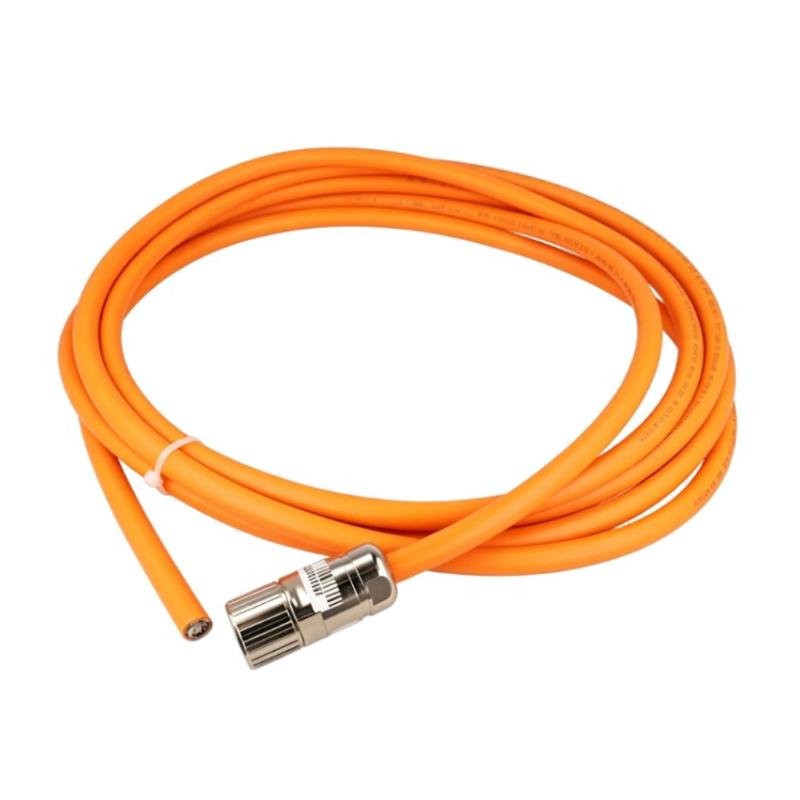

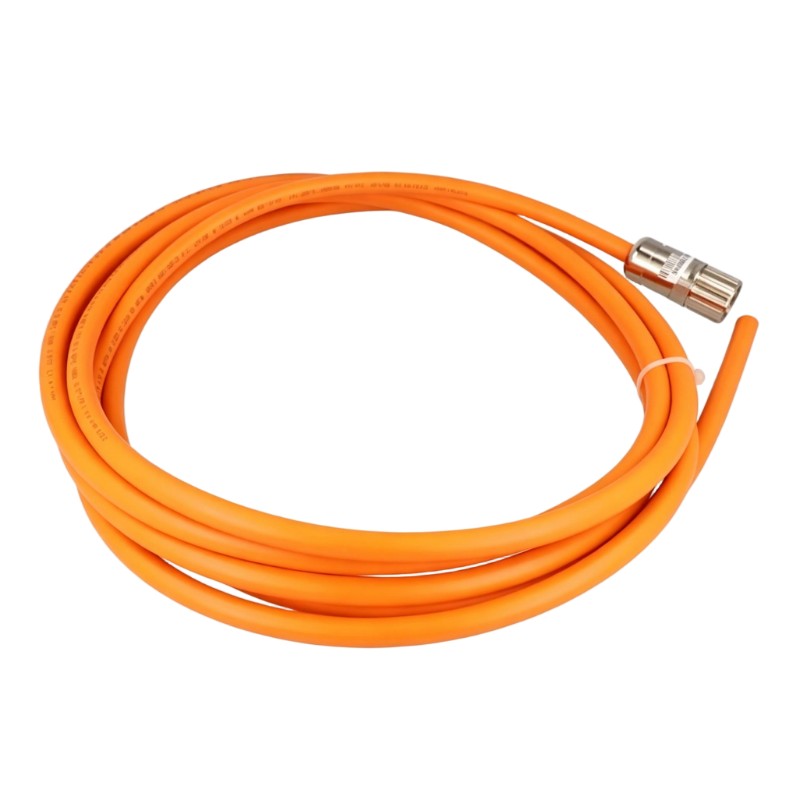

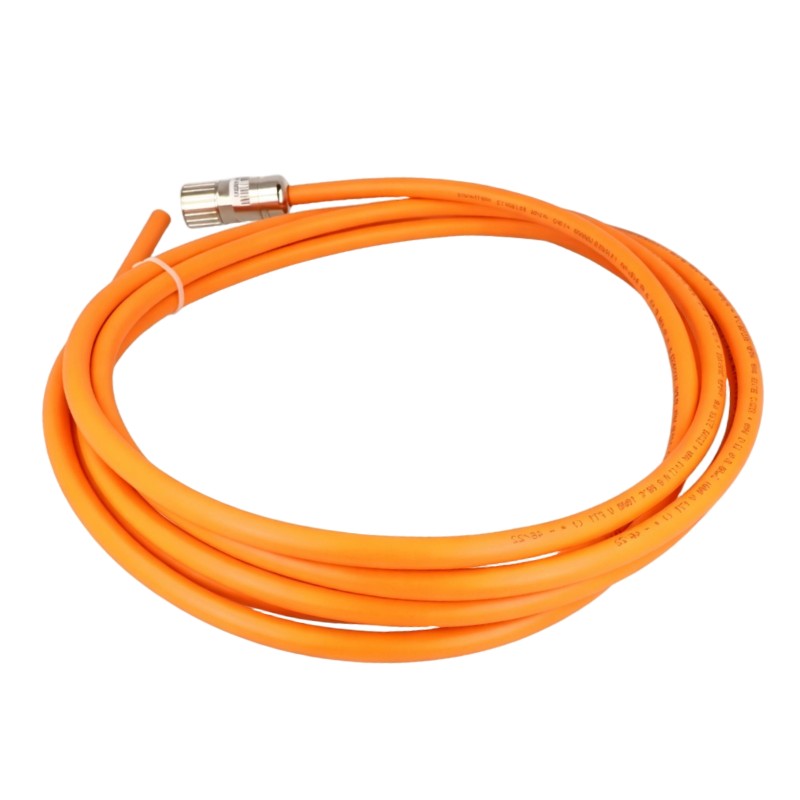

Designed as a preassembled power cordset, the VW3M5102R100 simplifies installation by eliminating complex field cable preparation. The cable features an industrial M23 connector on the servo motor side and an open cable end on the servo drive side, providing a practical connection solution for machine builders and system integrators.

With a 10-meter cable length and a 4 × 2.5 mm² + 2 × 1 mm² cable structure, the VW3M5102R100 is suitable for applications where servo motors are installed at a distance from control cabinets. It is commonly used in packaging machinery, robotics, CNC equipment, material handling systems, and automated production lines requiring dependable motion system wiring.

Core Performance Advantages and Engineering Value

Reliable Servo Power Delivery
The VW3M5102R100 provides a dedicated power connection between servo motors and servo drives, ensuring stable energy transmission for demanding motion applications. Its industrial-grade construction helps reduce connection failures caused by improper wiring or incompatible cables.

Preassembled Cable Design for Faster Installation
The factory-prepared cable assembly reduces installation workload and improves commissioning efficiency. Engineers can quickly connect servo components without spending additional time preparing complex motor power wiring.

Optimized for Lexium Motion Systems
The cable is specifically designed for Schneider Lexium servo platforms, including Lexium 32 and Lexium 05 systems. This compatibility ensures better integration between servo motors, drives, and automation controllers.

Long-Distance Servo Connection Capability
With a 10-meter length, the VW3M5102R100 provides flexibility for larger machine layouts where servo motors are positioned away from electrical cabinets. This helps machine designers optimize mechanical installation and cabinet placement.

Industrial M23 Connector Reliability
The M23 servo motor connector provides secure mechanical locking and stable electrical contact, making the cable suitable for environments with vibration, continuous operation, and demanding industrial conditions.

Enhanced Motion System Stability
Using a dedicated Schneider servo cable helps maintain signal and power integrity, reducing risks associated with voltage drops, wiring errors, and unstable motor operation.

Simplified Maintenance and Replacement
The standardized cable design allows maintenance technicians to quickly identify, replace, and troubleshoot connection issues during equipment servicing.

Technical FAQs About Schneider VW3M5102R100 Power Cord Cable

Q1: What is the main purpose of the Schneider VW3M5102R100?
A: The VW3M5102R100 is a servo power cable used to connect compatible Schneider servo motors with servo drives.

Q2: Which Schneider product families are compatible with this cable?
A: The cable is designed for Lexium 32 and Lexium 05 servo systems and compatible BSH/BSM servo motor applications.

Q3: What type of connector is used on the motor side?
A: The motor side uses an industrial M23 connector for secure servo motor connection.

Q4: What is the cable conductor configuration of VW3M5102R100?
A: The cable uses a 4 × 2.5 mm² + 2 × 1 mm² conductor structure for servo power and related connections.

Q5: Can this cable be used in multi-axis servo systems?
A: Yes. It can be applied in multi-axis automation systems where Schneider servo drives and motors require dedicated power connections.

Q6: What should be checked if the servo motor does not start?
A: Check the cable connection status, motor power wiring, drive alarms, parameter configuration, and power supply conditions.

Q7: What causes servo power cable failures?
A: Common causes include mechanical damage, incorrect installation, loose connectors, excessive bending, or long-term environmental stress.

Q8: Does the VW3M5102R100 require additional connector assembly?
A: No. It is supplied as a preassembled power cable, reducing installation complexity.

Q9: How can the service life of the cable be improved?
A: Proper cable routing, avoiding sharp bends, protecting against abrasion, and maintaining clean connectors can improve cable durability.

Q10: What applications commonly use this servo power cable?
A: It is commonly used in industrial robots, automated machinery, packaging equipment, machine tools, and precision motion systems.
