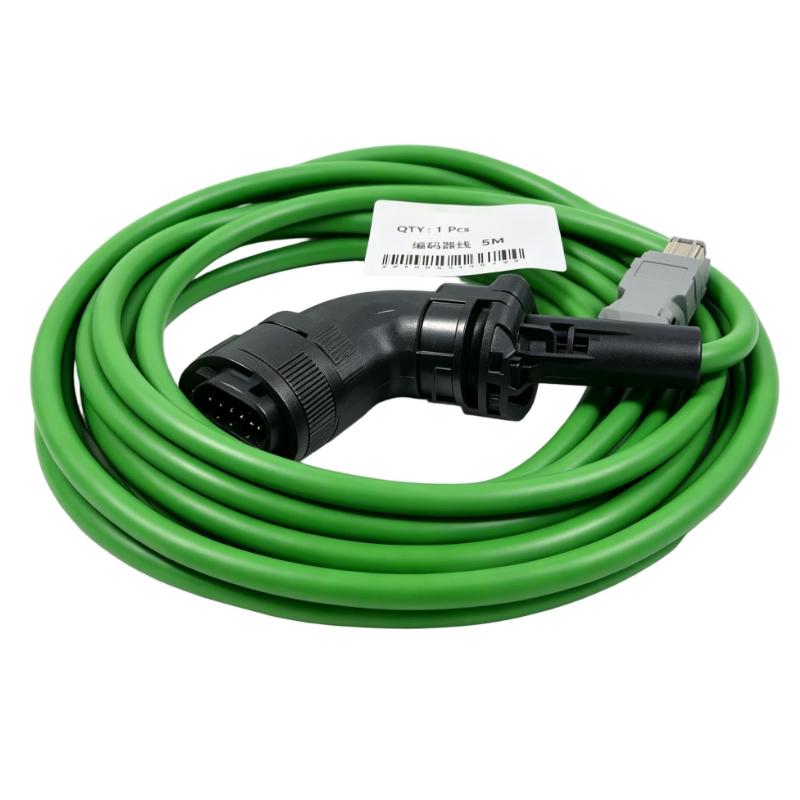

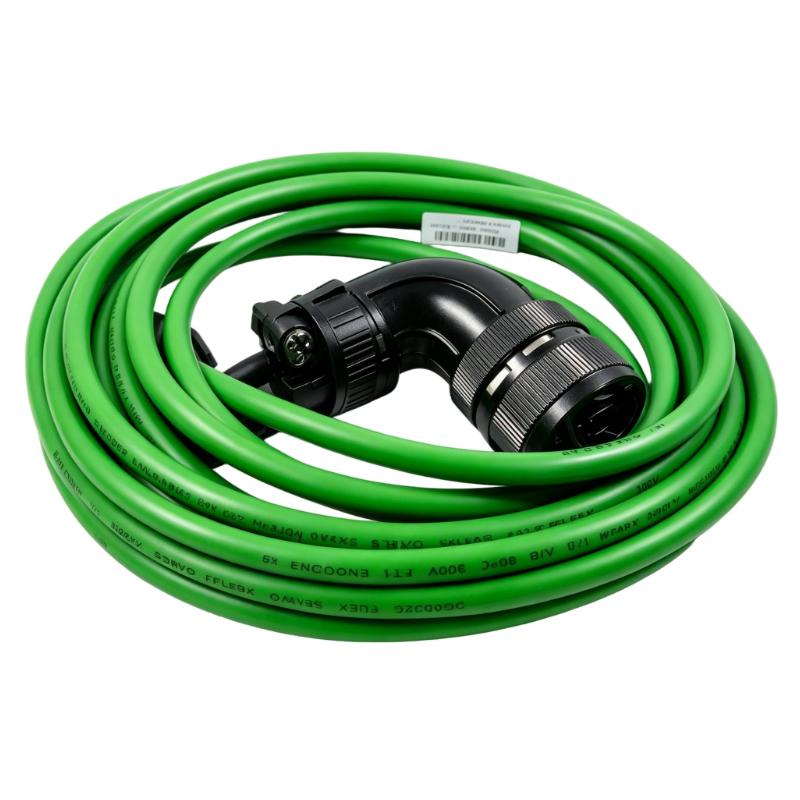

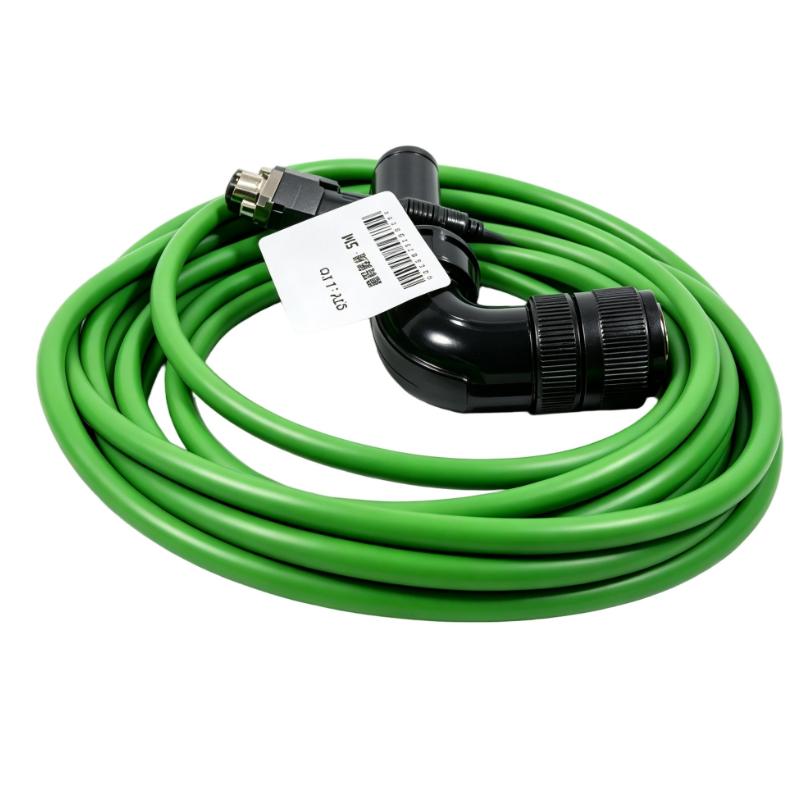

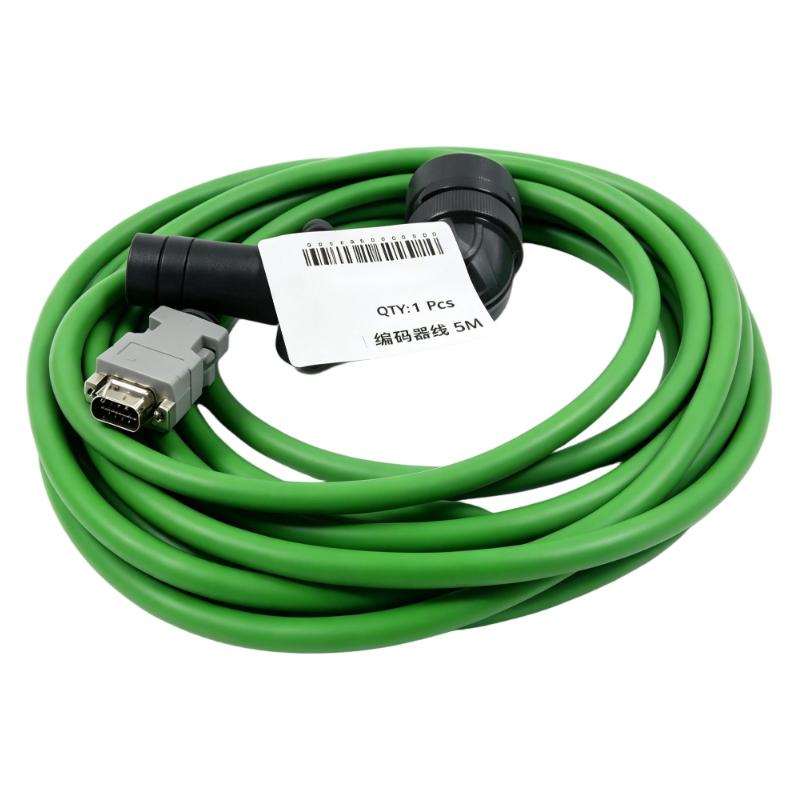

Schneider VW3M8D2AR80 Servo Motor Encoder Cable

Servo Motion Applications and Encoder Feedback Transmission Solutions

The Schneider VW3M8D2AR80 Servo Motor Encoder Cable is a dedicated feedback connection accessory designed for Schneider Lexium servo systems. It provides a reliable communication path between servo motors and servo drives, transmitting encoder position feedback signals required for accurate speed regulation, position control, and advanced motion synchronization.

In precision automation environments, encoder feedback plays a critical role in maintaining motion accuracy and machine repeatability. The VW3M8D2AR80 encoder cable is designed to support Lexium servo motor applications, helping controllers receive accurate motor position information and maintain stable closed-loop operation.

This cable is widely applied in robotics, CNC machines, packaging equipment, semiconductor manufacturing systems, and automated production lines where precise servo feedback transmission is required. Its shielded construction and preassembled connector design help simplify installation while improving communication reliability in industrial environments.

Technical Advantages and Motion System Performance Benefits

Reliable Encoder Signal Transmission
The VW3M8D2AR80 provides stable encoder feedback communication between servo motors and servo drives. Accurate feedback transmission allows motion controllers to monitor motor position and speed, improving overall system response and precision.

Designed for Lexium Servo Applications
The cable is developed for Schneider Lexium motion platforms and is suitable for connecting compatible servo motors with servo drives. It supports professional motion control applications requiring dependable feedback communication.

Shielded Cable Construction for Industrial Environments
The encoder cable uses shielded construction to reduce electromagnetic interference from surrounding power cables, variable speed drives, and industrial equipment, helping maintain stable encoder signals.

Preassembled Connection Structure
The factory-assembled connector design reduces installation complexity and minimizes wiring errors during machine commissioning. It allows technicians to quickly establish encoder communication between servo components.

Optimized for High-Precision Motion Control
By providing accurate feedback transmission, the VW3M8D2AR80 helps servo systems achieve better positioning accuracy, smoother operation, and improved synchronization performance.

Flexible Machine Installation Capability
The 3-meter cable length provides practical installation flexibility for compact automation systems and machine layouts where servo drives and motors are positioned at moderate distances.

Improved Maintenance Efficiency
Using a dedicated Schneider encoder cable simplifies troubleshooting and replacement procedures by providing a standardized connection solution for servo feedback systems.

Technical FAQs About Schneider VW3M8D2AR80 Servo Motor Encoder Cable

Q1: What is the main function of the Schneider VW3M8D2AR80?
A: The VW3M8D2AR80 is an encoder feedback cable used to connect Schneider servo motors with compatible servo drives for position and speed signal transmission.

Q2: Which Schneider product family is the VW3M8D2AR80 designed for?
A: The cable belongs to the Lexium motion product family and is designed for servo motor feedback applications.

Q3: What type of signals does the VW3M8D2AR80 transmit?
A: The cable transmits encoder feedback signals, allowing the servo drive to monitor motor position and operational status.

Q4: Why is shielding important for an encoder cable?
A: Shielding helps reduce electromagnetic interference and protects sensitive encoder signals from electrical noise generated by industrial equipment.

Q5: What should be checked if encoder feedback is unavailable?
A: Engineers should check cable connections, connector locking, encoder compatibility, drive parameters, and possible cable damage.

Q6: What causes servo encoder communication faults?
A: Common causes include loose connectors, damaged shielding, incorrect wiring, electromagnetic interference, or incorrect drive configuration.

Q7: Can the VW3M8D2AR80 be used for precision motion applications?
A: Yes. It is suitable for applications requiring accurate encoder feedback for positioning and speed control.

Q8: Does the encoder cable require additional wiring before installation?
A: No. The cable is supplied as a ready-to-connect accessory, reducing installation time and wiring complexity.

Q9: How can encoder cable reliability be improved?
A: Proper cable routing, avoiding strong interference sources, maintaining connector cleanliness, and preventing excessive bending can improve service life.

Q10: What applications commonly use this encoder cable?
A: Typical applications include robotics, CNC equipment, packaging machines, automated assembly systems, and precision manufacturing equipment.
