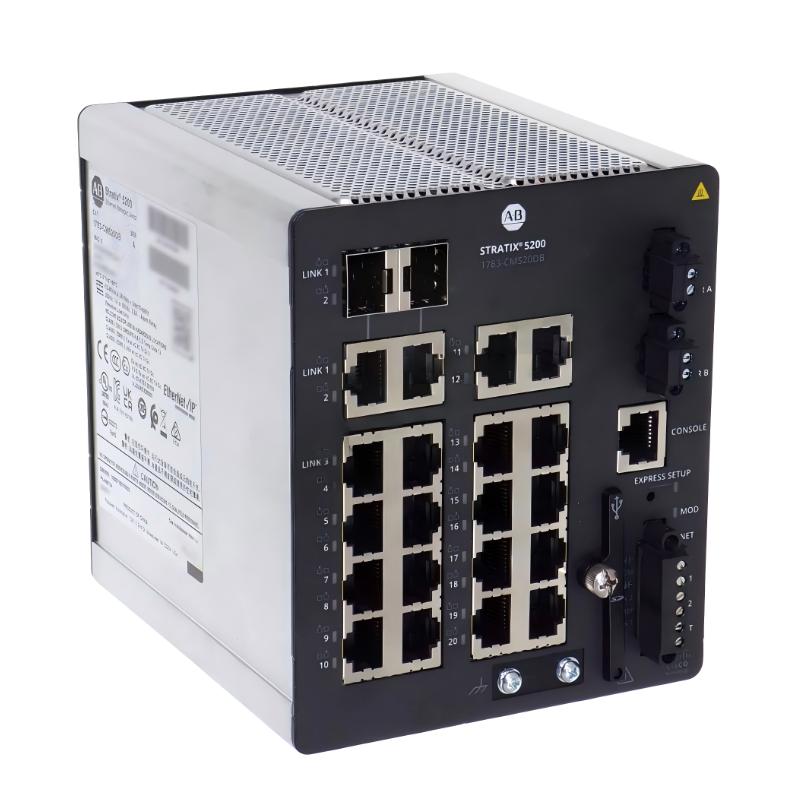

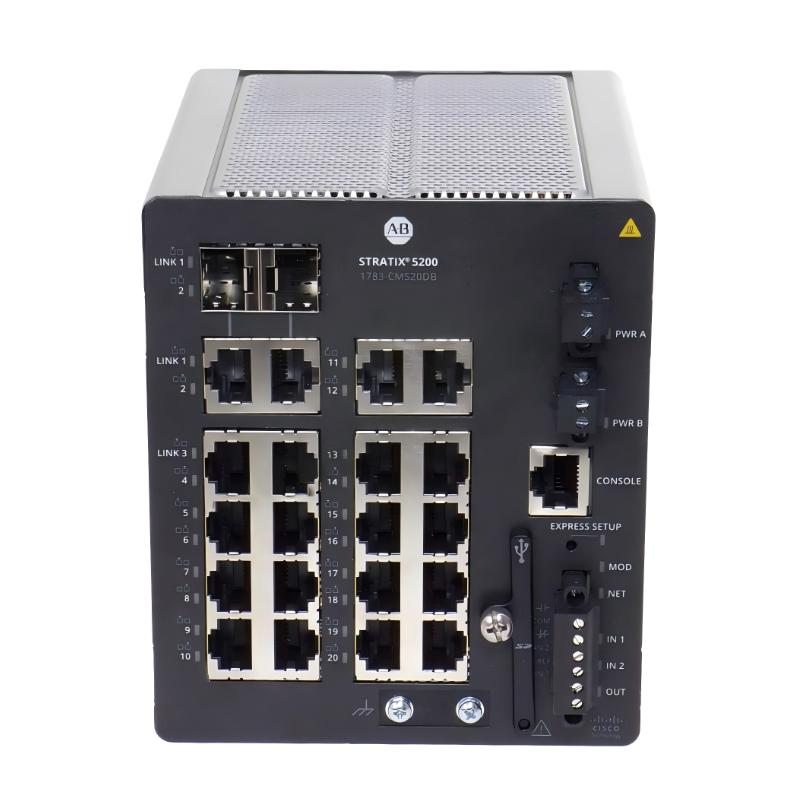

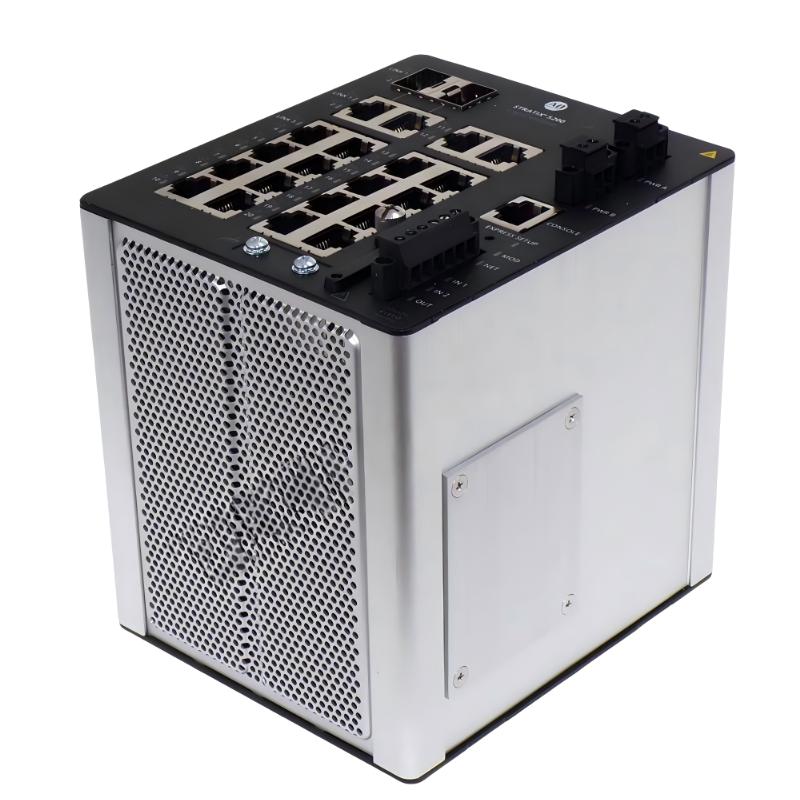

Allen Bradley 1783-CMS20DB Stratix 5200 Ethernet Managed Switch

Industrial Ethernet Applications and Advanced Network Management Solutions

The Allen Bradley 1783-CMS20DB Stratix 5200 Ethernet Managed Switch is a high-performance industrial network communication device designed for reliable Ethernet connectivity, automation data exchange, and secure industrial infrastructure management. As part of the Stratix 5200 managed switch family, this device provides advanced network features for modern industrial automation systems requiring high availability and efficient data communication.

The 1783-CMS20DB integrates 20 Ethernet ports, including 18 copper 100 Mbps ports and 2 combo 100/1000 Mbps ports, providing flexible connectivity options for PLCs, HMIs, industrial computers, remote I/O modules, drives, and other Ethernet-enabled automation equipment. It also supports Device Level Ring (DLR) technology for improved network resilience in EtherNet/IP applications.

Designed for demanding factory environments, this Stratix 5200 switch is widely used in manufacturing lines, process automation systems, machine cells, packaging equipment, and large-scale industrial Ethernet networks. Its managed network capability helps engineers improve system visibility, simplify troubleshooting, and maintain stable communication between automation devices

Network Performance Advantages and Industrial Integration Benefits

High-Density Ethernet Connectivity
The 1783-CMS20DB provides 20 Ethernet communication ports, allowing multiple automation devices to be connected within a single industrial network. This makes it suitable for complex control systems with numerous Ethernet/IP devices.

Integrated Device Level Ring (DLR) Support
With built-in DLR capability, the switch can support redundant industrial network structures that improve communication availability and reduce downtime caused by single-point network failures.

Managed Switch Functionality
Unlike unmanaged switches, the Stratix 5200 provides advanced configuration and diagnostic capabilities, allowing engineers to monitor network performance, manage traffic, and optimize industrial communication.

Industrial EtherNet/IP Compatibility
The 1783-CMS20DB is designed for Rockwell Automation environments, providing seamless integration with Allen Bradley PLC platforms, remote I/O systems, and industrial automation solutions.

Reliable Operation in Harsh Environments
Built for industrial applications, the switch supports a wide operating temperature range and rugged enclosure design, making it suitable for factory floors, control cabinets, and automation installations.

Efficient Troubleshooting and Maintenance
Advanced network diagnostics help maintenance teams quickly identify communication issues, port failures, and network configuration problems, reducing equipment downtime.

Flexible Installation Design

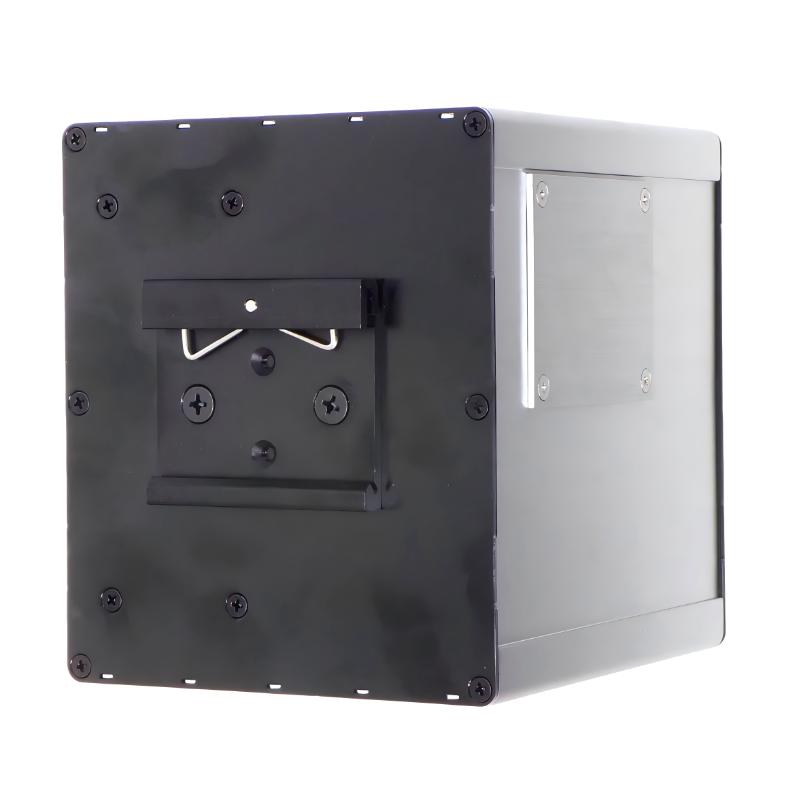

The DIN rail mounting structure allows convenient installation inside industrial control panels while helping engineers create organized automation network layouts.

Technical FAQs About Allen Bradley 1783-CMS20DB Stratix 5200 Ethernet Managed Switch

Q1: What is the primary function of the Allen Bradley 1783-CMS20DB?
A: The 1783-CMS20DB is an industrial managed Ethernet switch used to connect and manage communication between automation devices in EtherNet/IP networks.

Q2: How many Ethernet ports does the 1783-CMS20DB provide?
A: The switch provides 20 Ethernet ports, including 18 copper 100 Mbps ports and 2 combo 100/1000 Mbps ports.

Q3: Does the 1783-CMS20DB support Device Level Ring (DLR)?
A: Yes. The switch includes integrated DLR support for high-availability industrial Ethernet networks.

Q4: What automation systems can connect to the 1783-CMS20DB?
A: It can connect PLCs, HMIs, industrial PCs, drives, remote I/O modules, and other Ethernet-based automation devices.

Q5: What should be checked if network communication is unstable?
A: Engineers should check Ethernet cable quality, port status, IP configuration, VLAN settings, network topology, and device communication parameters.

Q6: What causes Ethernet communication faults on a Stratix switch?
A: Common causes include incorrect network configuration, damaged cables, duplicate IP addresses, excessive traffic, or incorrect switch settings.

Q7: Can the 1783-CMS20DB be used in EtherNet/IP applications?
A: Yes. It is designed for industrial Ethernet environments commonly used with Allen Bradley automation systems.

Q8: How does a managed switch improve industrial network performance?
A: Managed switches provide configuration control, diagnostics, traffic management, and monitoring functions that improve network reliability.

Q9: What software tools can be used to configure the Stratix 5200 switch?
A: Engineers can configure the switch using web-based management tools, Cisco-based interfaces, and Rockwell Automation configuration environments.

Q10: What maintenance practices are recommended for the 1783-CMS20DB?
A: Regular inspection of network cables, communication status, configuration backups, and environmental conditions helps maintain stable operation.
