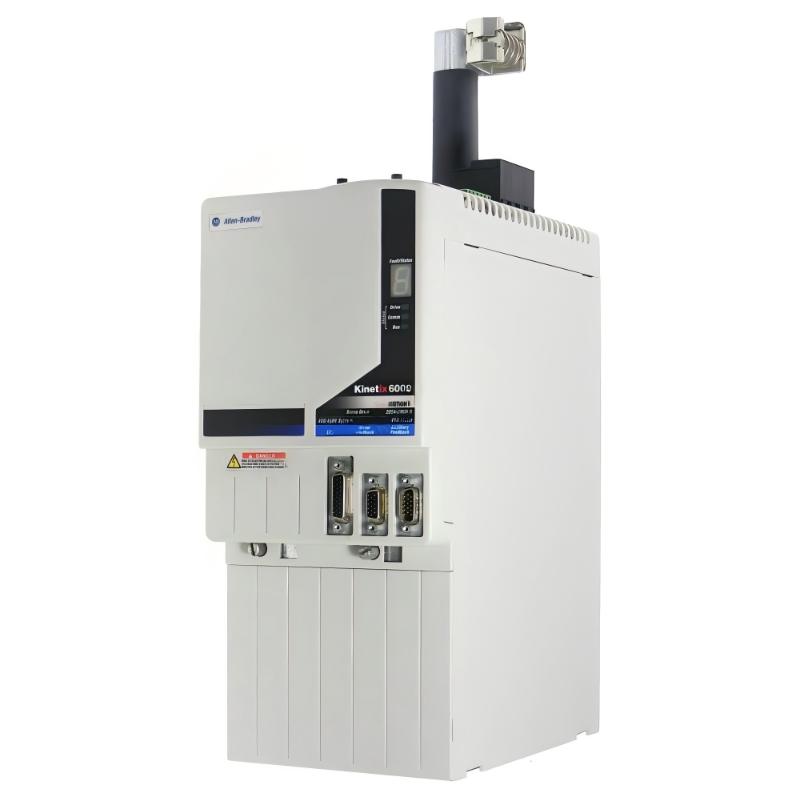

Allen Bradley 2094-BM05-S Kinetix 6000 Axis Module

Industrial Motion Applications and Advanced Servo Axis Control Solutions

The Allen Bradley 2094-BM05-S Kinetix 6000 Axis Module is a high-capacity servo drive module designed for demanding multi-axis motion control applications that require precise positioning, fast response, and reliable machine performance. As part of the Kinetix 6000 multi-axis servo drive family, this axis module provides powerful motor control capability for complex automation systems, helping manufacturers achieve improved productivity and motion accuracy.

Designed for 400V class applications, the 2094-BM05-S supports high-current servo motor operation with a continuous output current of 34.6 A rms and is suitable for large-scale motion platforms requiring stable torque control and dynamic performance. The module integrates Safe Torque-Off functionality, providing an additional layer of safety control for industrial machinery.

The module is commonly used in packaging equipment, printing machinery, material handling systems, robotics, semiconductor manufacturing equipment, and high-speed production lines. Its modular design allows multiple axis modules to be combined within a Kinetix 6000 system, providing flexible solutions for machine builders and automation engineers.

Core Advantages and Motion System Performance Benefits

High-Power Servo Axis Capability
The 2094-BM05-S provides advanced servo control performance for applications requiring higher motor power and precise motion coordination. Its high current capability allows it to support demanding mechanical loads while maintaining stable operation.

Integrated Multi-Axis Architecture
Built for the Kinetix 6000 platform, the module works together with Integrated Axis Modules, power supplies, and other axis modules to create a scalable multi-axis motion control system. This modular approach simplifies machine design and improves cabinet organization.

Reliable Closed-Loop Motion Control
The axis module supports precise feedback-based servo control, enabling accurate position, speed, and torque regulation for complex automation processes.

Safe Torque-Off Functionality
The integrated Safe Torque-Off feature helps improve machine safety by providing a controlled method of removing motor torque without requiring complete system shutdown.

High Efficiency Industrial Design
With optimized power conversion technology and approximately 98% efficiency, the 2094-BM05-S helps reduce energy losses while maintaining reliable servo performance.

Flexible Machine Integration
The module is compatible with Allen Bradley Logix-based automation systems, allowing engineers to integrate motion control functions into advanced industrial control architectures.

Simplified Maintenance and Troubleshooting
Diagnostic functions and modular replacement design help maintenance teams quickly identify motion faults and restore machine operation.

Technical FAQs About Allen Bradley 2094-BM05-S Kinetix 6000 Axis Module

Q1: What is the primary function of the Allen Bradley 2094-BM05-S?
A: The 2094-BM05-S is a Kinetix 6000 Axis Module designed to control servo motors in multi-axis industrial motion systems.

Q2: What voltage class does the 2094-BM05-S support?
A: The module is designed for 400V class applications with a nominal DC input voltage of 650V DC.

Q3: What continuous current output does this axis module provide?
A: The 2094-BM05-S provides 34.6 A rms continuous output current for servo motor applications.

Q4: What communication system is used with the Kinetix 6000 platform?
A: The Kinetix 6000 system commonly integrates with SERCOS motion communication for synchronized multi-axis control.

Q5: What causes an axis fault on the 2094-BM05-S?
A: Common causes include motor overload, feedback communication errors, incorrect parameter settings, excessive acceleration demands, or wiring problems.

Q6: How can servo communication problems be diagnosed?
A: Engineers should check SERCOS connections, controller configuration, fiber communication status, and axis parameters.

Q7: Does the 2094-BM05-S support Safe Torque-Off?
A: Yes. This model includes Safe Torque-Off functionality for safety-related machine applications.

Q8: What software environment is used to configure this module?
A: Configuration is typically performed through Allen Bradley Logix programming platforms with integrated motion control functions.

Q9: What maintenance procedures are recommended?
A: Regular inspection of power connections, cooling conditions, fault records, and communication status is recommended.

Q10: What industries commonly use Kinetix 6000 axis modules?
A: They are widely used in robotics, packaging, assembly, printing, material handling, and precision manufacturing industries.
