Introduction

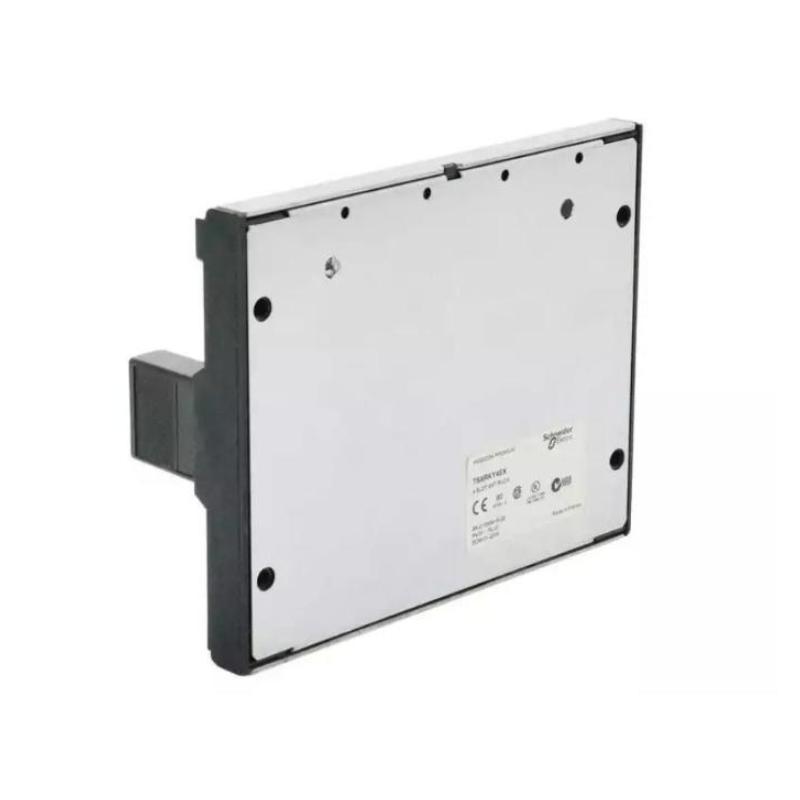

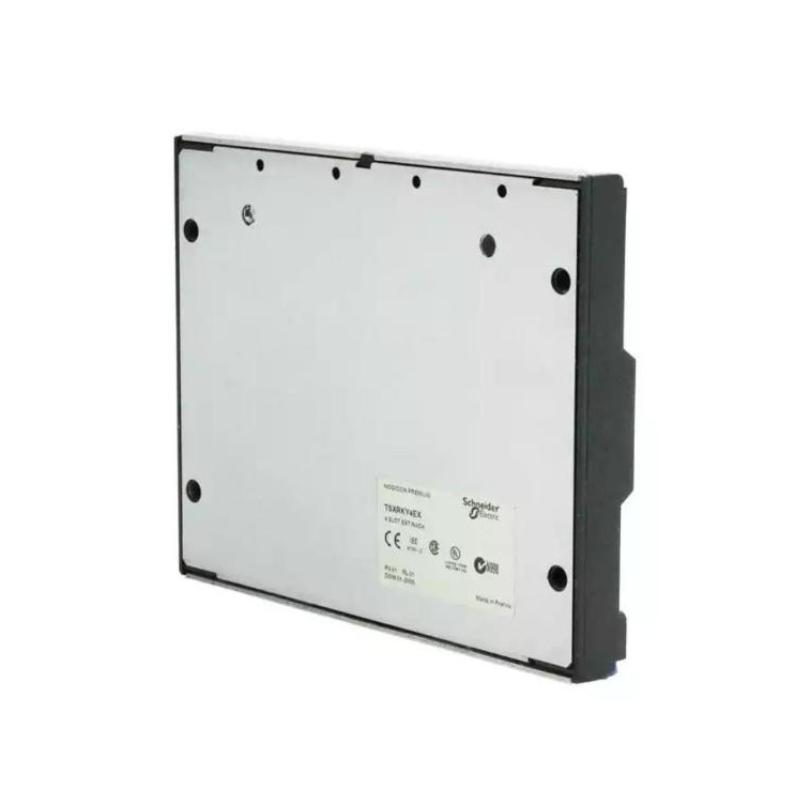

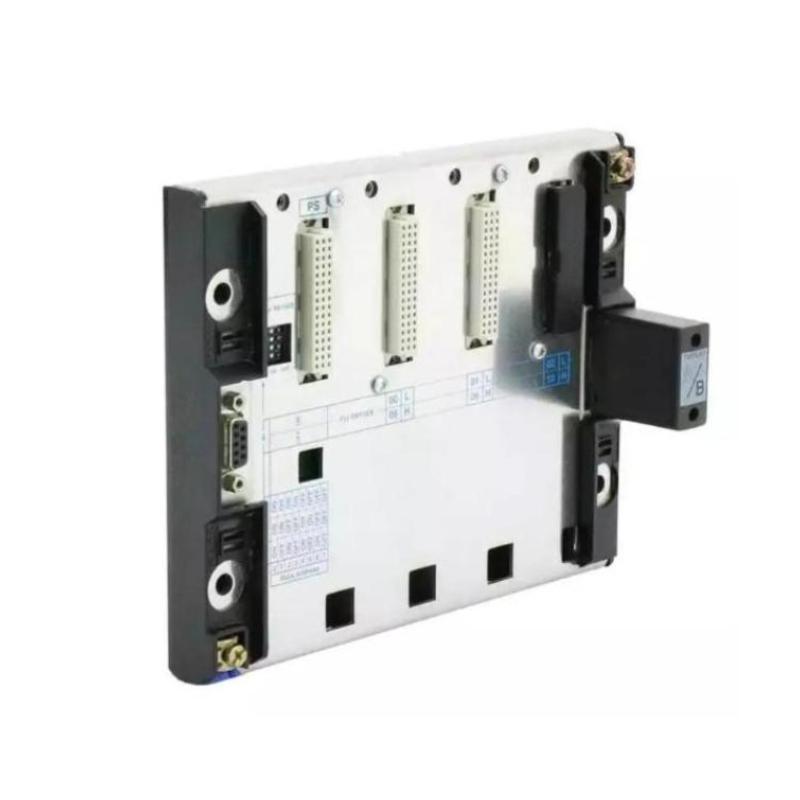

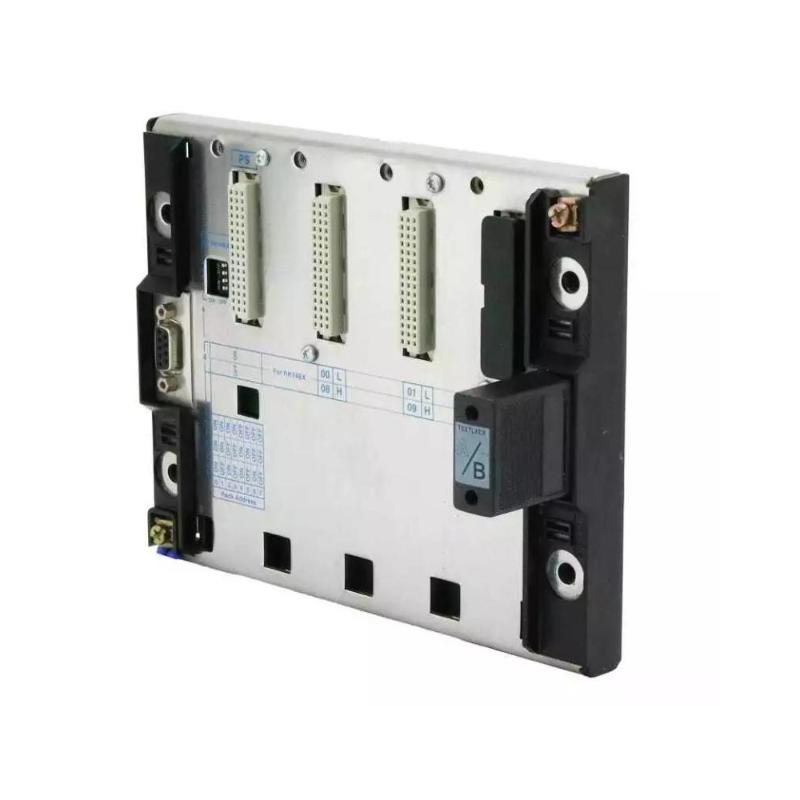

The Schneider TSXRKY4EX Retractable Frame offers a compact, robust, and user-friendly solution for housing PLC and I/O modules. Its retractable design ensures safe and convenient access to critical automation components, supporting efficient maintenance and system upgrades.Its durable construction and flexible design allow integration into standard industrial control cabinets while maintaining structural stability and reliable operation.

Technical Specifications

Parameter	Description
Model	TSXRKY4EX
Module Type	Retractable Frame
Dimensions	54 × 206 × 275 mm
Weight	Approx. 1.16 kg
Mounting Method	Control panel or rack mounting
Application Environment	Industrial automation and control systems

Recommended Related Models

These Schneider modules are commonly paired with the TSXRKY4EX for complete modular automation setups.

Schneider TSX Micro PLC Series Modules
Schneider TSXPSY1610 Power Module
Schneider I/O Expansion Modules
Schneider Communication Interface Modules

Popular Related Models

The following Schneider frames and automation modules are frequently selected for similar industrial control applications.

Schneider TSXRKY4EX Retractable Frame
Schneider TSXRKY2EX Retractable Frame
Schneider TSXPSY1610 Power Module
Schneider TSX Micro PLC CPU Modules

Applications

The Schneider TSXRKY4EX Retractable Frame is engineered to provide a secure and flexible housing solution for Schneider modular PLC and I/O systems. It ensures easy installation, maintenance, and safe operation of critical automation components.

Housing and mounting for Schneider PLC modules and I/O expansions
Industrial control cabinets in manufacturing, processing, and utilities
Systems requiring retractable access for maintenance and upgrades
Modular automation installations in distributed control systems (DCS)
Process plants needing reliable, compact, and flexible frame solutions

Advantages

Designed for industrial reliability and user-friendly operation, the TSXRKY4EX simplifies module management while ensuring structural stability and safety.

Retractable design for convenient module access and maintenance
Compact and robust construction suitable for industrial environments
Secure mounting for multiple PLC and I/O modules
Supports modular system expansion without downtime
Lightweight design enables easy installation and relocation

Technical FAQs

What is the primary function of the TSXRKY4EX?
It provides a secure, retractable frame for mounting Schneider PLC and I/O modules.
Which applications benefit most from this frame?
Modular PLC and I/O installations requiring flexible access and maintenance.
Is it suitable for continuous industrial operation?
Yes, it is designed for long-term use in industrial control cabinets.
How many modules can it accommodate?
It is designed to fit multiple Schneider PLC and I/O modules depending on configuration.
What are the mounting options?
Panel or rack mounting within standard industrial control cabinets.
Does it allow easy module replacement?
Yes, the retractable design facilitates maintenance and quick module swaps.
Is it compatible with Schneider automation systems?
Fully compatible with Schneider PLCs, I/O modules, and power modules.
What is its physical footprint?
Dimensions: 54 × 206 × 275 mm, compact for most cabinet layouts.
What maintenance is required?
Minimal routine inspection to ensure stability and proper sliding operation.
Can it support system expansions?
Yes, it is designed to accommodate additional modules and upgrades easily.
