Brand:ABB PLC Item No.:ABB PFCL241SEE Product Origin:Sweden Product Dimensions:150 mm × 100 mm × 50 mm Product Weight:2.0 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

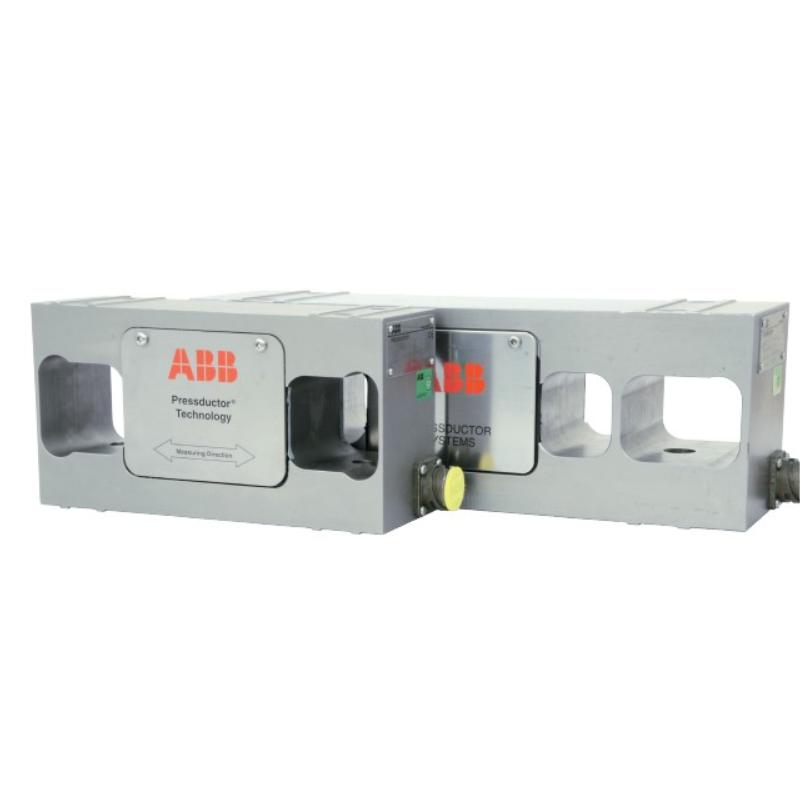

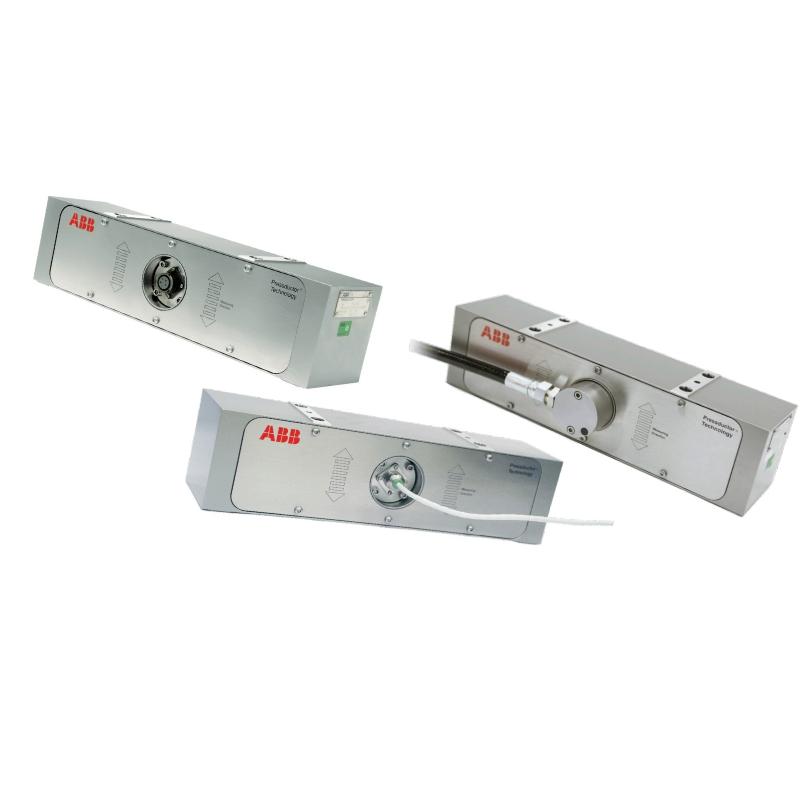

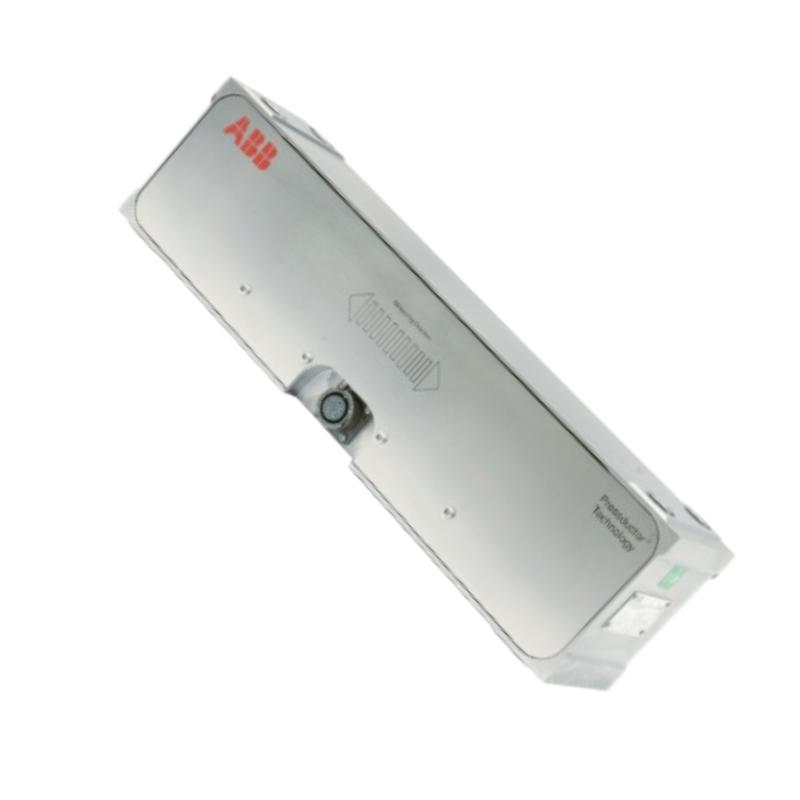

The ABB PFCL241SEE Pressductor PillowBlock Load Cell Module is a precision-engineered force sensor designed for vertical force measurement in high-tension industrial applications. It utilizes ABB’s robust Pressductor® technology and solid stainless-steel construction to deliver exceptional accuracy, overload tolerance, and long-term stability under harsh operating conditions. Whether deployed in rolling mills, strip tension lines, or other high-load process environments, this load cell provides reliable force feedback that is essential for quality control and process optimization.
Technical Specifications
Parameter
Specification
Product Name
ABB PFCL241SEE
Module Type
Pressductor PillowBlock Load Cell
Measurement Direction
Vertical force ± (bidirectional)
Nominal Load Capacity
200 kN (rated capacity)
Extended Load
300 kN (measurement direction)
Permitted Transverse Load
100 kN (horizontal)
Overload Capacity
1,000 kN (vertical) / 500 kN (horizontal)
Deflection at Nominal Load
0.020 mm (0.8 mil)
Spring Constant
High stiffness design
Operating Temperature
-40°C to +85°C
Material
Solid stainless steel (industrial sealed)
Dimensions (L × W × H)
150 mm × 100 mm × 50 mm (approx.)
Weight
~2.0 kg (4.4 lbs)
Recommended Related Models
To build a complete high-precision tension control system, the PFCL241SEE is often paired with:
ABB PFEA112 Tension Electronics Unit – signal conditioning and processing
ABB PFEA113 Signal Amplifier Module – conversion and interface support
ABB AC500 PLC Automation Platform – advanced process control
ABB ACS880 Industrial Drive System – motor and tension control integration
This combination ensures accurate measurement, responsive control loops, and seamless automation integration.
Popular ABB Measurement Integrations
The PFCL241SEE is frequently deployed within measurement and automation packages such as:
ABB Web Tension Measurement Solutions
ABB Strain and Force Monitoring Systems
ABB Process Automation Architectures
ABB Rolling Mill Control Systems
Its solid construction and reliable measurement performance make it a preferred choice for OEMs and system engineers.
Industrial Applications
This load cell module excels in demanding process environments including:
Steel and metal strip tension control
Rolling mill force measurement
Paper and pulp web handling
High-speed converting lines
Textile and film processing
Heavy material processing lines
Accurate vertical force measurement improves product quality, reduces material waste, and supports precise process feedback loops.
Key Advantages
High-capacity force measurement: 200 kN nominal rating supports heavy tension loads
Exceptional overload tolerance: up to 1,000 kN in measurement direction
Robust industrial design: solid stainless steel construction for durability
Stable output under dynamic conditions: advanced Pressductor® sensing technology
Bidirectional force sensing: supports applications requiring vertical force in both directions
Resilient to electrical interference: inherent signal stability in industrial environments
Seamless integration: designed for automation and tension control systems
Ideal for preventive maintenance: long service life reduces downtime
Technical FAQs
1. What type of measurement does the PFCL241SEE perform?
It measures vertical force using a solid Pressductor® load cell design for accurate tension sensing.
2. What is the rated load capacity?
The nominal load capacity is 200 kN.
3. Can it handle overload conditions?
Yes, the module can tolerate up to 1,000 kN in measurement direction without damage.
4. What environments is it suited for?
It is engineered for harsh industrial conditions such as rolling mills and process lines.
5. How is deflection at load measured?
Deflection at nominal load is extremely low (~0.020 mm), enhancing measurement repeatability.
6. Is calibration required?
Periodic calibration is recommended to maintain accuracy in precision applications.
7. What material is used for construction?
Solid stainless steel provides robust mechanical performance.
8. Can it measure bidirectional force?
Yes, it senses both upward and downward vertical forces.
9. Is it compatible with ABB automation systems?
Yes, it integrates with tension electronics and drive control platforms for feedback control.
10. Is professional installation recommended?
Yes, correct mechanical alignment and secure mounting ensure optimal performance.
