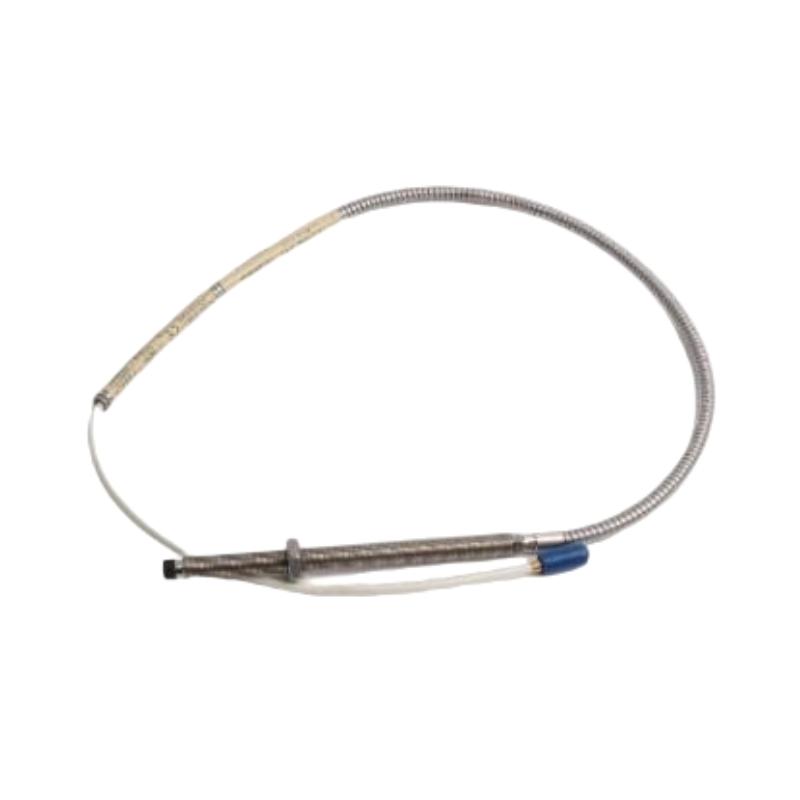

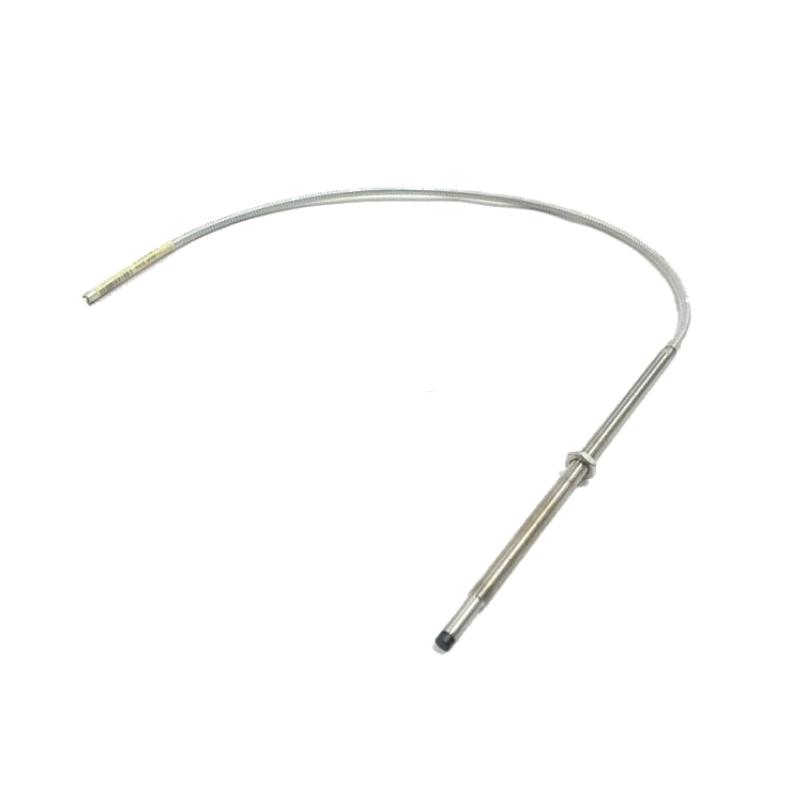

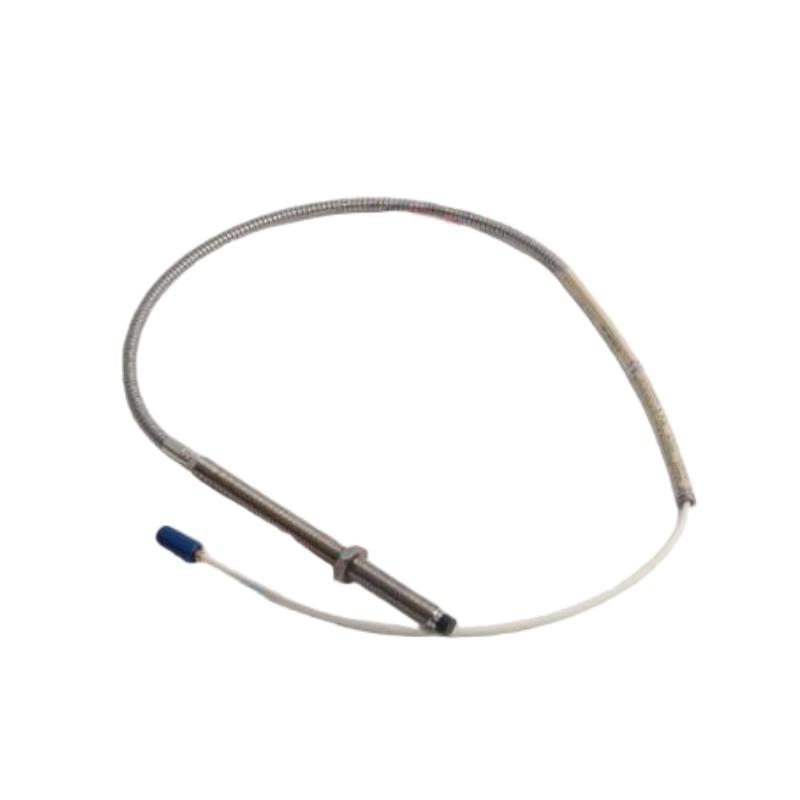

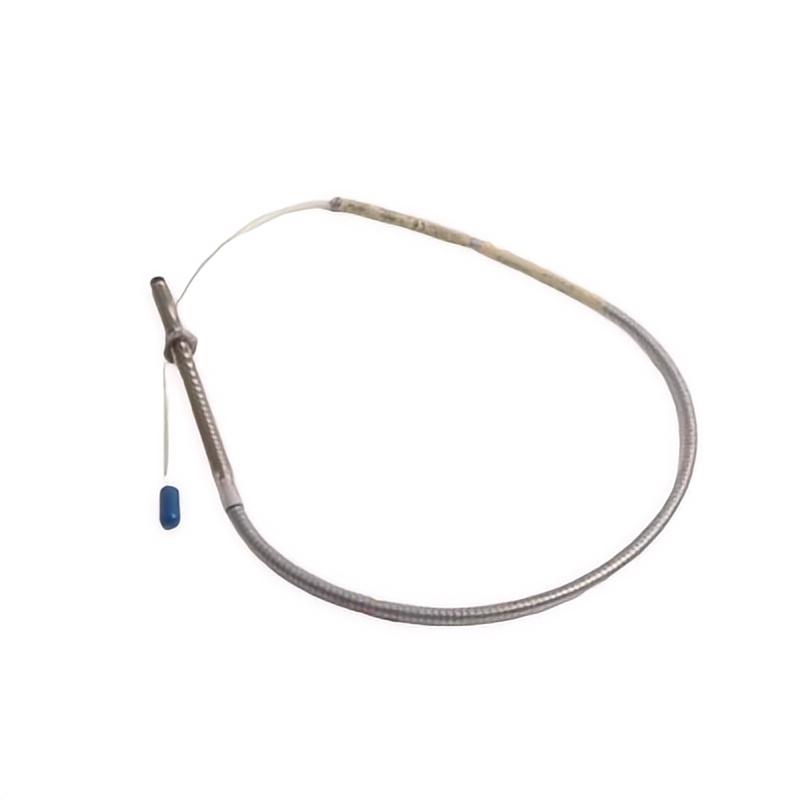

Bently Nevada 22810-00-04-05-02 7200 Series 8mm Standard Mount Probe

Applications and Machinery Condition Monitoring

The Bently Nevada 22810-00-04-05-02 7200 Series 8mm Standard Mount Probe is a precision eddy current proximity sensor designed for monitoring the condition of critical rotating machinery. It provides accurate non-contact measurement of shaft displacement and vibration, allowing engineers to evaluate machine health and identify potential mechanical problems at an early stage.

This 8mm standard mount probe is commonly installed on turbines, compressors, pumps, generators, and other high-value rotating equipment where continuous monitoring is essential. As part of a Bently Nevada machinery protection solution, it supports reliable vibration analysis and shaft position measurement for industrial plants requiring high operational availability.

For maintenance teams and reliability engineers, the 22810-00-04-05-02 provides a trusted sensing solution that helps improve predictive maintenance efficiency, reduce unexpected shutdowns, and protect valuable industrial assets.

Advantages and Technical Performance Benefits

• Accurate Eddy Current Measurement
  The 22810-00-04-05-02 delivers precise shaft displacement detection without physical contact, supporting reliable machinery monitoring.
• Designed for Critical Rotating Equipment
  The probe is suitable for applications where continuous vibration and position monitoring are required for safe operation.
• Stable Signal Performance
  The sensor provides consistent measurement signals, helping monitoring systems maintain accurate machinery condition analysis.
• Compatible with Bently Nevada Monitoring Systems
  This probe is designed for integration with appropriate Bently Nevada monitoring equipment used in industrial protection systems.
• Supports Predictive Maintenance Programs
  Accurate vibration and displacement data helps engineers detect mechanical issues before major failures occur.
• Reliable Industrial Replacement Component
  The probe provides an effective replacement option for maintaining existing machinery monitoring installations.

Technical FAQs and Troubleshooting Guide

1. What is the primary function of the Bently Nevada 22810-00-04-05-02 probe?
The probe measures shaft movement and displacement by using eddy current technology to monitor the distance between the probe tip and the rotating shaft.

2. What are common signs of a faulty 22810-00-04-05-02 probe?
Typical symptoms include unstable vibration readings, incorrect displacement values, signal interruption, abnormal gap voltage, or monitoring alarms.

3. How should technicians troubleshoot a proximity probe signal problem?
Engineers should check probe installation, cable connections, signal output, gap settings, and the associated monitoring module.

4. What equipment applications commonly use this 8mm probe?
The probe is commonly used on turbines, compressors, pumps, motors, and generators requiring continuous shaft condition monitoring.

5. How does incorrect probe installation affect measurement accuracy?
Incorrect mounting position or gap adjustment can cause inaccurate readings, unstable signals, and unreliable machinery condition data.

6. Can a failed proximity probe affect machinery protection systems?
Yes. Incorrect sensor signals may affect vibration monitoring accuracy and reduce the effectiveness of equipment protection functions.

7. Which components should be inspected with the 22810-00-04-05-02 probe?
Technicians should inspect the extension cable, proximity driver, monitoring module, wiring connections, and sensor mounting condition.

8. How can users extend the service life of this probe?
Proper installation, protection from mechanical damage, regular inspection, and maintaining clean operating conditions can improve reliability.

9. Can this probe replace every Bently Nevada 8mm sensor?
No. Replacement depends on electrical characteristics, system compatibility, mounting requirements, and the specific monitoring application.

10. What factors may cause unstable probe output signals?
Common causes include cable damage, electromagnetic interference, improper gap adjustment, mechanical vibration, and environmental contamination.
